Synopsis
Keywords: Hyperpolarized MR (Non-Gas), Contrast Agent
Motivation: Hyperpolarized [1-13C]pyruvate MRI is promising for studying cancer metabolism and assessing early therapy response but requires high-throughput and less complex hyperpolarization techniques for wide availability.
Goal(s): Demonstrating metabolic imaging in a genetic mouse model of metastasizing breast cancer (MMTV-PyMT) using purified [1-13C]-pyruvate-d3 hyperpolarized via parahydrogen-based Signal Amplification By Reversible Exchange (SABRE).
Approach: Our rapid (6 min) and efficient hyperpolarization method yielded highly-polarized (>10%) [1-13C]-pyruvate-d3 in safe aqueous solutions.
Results: Administered to two PyMT-mice, 13C chemical shift imaging detected the injected pyruvate and metabolized [1-13C]-lactate. Analysis revealed elevated lactate levels in tumors compared to healthy breast tissue, highlighting tumor compartments with distinct metabolic profiles.
Impact: We showcase our rapid, cost-effective SABRE hyperpolarization approach, yielding safe, highly-polarized pyruvate for inaugural cancer metabolic investigations. This innovation expands high-throughput preclinical HP-MRI research, enabling comprehensive exploration of tumor biology, metabolic processes, and therapeutic responses in cancer.
Introduction

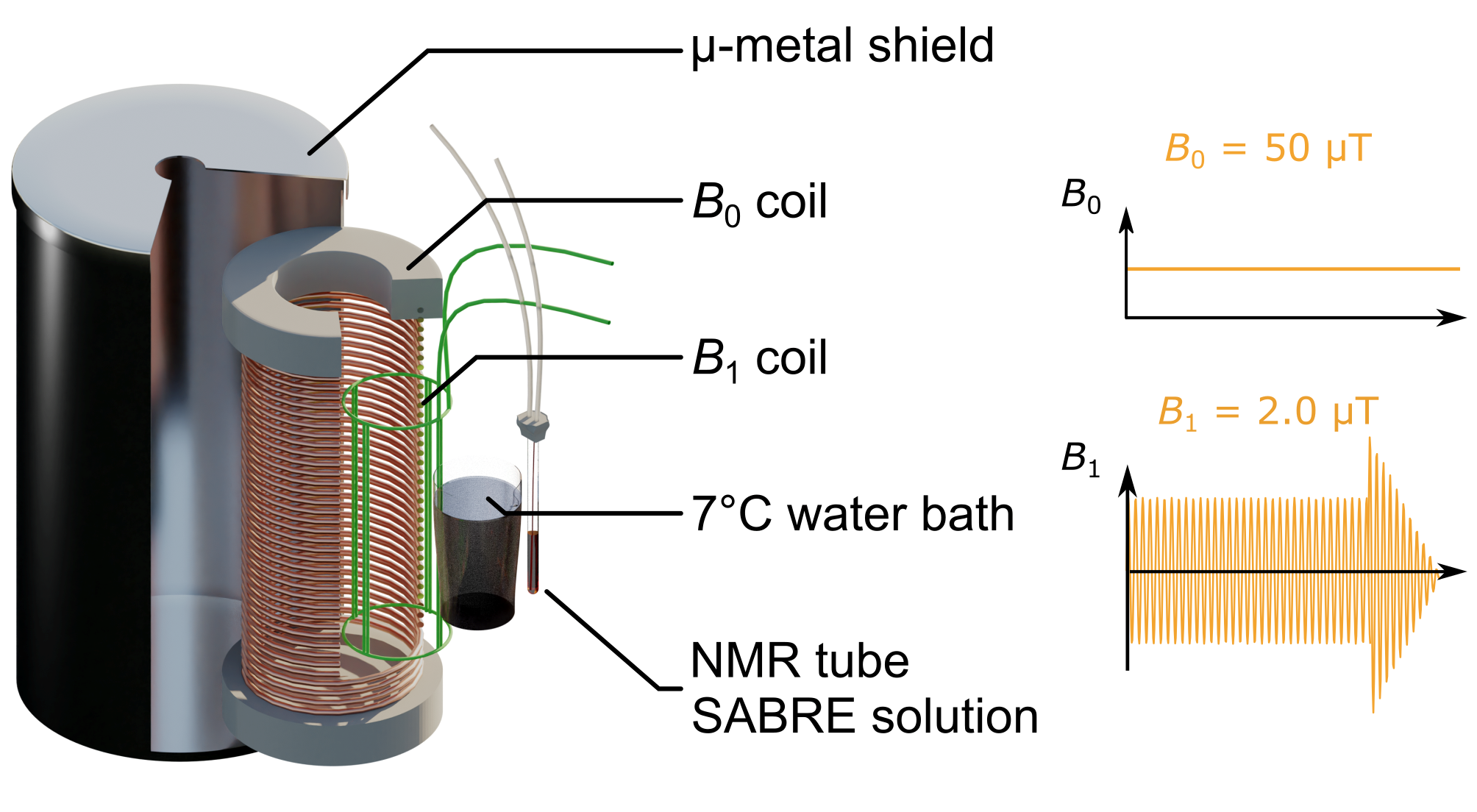

Hyperpolarized (HP) [1-13C]pyruvate MRI has shown great promise for studying cancer metabolism and assessing early therapy response 1–3. However, a high-throughput, low foot-print and less complex hyperpolarization technology is needed to make this promising technique widely available. Recently, we introduced a fast (6 min) and cost-effective method using Signal Amplification By Reversible Exchange (SABRE) 4 and Spin-Lock Induced Crossing (SLIC-SABRE )5 at microtesla fields (Fig. 1) 6 and a rapid purification to produce safe HP solutions of aqueous pyruvate 7. We successfully demonstrated in vivo HP metabolic MRI in healthy mice 7. Here, we report the first application of this promising high-throughput hyperpolarization technique to investigate a genetic model for proliferating breast cancer in mice (MMTV-PyMT). Particularly, for studying the PyMT model, pyruvate appears as a promising agent as these luminal type of cancers do overproduce lactate under anaerobic conditions and typically present enhanced levels of LDHA and MCT1 8.Methods

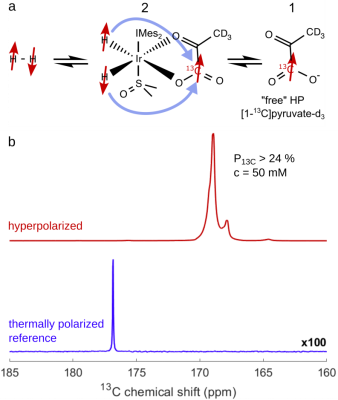

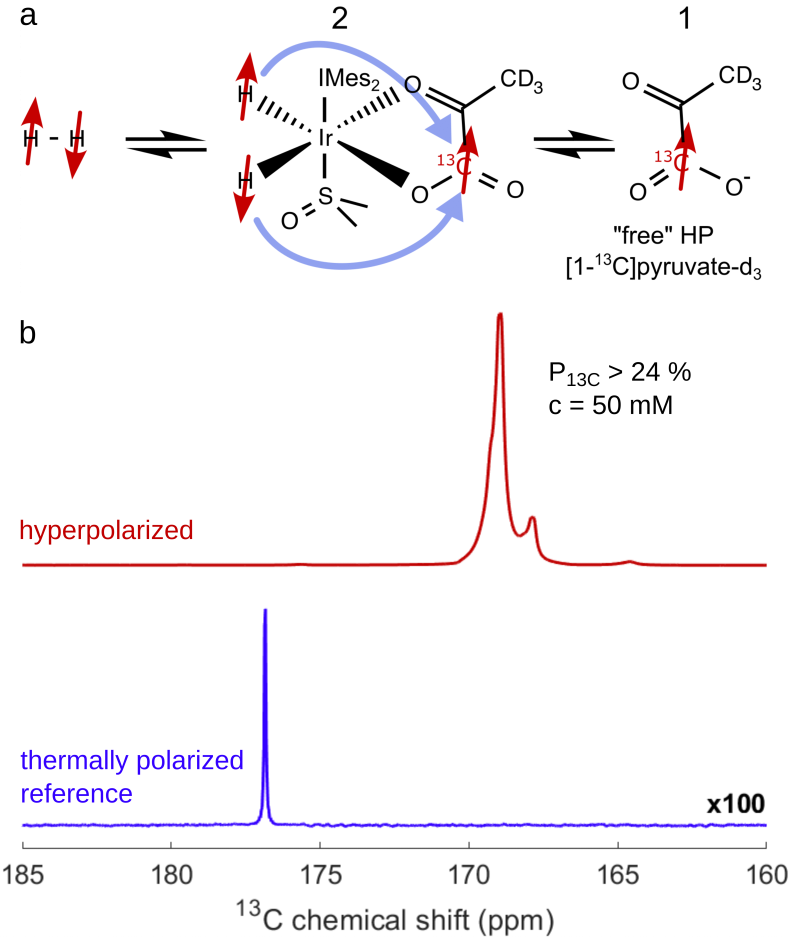

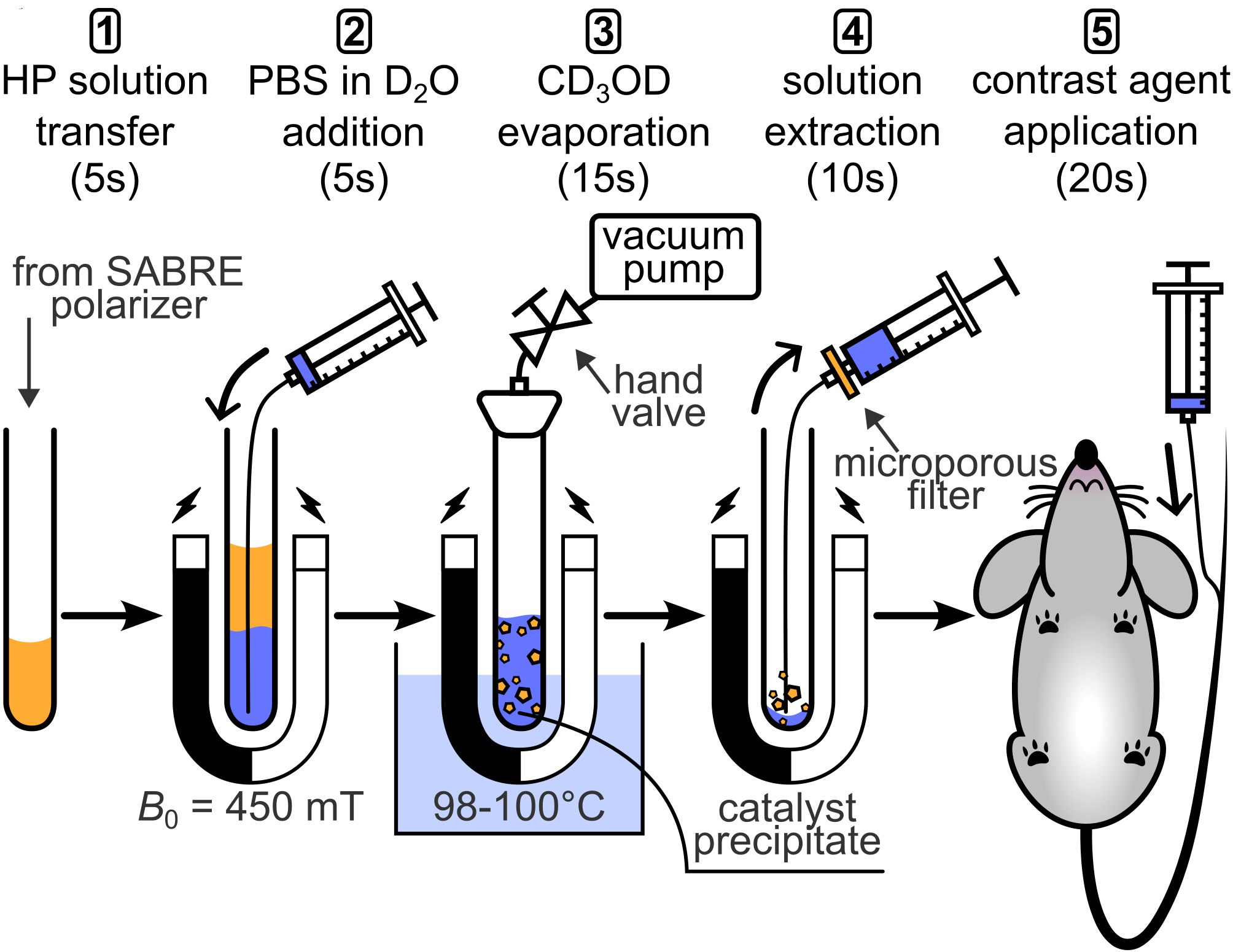

50mM [1-13C]pyruvate-d3 was hyperpolarized in methanol-d4 up to 24.1% using an iridium-based catalyst and reversible exchange with >90% parahydrogen (pH2) in a home-build SLIC-SABRE setup (B0=50µT, B1=1.995µT, average HP 21.2±1.7%, N=8, Fig. 2). The hyperpolarized solution was purified in about 60s by adding 1ml PBS in D2O, evaporating methanol at 100°C and 5mbar, and filtering the solution to remove the precipitated catalyst. After purification, as demonstrated in our recent study, a clean, non-acute toxic, sterile and pH-neutral injection solution of HP [1-13C]pyruvate-d3 was obtained (P~11%, c~30mM, V~250µL, residual 50 mM methanol and 20 μM catalyst) 7. This purified pyruvate solution was administered to breast tumor-bearing mice (~13 weeks, ~24g, bolus up to 5µL/g) within ≈8s and a 2D FID chemical shift imaging (FIDCSI) sequence was applied (FOV: 26x32mm2, matrix: 13x16, axial slice 5/7mm, spectral bandwidth 2500Hz (200 points), TR=85ms, α=12°, Bruker 70/20). T2w RARE MRI was acquired for anatomical reference (FOV: 26x32mm2, matrix: 173x213, slice 1mm, TR=4s, N=9). Pyruvate and lactate images were generated by integrating the area-under the curve of a multi-peak Voigt profile that was fitted to the line-broadened spectra (30Hz) using (a custom) python 3.10 script (based on 8).In the PyMT mouse model of metastasizing breast cancer the oncogene (Polyoma Middle T) is expressed only in the breast epithelium, therefore the (FVB) mice develop breast tumors in all ten mammary glands with palpable tumors at an age of about 8 weeks 9.
Results

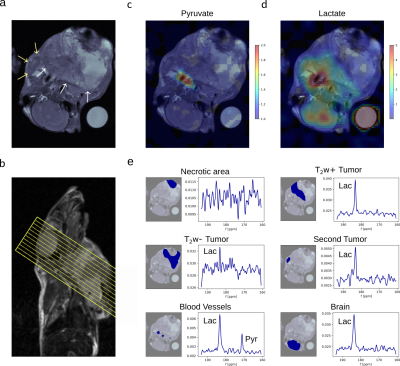

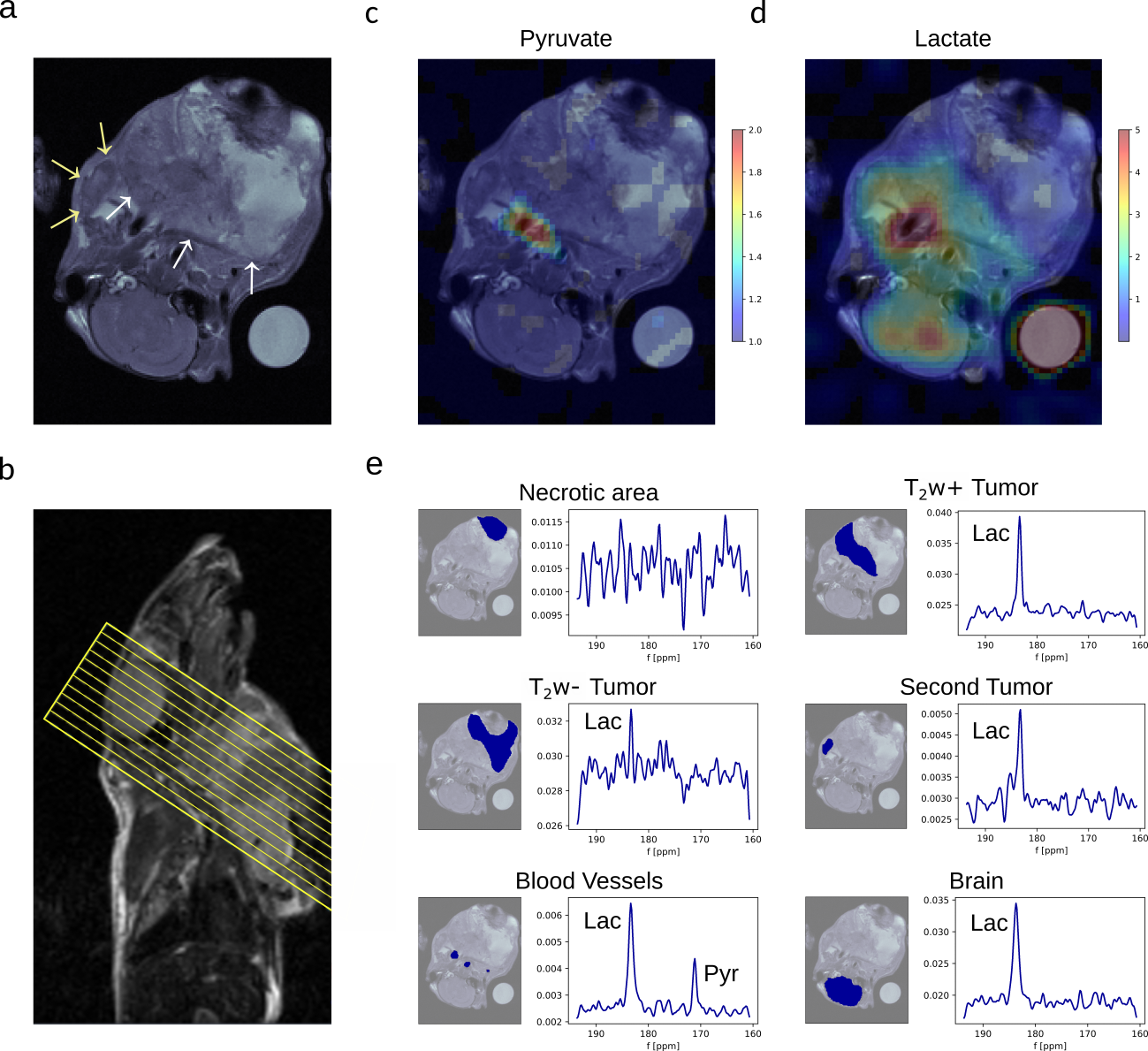

Strong 13C CSI signals were detected 10s and 20 s after injection in mouse 1 and 2, respectively (Fig. 4, 5). Mouse 1: The tumor was readily identified on the T2w MRI, showing a hyper- (T2w+) and hypo- (T2w-) intense region. The strongest 13C pyruvate and lactate signals were observed in the heart. Lactate levels were elevated in the tumor compared to adjacent non-cancerous breast tissue. The T2w- region showed less pyruvate and lactate signal than the T2w+ region.Mouse 2: T2w MRI showed a large tumor with a necrotic, a T2w+, a T2w- region, and another smaller tumor. At 20 seconds post-injection, the pyruvate signal had significantly diminished, primarily remaining within the blood vessels. However, similar to mouse 1, robust lactate signals were detected within the T2w- tumor region, while limited lactate was observed in the T2w+ part. No pyruvate or lactate was detected in the necrotic region. In mouse 2, no healthy breast tissue was present for reference; instead, a smaller metabolically active tumor was identified.
Discussion
This fast and cost-effective hyperpolarization technique has proven valuable for preclinical investigations of cancer metabolism. It allowed a clear differentiation between healthy breast tissue and the tumor, with lactate predominantly appearing in the latter. Additionally, CSI images unveiled metabolic heterogeneity within distinct tumor regions, including necrotic areas lacking perfusion and regions with varying metabolic activity, possibly linked to differences in perfusion. We eagerly await the histological results that will provide a deeper understanding of the tissue differences among these tumor compartments.Using the robust CSI sequence, initial metabolic information was obtained from the 13C images; however, they lack spatial and temporal resolution and are highly reliant on precise timing. Hence, our future metabolic MRI studies may benefit from 3D dynamic 13C imaging to improve the interpretation of the findings.
Conclusion
The characterization of tumor biology, focusing on metabolic activity and heterogeneity, holds significant promise for studying cancer, improving therapies, and monitoring early response. Fast, low-cost SABRE hyperpolarization enables high-throughput HP-MRI, thus providing a potent resource for preclinical cancer research. This development extends the accessibility of HP-MRI to a broader biomedical community, offering new avenues for research in the field of oncology.Acknowledgements
