Introduction

4D Flow MRI offers comprehensive assessment of cardiovascular hemodynamics but is limited by long scan times. Different techniques have been used to accelerate the acquisition, including SENSitivity Encoding (SENSE)¹ and compressed sensing². While these efforts into accelerated image acquisition have led to acceptable 4D Flow MRI scan times, a drawback of especially iterative reconstruction methods such as compresses sensing is that the reconstruction of the undersampled data becomes excessively complex and computationally expensive.
Deep learning has the potential to offer very fast reconstruction times and overcome limitations of conventional reconstruction methods such as SENSE and compressed sensing³. While several networks have demonstrated encouraging results for phase-contrast MRI, an implementation of a deep variational network termed FlowVN has shown highly promising initial results for 4D Flow MRI with network training based only on 11 datasets and rapid reconstructions on the order of a few seconds³.
The aim of this study was to deploy FlowVN at a new site and evaluate its performance in terms of image quality and quantification of blood flow in the ascending aorta.

Methods

The original implementation of FlowVN was modified for TensorFlow 2.0. To train the network, 4D Flow MRI data were acquired in 10 patients status post mitral valve repair at a 1.5T Philips Ingenia scanner (Philips Healthcare, Best, the Netherlands). The 4D Flow MRI data were acquired with a free-breathing, respiratory navigator gated sequence. SENSE acceleration a total undersampling factor of 4 was used. Scan time was about 10-15 minutes including navigator gating. Reconstruction was performed using ReconFrame (Gyrotools LLC, Zürich, Switzerland) in MATLAB (Mathworks, Natick, MA, United States). The SENSE reconstructed, fully sampled data was used for FlowVN training. We used the Walsh method⁴ to generate the sensitivity maps needed by FlowVN. Network training on a computer equipped with an NVIDIA Quadro P6000 24GB GPU took approximately three days.

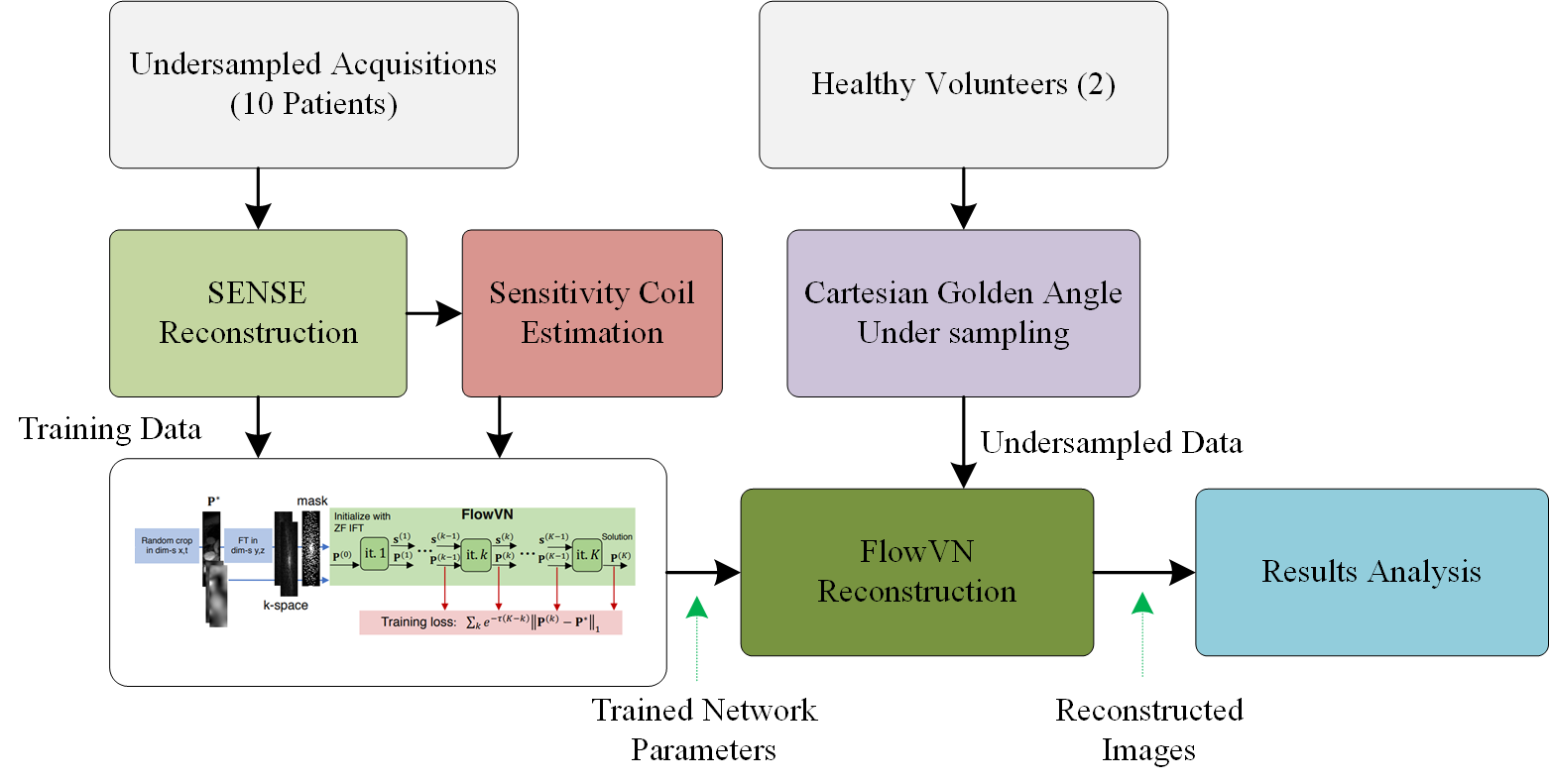

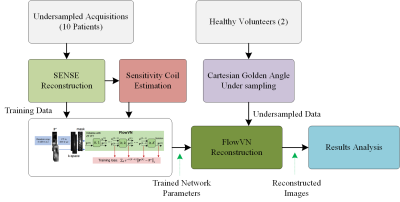

To test the trained network, fully sampled 4D flow data was acquired using the same 4D Flow CMR sequence as for the acquisition of training data, but without undersampling in 2 healthy volunteers. Additionally, respiratory navigator gating was omitted. The scan time was 23 minutes. The data were retrospectively undersampled at acceleration factors ranging from 6 to 22 using cartesian golden angle under sampling⁵. The acquisition and processing of training and testing data is summarized in Figure 1.
For evaluation, the aorta was segmented using an automated atlas-based method⁶. The quality of the reconstructed velocity images was assessed quantitatively based on the relative error of velocity magnitudes in the aorta, the angular error (angular dissimilarity between velocity vectors), and the normalized root mean square error (nRMSE) of the magnitude images. Additionally, the average and maximum flow velocity in aorta were computed.

Results

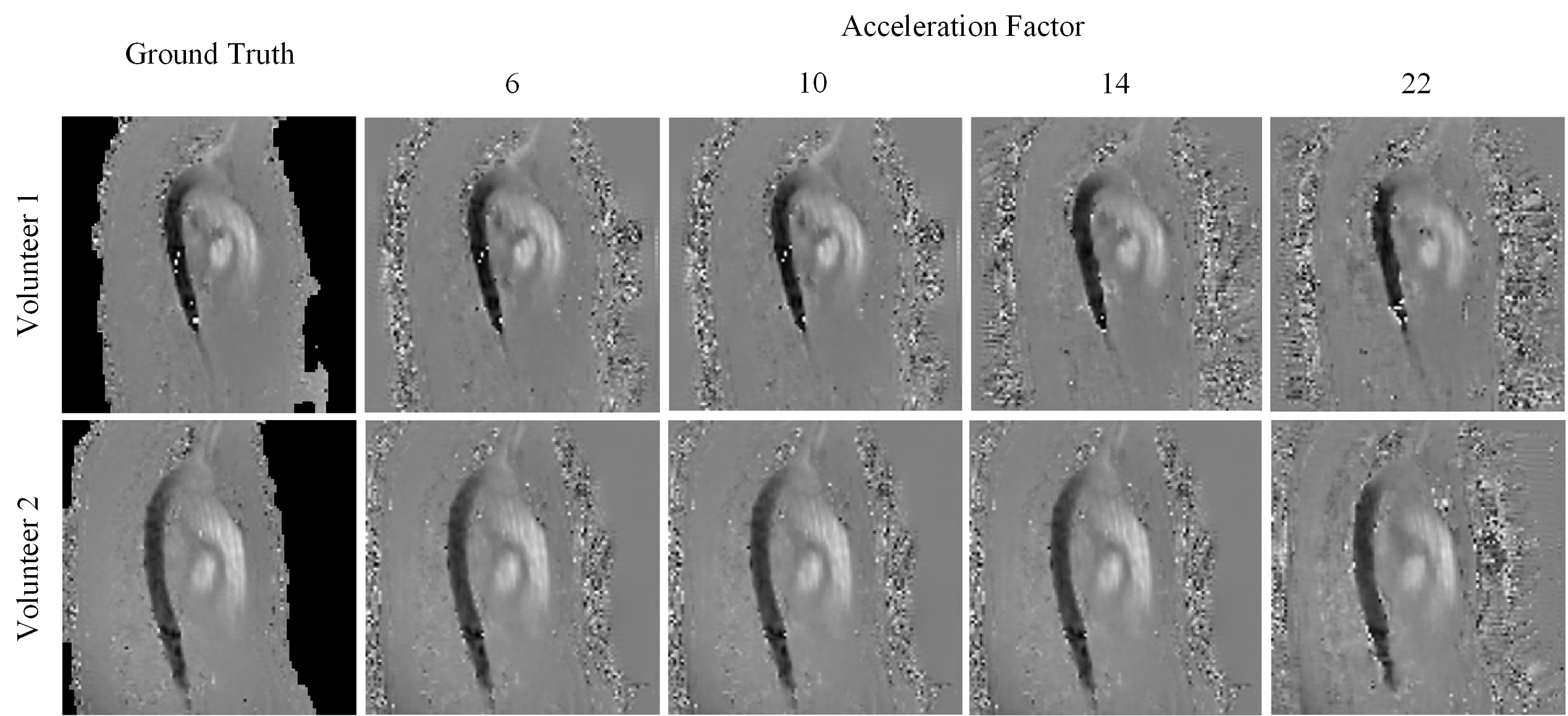

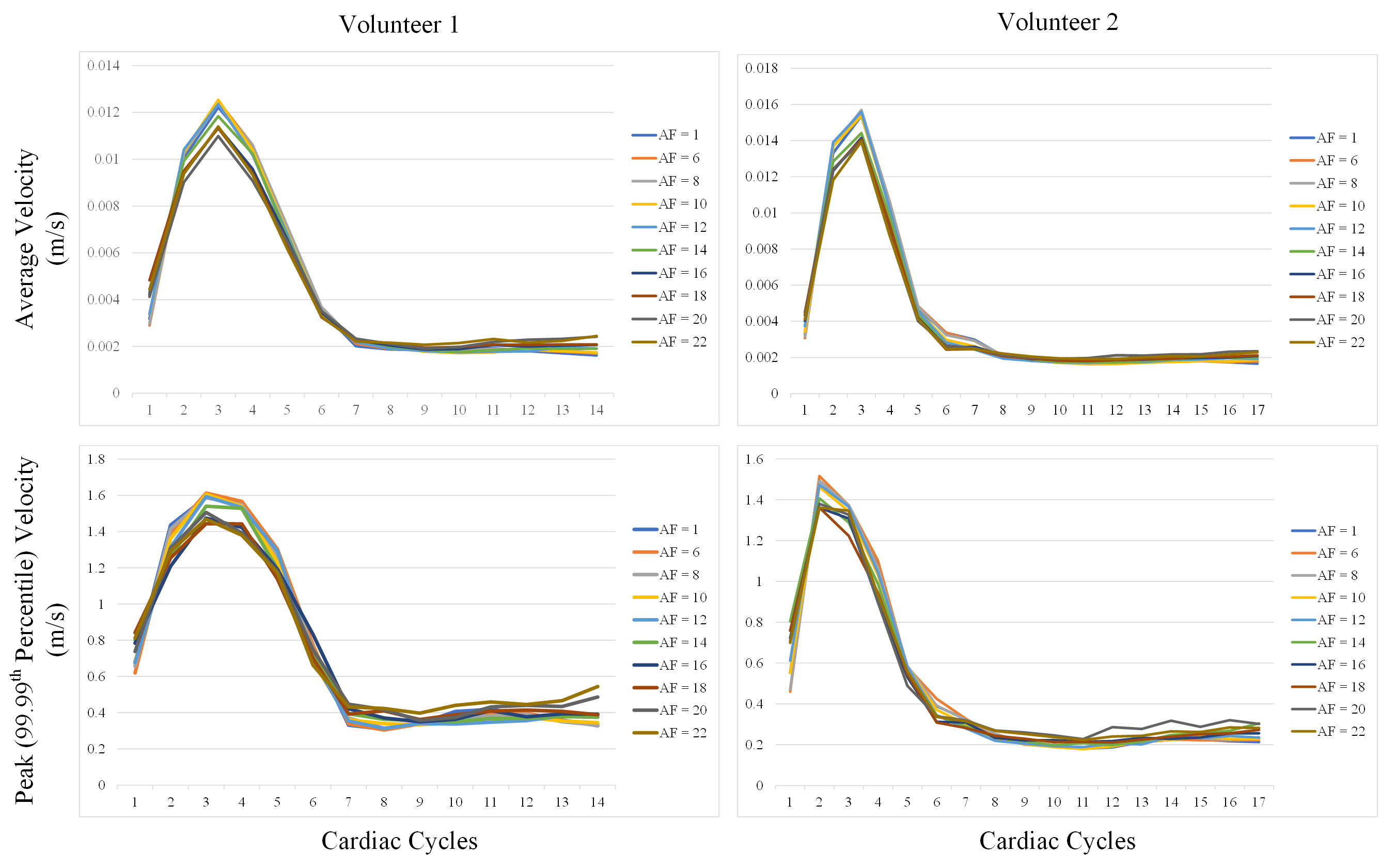

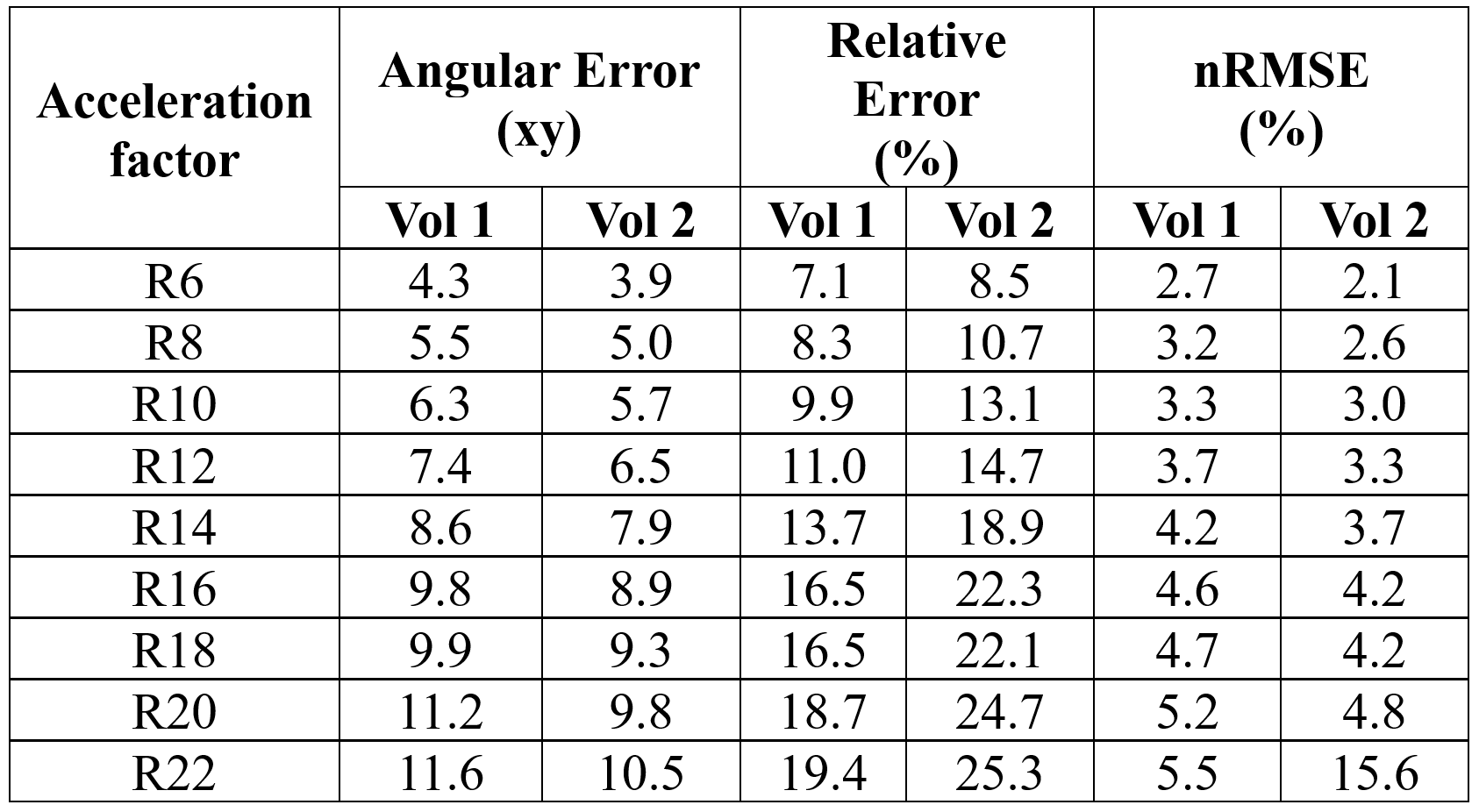

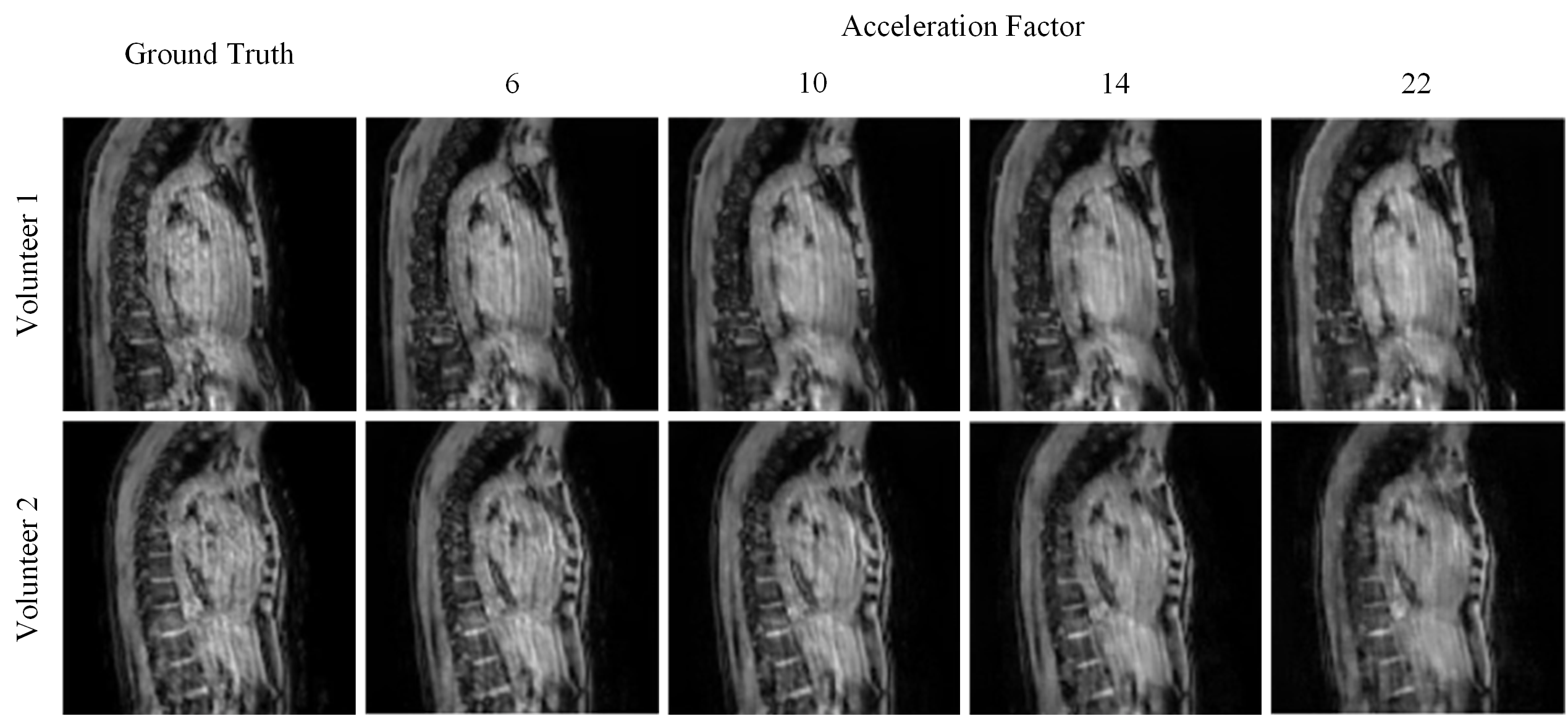

FlowVN reconstructions took 2 minutes and 25 seconds for each acceleration factor. Figure 2 shows ground truth and FlowVN-reconstructed magnitude images and Figure 3 shows ground truth and FlowVN-reconstructed phase images (in FH direction) at different acceleration factors. Overall, for FlowVN-reconstruction results there is good visual agreement between accelerated and ground truth images even at high acceleration factors (see Figure 2 and 3). The quantitative image quality evaluation showed that the errors for both the velocity and magnitude images increase with increasing acceleration factors (see Table 1). Plots of average and peak (99.99^th Percentile) velocity over the cardiac cycle are shown in Figure 4. Peak (99.99^th Percentile) velocity appears accurately resolved even for acceleration factors of 12.

Discussion

In this study, we explored FlowVN for the reconstruction and analysis of 4D Flow MRI. The FlowVN network appears to be robust and is fast in terms of reconstruction time. The reconstructed images show some artifacts which we believe are largely explained by (1) the training data was acquired with 4x SENSE undersampling in patients post mitral valve repair, and 2) the data used for evaluation was acquired without navigator gating. However, in spite of these limitations in the training and test data, the network was capable of reconstructing highly undersampled 4D Flow MR images with remarkably good image quality and maintained accuracy in terms of mean and peak (99.99^th Percentile) velocity in the ascending aorta.

Conclusion

Reconstruction of highly undersampled 4D Flow MRI using FlowVN is fast and accurate. FlowVN shows good results for the measurement of blood flow in ascending aorta. Further studies will be carried out to improve the magnitude images and assess the performance of FlowVN for turbulence mapping.

Acknowledgements

We acknowledge support received from Philips Clinical Science, Sweden.
