Introduction

The potential of magnetic resonance spectroscopy (MRS) is hindered by intrinsically low signal-to-noise ratio (SNR) and limited spatial resolution. Moreover, spectra are often contaminated with residual water signals, lipid contributions, and macromolecular baselines that are difficult to model accurately, thereby obstructing precise quantification ^{1, 2}. Wavelet analysis has shown promise in characterizing spectral components of MRS signals, specifically in disentangling overlapping signal components, including the challenging baseline contributions from macromolecules ^{3, 4}. A recent data-driven method applied a continuous wavelet transform (CWT) to identify and characterize the spectral wavelets representing signals and noise in MRS spectra. Employing a support vector machine, this approach classified these features to selectively remove noise components while preserving valuable metabolite peaks ⁵.

This work presents a novel method for decomposing MRS signals in the frequency domain through wavelet analysis, utilizing a U-Net architecture to generate masks that segment the signals' CWT. This approach effectively separates the signals into their individual metabolite components without compromising their structure. Results on simulated MRS data demonstrate that this technique can successfully learn appropriate weighting masks to decompose metabolites across a wide range of MRS signals with different amplitudes, frequency and phase variations, broadenings, and baselines. This offers a promising direction for the decomposition, noise reduction, and artifact segmentation of MRS signals.

Methods

The signal model for the simulation of the MRS spectra takes the following form: $$X(f) = \sum_{m=1}^M X_m(f) = e^{i(\phi_0 + \phi_1 f)} \sum_{m=1}^M a_m \text{FFT}\{s_m(t) e^{-(i\epsilon + \gamma + \sigma^2 t)t}\} + B(f), $$where $$$\gamma$$$ and $$$\sigma$$$ account for Lorentzian and Gaussian broadening, $$$\phi_0$$$ and $$$\phi_1$$$ are zero and first order phases, and $$$\epsilon$$$ represents frequency shifts. The metabolite basisset $$$\{s_m\}_{m=1}^M$$$ is taken from the fitting challenge data⁶ (21 metabolites and a macromolecule spectrum), $$$a_m$$$ are the concentrations, and the baseline $$$B(f)$$$ is represented by a second-order polynomial. To enhance data variability each batch is created during training by randomly drawing the model parameters from uniform distributions, along with adding complex Gaussian noise to the spectra (peak SNR 5-15 dB).

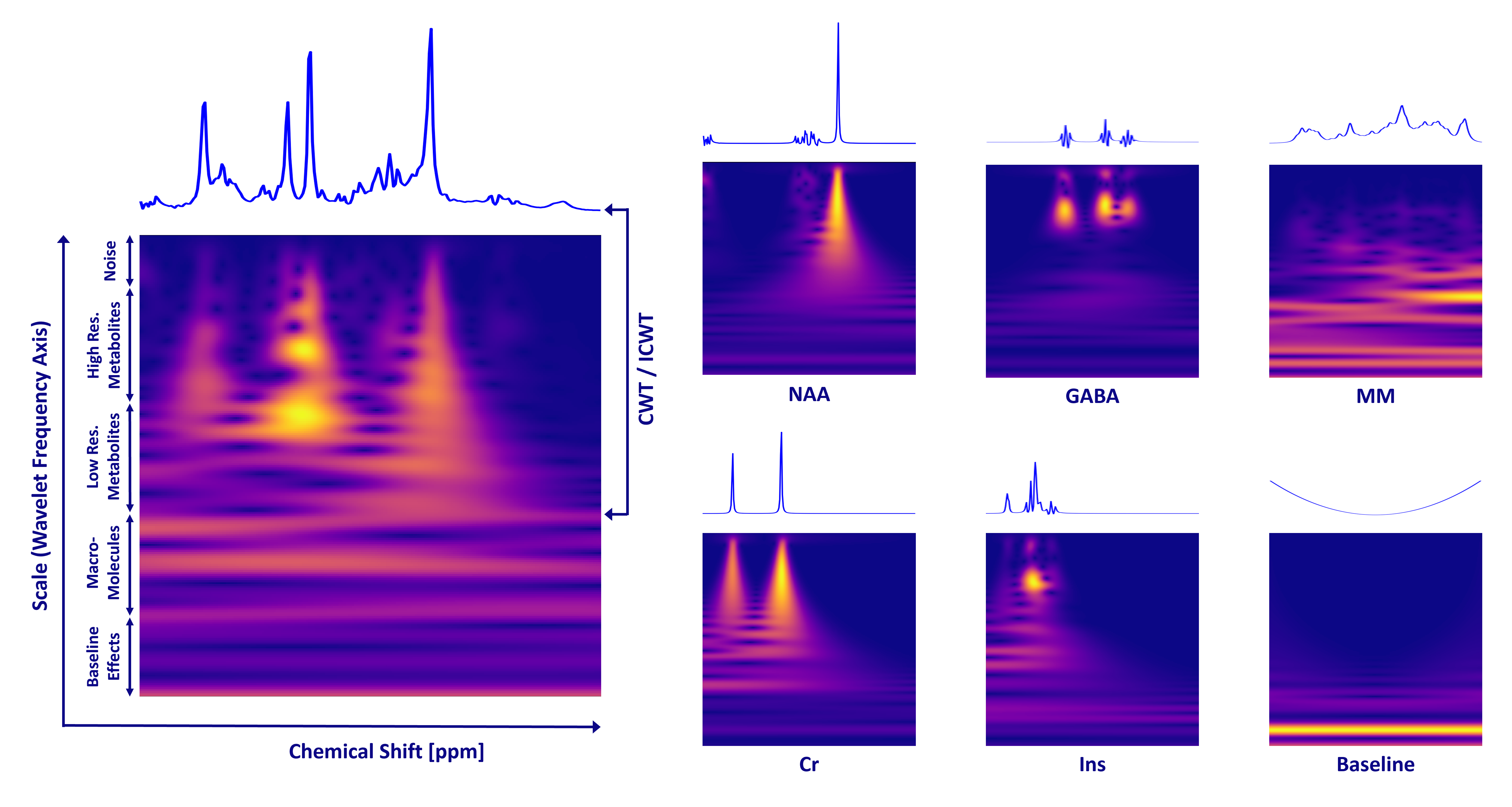

The principle of wavelet analysis is to represent a signal as a superposition of wavelets, which are generated from a single mother wavelet by scaling (dilating or compressing) and translating (shifting). The forward CWT is defined as $$W(s,\delta) = \frac{1}{\sqrt{s}} \int X(f) \, \Psi^*\left(\frac{f-\delta}{s}\right) \, df, $$where $$$s$$$ is the scale factor, $$$\delta$$$ is the translation parameter, and $$$\Psi(f)$$$ is the mother wavelet (with denoting the complex conjugate). This transformation results in a two-dimensional representation of the signal, known as scalogram $$$W(s,\delta)$$$. The inverse CWT (ICWT) is obtained by integrating over all possible scales and translations of the wavelet coefficients, allowing reconstruction of the spectra. Figure 1 motivates the use of wavelet-based decomposition. It displays a sample spectrum alongside its corresponding scalogram and a selection of basis spectra, highlighting the enhanced separability achieved through the use of the CWT.

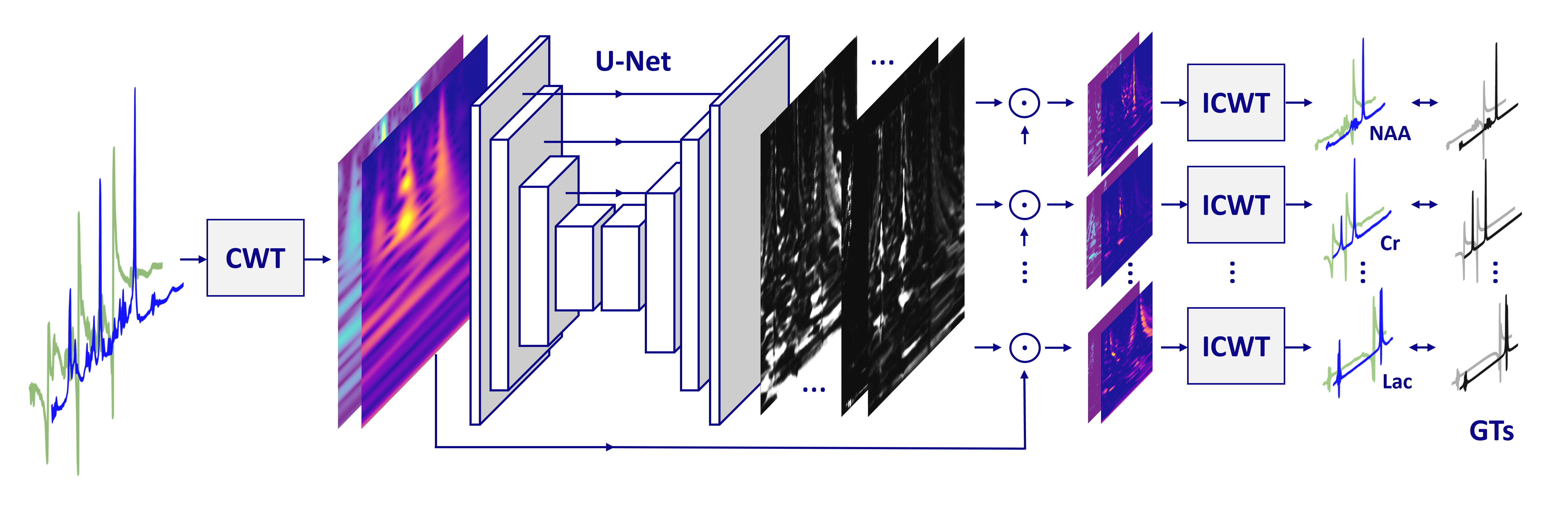

The proposed decomposition method is outlined in Figure 2. The real and imaginary parts of the MRS spectra (0.5-4.5 ppm) are converted to scalograms, which are then fed into a U-Net architecture. The network applies convolutions and pooling to downsample and increase feature representation, followed by upsampling and feature merging. It produces masks for the signal's real and imaginary components and applies them to the scalograms to isolate metabolite-specific information, which can be converted back to spectra using the ICWT. The network is trained with the mean squared error (MSE) of these spectra and the ground truths $$$X_m$$$ (both normalized). By incorporating a differentiable CWT and ICWT into the training pipeline, the U-Net weights are updated with backpropagation through the entire pipeline of Figure 2.

Results & Discussion

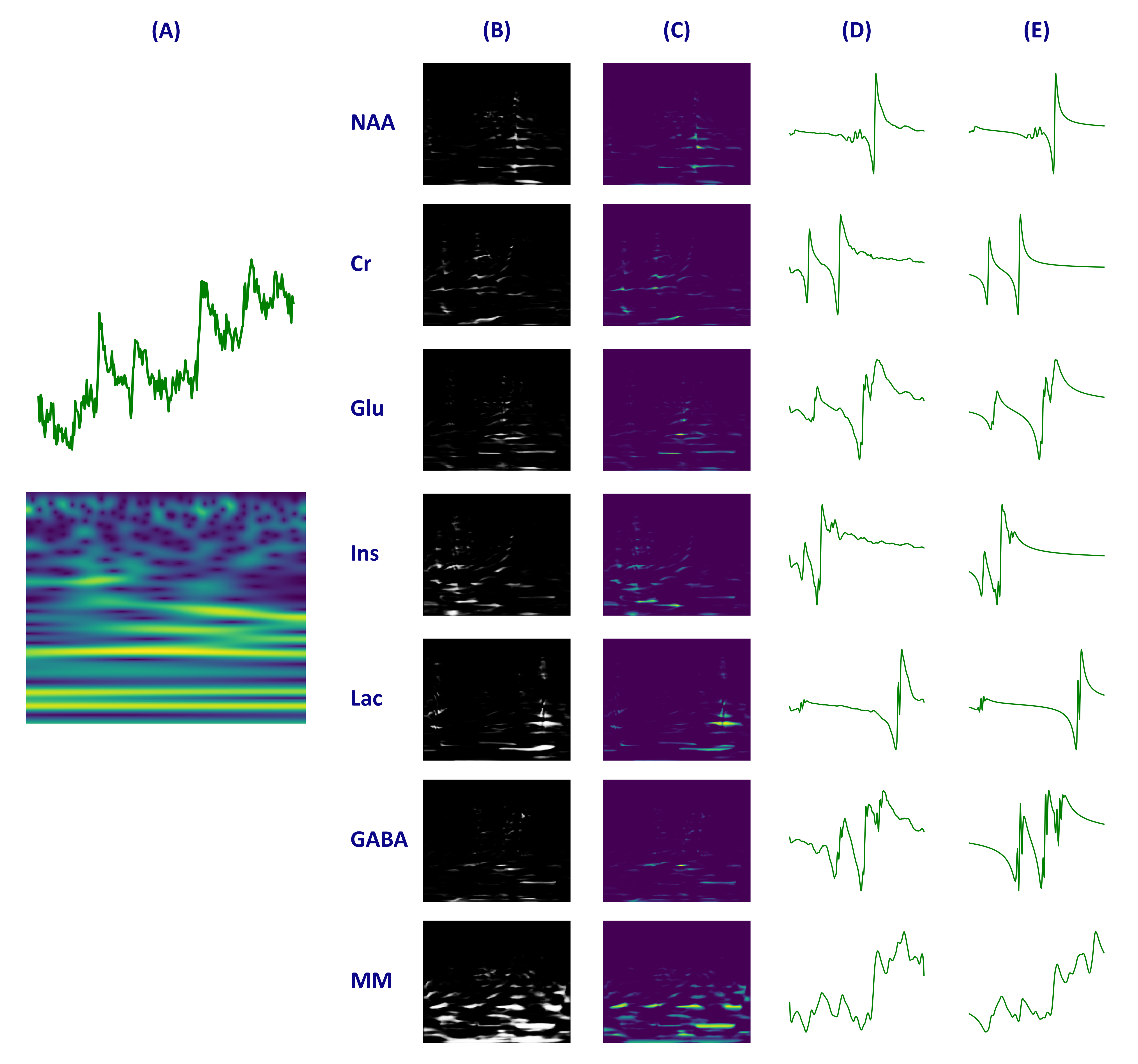

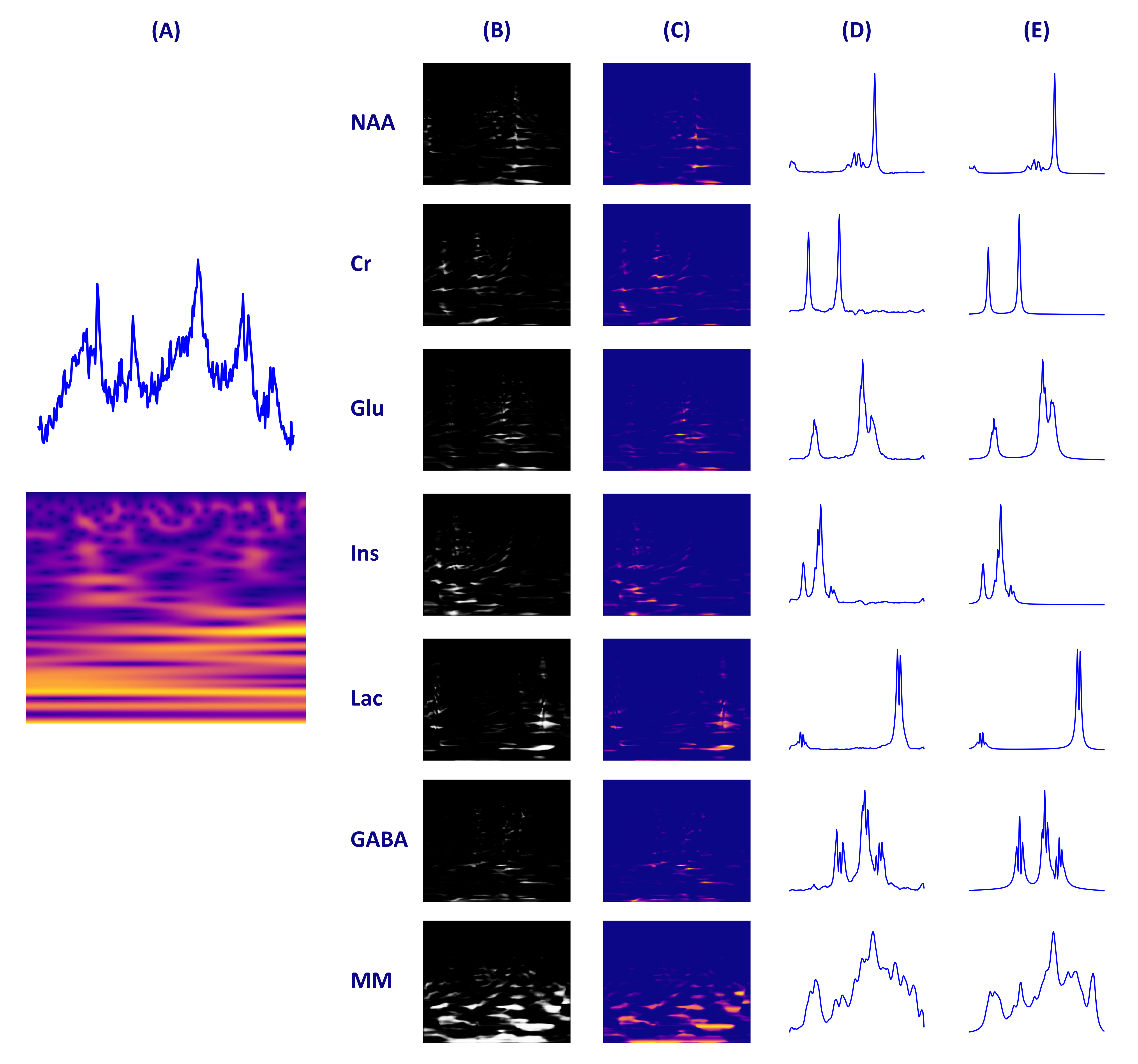

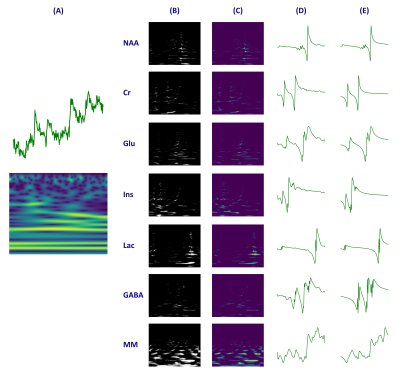

Figure 3 and Figure 4 show the real and imaginary component channels, respectively, of a randomly selected test sample, showcasing the actual part of the spectrum alongside its scalogram. This is followed by the masks created by the U-Net and the separate scalograms obtained post-segmentation. The spectra resulting from the ICWT of the segmented scalograms are then displayed, alongside the actual ground truth spectra of the individual metabolites for comparison. The masks manage to capture the fundamental attributes, including correct broadening, phase and frequency alignment, and fine nuances of each signal for both real and imaginary parts.

Conclusion

Using a U-Net architecture to generate masks that segment scalograms, the method successfully separates individual metabolite components within complex MRS signals. Results from simulated data validate the method's precision in capturing key spectral features and subtle details, demonstrating its capacity to improve metabolite quantification by precisely identifying individual signals and characterizing noise and artifacts.

Acknowledgements

This work was (partially) funded by Spectralligence (EUREKA IA Call, ITEA4 project 20209).
