Prediction model based on MRI morphological features for distinguishing benign and malignant thyroid nodules1Fudan University Minhang Hospital, Shanghai, China
Synopsis
Keywords: Biology, Models, Methods, Head & Neck/ENT
Motivation: The low specificity of many Thyroid Imaging Reporting and Data Systems (TI-RADSs) lead to a large number of unnecessary biopsies.
Goal(s): This study developed and validated a predictive model based on MRI morphological features to improve the specificity.
Approach: A retrospective analysis was conducted on 825 thyroid nodules pathologically confirmed postoperatively. Univariate and multivariate logistic regression was used to obtain β coefficients, construct predictive models and nomogram incorporating MRI morphological features in the training cohort, and validated in a validation cohort.
Results: Compared with the TI-RADSs, predictive models have better specificity along with a high sensitivity and can reduce unnecessary biopsies.
Impact: predictive models have better specificity along with a high sensitivity and may avoid numerous invasive needle biopsies
Objects
The low specificity of Thyroid Imaging Reporting and Data System (TI-RADS) for preoperative benign-malignant diagnosis leads to a large number of unnecessary biopsies. This study developed and validated a predictive model based on MRI morphological features to improve the specificity.Methods

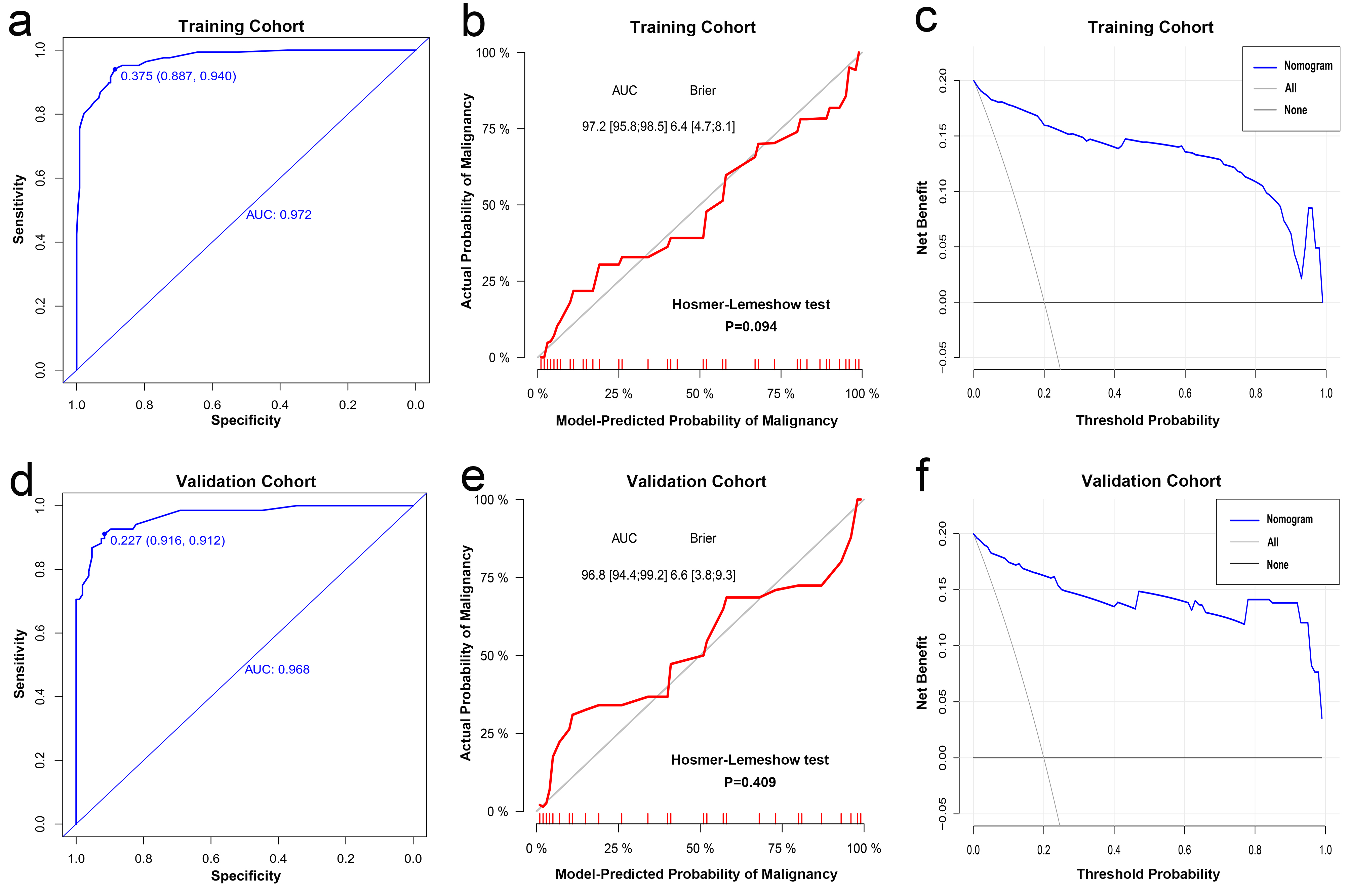

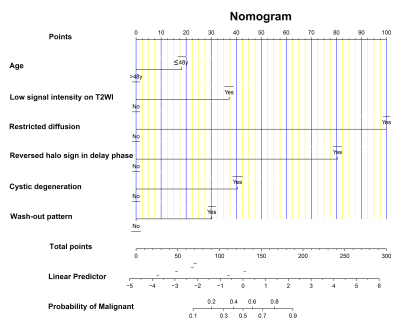

A retrospective analysis was conducted on 825 thyroid nodules pathologically confirmed postoperatively. Univariate and multivariate logistic regression was used to obtain β coefficients, construct predictive models and nomogram incorporating MRI morphological features in the training cohort, and validated in a validation cohort. The discrimination, calibration, and decision curve analysis of the nomogram were performed. The diagnosis efficacy, area under the curve (AUC) and net reclassification index (NRI) were calculated and compared with TI-RADS.Results

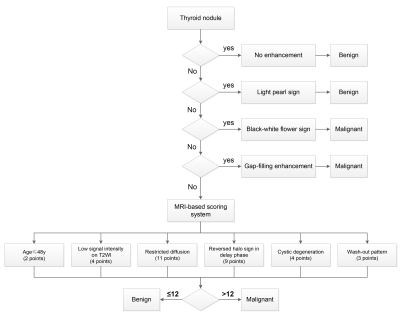

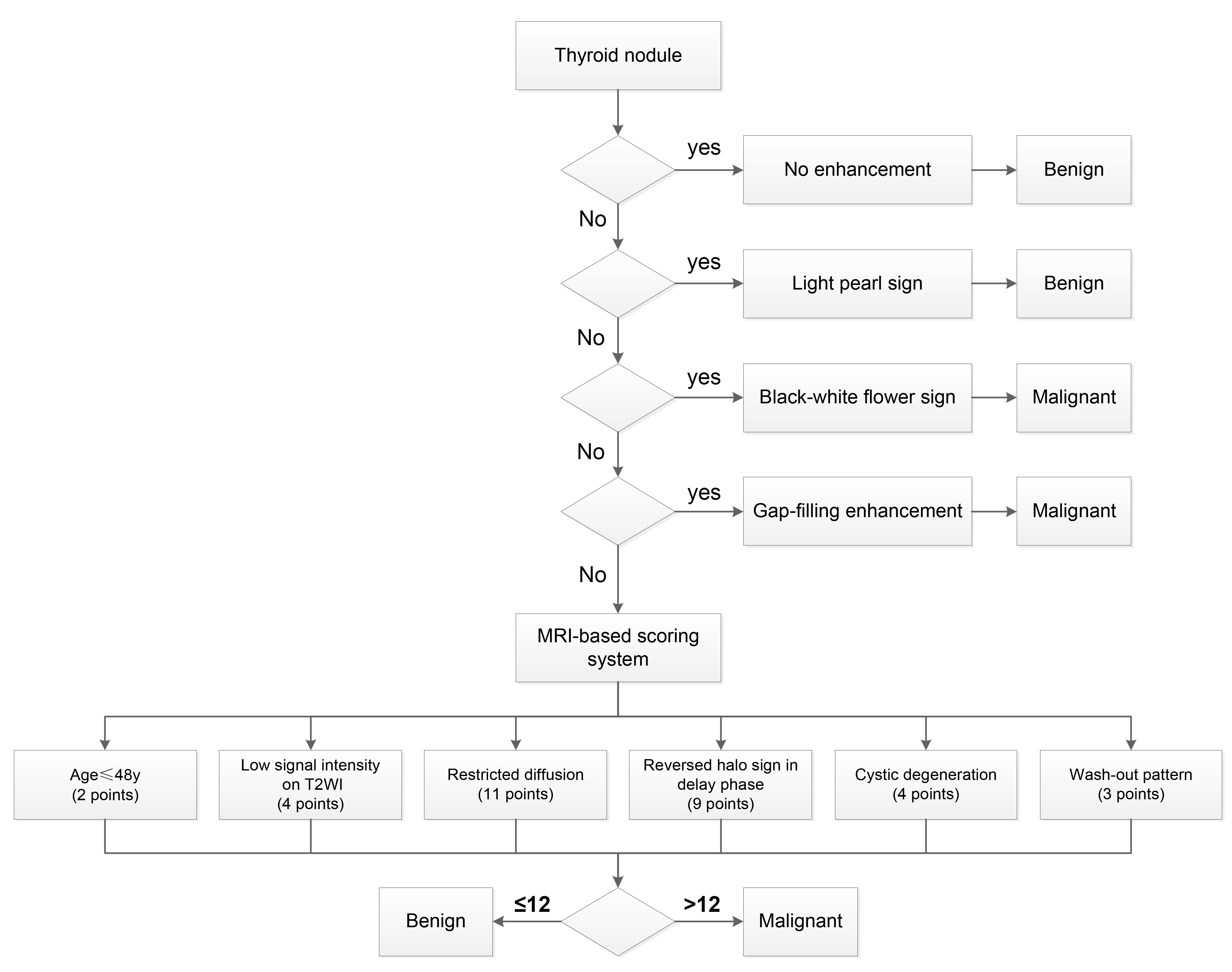

572 thyroid nodules were included (training cohort: n=397, validation cohort: n=175). Age, low signal intensity on T2WI, restricted diffusion, reversed halo sign in delay phase, cystic degeneration and wash-out pattern independent predictors of malignancy. The nomogram demonstrated good discrimination and calibration both in the training cohort (AUC = 0.972) and the validation cohort (AUC = 0.968). The accuracy, sensitivity, specificity, PPV, NPV and AUC of MRI-based prediction are 94.4%, 96.0%, 93.4%, 89.9%, 96.5% and 0.947, respectively. The MRI-based prediction model exhibited enhanced accuracy (NRI > 0) in comparison to TI-RADSs.Conclusions

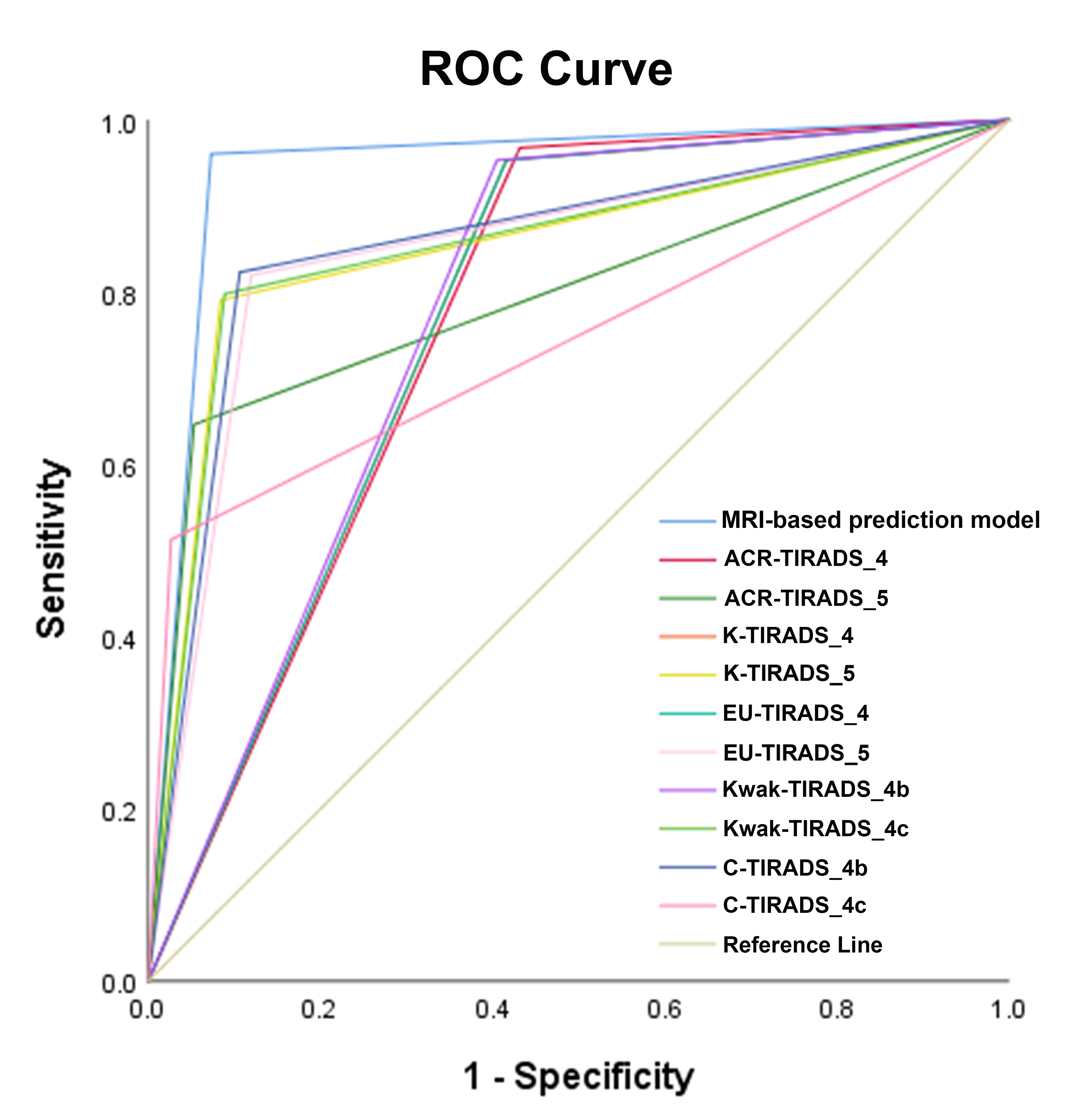

The prediction model for diagnosis of benign and malignant thyroid nodules demonstrates a more notable diagnostic efficacy than TI-RADS.Acknowledgements
We thank the Department of Radiology, Minhang Hospital, Fudan University, for providing the data.References
1. Alexander EK, Cibas ES. Diagnosis of thyroid nodules. Lancet Diabetes Endocrinol. 2022;10(7):533-9. doi: 10.1016/S2213-8587(22)00101-2.
2. Durante C, Grani G, Lamartina L, Filetti S, Mandel SJ, Cooper DS. The Diagnosis and Management of Thyroid Nodules: A Review. JAMA. 2018;319(9):914-24. doi: 10.1001/jama.2018.0898.
3. Gharib H, Papini E, Garber JR, Duick DS, Harrell RM, Hegedus L, et al. American Association of Clinical Endocrinologists, American College of Endocrinology, and Associazione Medici Endocrinologi Medical Guidelines for Clinical Practice for the Diagnosis and Management of Thyroid Nodules--2016 Update. Endocr Pract. 2016;22(5):622-39. doi: 10.4158/EP161208.GL.
4. Megwalu UC, Moon PK. Thyroid Cancer Incidence and Mortality Trends in the United States: 2000-2018. Thyroid. 2022;32(5):560-70. doi: 10.1089/thy.2021.0662.
5. Haugen BR, Alexander EK, Bible KC, Doherty GM, Mandel SJ, Nikiforov YE, et al. 2015 American Thyroid Association Management Guidelines for Adult Patients with Thyroid Nodules and Differentiated Thyroid Cancer: The American Thyroid Association Guidelines Task Force on Thyroid Nodules and Differentiated Thyroid Cancer. Thyroid. 2016;26(1):1-133. doi: 10.1089/thy.2015.0020.
6. Tessler FN, Middleton WD, Grant EG, Hoang JK, Berland LL, Teefey SA, et al. ACR Thyroid Imaging, Reporting and Data System (TI-RADS): White Paper of the ACR TI-RADS Committee. J Am Coll Radiol. 2017;14(5):587-95. doi: 10.1016/j.jacr.2017.01.046.
7. Shin JH, Baek JH, Chung J, Ha EJ, Kim JH, Lee YH, et al. Ultrasonography Diagnosis and Imaging-Based Management of Thyroid Nodules: Revised Korean Society of Thyroid Radiology Consensus Statement and Recommendations. Korean J Radiol. 2016;17(3):370-95. doi: 10.3348/kjr.2016.17.3.370.
8. Russ G, Bonnema SJ, Erdogan MF, Durante C, Ngu R, Leenhardt L. European Thyroid Association Guidelines for Ultrasound Malignancy Risk Stratification of Thyroid Nodules in Adults: The EU-TIRADS. Eur Thyroid J. 2017;6(5):225-37. doi: 10.1159/000478927.
9. Kwak JY, Han KH, Yoon JH, Moon HJ, Son EJ, Park SH, et al. Thyroid imaging reporting and data system for US features of nodules: a step in establishing better stratification of cancer risk. Radiology. 2011;260(3):892-9. doi: 10.1148/radiol.11110206.
10. Zhou J, Yin L, Wei X, Zhang S, Song Y, Luo B, et al. 2020 Chinese guidelines for ultrasound malignancy risk stratification of thyroid nodules: the C-TIRADS. Endocrine. 2020;70(2):256-79. doi: 10.1007/s12020-020-02441-y.
11. . !!! INVALID CITATION !!! (15).
12. Miller KD, Nogueira L, Mariotto AB, Rowland JH, Yabroff KR, Alfano CM, et al. Cancer treatment and survivorship statistics, 2019. CA Cancer J Clin. 2019;69(5):363-85. doi: 10.3322/caac.21565.
13. Collins J, Rossi ED, Chandra A, Ali SZ. Terminology and nomenclature schemes for reporting thyroid cytopathology: An overview. Semin Diagn Pathol. 2015;32(4):258-63. doi: 10.1053/j.semdp.2014.12.007.
14. Park YM, Oh KH, Cho JG, Baek SK, Kwon SY, Jung KY, et al. Analysis of efficacy and safety of core-needle biopsy versus fine-needle aspiration cytology in patients with cervical lymphadenopathy and salivary gland tumour. Int J Oral Maxillofac Surg. 2018;47(10):1229-35. doi: 10.1016/j.ijom.2018.04.003.
15. Yuan Y, Chen L, Ren S, Wang Z, Chen Y, Jin A, et al. Diagnostic performance in T staging for patients with esophagogastric junction cancer using high-resolution MRI: a comparison with conventional MRI at 3 tesla. Cancer Imaging. 2019;19(1):83. doi: 10.1186/s40644-019-0269-6.
16. Chen L, Xu J, Bao J, Huang X, Hu X, Xia Y, et al. Diffusion-weighted MRI in differentiating malignant from benign thyroid nodules: a meta-analysis. BMJ Open. 2016;6(1):e008413. doi: 10.1136/bmjopen-2015-008413.
17. Jiang L, Chen J, Huang H, Wu J, Zhang J, Lan X, et al. Comparison of the Differential Diagnostic Performance of Intravoxel Incoherent Motion Imaging and Diffusion Kurtosis Imaging in Malignant and Benign Thyroid Nodules. Front Oncol. 2022;12:895972. doi: 10.3389/fonc.2022.895972.
18. Sakat MS, Sade R, Kilic K, Gozeler MS, Pala O, Polat G, et al. The Use of Dynamic Contrast-Enhanced Perfusion MRI in Differentiating Benign and Malignant Thyroid Nodules. Indian J Otolaryngol Head Neck Surg. 2019;71(Suppl 1):706-11. doi: 10.1007/s12070-018-1512-3.
19. Song M, Yue Y, Jin Y, Guo J, Zuo L, Peng H, et al. Intravoxel incoherent motion and ADC measurements for differentiating benign from malignant thyroid nodules: utilizing the most repeatable region of interest delineation at 3.0 T. Cancer Imaging. 2020;20(1):9. doi: 10.1186/s40644-020-0289-2.
20. Tan H, Chen J, Zhao YL, Liu JH, Zhang L, Liu CS, et al. Feasibility of Intravoxel Incoherent Motion for Differentiating Benign and Malignant Thyroid Nodules. Acad Radiol. 2019;26(2):147-53. doi: 10.1016/j.acra.2018.05.011.
21. Kim DH, Chung SR, Choi SH, Kim KW. Accuracy of thyroid imaging reporting and data system category 4 or 5 for diagnosing malignancy: a systematic review and meta-analysis. Eur Radiol. 2020;30(10):5611-24. doi: 10.1007/s00330-020-06875-w.
22. Wang J, He X, Ma L, Li M, Sun L, Jiang J, et al. Multimode ultrasonic technique is recommended for the differential diagnosis of thyroid cancer. PeerJ. 2020;8:e9112. doi: 10.7717/peerj.9112.
23. Wildman-Tobriner B, Buda M, Hoang JK, Middleton WD, Thayer D, Short RG, et al. Using Artificial Intelligence to Revise ACR TI-RADS Risk Stratification of Thyroid Nodules: Diagnostic Accuracy and Utility. Radiology. 2019;292(1):112-9. doi: 10.1148/radiol.2019182128.
24. Monisha V, Rache Gowda N, Anil Kumar S. The Role of Diffusion-Weighted Magnetic Resonance Imaging in Differentiating Benign From Malignant Thyroid Nodules: A Descriptive Observational Study. Cureus. 2022;14(10):e30493. doi: 10.7759/cureus.30493.
25. Sharafeldeen A, Elsharkawy M, Khaled R, Shaffie A, Khalifa F, Soliman A, et al. Texture and shape analysis of diffusion-weighted imaging for thyroid nodules classification using machine learning. Med Phys. 2022;49(2):988-99. doi: 10.1002/mp.15399.
26. Shi R, Yao Q, Wu L, Zhou Q, Lu Q, Gao R, et al. T2* mapping at 3.0T MRI for differentiation of papillary thyroid carcinoma from benign thyroid nodules. J Magn Reson Imaging. 2016;43(4):956-61. doi: 10.1002/jmri.25041.
27. Song MH, Jin YF, Guo JS, Zuo L, Xie H, Shi K, et al. Application of whole-lesion intravoxel incoherent motion analysis using iZOOM DWI to differentiate malignant from benign thyroid nodules. Acta Radiol. 2019;60(9):1127-34. doi: 10.1177/0284185118813599.
28. Wang Q, Guo Y, Zhang J, Ning H, Zhang X, Lu Y, et al. Diagnostic value of high b-value (2000 s/mm2) DWI for thyroid micronodules. Medicine (Baltimore). 2019;98(10):e14298. doi: 10.1097/MD.0000000000014298.
29. Dai Z, Wei R, Wang H, Hu W, Sun X, Zhu J, et al. Multimodality MRI-based radiomics for aggressiveness prediction in papillary thyroid cancer. BMC Med Imaging. 2022;22(1):54. doi: 10.1186/s12880-022-00779-5.
30. Hu W, Wang H, Wei R, Wang L, Dai Z, Duan S, et al. MRI-based radiomics analysis to predict preoperative lymph node metastasis in papillary thyroid carcinoma. Gland Surg. 2020;9(5):1214-26. doi: 10.21037/gs-20-479.
31. Paudyal R, Lu Y, Hatzoglou V, Moreira A, Stambuk HE, Oh JH, et al. Dynamic contrast-enhanced MRI model selection for predicting tumor aggressiveness in papillary thyroid cancers. NMR Biomed. 2020;33(1):e4166. doi: 10.1002/nbm.4166.
32. Tang Q, Liu X, Jiang Q, Zhu L, Zhang J, Wu PY, et al. Unenhanced magnetic resonance imaging of papillary thyroid carcinoma with emphasis on diffusion kurtosis imaging. Quantitative imaging in medicine and surgery. 2023;13(4):2697-707. doi: 10.21037/qims-22-172.
33. Wang H, Song B, Ye N, Ren J, Sun X, Dai Z, et al. Machine learning-based multiparametric MRI radiomics for predicting the aggressiveness of papillary thyroid carcinoma. Eur J Radiol. 2020;122:108755. doi: 10.1016/j.ejrad.2019.108755.
34. Zhang H, Hu S, Wang X, Liu W, He J, Sun Z, et al. Using Diffusion-Weighted MRI to Predict Central Lymph Node Metastasis in Papillary Thyroid Carcinoma: A Feasibility Study. Front Endocrinol (Lausanne). 2020;11:326. doi: 10.3389/fendo.2020.00326.
35. Zheng T, Hu W, Wang H, Xie X, Tang L, Liu W, et al. MRI-Based Texture Analysis for Preoperative Prediction of BRAF V600E Mutation in Papillary Thyroid Carcinoma. J Multidiscip Healthc. 2023;16:1-10. doi: 10.2147/jmdh.S393993.
36. Han ZJ, Shu YY, Lai XF, Chen WH. Value of computed tomography in determining the nature of papillary thyroid microcarcinomas: evaluation of the computed tomographic characteristics. Clin Imaging. 2013;37(4):664-8. doi: 10.1016/j.clinimag.2012.12.005.
37. Hundshammer C, Braeuer M, Muller CA, Hansen AE, Schillmaier M, Duwel S, et al. Simultaneous characterization of tumor cellularity and the Warburg effect with PET, MRI and hyperpolarized (13)C-MRSI. Theranostics. 2018;8(17):4765-80. doi: 10.7150/thno.25162.
38. Zhou J, Zhang Y, Chang KT, Lee KE, Wang O, Li J, et al. Diagnosis of Benign and Malignant Breast Lesions on DCE-MRI by Using Radiomics and Deep Learning With Consideration of Peritumor Tissue. J Magn Reson Imaging. 2020;51(3):798-809. doi: 10.1002/jmri.26981.
39. Meyer HJ, Wienke A, Surov A. Discrimination between malignant and benign thyroid tumors by diffusion-weighted imaging - A systematic review and meta analysis. Magn Reson Imaging. 2021;84:41-57. doi: 10.1016/j.mri.2021.09.006.
40. Shi RY, Yao QY, Zhou QY, Lu Q, Suo ST, Chen J, et al. Preliminary study of diffusion kurtosis imaging in thyroid nodules and its histopathologic correlation. Eur Radiol. 2017;27(11):4710-20. doi: 10.1007/s00330-017-4874-0.
41. Wang H, Wei R, Liu W, Chen Y, Song B. Diagnostic efficacy of multiple MRI parameters in differentiating benign vs. malignant thyroid nodules. BMC Med Imaging. 2018;18(1):50. doi: 10.1186/s12880-018-0294-0.
