Introduction

There are many methods for SMS, including SENSE-based SMS¹, 2D CAIPIRINHA², and SENSE-GRAPPA and Slice-GRAPPA based on GRAPPA³. These methods are typically used to deal with inter-slice aliasing, and other parallel imaging methods are needed to deal with intra-slice undersampling-induced aliasing. In addition, research has also been conducted to add sparse constraint optimization to SMS reconstruction based on the above methods⁴. However, the current methods still cannot achieve satisfactory reconstruction results at high acceleration factors. With the proposal of score based generative models Song et al.⁵, accurate estimation of the image prior distribution $$$p(x)$$$ becomes possible. Currently, diffusion models have achieved satisfactory results in multi-coil MR reconstruction, making it possible to further apply diffusion models to SMS for higher acceleration factors and better reconstruction results. Inspired by SPIRiT-diffusion6, our proposed method incorporates Slice-GRAPPA to achieve diffusion of SMS data, optimizing the reconstruction results.

Method

The reconstruction of SMS using Slice-GRAPPA and SPIRiT can be represented using the following objective function:
$$
\mathop{\arg\min}\limits_{x}||(H-I)\tilde{x}||^2+\lambda||Dx-y||^2
$$
Where $$$x=\left[\begin{matrix}x_1\\x_2\\x_3\end{matrix}\right]$$$ ,meaning the multi-slice image, $$$\tilde{x}$$$is the corresponding k-space data,
$$
H=\left[\begin{matrix}K_1\\K_2\\K_3\end{matrix}\right]\left[\begin{matrix}I&I&I\end{matrix}\right]\left[\begin{matrix}G_1&\quad&\quad\\\quad&G_2&\quad\\\quad&\quad&G_3\end{matrix}\right]
$$
meaning using SPIRiT operators $$$G_i$$$ that convolve the entire undersampling k-space to interpolate in the missing k-space data, and using slice-GRAPPA operators $$$K_i$$$ to separate different slices. $$$D$$$ is the sampling matrix and $$$y$$$ is the SMS data. Eq. 1 can be solved using the following iterative solution algorithm:
$$
x_i=x_{i+1}+2\eta_{i+1}\mathcal{F}^{-1}((H-I)^*(H-I)\mathcal{F}(x_{i+1}))+\lambda_{i+1}(Dx-y)
$$

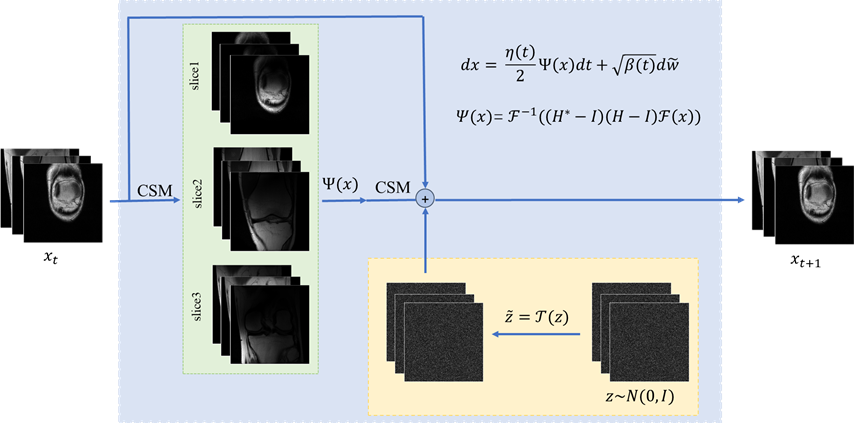

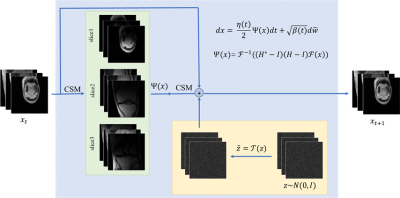

Taking Eq. 2 as the iteration of the reverse diffusion process, the corresponding forward diffusion process can be defined. To solve the calculation of covariance of the perturbation kernel in the diffusion process, we add a operator $$$\mathcal{T}$$$ to the standard Wiener process to enforce the noises in diffusion process satisfy the self-consist operator $$$H$$$ , and it can be presented as follows:
$$
\mathcal{T}(z)=\mathop{\arg\min}\limits_{z}||(H-I)\tilde{z}||^2
$$
Here, z is the Gaussian noise added in the diffusion process, $$$\tilde{z}$$$ is the corresponding k-space. The reverse diffusion process is defined as:
$$
dx = (\frac{\eta(t)}{2}\Psi(x)-\beta(t)\mathcal{T}(\triangledown_xlogp_x(x|y)))dt+\sqrt{\beta(t)}\mathcal{T}dw
$$
where $$$\Psi(x)=\mathcal{F}^{-1}((H-I)^*(H-I)\mathcal{F}(x))$$$, $$$\frac{\eta(t)}{2}\Psi(x)$$$is the drift coefficient of $$$x(t)$$$and $$$\sqrt{\beta(t)}\mathcal{T}dw$$$is the diffusion coefficient of $$$x(t)$$$. The corresponding forward diffusion process becomes:
$$
dx=\frac{\eta(t)}{2}\Psi(x)dt+\sqrt{\beta(t)}\mathcal{T}dw
$$
The perturbation kernel of Slice-Diffusion can be derived as:
$$
p_{0t}(x(t)|x(0))=\mathcal{N}(x(t);x(0),\sigma^2\mathcal{T})
$$
then, the score model can be trained using U-Net via:
$$
\theta^*=\mathop{\arg\min}\limits_{\theta}\mathbb{E}_t\{\lambda(t)\mathbb{E}_{x(0)}\mathbb{E}_{x(t)|x(0)}\left[||\theta\mathcal{T}(s_{\theta}(x(t),t))+z||^2\right]\}
$$

Results

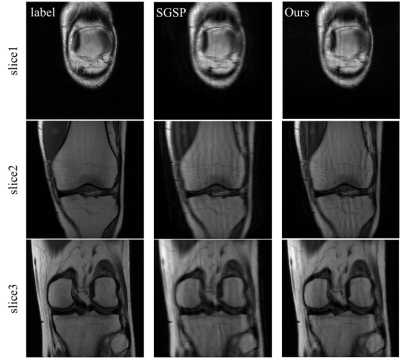

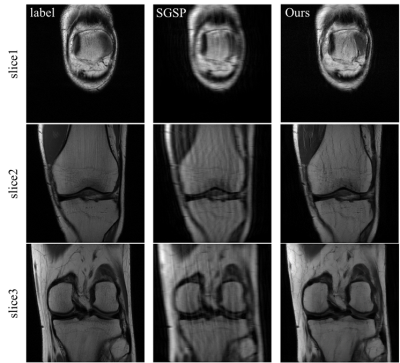

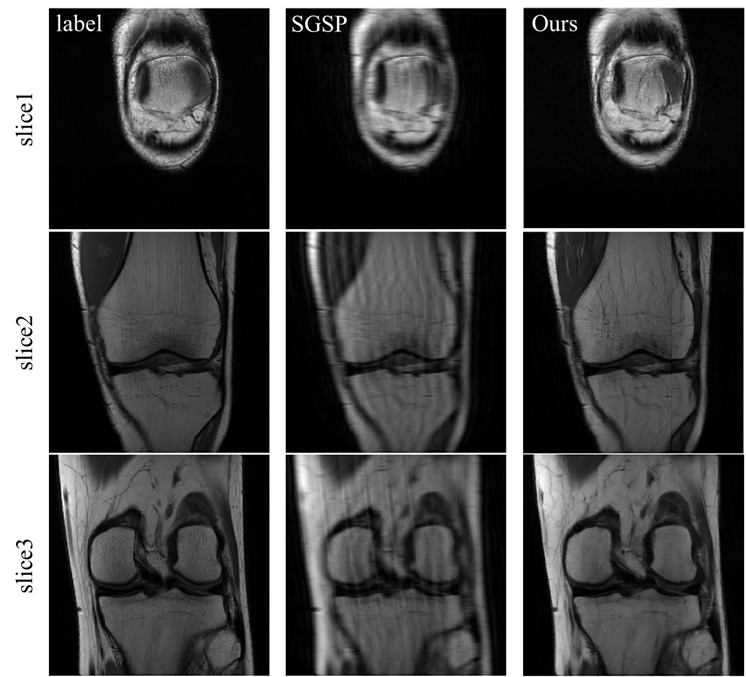

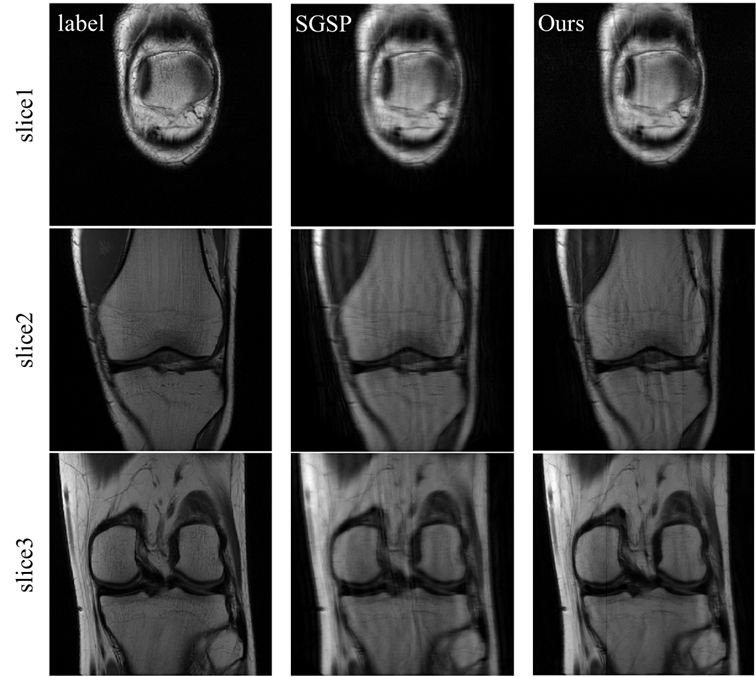

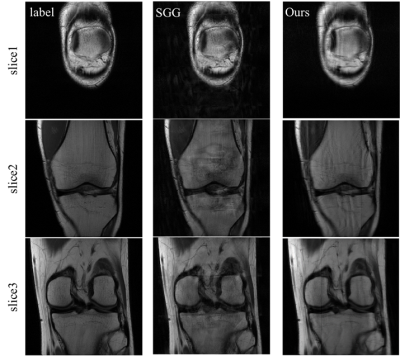

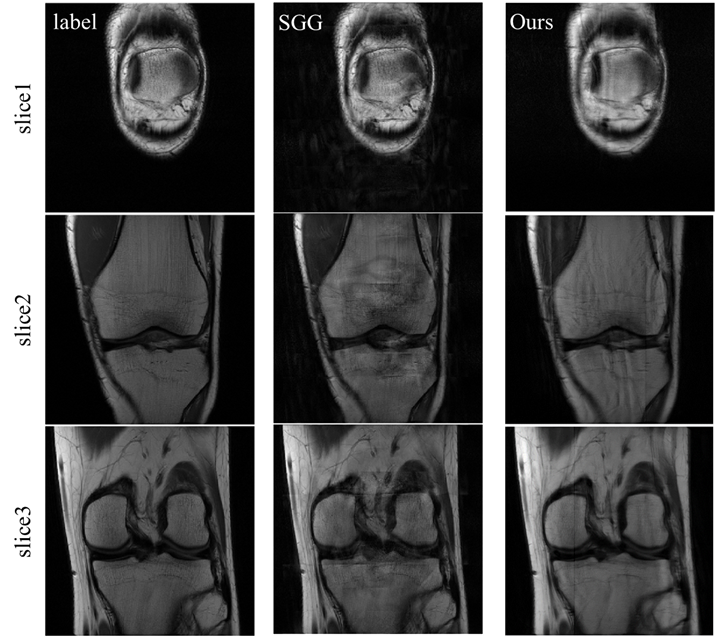

We conducted a retrospective experiment on the fastMRI dataset, simulating SMS data with a multi-slice factor of 3. To reduce the noise amplification, CAIPIRINHA was utilized with a phase increment of 2π/3 that provides 1/3 FOV shifts in between the adjacent slices. Fig 2 shows results from retrospectively 3-fold SMS and 3-fold in-plane accelerated images. Our proposed method further optimized the reconstruction results of SMS. Fig 3 shows results from 3-fold SMS and 10-fold in-plane accelerated images. Under such extreme undersampling conditions, Our proposed method achieved fairly good reconstruction results, although there were some detail errors due to highly undersampling.
