K-space Low-rankness Enabled Additive NoisE Removal (KLEANER) to Denoise Multi-Coil Multi-Contrast Low-Field MRI1Department of Radiolodical Sciences, University of California Los Angeles, Los Angeles, CA, United States, 2Department of Bioengineering, University of California Los Angeles, Los Angeles, CA, United States, 3Ming Hsieh Department of Electrical and Computer Engineering, University of Southern California, Los Angeles, CA, United States, 4MR R&D Collaborations, Siemens Medical Solutions USA, Inc., Los Angeles, CA, United States
Synopsis
Keywords: Image Reconstruction, Low-Field MRI, Denoising
Motivation: Low-field MRI is limited by the low signal-to-noise ratio (SNR). Multiple scan averages increase SNR but also increase the acquisition time. In applications that acquire multiple contrasts, such as quantitative imaging, acquisition time can be further prolonged.
Goal(s): To develop a multi-coil multi-contrast k-space denoising technique that can also be compatible with parallel imaging-accelerated datasets.
Approach: A low-rank block-Hankel matrix was constructed from the multi-dimensional k-space data, followed by optimal singular value shrinkage to suppress Gaussian noise.
Results: In a pilot cohort, the proposed method improved SNR by 1.6-fold and reduced standard deviations in quantitative maps in the liver.
Impact: The proposed k-space denoising technique effectively suppresses noise in multi-coil multi-contrast k-space data from low-field MRI and is compatible with parallel imaging-accelerated datasets. It can improve image quality and/or shorten the acquisition time for multi-contrast low-field MRI.
Introduction
MRI at lower field strengths is limited by the low signal-to-noise ratio (SNR)1-3. Multiple scan averages increase SNR but also increase the acquisition time. In applications that acquire multiple contrasts, such as quantitative imaging2, acquisition time can be further prolonged. Random matrix theory (RMT)-based methods4-6 provide promising denoising performance using low-rank image patches and noise characteristics predicted by RMT. For parallel imaging (PI)-accelerated datasets, g-factor correction has been proposed to maintain Gaussian-distributed noise6,7. The requirement to correct noise distortion from other reconstruction processes can limit the use of RMT-denoising in different applications. On the other hand, k-space low-rankness has also been investigated, but mainly for undersampled MRI reconstruction8,9. Inspired by these works, we proposed a novel denoising technique “K-space Low-rankness Enabled Additive NoisE Removal (KLEANER)” to suppress noise in multi-coil multi-contrast k-space data. We showed that KLEANER is compatible with PI and investigated its performance for liver proton density fat fraction (PDFF) and R2* quantification at 0.55T.Methods

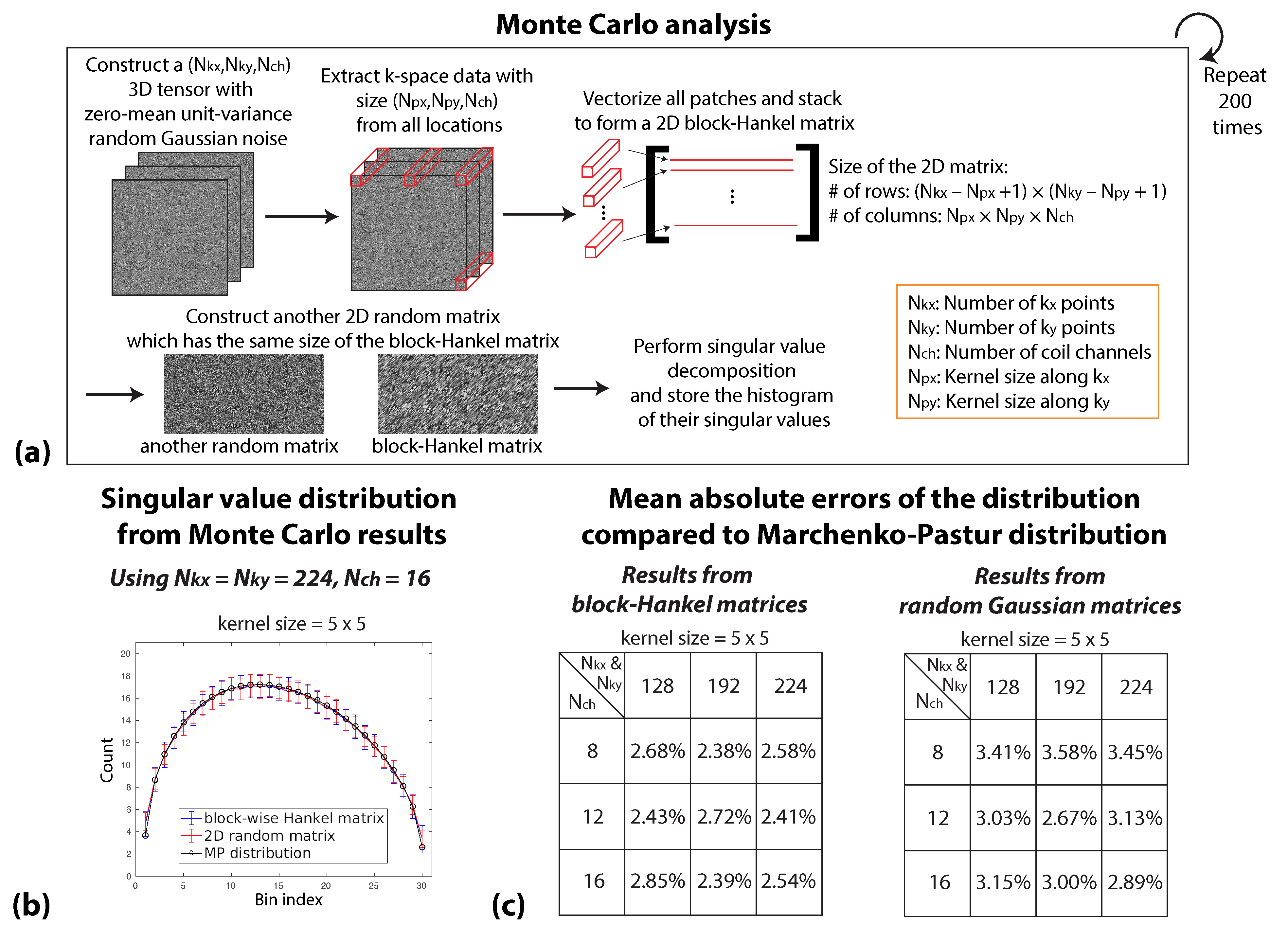

Block-Hankel Matrix:Previous works have used block-Hankel matrices constructed from k-space data in undersampled MRI reconstruction8,9. To investigate if RMT predictions can be applied to block-Hankel matrices, we performed a Monte Carlo simulation (Figure 1(a)). We compared histograms of the singular values from the block-Hankel matrix and those from a random Gaussian matrix versus predictions from the Marchenko-Pastur law10. Our results (Figure 1(b-c)) showed that the spectral property of a block-Hankel matrix is consistent with a random Gaussian matrix.
KLEANER:

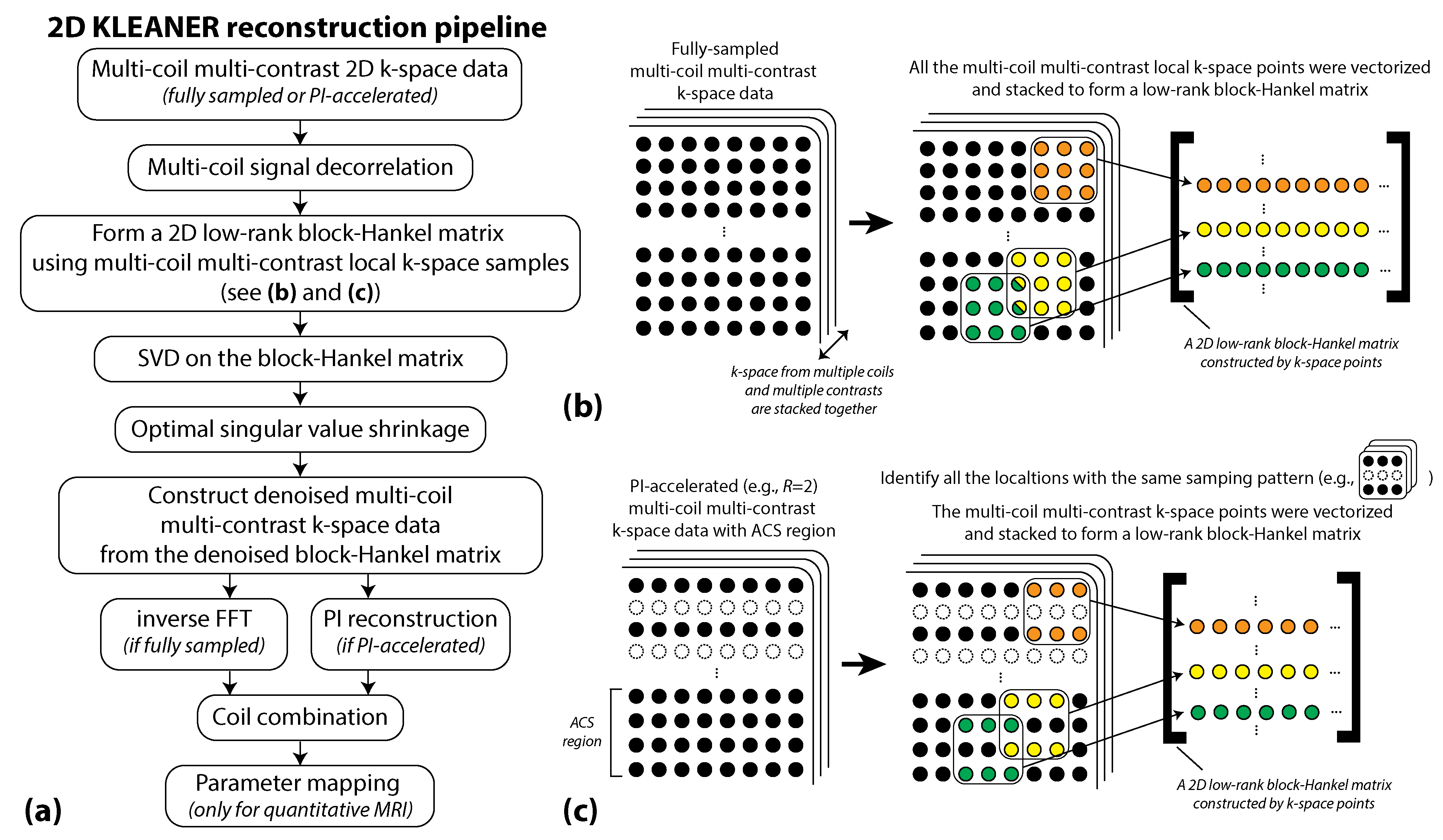

The reconstruction workflow is in Figure 2. A block-Hankel matrix was constructed using multi-coil multi-contrast local k-space data. Optimal singular value shrinkage11 was applied to suppressed components associated with noise. After reformatting to the original data dimension, the denoised data was transformed to the image domain and coil-combined12.
For parallel imaging (PI)-accelerated datasets, the block-Hankel matrix was constructed differently (Figure 2(b-c)). Local k-space data with the same sampling pattern were identified. All the k-space samples, including the autocalibration signal (ACS) data, were denoised together before PI reconstruction.
Experiments and Analysis:
Scans were performed on a whole-body 0.55T MRI system (prototype MAGNETOM Aera, Siemens Healthineers, Erlangen, Germany) equipped with high-performance gradients. Phased-array receiver coils (6 elements of an 18-channel spine array and a 6-channel body array) were used.
We scanned a standard PDFF and R2* phantom (Calimetrix, Wisconsin) using a 3D Cartesian multi-echo gradient-echo (mGRE) Dixon sequence13. Key parameters included 6 TEs=2.16, 4.32, 6.48, 8.64, 10.8, 12.96 ms, TR=14.7ms, field of view (FoV)=300x300mm2, slice thickness=5mm, matrix size=192x192, flip angle of 8, and acquisition time=19 or 38 seconds (R=2 GRAPPA or no PI). To measure the denoising performance, we acquired 40 instances and measured the temporal SNR14 (tSNR) of the images and coefficient of variance (CoV) of the quantitative maps.
Ten subjects were scanned under an IRB-approved protocol after providing informed consent. The same mGRE Dixon sequence (with a larger FoV of 380x380mm2) was scanned during breath-holds. We compared the apparent SNR (measured in spatial dimension; defined as signal mean divided by noise standard deviation15) of the images and standard deviations of PDFF and R2* in liver regions of interest (ROIs) between KLEANER+PI and conventional PI reconstruction. We also reconstructed the data with image-based RMT denoising7 for comparison. We compared the performance of using different kernel sizes in KLEANER and different patch sizes in image-based RMT denoising.
Results

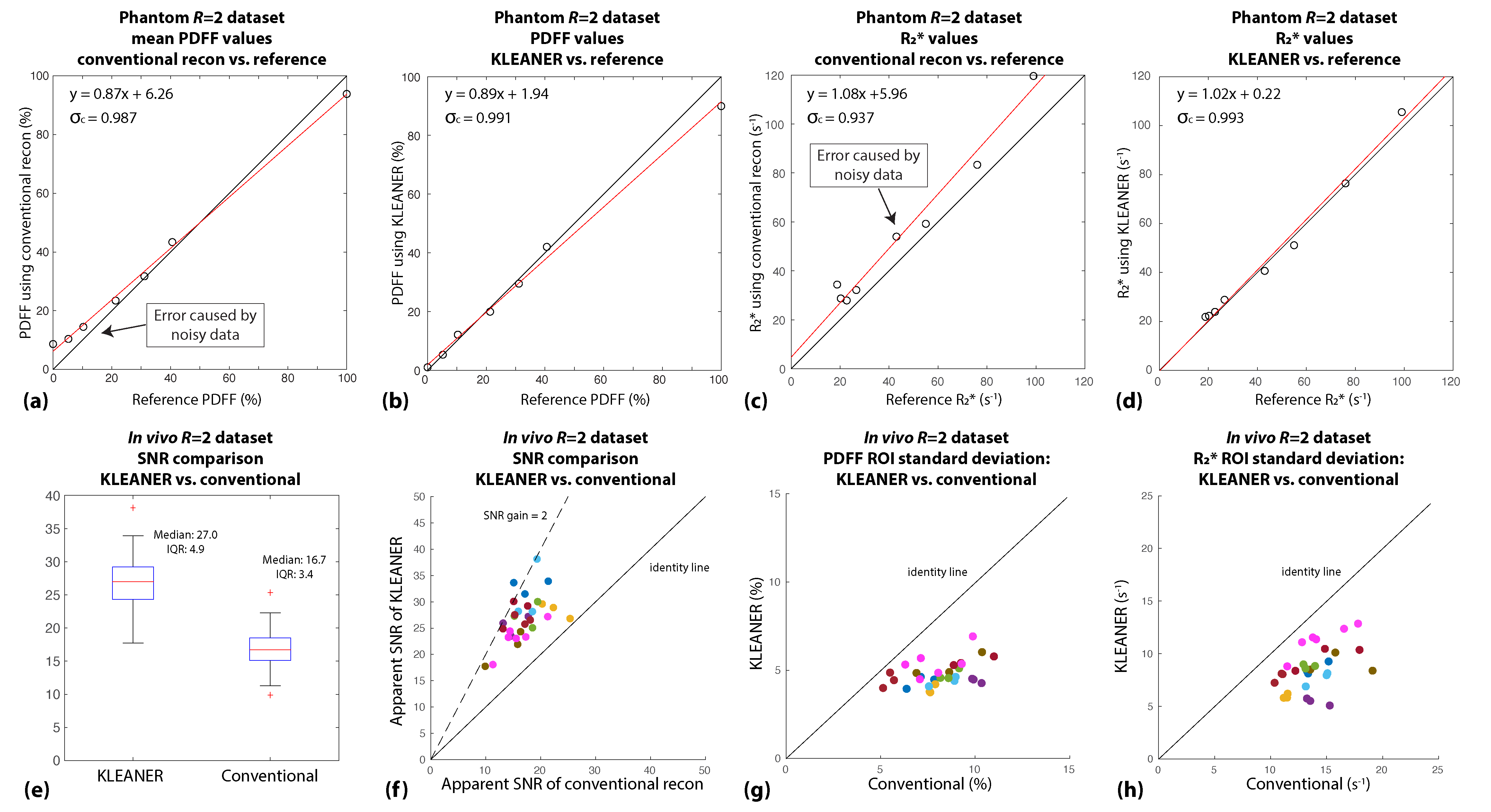

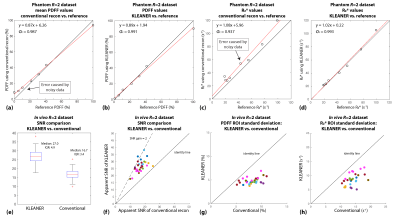

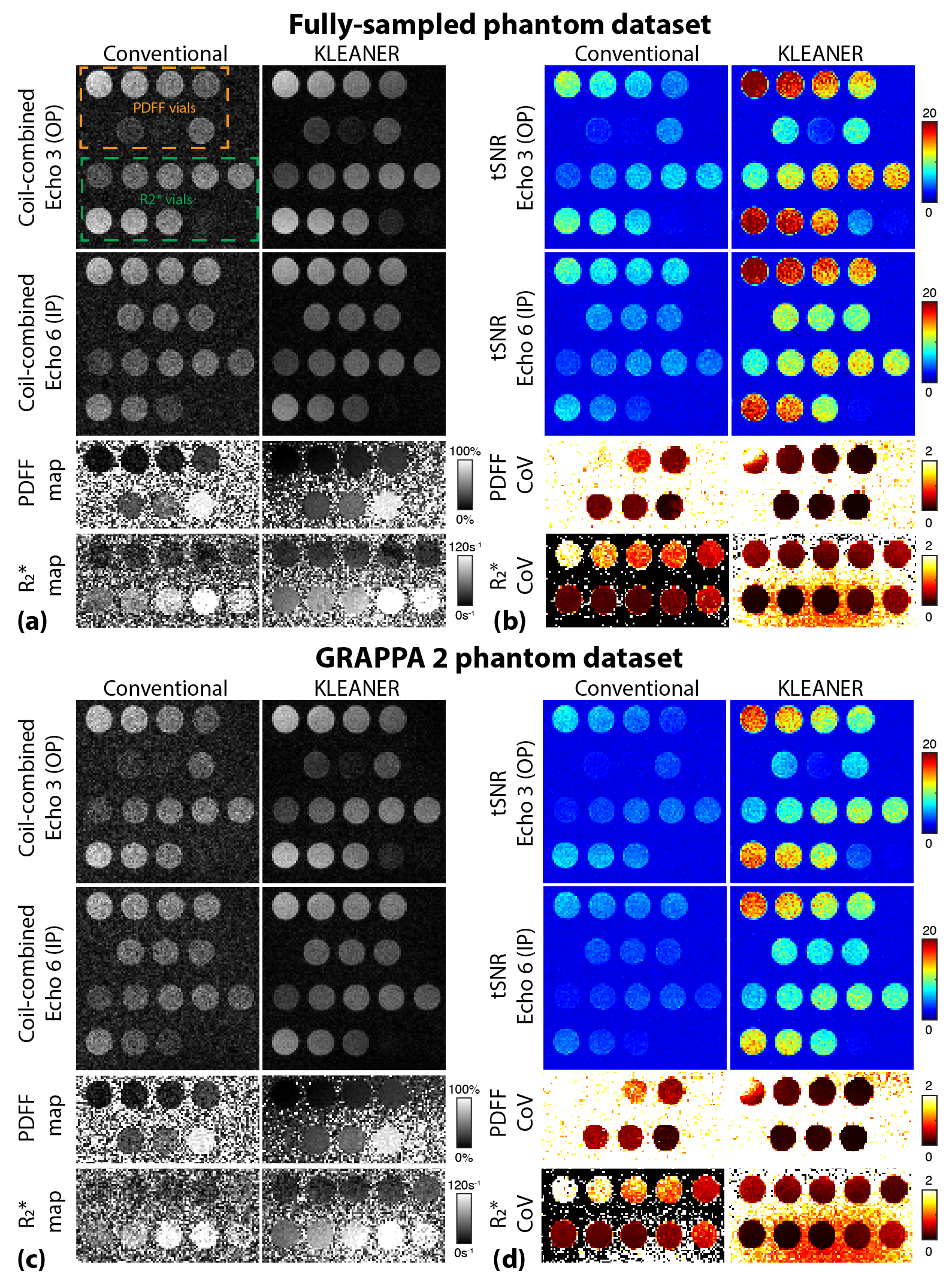

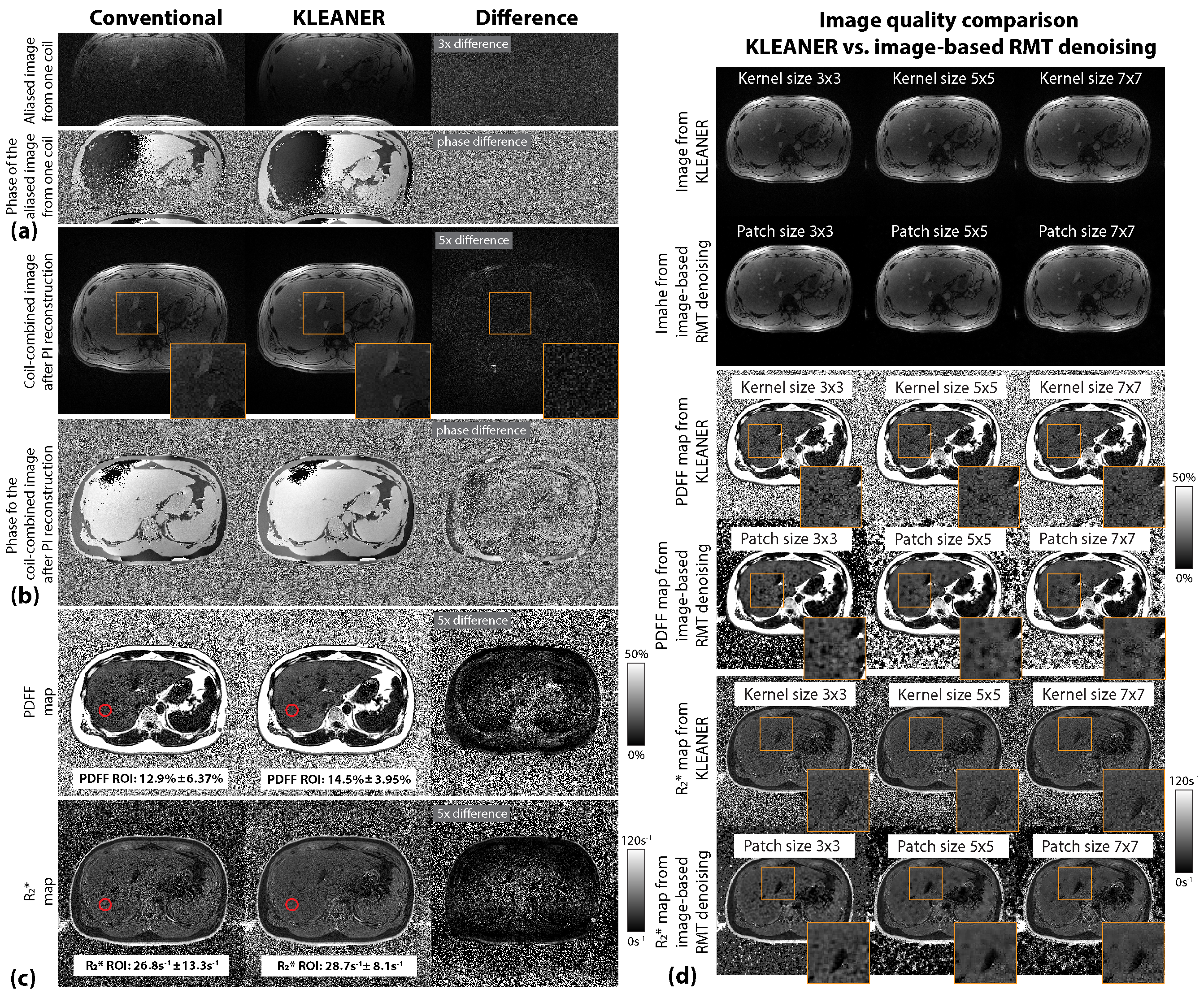

Representative phantom and in vivo results are shown in Figures 3 and 4. In the phantom, KLEANER resulted in an average 227% increase in tSNR and an average 70% and 72% decrease in PDFF and R2* CoV (Figure 3(b,d)). KLEANER also reduced PDFF and R2* quantification errors (Figure 5(a-d)). In the in vivo results, KLEANER effectively suppressed noise in the images and quantitative maps (Figure 4(a-c)). Compared to image-based RMT denoising, KLEANER provided consistent denoising performance across different choices of kernel size (Figure 4(d)). In liver ROIs, KLEANER led to an average 1.6-fold SNR gain, and reduced the PDFF and R2* standard deviations (Figure 5(e-h)).Discussion
Compared to image-based RMT denoising, KLEANER suppresses noise in the originally-acquired k-space data without concerns of noise characteristic distortion from other reconstruction processes. In our in vivo datasets, KLEANER increased the SNR by 1.6-fold, better than the theoretical SNR increase from two scan averages. This shows promise in improving image quality or shortening scan time of multi-contrast and quantitative MRI at low-fields.Conclusion
We developed a novel denoising technique, KLEANER, which effectively suppresses noise in multi-coil multi-contrast k-space data and is compatible with parallel imaging. In this study, KLEANER improved SNR and reduced standard deviations of quantitative liver PDFF and R2* mapping at 0.55T.Acknowledgements
