Introduction

Myocardial ischemia-reperfusion injury (IRI) has long been a subject of scientific investigation, with most research focusing on events that transpire days after the ischemic episode¹. Early determination of tissue viability following an infarction is crucial for precise diagnosis and treatment planning. Still, the determination process remains challenging. Previously, it was demonstrated that manganese, a calcium analogue, can measure the alterations in calcium homeostasis which can be used to reveal salvageable tissue. However, in those studies, myocardial viability was not investigated sooner than 1 hour following the start of ischemia in a clinically less relevant model of permanent occlusion^2-4. In contrast, we present a unique perspective on this critical period focusing on the ischemic event itself. Employing a novel murine model in which ischemia is initiated during the imaging session, we provide insights into myocardial viability during these overlooked early moments of occlusion and reperfusion by probing calcium homeostasis with manganese.

Methods

Animal Model: Mice (C57BL/6, male, 10-12 weeks old, n = 13) underwent microsurgery to place a stitch around the left anterior descending artery (LAD) for possible occlusion. Ischemia was triggered remotely in the IRI group for 30 min (n=8) using a novel setup while sham-operated (determined randomly) received the same surgery without LAD occlusion.

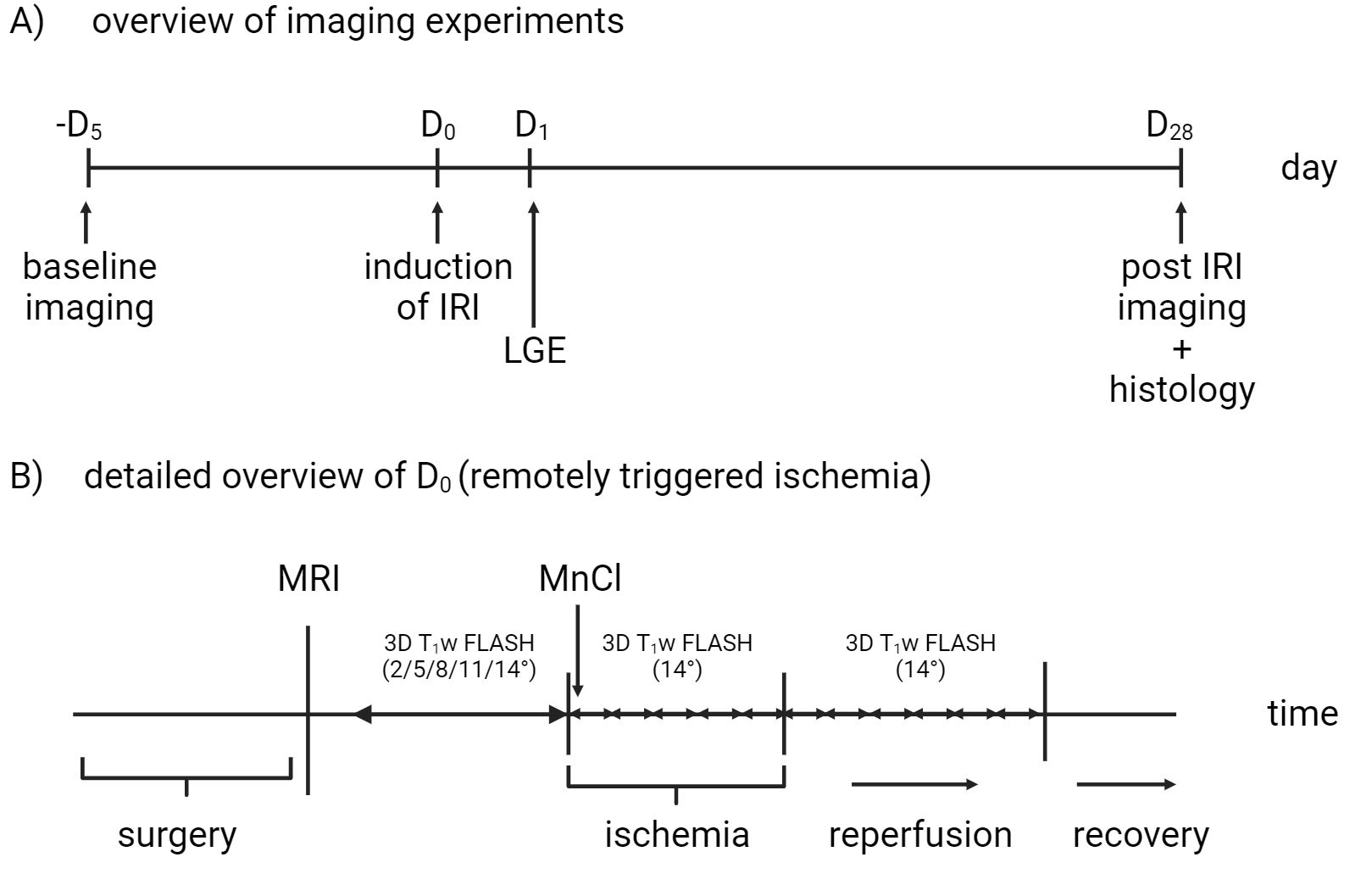

MR Imaging: All mice underwent MRI on a 7T Biospec MR scanner (Bruker PCI, Ettlingen, Germany) at four time points (Fig. 1). An 86 mm quadrature transmit coil combined with a surface receive-only coil (T20010V3, Bruker) placed over the chest of the animal was used. Inhalation anesthesia was maintained at 1.5% isoflurane and 1.5 L/ min O₂ throughout all experiments. Temperature-respiratory-cardio monitoring was performed using an MR-compatible system (SA Instruments, NY, USA) to maintain the physiological state at 36.5 °C, 70-100 min^-1, and 450-600 min^-1, respectively. Mice were positioned supine in a purpose-built cradle on day 0 to perform the remote occlusion⁵. Jointly, manganese chloride (MnCl) (Sigma Aldrich, Saint Louis, USA) was used as a probe (0.1 mmol/kg, i.p. catheter) to monitor the dynamic alterations in calcium homeostasis after the ischemia onset. Dosing was based on a similar study thoroughly reporting events following MnCl administration⁴. The infarct size was measured 24 hours after surgery via late gadolinium enhancement (LGE). Briefly, gadolinium (Gd-DOTA) (Dotarem, Guerbet, France) was injected (0.5 mmol/kg, i.p.) 20 min prior to scanning. T1 mapping was performed on baseline, day 0, and day 28 with a 3D retrospectively gated T₁-weighted FLASH (Intragate, Bruker) and variable flip angle (2/5/8/11/14°) with TE/TR = 2.3/ 11.1 ms. Image matrix 120 x 110 with a FOV of 28 x 25 mm² was used. Functional analysis was performed at baseline and 28 days post-surgery using an oversampling of 200 at FA 14° reconstructed into 20 cardiac frames. T₁ maps were constructed using an oversampling of 25 at FA 2/5/8/11/14° reconstructed into 4 cardiac frames. Postcontrast T₁ maps on day 0 were acquired by repeating the 14° FA and extracting the T₁ values through pixel-wise signal relation before contrast. LGE-MRI was performed with a multi-slice 2D retrospectively gated T₁-weighted FLASH with the same parameters as baseline but with FA = 45°.
Image Analysis: Analysis was done by a single investigator in random order with custom-written scripts in MATLAB (MathWorks, Natick, USA). T₁ mapping and bias field correction available code was employed^6,7. For regional analysis, the myocardium was segmented into 30 regions based on the polar angle around the center of the left ventricle oriented counterclockwise (Fig. 3A). Regional alterations in MnCl uptake were characterized as Kendall’s correlation coefficient compared to the liver uptake.
Histology: Sirius red staining was performed 28 days after surgery to depict the extent of scar tissue. The whole heart was longitudinally divided into four sections and cut perpendicularly in short-axis orientation.

Results

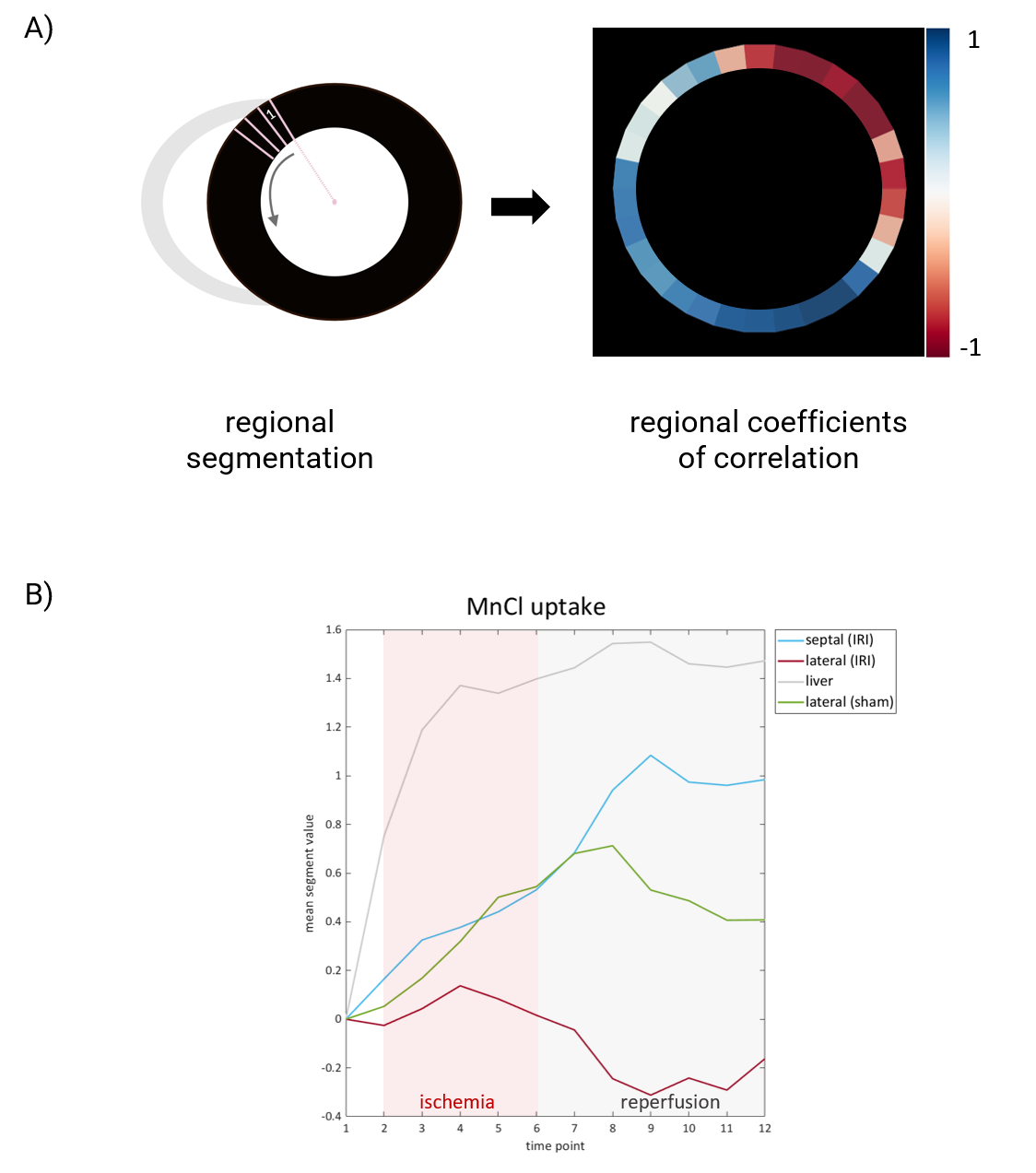

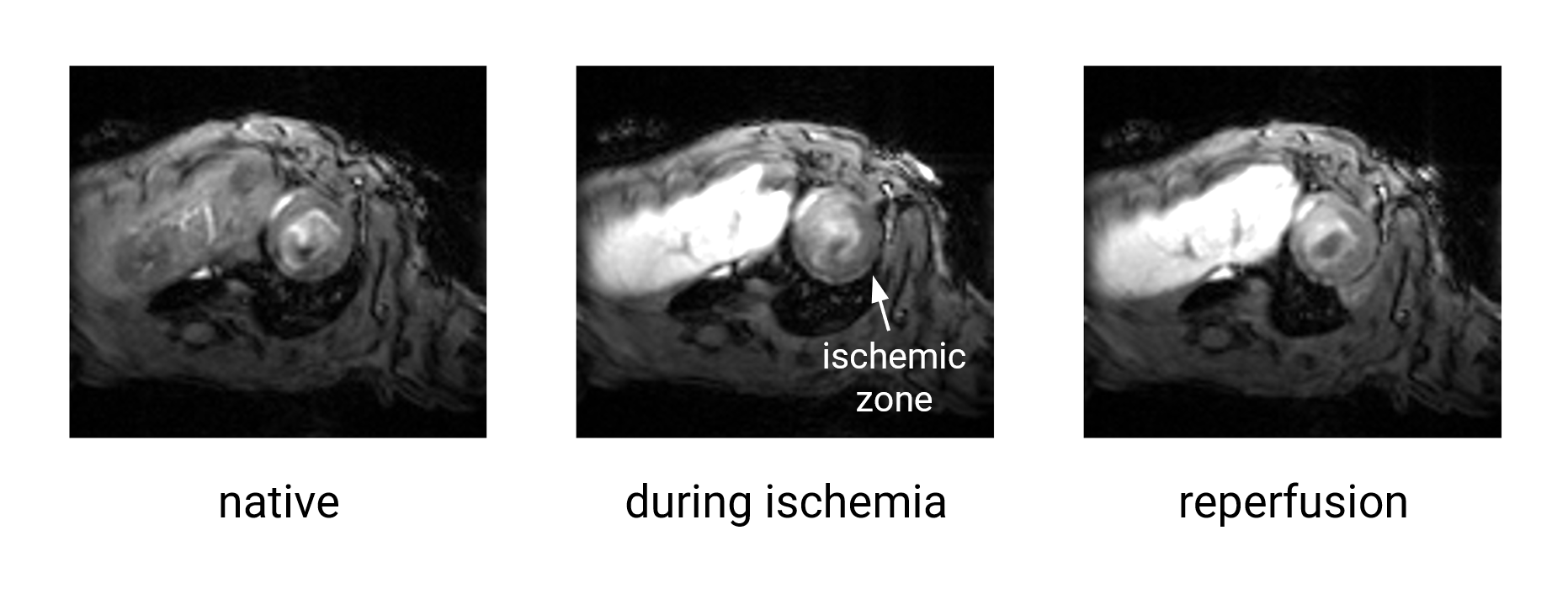

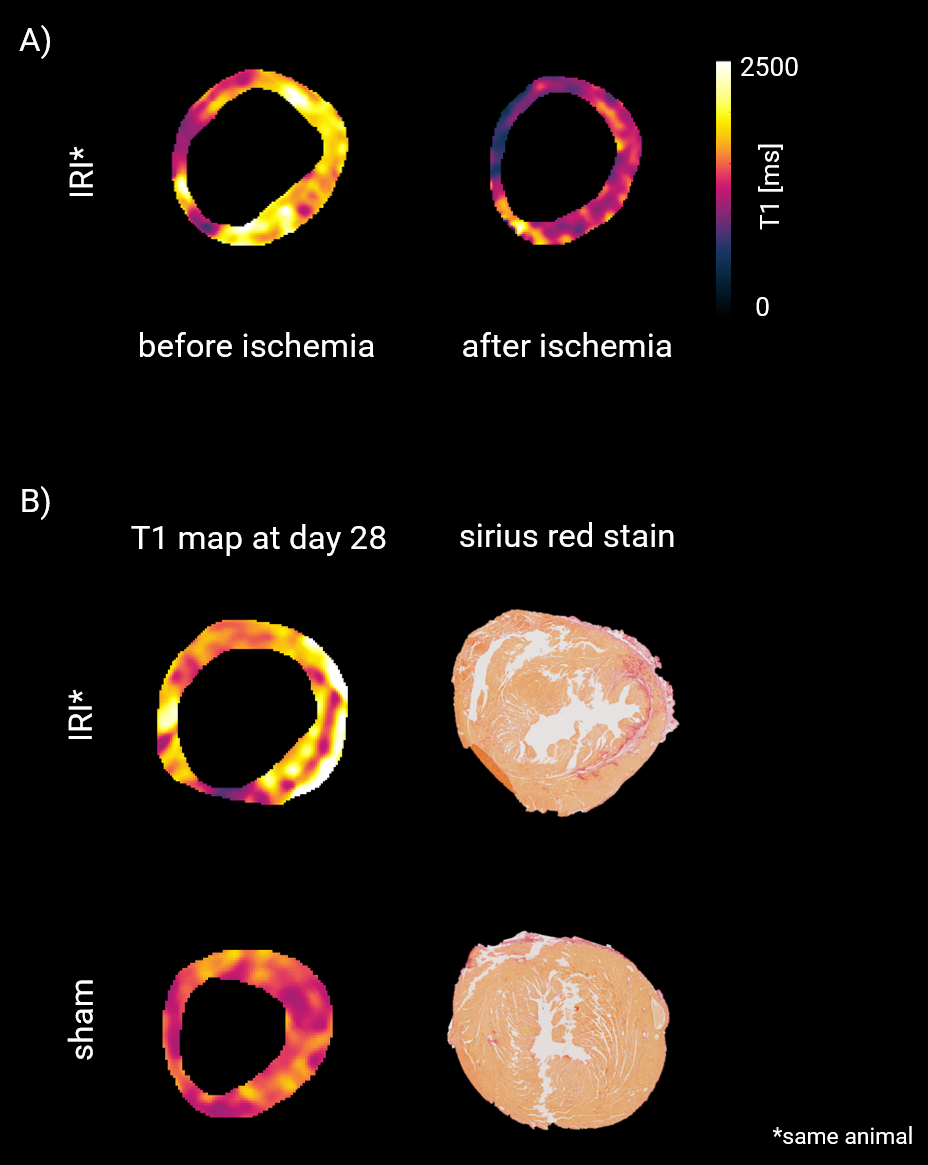

An example dataset (Fig. 2) demonstrates the feasibility of monitoring calcium homeostasis during and immediately after an ischemic event. Sections characterized by low correlation to normal liver uptake during ischemia might already characterize unrecoverable regions as the rate of Mn uptake is proportional to tissue viability³ (Fig. 3). This pattern is confirmed by final scar formation corresponding to a region with low Mn uptake quantified by T₁ value at the onset of ischemia (Fig. 4).

Discussion and Conclusions

We demonstrate the feasibility of investigating myocardial ischemia at the moment of its origin, gathering insights into cellular changes, and the potential for identifying salvageable tissue immediately following myocardial infarction. With an understanding of the relationship to the scar tissue formed, an early insight into the efficacy of the applied treatment can be provided.
