Introduction

Magnetic Resonance Fingerprinting (MRF) enables precise quantitative mapping of T1 and T2 relaxation times in an efficient single scan [1]. However, the integration of MRF-derived data into traditional MRI analysis pipelines remains a challenge due to the inherently different contrast characteristics of quantitative maps versus weighted images.

Contrast synthesis often consists of direct Bloch simulation of a desired contrast state or utilizes convolutional [2,3] or patch-based [4] neural networks for image-to-image translation tasks. While CNNs can produce high-fidelity results [5], they can also be susceptible to hallucination artifacts [6], where unintended features or spatial errors are introduced. Instead, we propose a pixel-wise regression network that, after training, behaves akin to a colormap through use of a 2D lookup table (LUT) for MRF T1 and T2 maps.

Methods

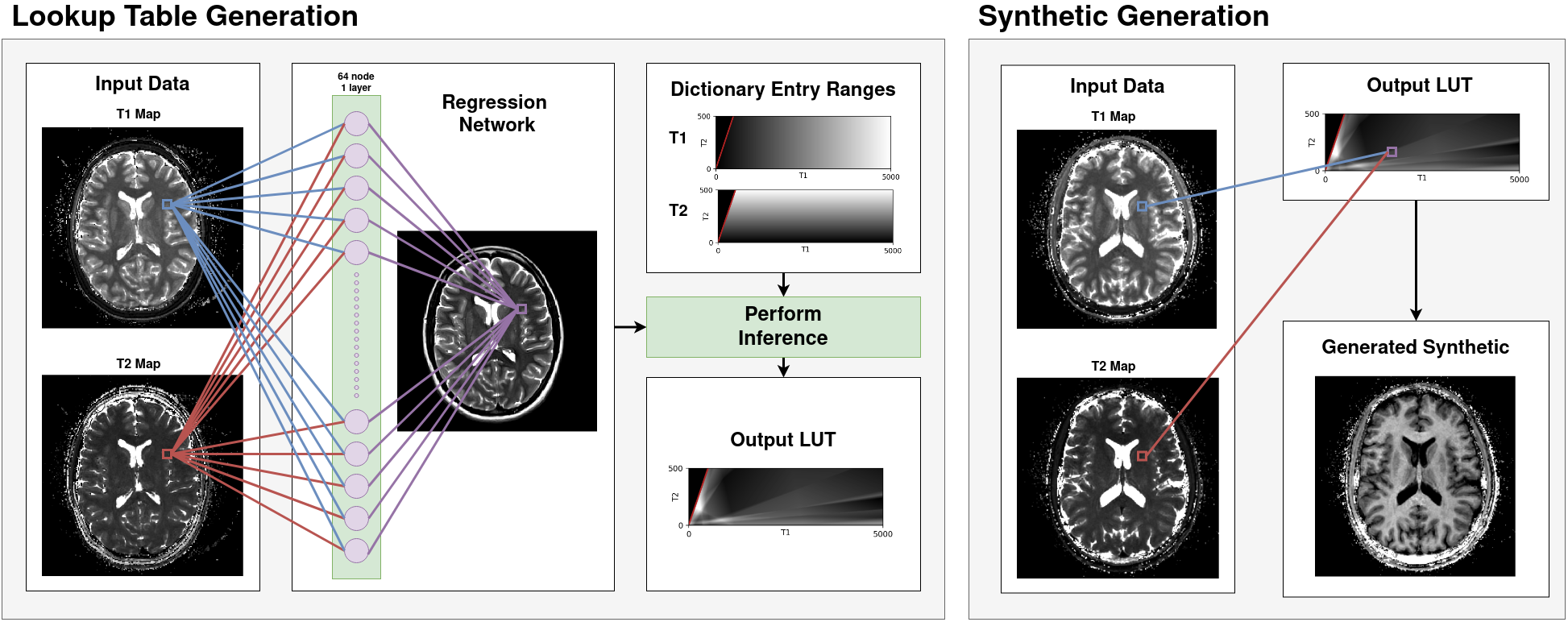

A public multimodal brain imaging dataset [7] consisting of MRF maps, T1-weighted (T1w) Magnetization-Prepared Rapid Gradient Echo (MPRAGE) images, and T2-weighted (T2w) Turbo Spin Echo (TSE) images for 10 healthy volunteers was used to train our regression network. All code for our lookup table system, regression network design, training and inference is publicly available [cite] under a research license. We utilize TensorFlow and Keras for model training. A fully connected network model was defined, consisting of a normalization layer, a dense hidden layer with 64 nodes, and an output layer. Training data was masked to remove voxels outside of the skull and weighted images were oriented to match MRF maps based on NIFTI headers. For each MRF dataset, an initial Bloch-simulation-based synthetic image matching the target qualitative dataset was generated and a coarse linear registration was performed using ITK. Target images were normalized by their maximum value to improve training stability.

Voxel data from 8 subjects was linearized, then split into training (80%) and testing (20%) sets before training with a Mean Absolute Error (MAE) loss function ensuring the predicted synthetic images closely matched the normalized intensity values of the weighted images. Model structure and weights were archived, but the primary training output is a static two-dimensional LUT with input indices of T1 and T2 times in 1ms steps across a range of values [T1:100-5000ms, T2: 1-500ms] generated by running all combinations within the dictionary through the inference network. The resulting LUT removes any dependency on Tensorflow from our reconstruction environment, ensuring that contrast synthesis performance is consistent and repeatable regardless of future changes to the inference package used.

Synthetic T1w and T2w images were generated for the 2 remaining subjects to validate the performance of the generated LUTs. Additionally, in-vivo MRF datasets were acquired for two new subjects and reconstructed with dictionary-space quadratic interpolation in the pattern matching step. Finally, FSL was used to compare brain extraction performance using T1/T2 maps alone against LUT-derived synthetic images.

Results

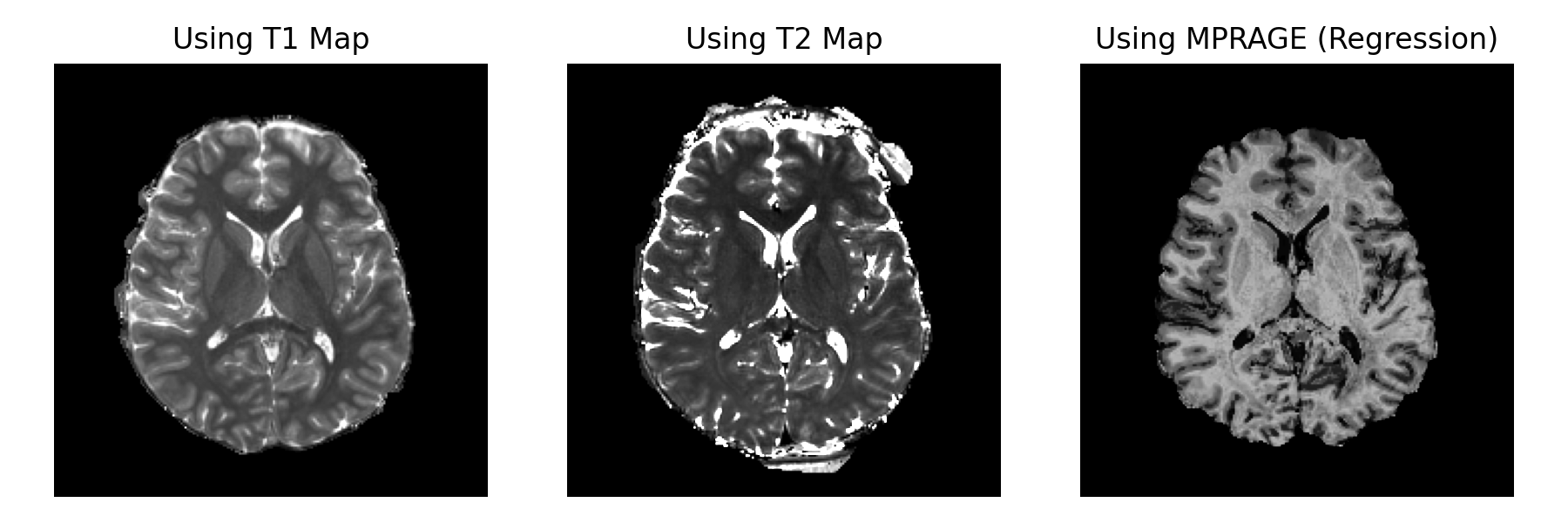

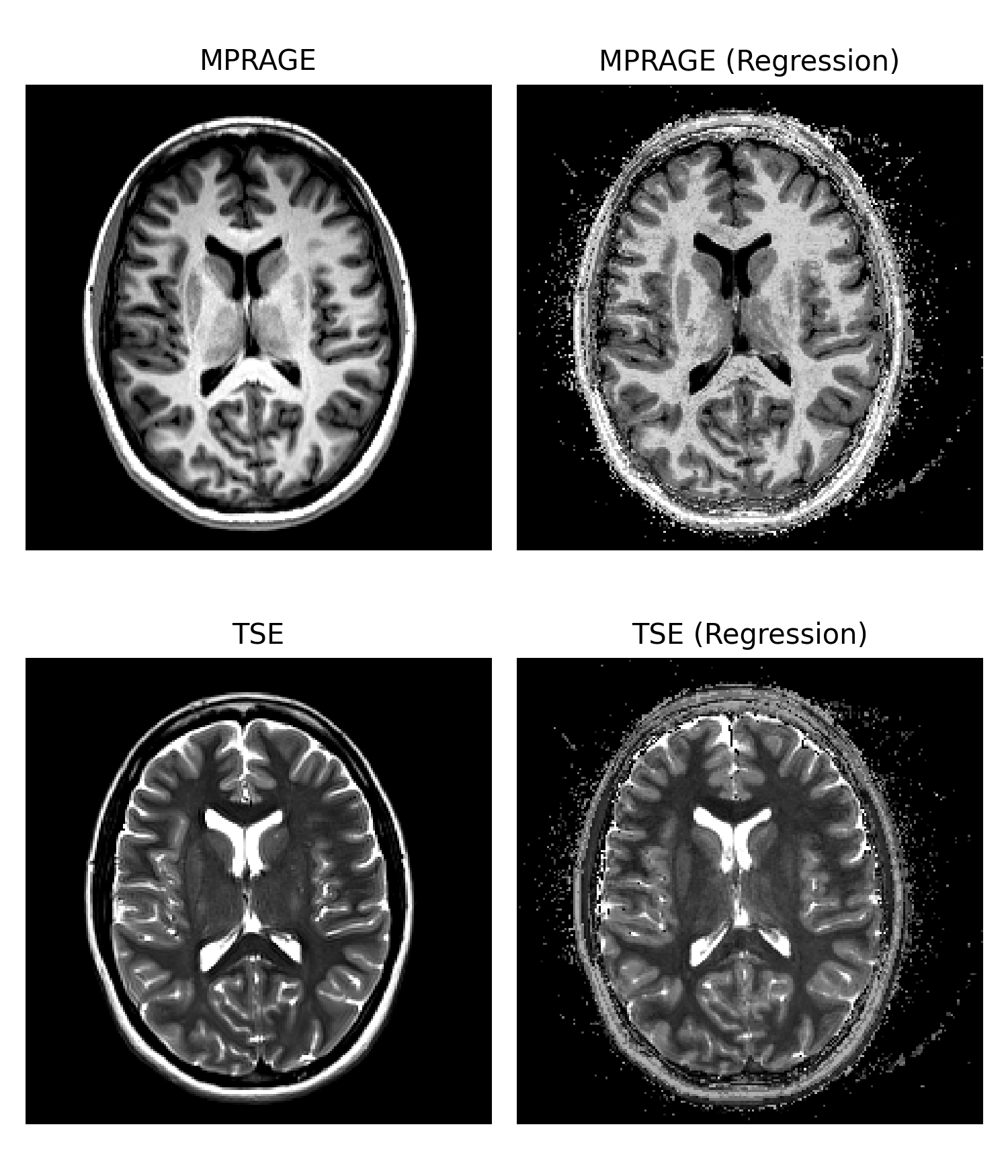

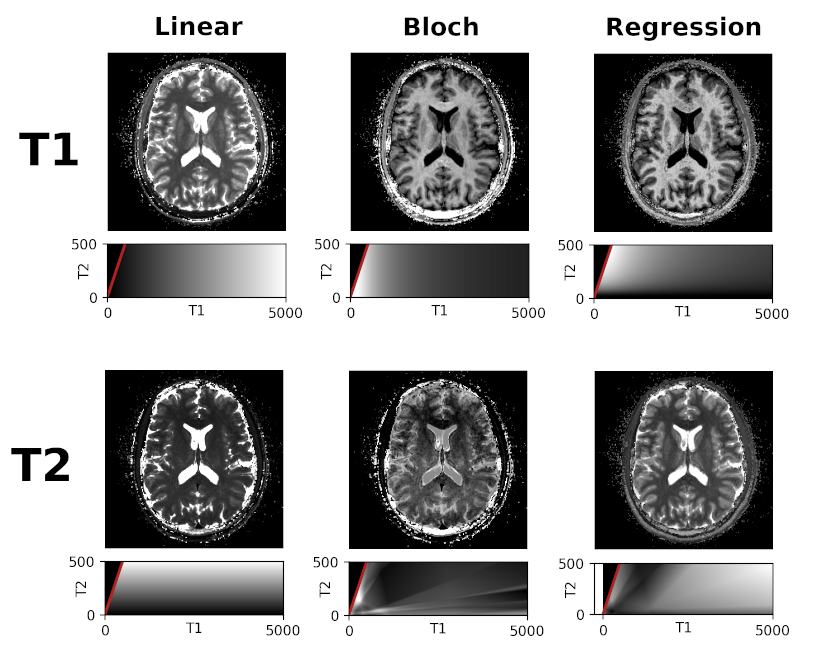

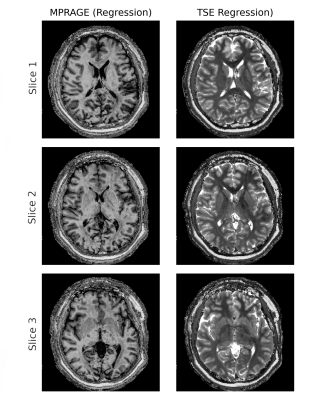

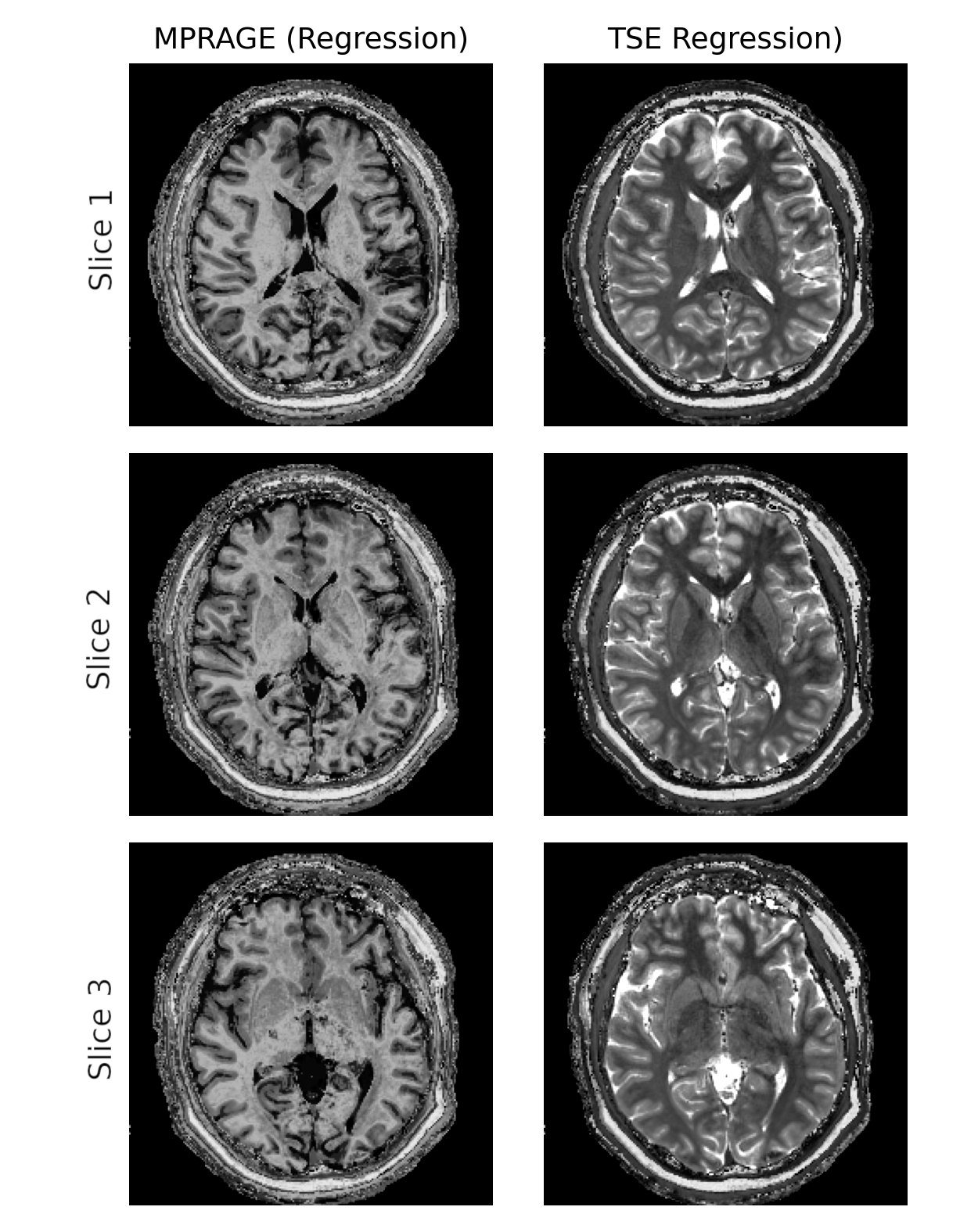

Figure 2 demonstrates 6 different 2D T1/T2 LUT’s, including linear T1 and T2 intensity profiles as well as Bloch-derived and regression-derived MPRAGE and TSE profiles. Figure 3 demonstrates the results of applying our regression-generated LUT profiles to a subject’s T1/T2 map pair in comparison to clinical MPRAGE and TSE contrasts. A dataset that had been reconstructed with a very coarse (5% progressive step-size) MRF dictionary was used to demonstrate the discretization artifacts that can occur if excessive discretization is present in the input quantitative maps. Figure 4 shows the improved fidelity in synthetic images as a result of using quadratic interpolation in T1/T2 space during pattern matching to reduce discretization artifacts. Figure 5 demonstrates the performance of FSL’s BET brain extraction tool when given T1 maps alone, T2 maps alone, or synthetic MPRAGE created by applying the appropriate LUT to the same input data prior to running BET.

Discussion

To address the limitations of traditional CNN-based approaches, we implemented a pixel-wise regression network that takes MRF-derived T1 and T2 maps as inputs and undergoes supervised training against co-registered MPRAGE or TSE images acquired during the same scanning session. The training process creates a unique mapping from quantitative map value tensors to specific intensities in a target qualitative contrast.

After training and 2D lLUT generation, synthetic contrasts can be generated instantly. Overall, contrast similarity versus the target qualitative modalities is adequate for use in existing software tools for co-registration, skull stripping, or similar as shown in Figure 5. Importantly, since contrast performance of an exported lookup table is deterministic, the reproducibility of output synthetic contrasts is identical to the reproducibility of the MRF maps used in the generation process.
