INTRODUCTION

Spin-lock sequences^1,2 are a kind of fMRI principles, which visualize brain activity as image contrast. The spin-lock sequences are expected to overcome the limitations of the conventional fMRI such as low temporal sampling or adaptable only to high-field MRI scanners. Among the spin-lock sequences^3–5, there is no report referring to phase modulation. Thus, this study performs proof-of-principle to self-resonance spin-lock sequence (SR-SL) and reveals it feasibility using theory, simulation, and phantom experiments. The phase modulation can be interpreted as pseudo magnetic field along the static magnetic field, and magnetization can resonate with it. Thus, adjusting phase modulation, we can obtain various image contrast change with no additional RF pulse. In conclusion, SR-SL can replicate the image contrast of the conventional spin-lock sequences simply by modifying parameters without additional burden to a scanner.

METHODS

Theory: Assuming that the phase of the spin-lock pulse is modulated by function f(t), we converted the coordinate using rotation matrix whose angle is f(t). This conversion confirms that the phase modulation of the spin-lock pulse is equal to the oscillatory pseudo magnetic field Bp (= -1/γdf(t)/dt) along the static magnetic field. Therefore, even without external magnetic fields, magnetization can resonate with Bp and image contrast with this sequence changes.

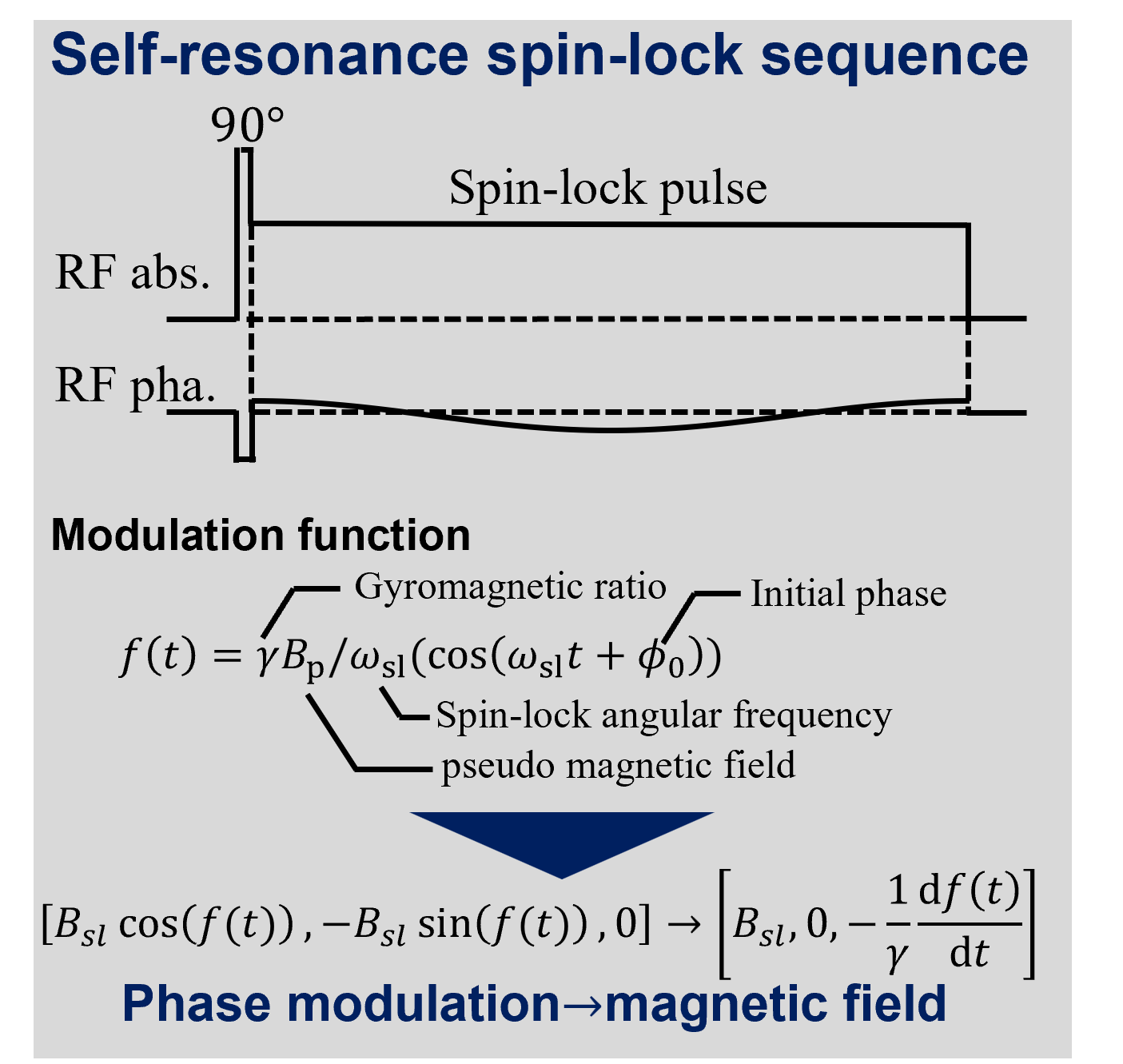

Simulation: To validate this concept, we performed numerical simulation using the Bloch equation. We calculated the Bloch equation during the spin-lock sequence illustrated in Figure. 1 and T1 relaxation between the end of the spin-lock pulse and the start of acquisition sequence. The spin-lock direction, frequency and its duration were x-axis, 40 Hz and 50 ms, respectively. Each T1 and T2 values of the phantom was 118.8 ms and 128.1 ms, respectively.

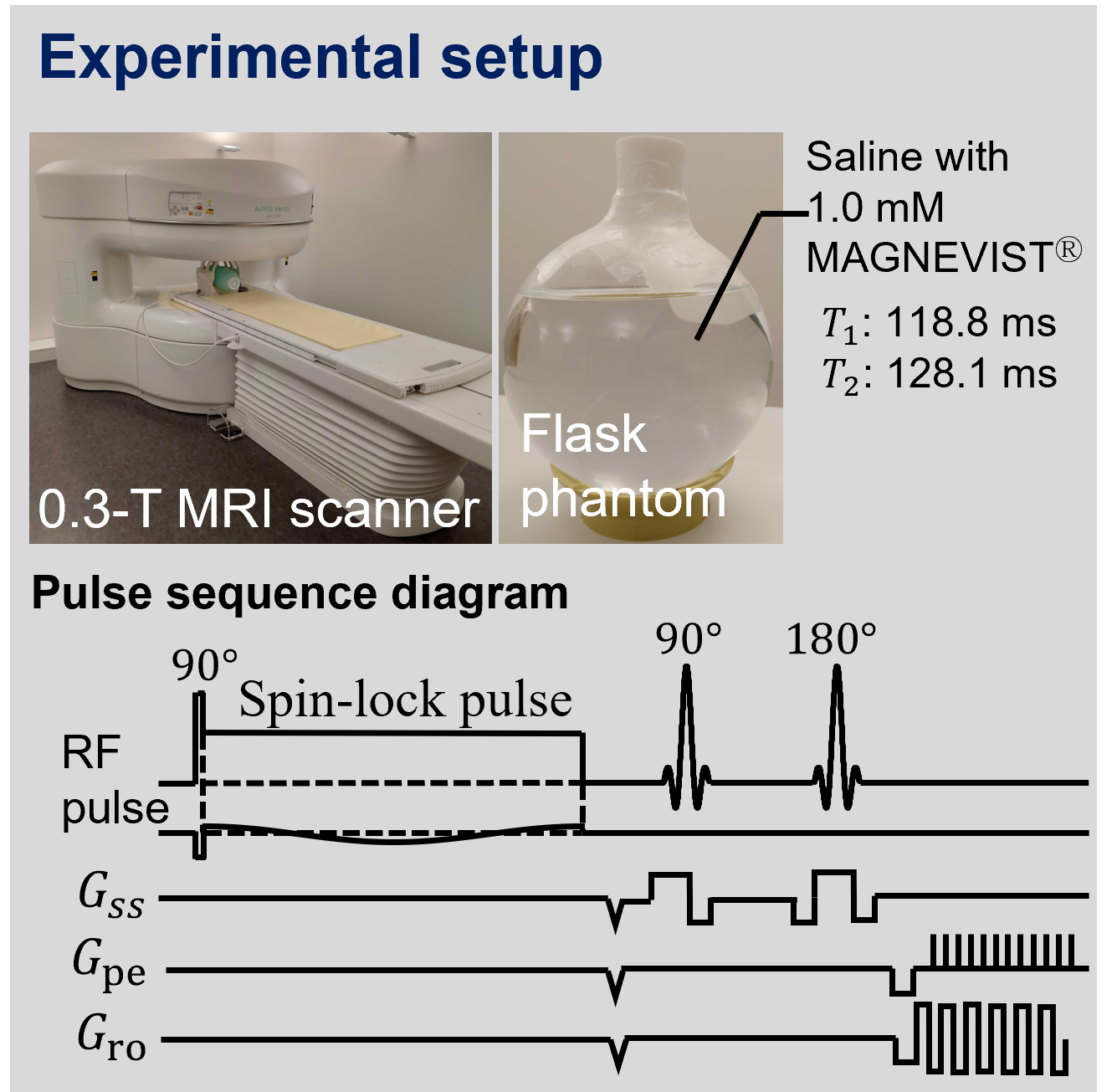

Phantom study: We also performed phantom experiments using 0.3-T low-field MRI scanner. We illustrated the pulse sequence diagram and overview of phantom in Figure 2. We visualized the component parallel to the static magnetic field of magnetization after the spin-lock pulse. The acquisition sequence was SE-EPI whose TR/TE = 1000ms/40.8ms. The voxel size was 3 mm isocubic and T1 and T2 values of the flask phantom is same as the simulation. The region of interest was manually selected and was 5x6 rectangular area in the center of the phantom.

RESULTS

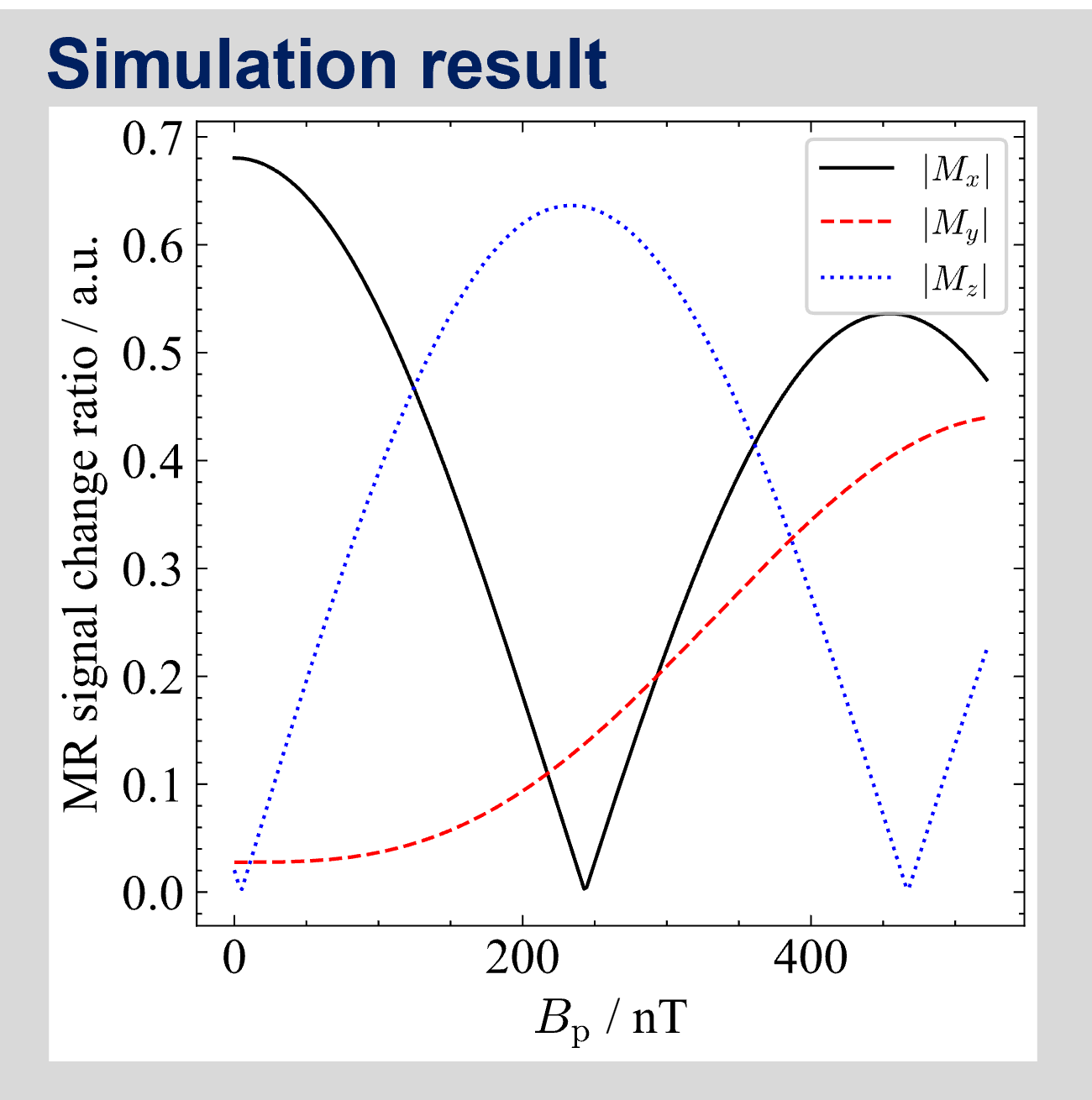

Simulation: Figure 3 illustrates each component of magnetization before the acquisition. The horizontal axis is the strength of the pseudo magnetic field, and vertical one represents the MR signal change ratio between with and without the spin-lock sequence.

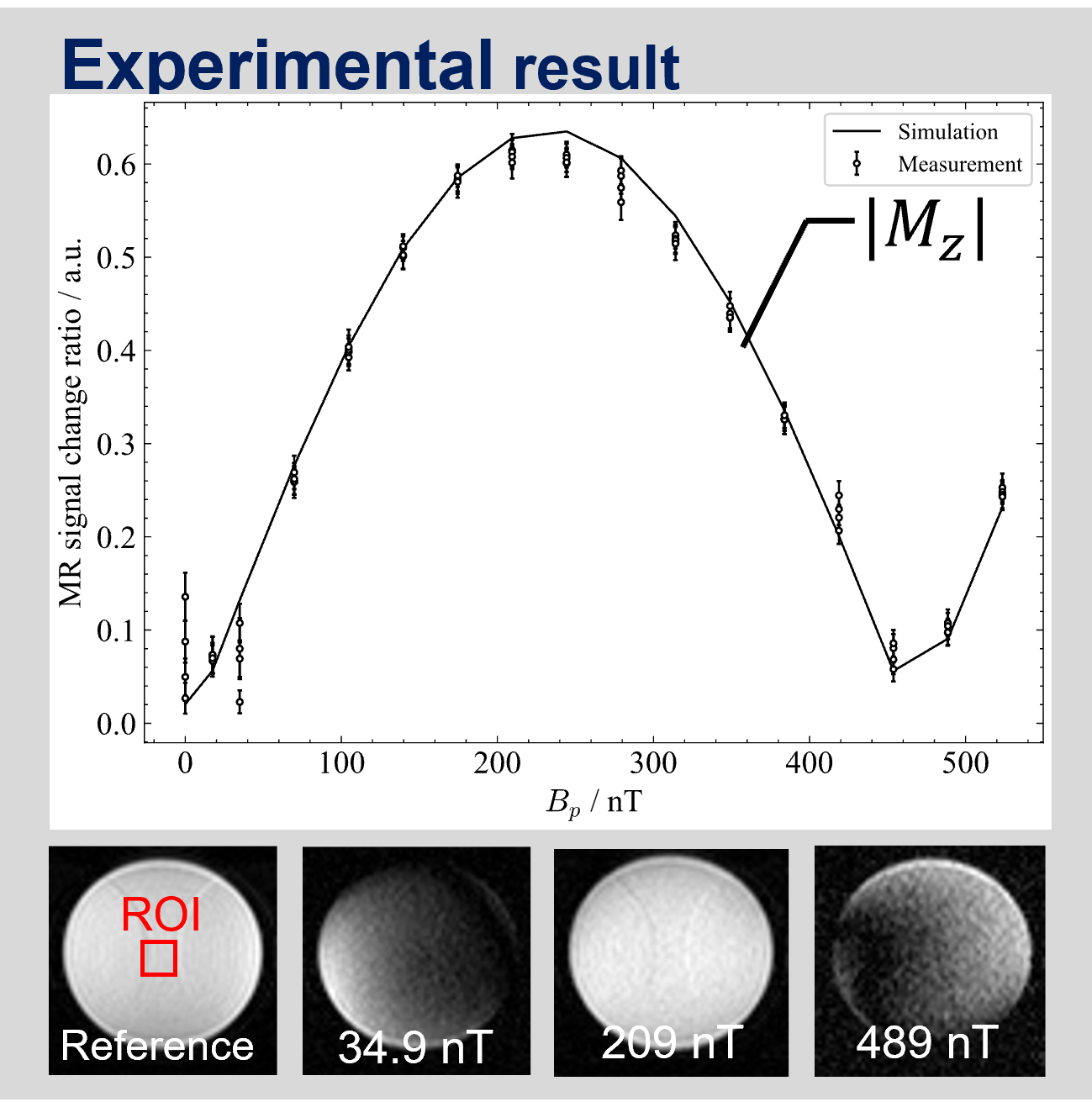

Phantom study: In the Figure 4, we showed the simulation and experimental result which visualized Mz in Figure3. Likewise, the horizontal axis is the strength of the pseudo magnetic field, and vertical one is the MR signal change ratio. The solid line represents simulation result with same condition as the experiments, and both agreed.

DISCUSSION

Based on the theoretical and simulation results, SR-SL can be alternative to all the other spin-lock sequences. For example, SR-SL without no modulation is same as one proposed by Truong et al., and with modulation whose Bp is about 209 nT, we can obtain MR image whose contrast is same as stimulus-induced rotary saturation (SIRS) without any additional RF pulse. In other words, we can control the operating points of image contrast depending on the external (target) magnetic field, because the Bp is controllable parameters for users.
Considering the experimental results, this merits also give us another advantage such as sensitivity improvement. When Bp is lower than 30 nT, the variance of data is larger, because the signal-to-noise ratio (SNR) becomes low and the probabilistic distribution of pixel value approaches to the Rayleigh one. Therefore, to improve the sensitivity, SR-SL is one solution when we adjust Bp such that the pixel values are large enough that SNR improves, and the slope of characteristic curve is large.

CONCLUSION

This study revealed the feasibility of SR-SL based on theory, simulation, and phantom scanning. We confirmed the MR signal change depending on the depth of phase modulation with simulation and experiments. We also found that SR-SL could change the operating point of MR image contrast. This finding leads us to improvement of sensitivity and reduction in saturation absorption rate (SAR).
In the future work, we plan to investigate how much the sensitivity improves and validate that phase modulation can be alternative to refocusing pulse to realize rotary-echo spin-lock sequences^6,7.
