Introduction

In 3D MRI with hyperpolarized (HP) ¹³C agents, specialized signal excitation and acquisition strategies are indispensable to fully harness the transient HP magnetization. Previously, a method combining the multi-echo balanced steady-state free precession (ME-bSSFP) sequence with an iterative decomposition approach, known as echo asymmetry and least-squares estimation (IDEAL), was introduced for efficient HP metabolic imaging and was even applied in initial clinical trials [1-3]. 3D radial acquisitions can be used for dynamic imaging of contrast agents, and a spiral phyllotaxis pattern for a radial k-space filling trajectory offers an efficient sampling strategy [4]. In this work, we present the successful implementation of a 3D ME-bSSFP radial sequence with spiral phyllotaxis sampling in a rodent in vivo experiment using HP [1-¹³C]pyruvate.

Methods

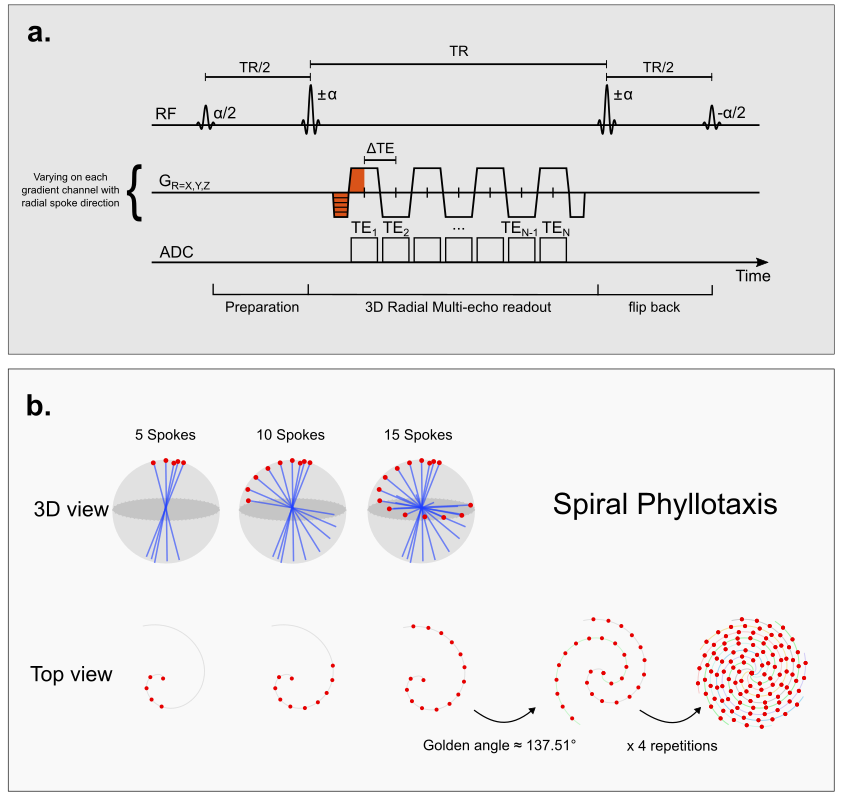

HP [1-¹³C]pyruvate (Concentration 80 mM, Injection dose 7.5 ml/kg body weight) was polarized by dissolution dynamic nuclear polarization (dDNP) using a HyperSense DNP Polarizer (Oxford Instruments). Upon tail-vein injection into healthy female Wistar rats (Charles River), HP ¹³C MRI was conducted on a 3T Biograph mMR (Siemens Healthineers) using a dual-tuned ¹H/¹³C-transmit/receive volume coil (Rapid Biomedical). The 3D radial ME-bSSFP sequence (Figure 1a) used the following parameters: a = ±60° (after an initial a/2 preparation), TR = 16 ms, 5 echoes per TR, isotropic FoV = 290 mm, 300 radial readouts with 64 sampling points, leading to TA = 4.8 s per scan. The orientation angle between the readouts was incremented according to a spiral phyllotaxis pattern and each readout passes through the k-space center (Figure 1b) [4]. The sequence was dynamically repeated three times and non-localized spectroscopy (α = 10°, BW = 2000 Hz, Ns = 2048, TA = 1s) was interleaved to precisely determine the chemical shifts of all metabolites (Figure 2a). MATLAB was utilized for data processing. The multi-echo signals were decomposed using the IDEAL algorithm in k-space, followed by an in-house radial reconstruction script which transformed the initial radial k-space into Cartesian space with a matrix size of 64x64x64. The resulting spatial resolution of the image is isotropic 4.53 mm per voxel.

Results

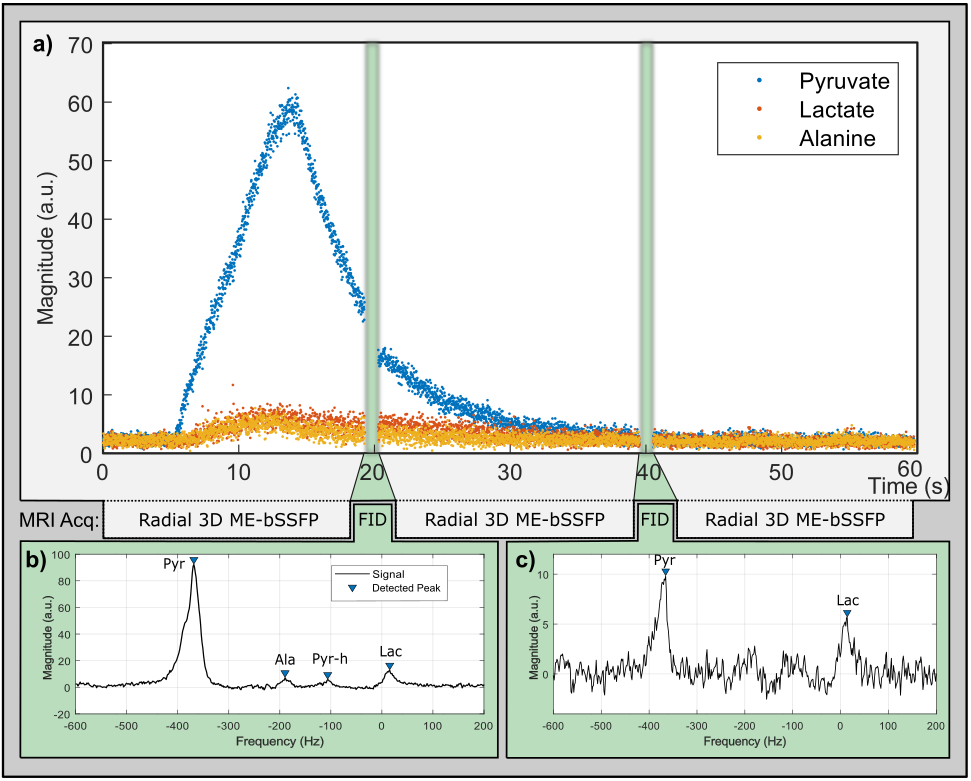

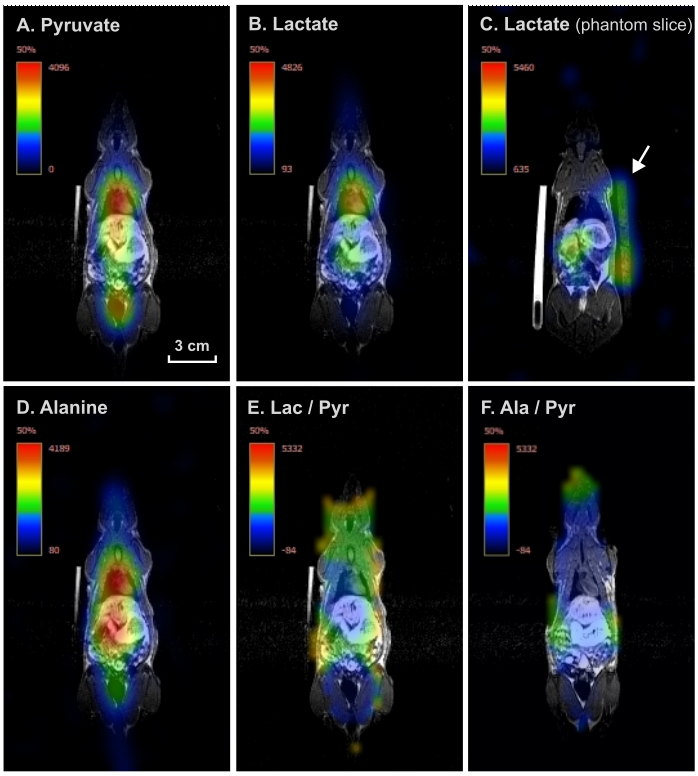

The peak resonance frequencies of [1-¹³C]pyruvate (-370 Hz), [1-¹³C]pyruvate-hydrate (-106 Hz), [1-¹³C]lactate (15 Hz), and [1-¹³C]alanine (-190 Hz) were accurately determined from the acquired spectrum (Figure 2b). The IDEAL algorithm applied to the k-space data effectively separated the metabolite amplitudes from the multiple echo contrasts per each radial orientation based on their peak frequencies. The metabolite-separated radial signals at the k-space center allowed us to dynamically monitor the global (non-localized) magnitude of each individual metabolite with an unprecedented temporal resolution of 16 ms, capturing the bolus of pyruvate and its conversion into lactate and alanine (Figure 2a). Following the reconstruction of the complete radial data, which involved concatenating the three ME-bSSFP acquisitions, 3D metabolite maps were generated and co-registered with ¹H MRI. This process successfully localized the pyruvate, alanine, and lactate signals in the head, heart, and abdomen (Figure 3, A-D). Note that only the lactate map highlights the ¹³C-labelled, lactate reference phantom near the animal (Figure 3C). To further assess the metabolic conversion, voxel-wise division of the 3D metabolite maps yields area-under-the-curve (AUC) metabolite ratio maps. After masking the resulting Lac/Pyr and Ala/Pyr AUC-ratio maps to exclude regions with no measurable HP ¹³C signals, both AUC-ratio maps identified areas of high conversion, e.g., the animal's heart and head (Figure 3, E-F).

Discussion and Conclusion

The integration of ME-bSSFP with center-through radial trajectory and spiral phyllotaxis golden-angle increments offers potential advantages over conventional Cartesian readouts. It allows for fast detection of HP ¹³C metabolites in large FoVs and is less sensitive to motion artifacts, which can be beneficial, for instance, for preclinical HP ¹³C MRSI with whole-animal or clinical HP ¹³C MRSI with extensive organ coverage. Furthermore, it features greater flexibility in data acquisition and reconstruction, opening up new possibilities: (a) Monitoring non-localized metabolic conversion with unprecedented temporal resolution; (b) Extracting metabolite maps and ratios with high SNR and spatial resolution from the complete dataset; (c) Reconstructing subsets of collected data in a sliding-window fashion to generate dynamic 3D maps with desired temporal resolution. (d) Offering flexibility for rapid acquisition and undersampling schemes. With improvements in metabolite-specific RF pulses, the decaying signals of downstream metabolic products from pyruvate may be better conserved.
In conclusion, the successful acquisition, separation, and 3D reconstruction of HP ¹³C MRI signals acquired with a radial ME-bSSFP using a spiral phyllotaxis trajectory pattern was demonstrated. This method features great flexibility and holds promise for HP metabolic imaging with high SNR, and temporal-spatial resolution.

Acknowledgements

Research reported in this publication was funded by the German Federal Ministry of Education and Research (BMBF) in the program “Quantum Technologies – from Basic Research to Market” under the project “QuE-MRT” (contract number: 13N16448).

References

[1] C. A. Müller et al., ‘Dynamic 2D and 3D mapping of hyperpolarized pyruvate to lactate conversion in vivo with efficient multi-echo balanced steady-state free precession at 3 T’, NMR in Biomedicine, vol. 33, no. 6, p. e4291, 2020.
[2] R. Chowdhury et al., ‘Quantification of Prostate Cancer Metabolism Using 3D Multiecho bSSFP and Hyperpolarized [1-13C] Pyruvate: Metabolism Differs Between Tumors of the Same Gleason Grade’, Journal of Magnetic Resonance Imaging, vol. 57, no. 6, pp. 1865–1875, 2023.
[3] S. B. Reeder et al., ‘Iterative decomposition of water and fat with echo asymmetry and least-squares estimation (IDEAL): application with fast spin-echo imaging’, Magn Reson Med, vol. 54, no. 3, pp. 636–644, Sep. 2005.
[4] D. Piccini, A. Littmann, S. Nielles-Vallespin, and M. O. Zenge, ‘Spiral phyllotaxis: The natural way to construct a 3D radial trajectory in MRI’, Magnetic Resonance in Medicine, vol. 66, no. 4, pp. 1049–1056, 2011.
