Introduction

In addition to the value-based proposition for recently modernized low-field MRI systems, there are many underexplored clinical niches where they might provide an advantage over mid- and high-field scanners. One key area is imaging near metal-containing medical devices, where susceptibility artifacts degrade image quality and reduce the diagnostic utility of images. A range of basic to advanced artifact reduction techniques exist, where the implementation of the more effective techniques often require considerable trade-offs to factors such as scan time or resolution¹. Based on the field dependence of susceptibility-induced field distortions², contemporary low-field MRI may offer a middle ground. We hypothesize that susceptibility artifacts produced by MR-conditional devices will be significantly reduced at 0.5 T compared to 1.5 T and 3 T scanners explored using routine brain imaging protocols in active clinical use at our institution.

Methodology

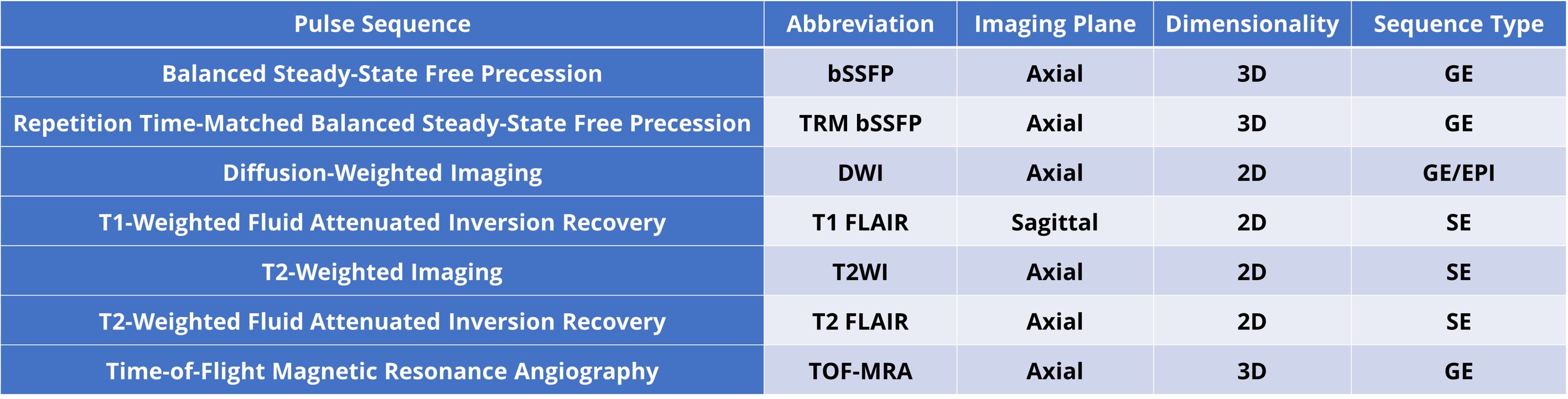

Routine brain imaging pulse sequences independently protocolled on three different field strength MRIs were used to evaluate susceptibility artifact produced by passive medical devices. Methodology for this phantom study was based on recommendations provided in ASTM International F2119-07³, an FDA consensus standard for measuring artifact produced by passive medical devices⁴. A summary of the routine brain imaging protocol is available in Table 1. Inclusion of repetition time-matched (TRM) bSSFP enables a comparison which excludes clinical protocolling effects while producing field-dependent banding artifacts that are directly related to local field distortions. The studied medical devices included a 316L stainless steel staple, a nitinol flow diverting stent, and a platinum embolization coil. These high-use devices are expected to provide a reasonable range of magnetic susceptibilities and geometries. The staple and stent were imaged with their longest axis parallel and perpendicular to the main magnetic field. However, the coil was only imaged in the perpendicular orientation due to limitations associated with supporting the device within the phantom. A spherical acrylic phantom filled with MnCl₂-doped gelatine was used to represent in vivo magnetic properties and secure the devices during imaging. The MRI systems available for research use at our institution were a 0.5 T Synaptive Evry, a 1.5 T GE HealthCare Signa HDxt, and a 3 T GE HealthCare Discovery MR750.

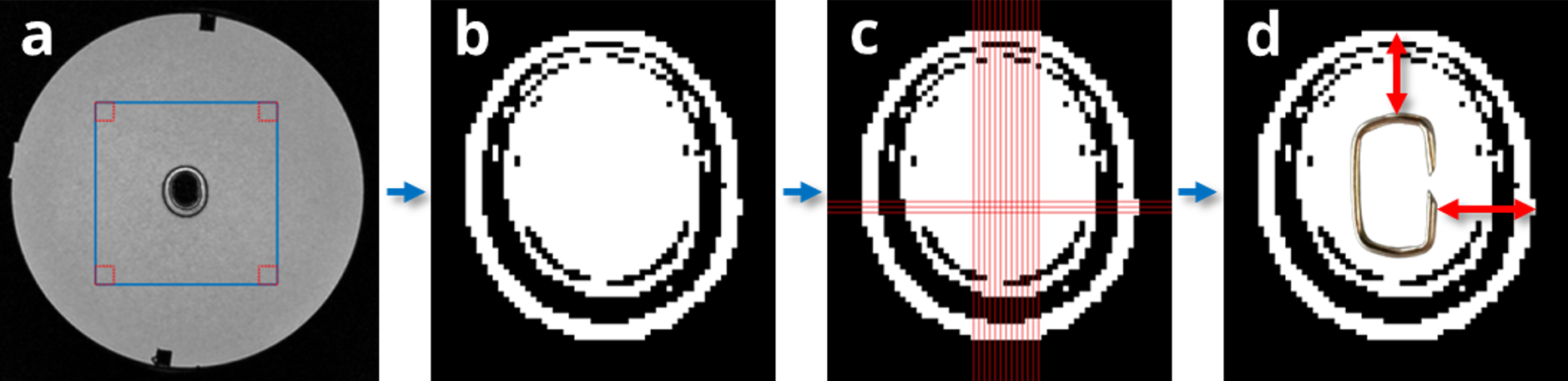

Artifact width was measured using an automated procedure based on definitions provided in F2119-07³. Figure 1 depicts key steps from this pipeline. Radiofrequency (RF) shielding artifacts were assessed on TOF-MRA images by comparing the relative in-stent signal intensity to background signal using a region of interest-based method⁵ in FIJI⁶.

Three replicate image sets were collected for each device and orientation to facilitate statistical testing. Significance was assessed using paired two-tailed t-tests and the false discovery rate was controlled using a two-stage linear step-up procedure⁷. Comparisons were limited to retain statistical power. Average artifact width comparisons were only made between 0.5 T and 1.5 T and between 0.5 T and 3 T for a specific pulse sequence, device, and orientation.

Results and Discussion

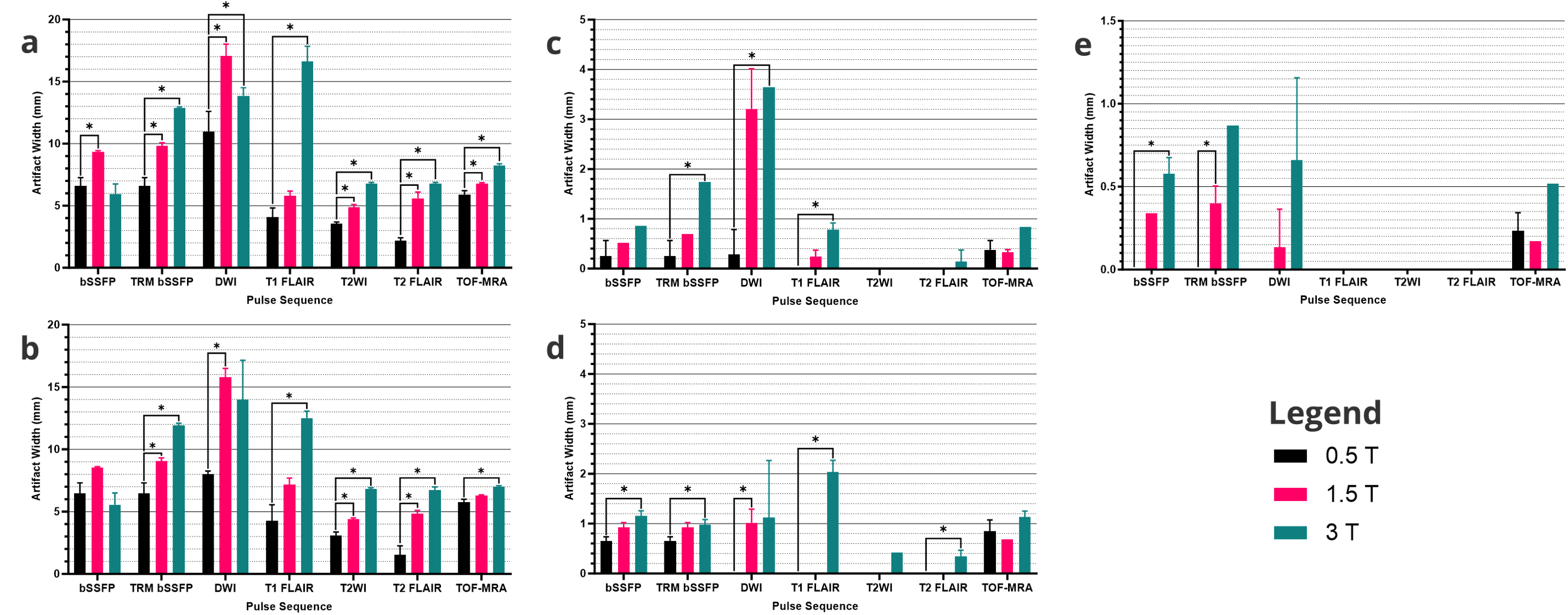

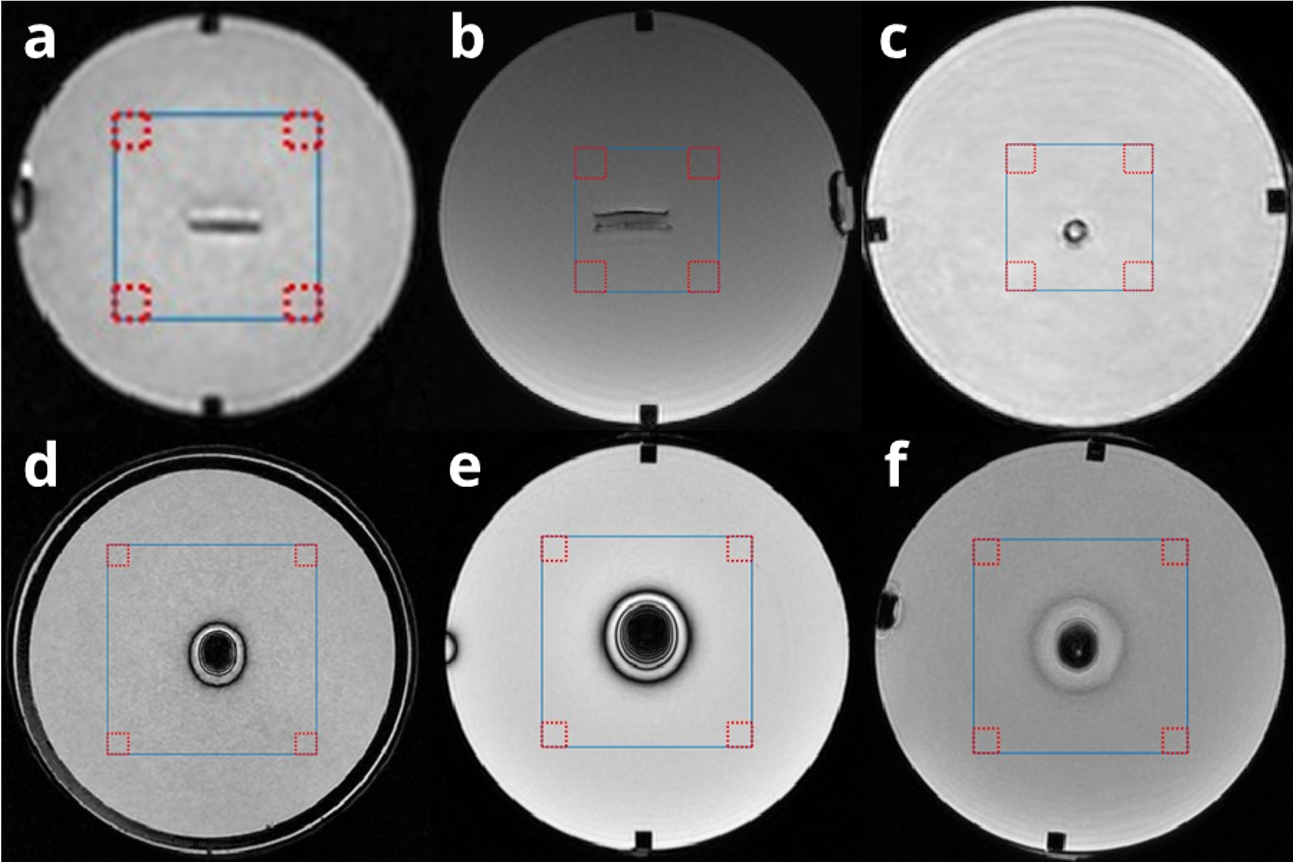

A selection of representative susceptibility artifact images is presented in Figure 2. A summary of artifact width measurements is provided in Figure 3. Statistical significance is indicated by an asterisk over a comparison arrow. The anticipated field-dependence of susceptibility artifacts produced by T2WI, T2 FLAIR, T1 FLAIR, and TRM bSSFP were confirmed. However, DWI and TOF-MRA results deviated from expectations. At 3 T, bSSFP utilizes a maximum intensity projection of two phase-cycled acquisitions to enable comparable performance to 0.5 T. The reduction in artifact with bSSFP compared to TRM bSSFP, coupled with the above results, points to the considerable effects of clinical protocolling decisions and trade-offs.

Device orientation relative to the main magnetic field had minimal effect on artifact width.

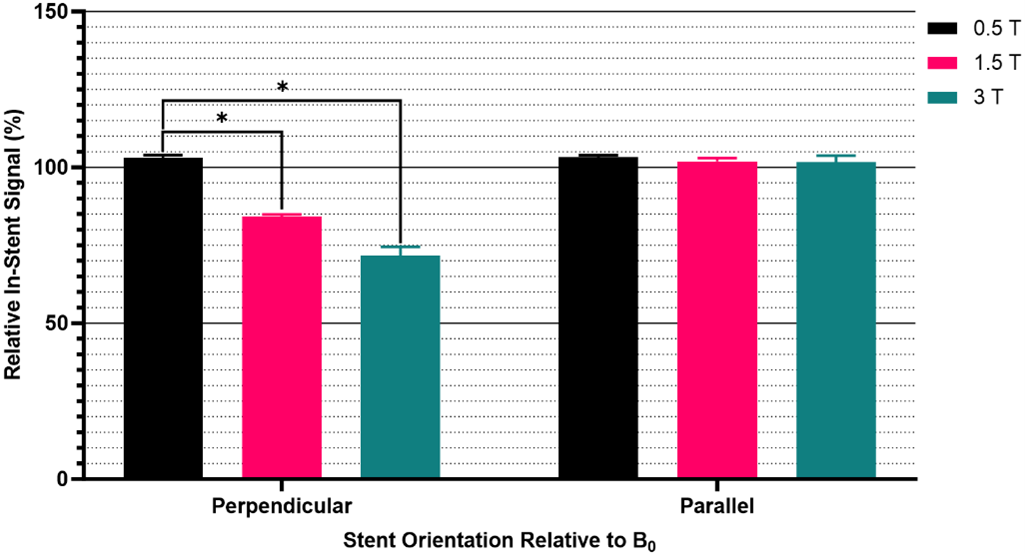

The results of the RF shielding assessment are provided in Figure 4. Device orientation and field strength significantly influenced RF shielding effects. RF shielding was negligible with the stent oriented parallel to the main field, but the perpendicular orientation reduced relative in-stent signal intensity to 72% at 3 T and 84% at 1.5 T.

Conclusion

Results from TRM bSSFP confirmed the scaling of susceptibility-induced field distortions with field strength. Clinical protocolling at 1.5 T and 3 T mitigated the effects of increased field distortions. The most substantial evidence is provided by bSSFP at 3 T, where artifact width was reduced relative to 1.5 T and comparable to 0.5 T. Protocolling trade-offs that decrease sensitivity to magnetic field distortions are frequently costly in terms of increased scan time or reduced signal-to-noise ratio. Alternatively, low-field MRI protocols require fewer of these protocolling compromises, suggesting an opportunity for improved clinical imaging around implanted devices and in regions with substantial magnetic susceptibility distortions.

Acknowledgements

Funding for this research was provided by grants from the NSERC Discovery program and INOVAIT Focus Fund, and by scholarships from Dalhousie's Faculty of Engineering Graduate Award and the Bruce & Dorothy Rosetti Engineering Research Scholarship.
