Prospective gradient nonlinearity correction for diffusion MRI: uncover lost sensitivity to non-Gaussian diffusion and tissue microstructure1Technology and Innovation Center, GE Healthcare, Niskayuna, NY, United States, 2University of Michigan, Ann Arbor, MI, United States, 3Mayo Clinic, Rochester, MN, United States
Synopsis
Keywords: Microstructure, Diffusion/other diffusion imaging techniques
Motivation: Time-dependent diffusion MRI, which is sensitive to non-Gaussian diffusion, reveals tissue microstructures and has been shown to improve cancer imaging and neuroimaging. However, gradient nonlinearity results in subject position-dependent bias for non-Gaussian diffusion characterization. Correction methods are needed.
Goal(s): To reduce the effect of gradient nonlinearity on 2D time-dependent diffusion MRI.
Approach: Slice-by-slice scaling of diffusion encoding gradients was applied to compensate for gradient nonlinearity.
Results: Uncorrected $$$\frac{ADC(60Hz)}{ADC(0Hz)}$$$ of a non-Gaussian diffusion phantom showed errors in off-center slices, where the actual diffusion gradient amplitude was reduced compared to prescribed values. The errors were reduced by prospectively increasing the prescribed diffusion gradient amplitude.
Impact: MR physicists, neuroimaging scientists, and radiologists, who are interested in microstructure imaging by probing time-dependent, non-Gaussian diffusion, will benefit from increased robustness to gradient nonlinearity and subject position, especially when using high-performance gradient systems that may have increased nonlinearity.
Introduction
Diffusion MRI-based microstructure imaging techniques have been shown to improve clinical diagnosis and treatment evaluation of cancer1,2, as well as advance our understanding of neurological disorders and diseases3. For example, time-dependent diffusion MRI has shown to disentangle intracellular water signal from extracellular water signal and quantify cell size4 and exchange rate5. Despite its promise, the accuracy and reproducibility of microstructure imaging are reduced by the nonlinearity of gradient fields. Gradient nonlinearity results in spatially varying b-values and introduces subject position-dependent variation of diffusion measurements6 and microstructure characteristics7. Retrospective gradient nonlinearity correction has been implemented by calculating the actual b-value and tensor, and applying them in the parametric estimation8. These methods improve the accuracy of apparent diffusion coefficient (ADC)9,10. However, they cannot recover reduced sensitivity to non-Gaussian diffusion if the diffusion weighted (DW) signals are acquired at a decreased b-value.We propose prospective compensation for gradient nonlinearity in two-dimensional diffusion MRI. The systematic bias of gradient nonlinearity on time-dependent diffusivity, which is sensitive to non-Gaussian diffusion, was analyzed and the prospective compensation was applied to reduce the bias.
Theory
The actual, applied gradient $$$G_{x/y/z,actual}(i)$$$ deviates from the prescribed, nominal gradient $$$G_{x/y/z,nominal}(i)$$$, characterized by scale factors λ(i) due to the nonlinearity11 in the voxel i (Figure 1, Eqs.1-2). Thus, the acquired DW signals are weighted by both nominal b-value and λ(i) (Eq. 3). Without correction, diffusion tensor and ADC(t) at diffusion time t are calculated with reference to the nominal b-value (Eqs. 4-6). Retrospective gradient nonlinearity correction applies an estimated λ(i) to the ADC calculation8 (Eqs. 7-9).We propose to prospectively scale diffusion encoding gradients with factors αx/y/z(i). Ideally, αx/y/z(i) would be chosen such that the L2 norm of α(i)·λ(i)·bnominal-bnominal is close to 0 for each voxel. In 2D diffusion MRI, αx/y/z(ss) of slice sscan be determined to achieve an optimal value over a certain region-of-interest (ROI) (Figure 1, Eq. 10). Thus, the acquired DW signals are weighted by α(ss)·λ(i) (Eqs. 11-12) and the calculated ADC (Eqs. 13-15) more accurately reflects the tissue property at the prescribed, nominal b-value.
Methods
Figure 2 shows the estimated Z gradient field of a small-bore MAGNUS12 gradient coil at z=0 cm and 6 cm. As an example, the pre-compensation scaling factor αz(ss) was calculated as the inverse of the median L2 norm of λ(i) in a circular ROI with 6 cm radius, and αy(ss) and αx(ss) were set to 0.A cylindrical non-Gaussian diffusion phantom with ~1.6 cm radius, consisting of water and lipid nanoparticle vesicles13-16, was scanned in a 3.0T MANGUS MRI system12 (GE Healthcare, USA) at 300 mT/m and 750 T/m/s, and a 32-channel phased-array receive RF coils (Nova Medical, USA). Oscillating gradient spin echo diffusion encoding17 with a frequency of 60 Hz (short diffusion time) and pulsed gradient spin echo (approximating 0 Hz) at b-value of 1000 s/mm2 were acquired. The scan was performed at two positions, i.e., iso-center and 6 cm off-center in inferior direction. At the 6 cm off-center position, two datasets were acquired with and without gradient scaling for diffusion encoding gradient. Imaging protocols are shown in Figure 3. ADC(0 Hz), ADC(60 Hz) and $$$\frac{ADC(60 Hz)}{ADC(0 Hz)}$$$, which reflects time-dependent diffusion that is sensitive to tumor microstructure17, were calculated.
Results

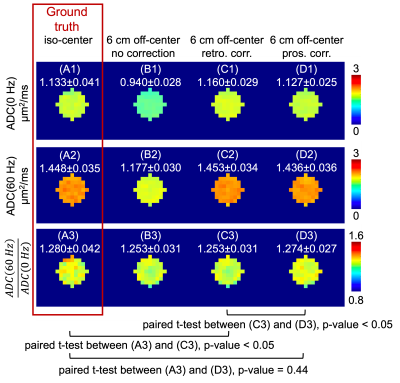

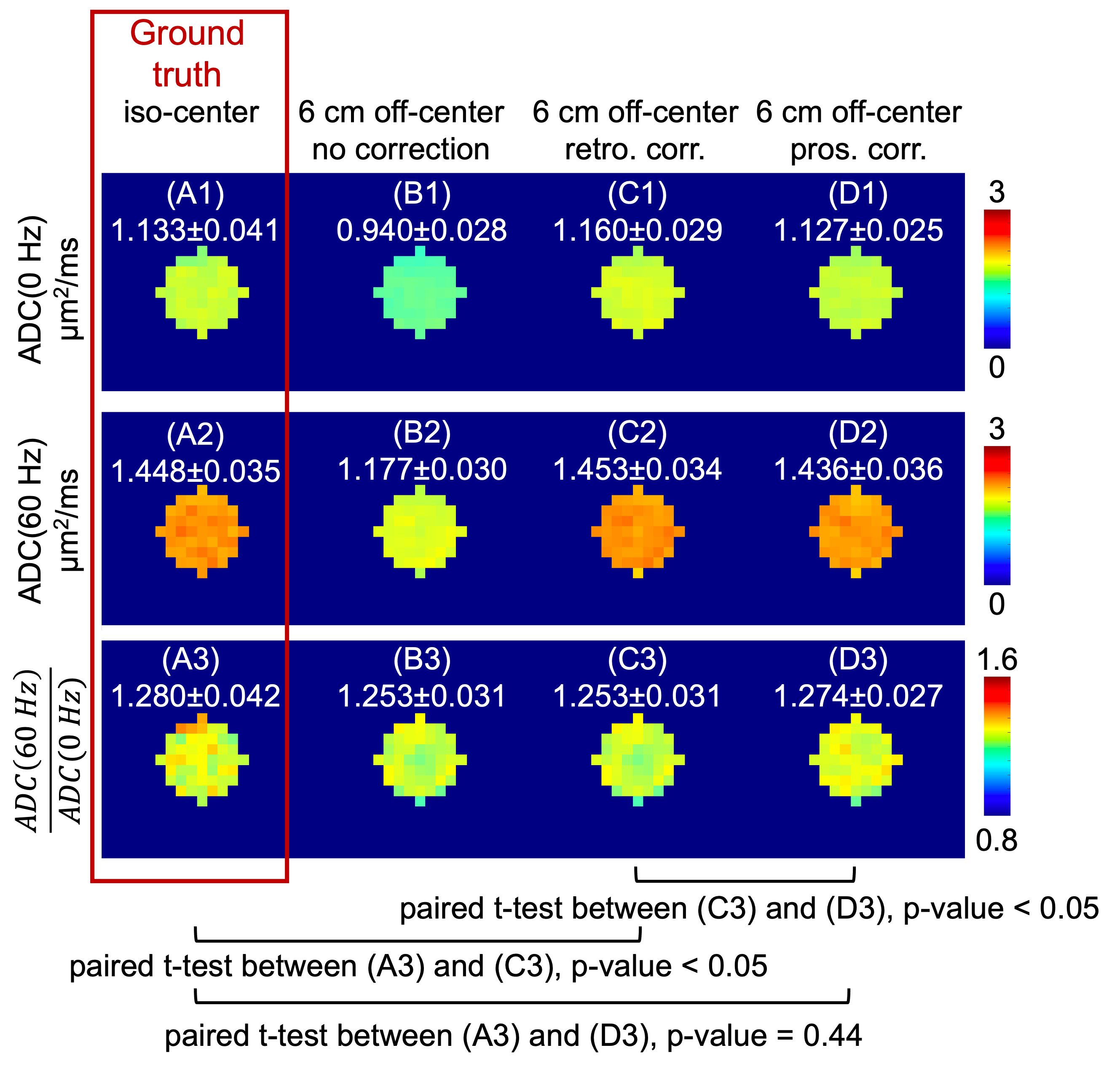

Simulations in Figure 4 show the effect of gradient nonlinearity on ADC(0 Hz), ADC(60 Hz) and $$$\frac{ADC(60 Hz)}{ADC(0 Hz)}$$$ of tumor with different intra-tumoral volume fractions and cell radii, modeled following previous studies17. Due to gradient nonlinearity (Figures 4A and 4D), all three measurements deviated from true values (dashed lines). The errors of ADC(0 Hz) and ADC(60 Hz) were reduced using retrospective correction (Figures 4B and 4E), whereas the error of $$$\frac{ADC(60 Hz)}{ADC(0 Hz)}$$$ remained unchanged. The prospective correction (Figures 4C and 4F) corrected for errors of all three measurements.In the phantom acquisitions without correction, the mean ADC(0 Hz), ADC(60 Hz) and $$$\frac{ADC(60 Hz)}{ADC(0 Hz)}$$$ at 6 cm off-center (Figures 5B) were significantly different from the measurements at iso-center (Figures 5A). The retrospective correction (Figures 5C) reduced the error on ADC(0 Hz) and ADC(60 Hz), but not on $$$\frac{ADC(60 Hz)}{ADC(0 Hz)}$$$. The prospective correction (Figures 5D) reduced errors on all three measurements.
Discussions and Conclusions
Our preliminary study demonstrated that gradient nonlinearity affects the sensitivity of time-dependent diffusion measurements for non-Gaussian diffusion, which can be corrected prospectively by applying slice-by-slice scaling of the diffusion encoding gradients in 2D imaging. Emerging small-bore, head-only gradient coils tend to have higher gradient nonlinearity12,18,19. Because an important application of these high-performance is to advance microstructure imaging, specifically by probing non-Gaussian diffusion, the effect of gradient nonlinearity requires careful consideration.Acknowledgements
Research reported in this publication was supported by the National Institute of Biomedical Imaging and Bioengineering of the National Institutes of Health (NIH) under award Number U01EB034313, and the National Cancer Institute of the NIH under award Number R01CA190299. The content is solely the responsibility of the authors and does not necessarily represent the official views of the NIH.References
