Visualization of fine white matter bundles in the living human brain with diffusion MRI using 500 mT/m gradient strength1Athinoula A. Martinos Center for Biomedical Imaging, Department of Radiology, Massachusetts General Hospital & Harvard Medical School, Charlestown, MA, United States, 2Institute of Medical Physics and Radiation Protection, Mittelhessen University of Applied Sciences, Giessen, Germany., Giessen, Germany
Synopsis
Keywords: Tractography, Gradients, Structural Connectivity
Motivation: There is a pressing need to move beyond the brain major white matter fasciculi in our understanding and characterization of human connectional neuroanatomy.
Goal(s): To perform initial in vivo high-resolution diffusion MRI on the next-generation Connectome 2.0 scanner equipped with 500 mT/m gradient strength.
Approach: We acquired 1-mm isotropic dMRI in one healthy subject on Connectome 2.0 and evaluated its capabilities in characterizing fine fiber bundles in comparison to Connectome 1.0.
Results: The SNR boost enabled by the Connectome 2.0 stronger gradient system allows resolution of fine white matter structures in deep brain regions and near the gray-white interface.
Impact: The ability to characterize fine white matter circuitry in the living human brain within reasonable scan times opens new possibilities for investigating their role in psychiatric and neurological disorders and enables the application of clinical interventions that target these pathways.
Introduction
Data from ex vivo brain specimens and animal studies point to a pressing need to access the connectional anatomy of the human brain in vivo at higher resolution to advance our understanding of its function in health and disease. Many of the core subcortical pathways responsible for regulating vital brain functions are too small (<3 mm)1 to be imaged at the resolution that can be achieved on current state-of-the-art scanners for in vivo diffusion MRI (e.g., 1.5-2 mm)2. Validation studies have shown that spatial resolution has a greater impact than angular resolution in resolving complex fiber configurations3. While more advanced sequences4,5 can be used to image small subcortical pathways at sub-millimeter resolution with exceptional anatomical accuracy2,6, these lengthy acquisitions remain impractical for large-scale studies. The Connectome 2.0 MRI scanner was designed to image connectional anatomy in the living human brain at unprecedented resolution by pushing the maximum gradient strength (Gmax) and slew rate (SRmax) from 300 mT/m and 200 T/m/s on the original Connectome scanner (Connectome 1.0) to 500 mT/m and 600 T/m/s7. Here, we report initial results for high-resolution in vivo diffusion MRI on Connectome 2.0. We show that its ability to achieve high spatial resolution down to 1 mm isotropic with sufficient SNR is critical for capturing small fiber connections with greater accuracy than what was previously possible.Methods

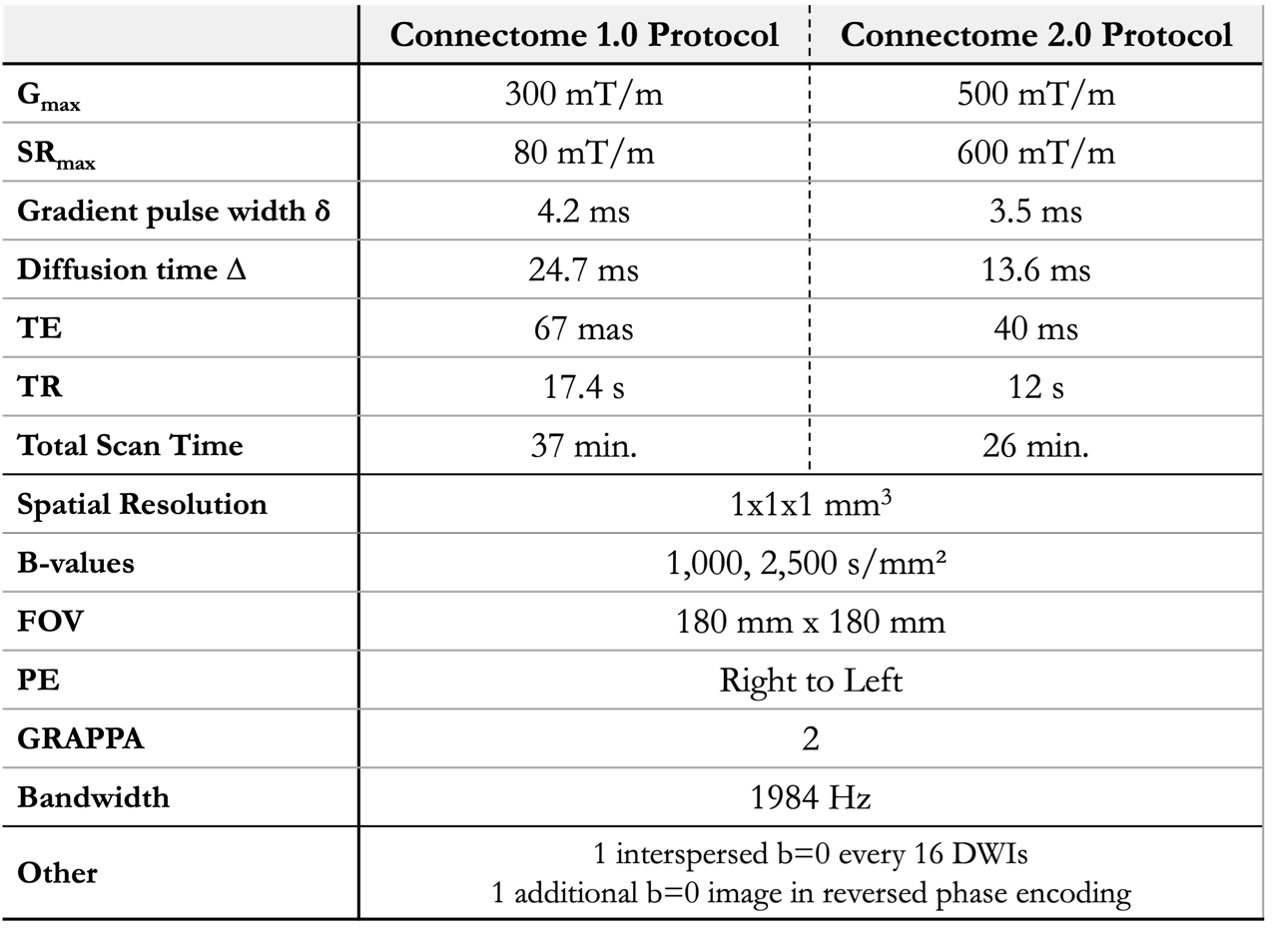

Diffusion MRI data were acquired in a healthy volunteer (34F) on the Connectome 2.0 scanner (MAGNETOM Connectom.X, Siemens Healthineers, Erlangen, Germany) using protocols with Gmax of 300 mT/m (Connectome 1.0) and 500 mT/m (Connectome 2.0) using a custom-built 72-channel head coil6. Protocol parameters for Connectome 1.0 and Connectome 2.0 acquisitions are listed in Table 1. The diffusion data were preprocessed using Gibbs ringing correction8, susceptibility and eddy current induced distortion correction9, and gradient non-linearity distortion correction10. Fiber orientation distribution functions (fODFs) were fitted to the pre-processed data using multi-shell multi-tissue constrained spherical deconvolution in MRtrix311. Whole-brain tractograms were obtained seeding local probabilistic tractography12 in every voxel within a white matter mask (5 seeds/voxel). To allow for better anatomical comparison, the datasets were co-registered13. To investigate the effects of denoising, we repeated the pre-processing adding an iterative Rician-corrected denoising14 as first step in the preprocessing pipeline.Results

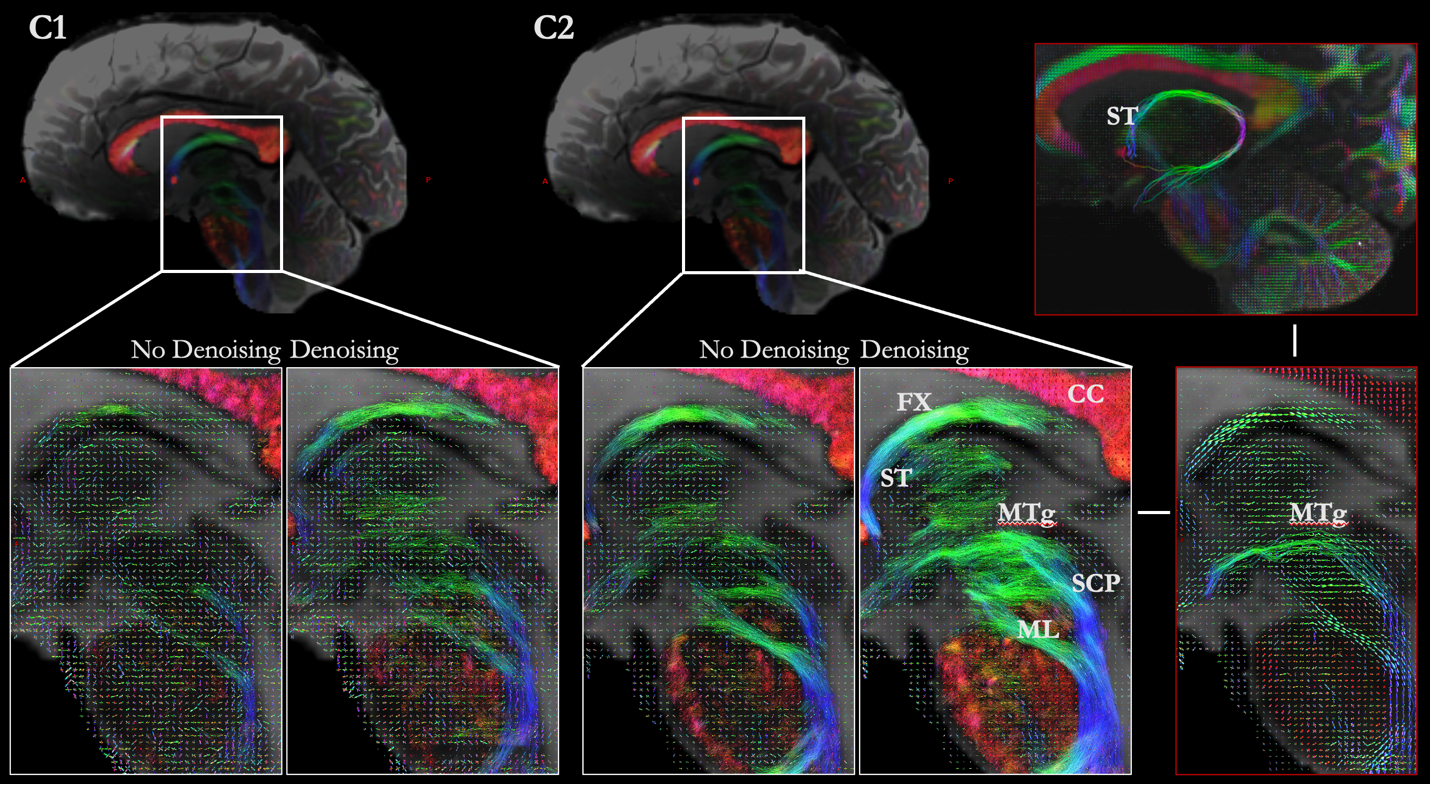

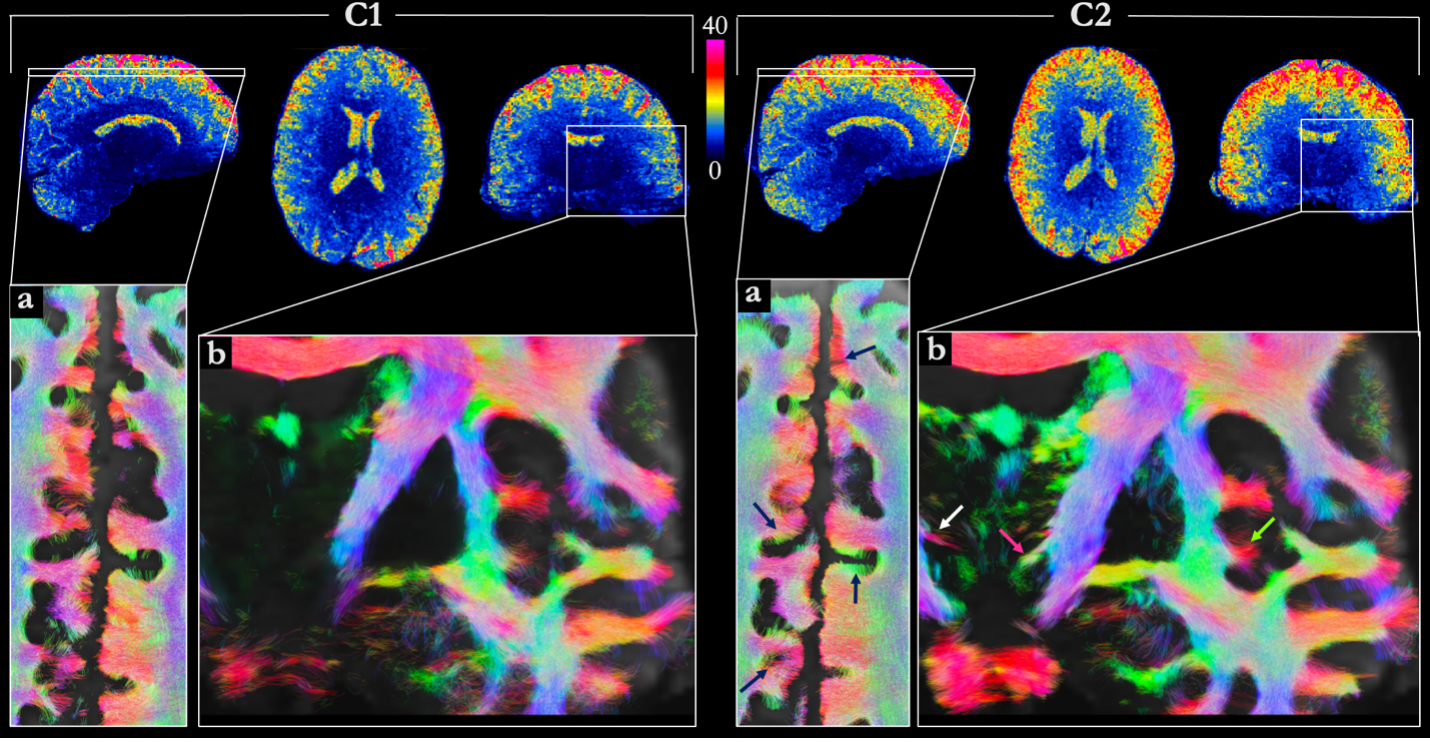

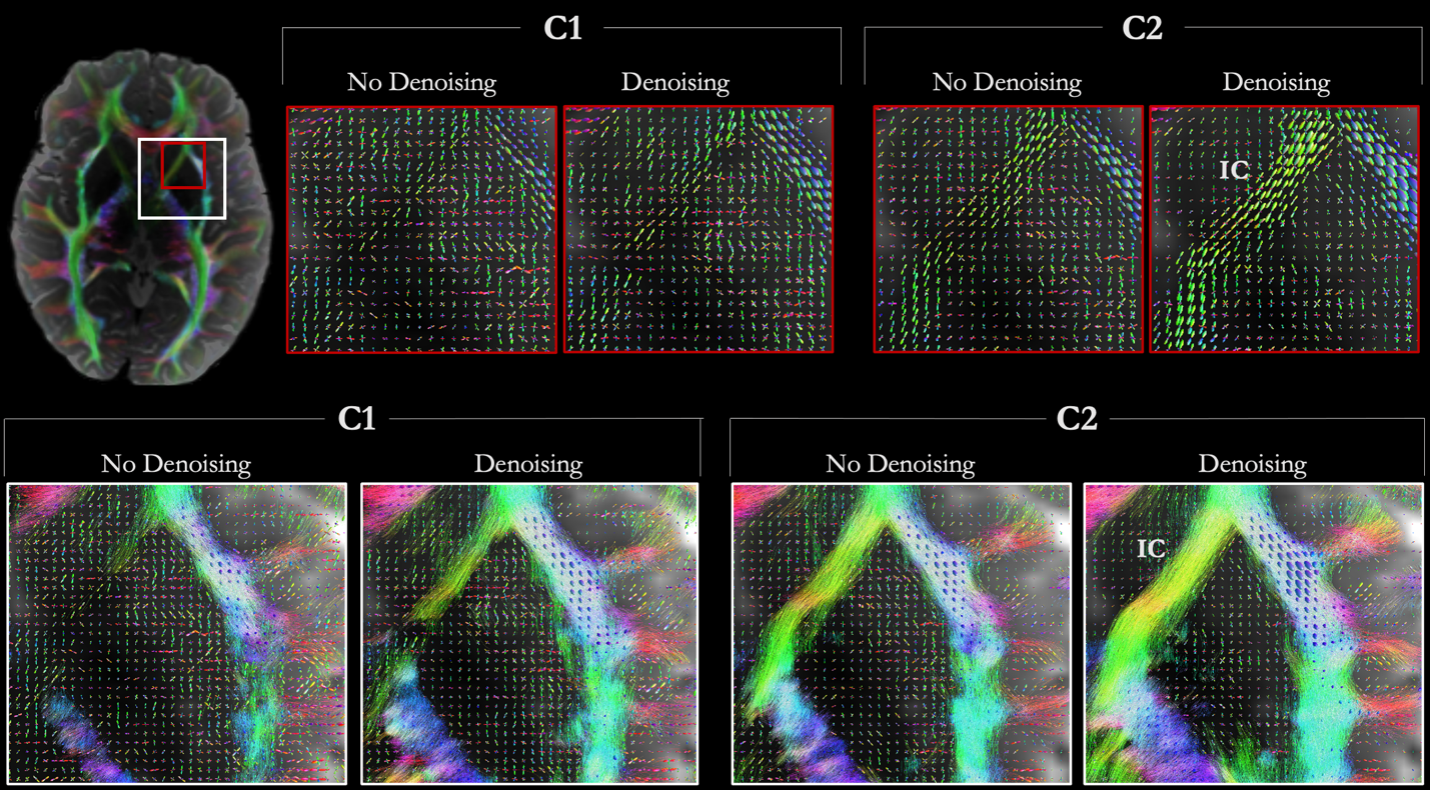

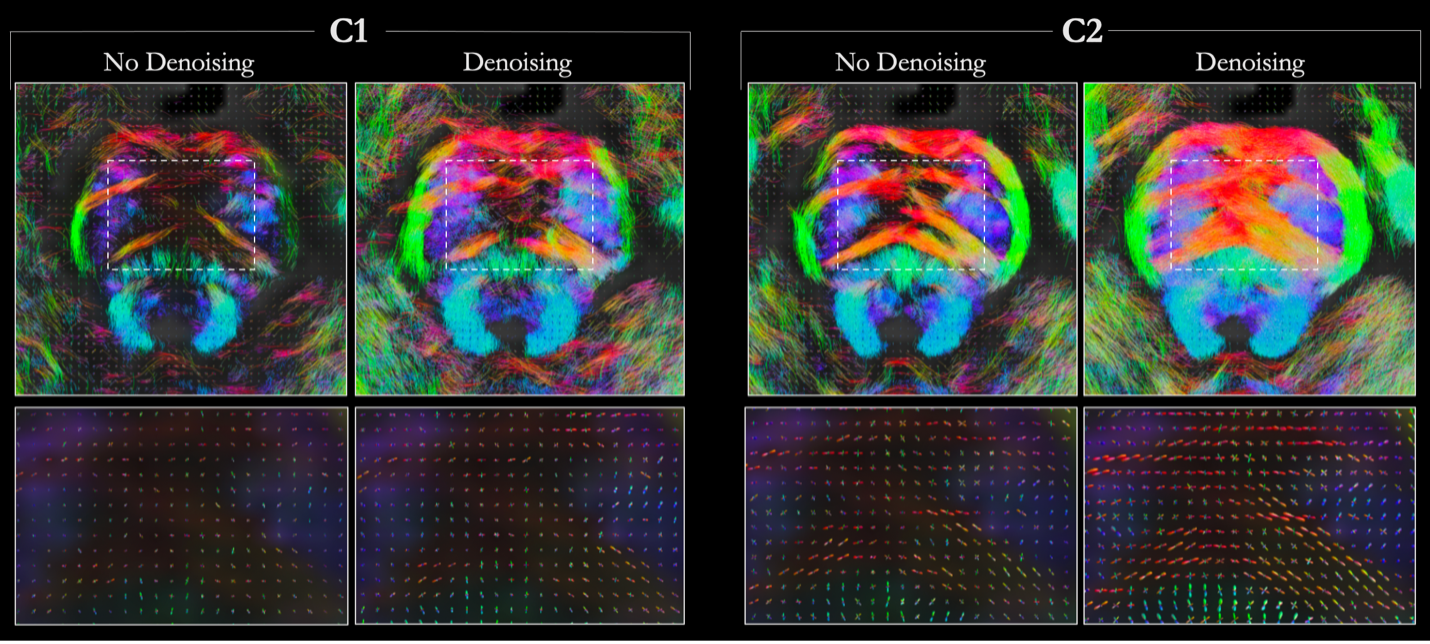

The higher-performance gradient system of Connectome 2.0 allows significant reductions in diffusion time and pulse width for the same diffusion-encoding b-value, resulting in shorter TE and higher SNR compared to Connectome 1.0 (Figure 1). This enables the resolution of smaller white-matter structures, like the radially oriented fibers around the gray and white matter boundary (Figure 1a) and the small fiber bundles leaving the internal capsule to enter subthalamic regions (Figure 1b)15. The increased SNR on Connectome 2.0 is even more noticeable in deep white matter, where more accurate fiber orientation estimates can be obtained in the anterior limb of the internal capsule (Figure 2) and in the brainstem (Figure 3,4), resulting in more accurate and complete tractography reconstructions compared to Connectome 1.0. This allows the accurate reconstruction of challenging fine fiber bundles like the mammillo-tegmental tract (MTg) and stria terminalis (ST) (Figure 4). We have previously shown that these small subcortical pathways (diameter<2 mm) could be accurately visualized in sub-millimeter diffusion MRI across 9 two-hour sessions2. Here, we show these pathways can be correctly visualized in a 30 min. scan on Connectome 2.0, while they could not be seen with the matched Connectome 1.0 protocol (Figure 4). Of note, for all the white matter structures investigated here, denoising Connectome 1.0 data does not provide the anatomical accuracy obtained with non-denoised Connectome 2.0 data.Conclusion
The SNR boost achieved on Connectome 2.0 allows the accurate visualization of small fiber configurations in vivo. This will enable mapping of the fine topographical organization in healthy subjects and individuals with psychiatric or neurological conditions, while concomitantly characterizing their underlying microstructure. It will also open new avenues for interventions that target these pathways, including deep brain stimulation16. The ability to delineate and characterize these smaller circuitries in vivo will bridge a key technology gap in the effort to advance our understanding of brain disorders.Acknowledgements
