Automatic Right Ventricular Segmentation of Cardiac Cine Magnetic Resonance Images Based on a Novel Multi-atlas Two-Stage U-net1School of Health Science and Engineering, University of Shanghai for Science and Technology, Shanghai, China
Synopsis
Keywords: Segmentation, Heart
Motivation: Right ventricular(RV) segmentation is of great significance for the clinical diagnosis of heart diseases. However, due to the complex structure, RV segmentation is still challenging.
Goal(s): Fully automatic and accurate segmentation of the right ventricle.
Approach: A new deep atlas network that combines atlas prior knowledge with Deformable Multi-scale Two-Stage U-net(DMTSU-net) is proposed to extract and fuse multi-scale RV features in Cine Cardiac Magnetic Resonance (CCMR) images.
Results: Compare with 8 classical methods, the segmentation results of DMTSU-net are mostly close to the gold standard and significantly correlate with it on all evaluation indices in 15 testing datasets.
Impact: The proposed framework integrates prior information of atlases into a deep neural network to achieve accurate segmentation, which is promising for clinical heart disease diagnosis.
Introduction
RV segmentation is necessary for cardiac function analysis in clinical diagnosis. Due to the blurry boundaries, irregular shapes, and complex structures and thin myocardium, RV segmentation is challenging1. Although deep learning methods have made significant progress in biomedical image segmentation in recent years, the segmentation results of existing deep learning models are still not so satisfying and cannot meet clinical applications.Methods

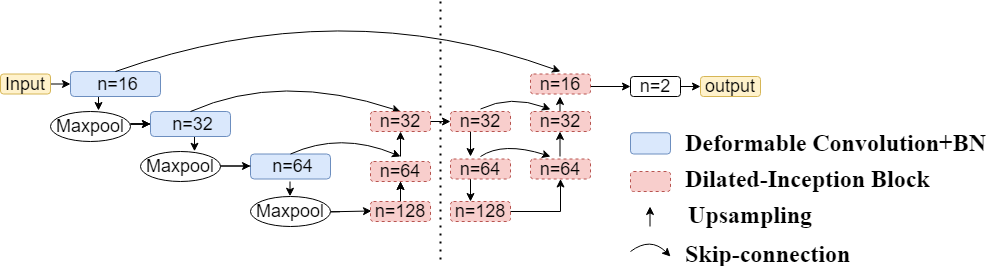

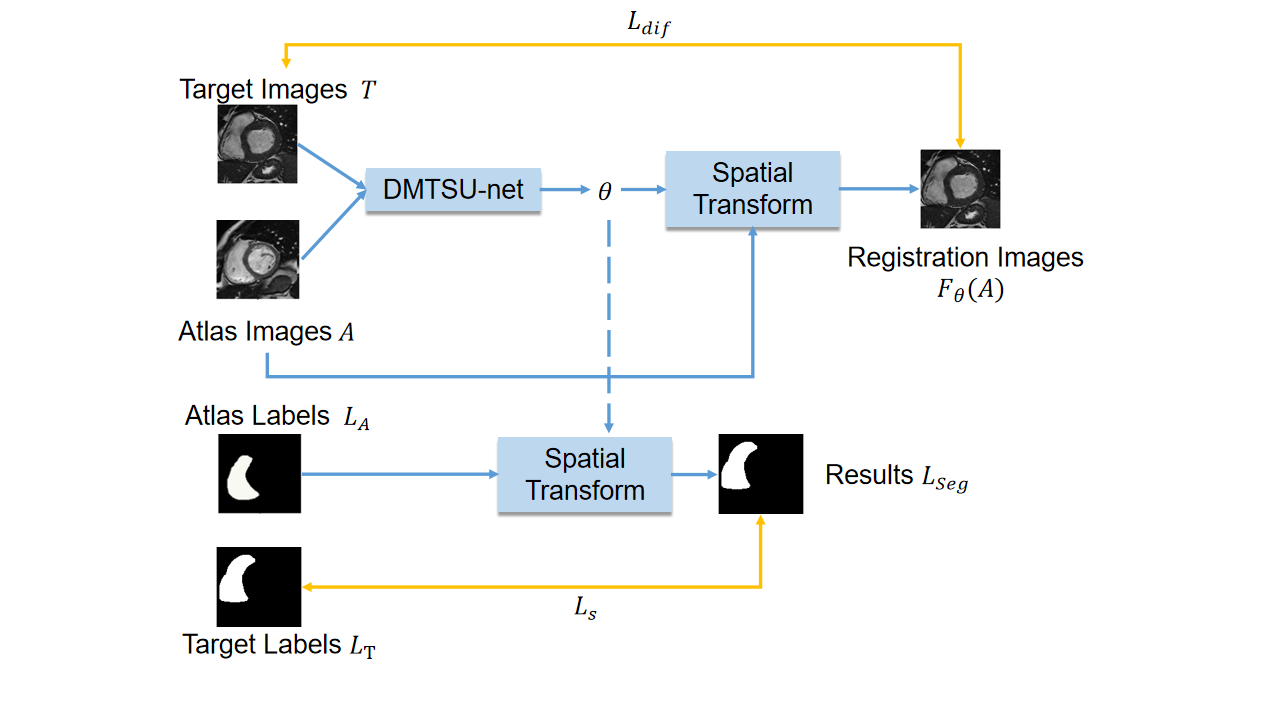

As shown in Figure 1, the registration network DMTSU-net is applied to obtain the deformation field parameters(θ) mapped from the Atlas images(A)to Target Images(T), which are used by the spatial transformation layer2 to perform spatial transformation on the Atlas images(A) and Atlas Labels(LA) to generate the Registration Images $$$F_{\theta}(A)$$$ and Results(LSeg) respectively.The detailed structure of DMTSU-net is shown in Figure 2, which is a cascade structure with two U-shaped network, including two encoders and decoders. The encoders for down-sampling can compress and extract image features to the decoders through skip connections, then the decoders restore image information during the up-sampling stage. In the first U-shaped network, deformable convolution instead of standard convolution is used in the down-sampling. Deformable convolution adds a two-dimensional offset, which is learned from the previous feature map. Dilated Inception blocks(marked in red) are used in both the up-sampling of the two U-shaped networks and the down-sampling of the second U-shaped network. This block composed of dilated convolutions with dilation rates of 1, 2, and 5, which can extract and fuse multi-scale RV features.
The loss function is as follows:$$L(T,A,L_{T},L_{A})=L_{dif}(T,F_{\theta}(A))+L_{S}(L_{T},L_{Seg})$$
Ldif is a function to calculate the mean squared error (MSE) between T and $$$F_{\theta}(A)$$$ ,and LS represents dice metric (DM) of Target Labels LT and LSeg .
91 short axis CCMR datasets are randomly selected in this experiment, among which 20 datasets are used as the atlas set for registration. Typical scan parameters are: field of vision (FOV) is 360×360mm, thickness is 6~8mm, gap between slices is 2~4mm, image matrix size is 256×256. 42 datasets are randomly selected as training sets, 14 datasets as validation sets, and 15 datasets as testing sets.
Results
DM and Hausdorff Distance(HD) are used for quantitative analysis, where DM is defined as: $$DM(s_{n},g_{n})=\frac{2|s_{n}\cap g_{n}|}{|s_{n}|+|g_{n}|}$$where sn and gn represent the predicted results and the gold standard respectively. HD is defined as:$$HD(A,B)=max(max_{a\in A}(min_{b\in B}d(a,b)),max_{b\in B}(min_{a\in A}d(a,b))$$
where A and B are the set of predicted contours and ground truth, respectively, and d(a,b) is the Euclidean distance between a and b. Correlation and consistency analysis methods including ejection fraction(EF), stroke volume(SV), end diastolic volume (EDV), and end systolic volume (ESV).

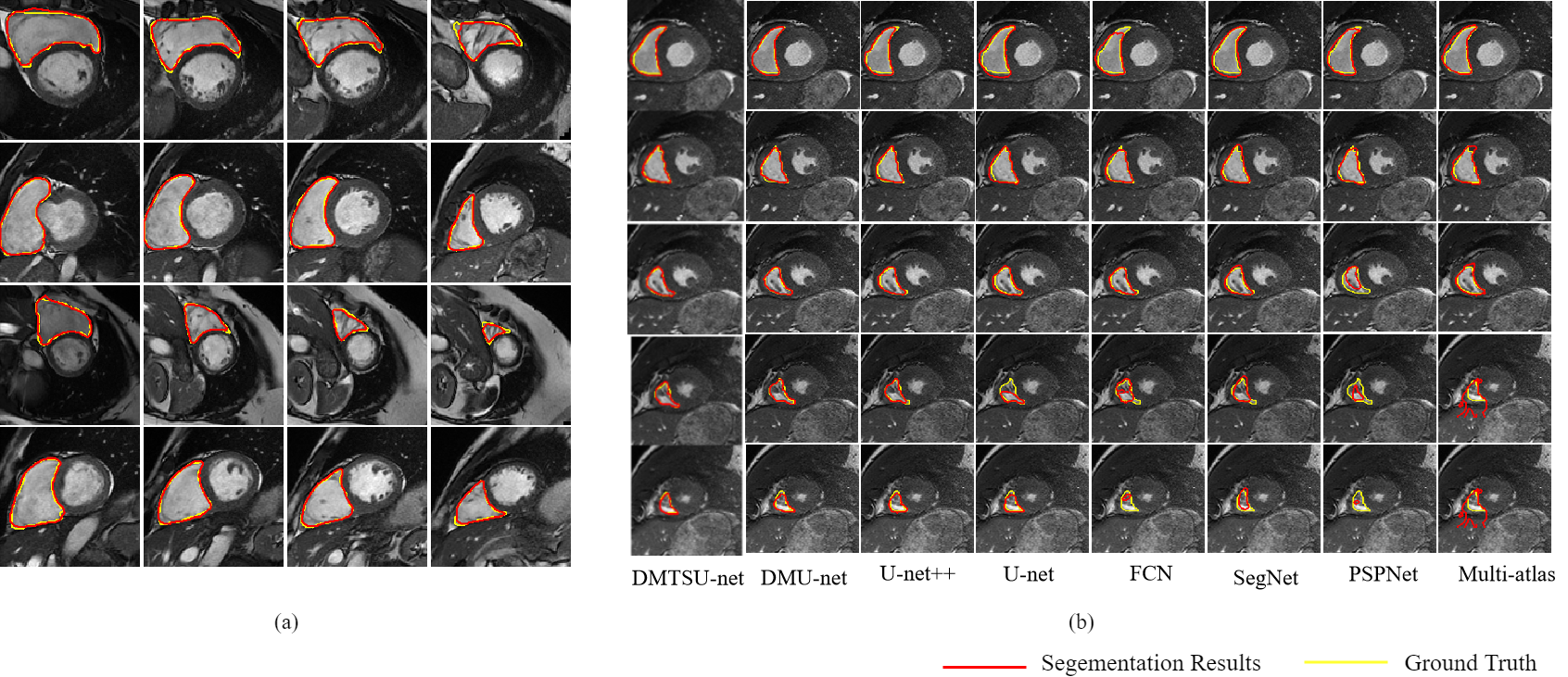

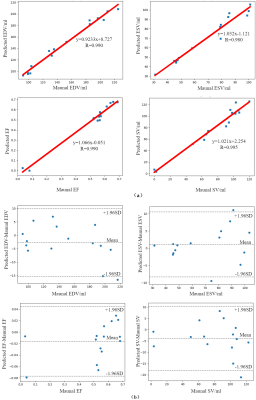

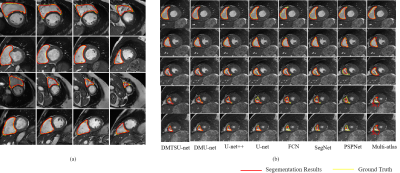

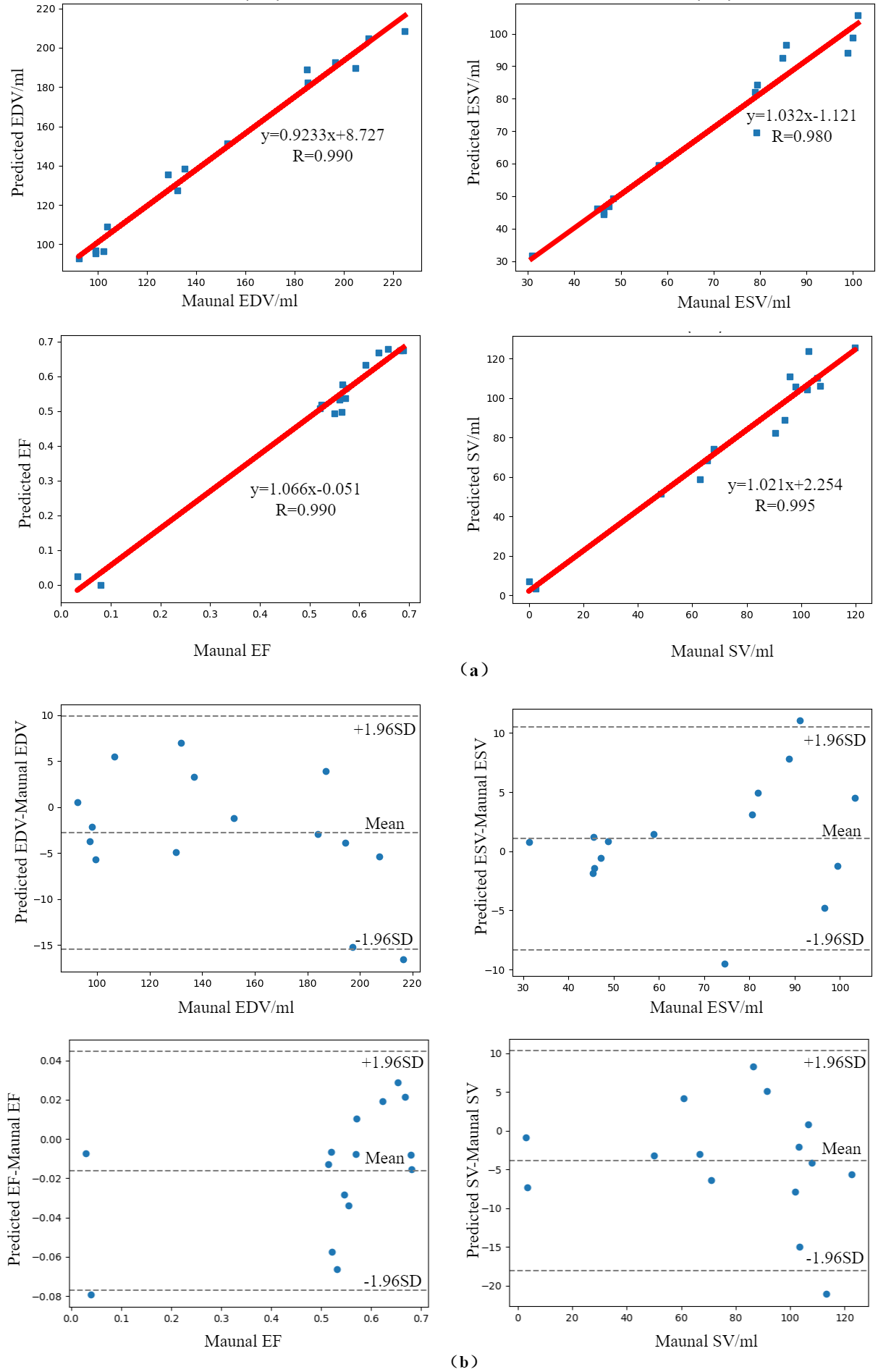

The results of different layers for four typical patients are shown in Figure 3(a). The average DM and HD of 15 testing set in end diastolic(ED) and end systolic(ES) are 0.942 and 0.921, 2.835mm and 3.348mm, respectively. The correlation and Bland-Altman curves of EDV, ESV, EF, and SV in the testing set are shown in Figure 4. The correlation coefficients of the above four parameters are 0.990, 0.980, 0.990, and 0.995, respectively. Except for one or two outliers, all measured values are within the consistency limit, indicating that the proposed method provides acceptable and consistent results.
Discussion

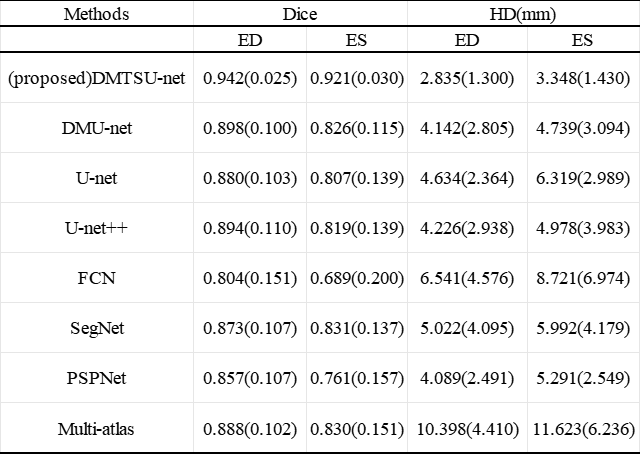

DMTSU-net is compared with classical segmentation networks including DMU-net3, U-net++4, U-net5, FCN6, SegNet7, PSPNet8, and Multi atlas9. The results are shown in Figure3(b) and Table 1, which indicate that the proposed DMTSU-net can achieve the best segmentation results in the middle and bottom slices.Conclusion
The proposed deep atlas network integrates atlas prior knowledge into the deep learning network, which can accelerate the training process of the network and improve segmentation accuracy. The experimental results indicate that the DMTSU-net has the potential for effective RV segmentation in CCMR image.Acknowledgements
