Improved lesion conspicuity on liver ADC maps using self supervised DDPMs
Serge Vasylechko1, Andy Tsai1, Onur Afacan1, and Sila Kurugol1
1Boston Children's Hospital and Harvard Medical School, Boston, MA, United States

Synopsis

Keywords: AI Diffusion Models, Liver

Motivation: Abdominal DW-MRI suffers from low SNR and motion artifacts, compromising ADC reliability.

Goal(s): Improve ADC estimation in low SNR abdominal DW-MRI using a single-image acquisition per b-value.

Approach: A novel self-supervised training approach using denoising diffusion probabilistic models (ssDDPM). Tailored for multi-b-value DW-MRI images, it requires only a single gradient image per b-value for denoising, which reduces scan time.

Results: ssDDPM demonstrated superior lesion conspicuity in low b-value images and quantitative ADC maps in comparison to competing methods. In lesion versus normal tissue, a logistic classifier had improved sensitivity from 0.93 to 0.98, and specificity from 0.88 to 0.97, over non-denoised NEX1 images.

Impact: ssDDPM enhances abdominal DW-MRI ADC accuracy from single acquisitions, reducing scan times and patient discomfort. This gives promise to an earlier, precise tumor detection and monitoring, impacting clinical care and healthcare efficiency.

Introduction

Diffusion-weighted MRI (DWI-MRI) provides valuable information for early tumor detection, characterization, and monitoring [1]. Apparent Diffusion Coefficient (ADC) values, which often change prior to tumor size, are obtained by fitting DWI data to an exponential decay model across different diffusion strengths or b-values. DW-MRI suffers from low SNR at high b-values, which reduces its reliability. To improve SNR, multiple acquisitions at each b-value are averaged, assuming isotropic diffusion, which prolongs scan time, adds costs, and increases patient discomfort. Moreover, in abdominal imaging, respiratory motion can blur anatomical detail or disrupt ADC estimation altogether due to misaligned voxels. This study aims to enhance quality of ADC estimates in low SNR abdominal DW-MRI, using single-image acquisition per b-value to avoid the complications of motion.

Method

We propose a novel self-supervised training approach which uses a denoising diffusion probabilistic model (DDPM) [7] with a self-supervised ADC parameter estimation loss [6] in the training loop, which is designed specifically for multi-b-value inputs from DW-MRI images.
In training, ADC and B0 parameters are estimated on the denoised images. An additional loss then guides the denoising network (DDPM) while minimising the ADC fitting error at the same time. The network's inputs are multi-b-value DW-MRI images. As the input images are denoised during training, they are propagated to a GPU based ADC estimation model in Pytorch to estimate S0 and ADC maps, which are in turn used in the forward equation to estimate back the original input signal. This estimated input signal is compared to actual inputs using MSE loss. Importantly, this training approach doesn't require ground truth ADC maps. One distinguishing feature of our ssDDPM approach compared to the baseline DDPM method is the initial state. In our method, this initial state is a noisy single repetition DW-MR image with low SNR. We assume that this image is akin to a high-SNR image that has had noise added to it over an unknown number of steps, denoted as 'T'. To ascertain this time step, we estimate the source SNR by measuring the SNR from existing low-SNR images [5]. During inference, we process low-SNR test data through the denoising network for 'T' steps. This results in the generation of a denoised, high-SNR image from a single repetition low-SNR image.

Data

We retrospectively collected DW-MRI data on clinically acquired DW-MRI from 105 subjects. Acquisition was based on b-values=[50,400,800] s/mm2 with 6 diffusion gradient directions (repetitions) in each. The sequence was a free-breathing single shot EPI with: TR/TE=5200/78ms; FOV= 380x310mm; in-plane resolution=1.5x1.5mm2; slice thickness = 4mm; BW = 2442 Hz/px. Additionally, each scan had a T1 post contrast VIBE and T2 weighted image available. We selected 5 subjects with hepatocellular carcinoma with small lesion sizes as our test data, on which the lesions and normal tissue were marked by a trained radiologist.

Results

Our ssDDPM was benchmarked against well-known DW-MRI denoising methods - NLM, MPPCA and P2S [2,3,4]. While MPPCA and P2S necessitate multiple b-value repetitions, ssDDPM, similar to NLM, is effective with single-excitation (NEX1) data. ssDDPM achieved enhanced lesion conspicuity and superior ADC map delineation compared to NLM and MPPCA, and was on par with P2S, but without requiring six-fold averaged input data (NEX6). In distinguishing lesions from normal tissue, ssDDPM showed improved performance. Sensitivity and specificity in lesion classification improved to 0.98 and 0.97, respectively, up from 0.93 and 0.88 with single NEX1 acquisition.

Discussion

We developed a self-supervised denoising diffusion probabilistic model (ssDDPM) for low SNR DW-MRI, needing fewer acquisitions. ssDDPM outperformed traditional denoising techniques, improving lesion detection and ADC map quality, while needing only a single NEX1 image for denoising.

Acknowledgements

This work was supported partially by the National Institute of Diabetic and Digestive and Kidney Diseases (NIDDK), National Institute of Biomedical Imaging and Bioengineering (NIBIB), National Institute of Neurological Disorders and Stroke (NINDS) and National Library of Medicine (NLM) of the National Institutes of Health under award numbers R01DK125561, R21DK123569, R21EB029627, R01NS121657, R01LM013608, S10OD0250111 and by the grant number 2019056 from the United States-Israel Binational Science Foundation (BSF), and a pilot grant from National Multiple Sclerosis Society under Award Number PP-1905-34002.

References

[1] Caro-Domínguez, Pablo, Abha A. Gupta, and Govind B. Chavhan. "Can diffusion-weighted imaging distinguish between benign and malignant pediatric liver tumors?." Pediatric Radiology 48 (2018): 85-93.

[2] Veraart, J.; Fieremans, E. & Novikov, D.S. Diffusion MRI noise mapping using random matrix theory Magn. Res. Med., 2016, early view, doi: 10.1002/mrm.26059

[3] Fadnavis, Shreyas, Joshua Batson, and Eleftherios Garyfallidis. "Patch2Self: Denoising Diffusion MRI with Self-Supervised Learning." Advances in Neural Information Processing Systems 33 (2020): 16293-16303.

[4] Buades, Antoni, Bartomeu Coll, and Jean-Michel Morel. "Non-local means denoising." Image Processing On Line 1 (2011): 208-212.

[5] Vasylechko, Serge, Onur Afacan, and Sila Kurugol. "Self Supervised Denoising Diffusion Probabilistic Models for Abdominal DW-MRI." In Computational Diffusion MRI, 2023. Lecture Notes in Computer Science. Cham: Springer.

[6] Vasylechko, Serge, et al. "Self‐supervised IVIM DWI parameter estimation with a physics based forward model." Magnetic resonance in medicine 87.2 (2022): 904-914.

[7] Ho, Jonathan, Ajay Jain, and Pieter Abbeel. "Denoising diffusion probabilistic models." Advances in neural information processing systems 33 (2020): 6840-6851.

Figures

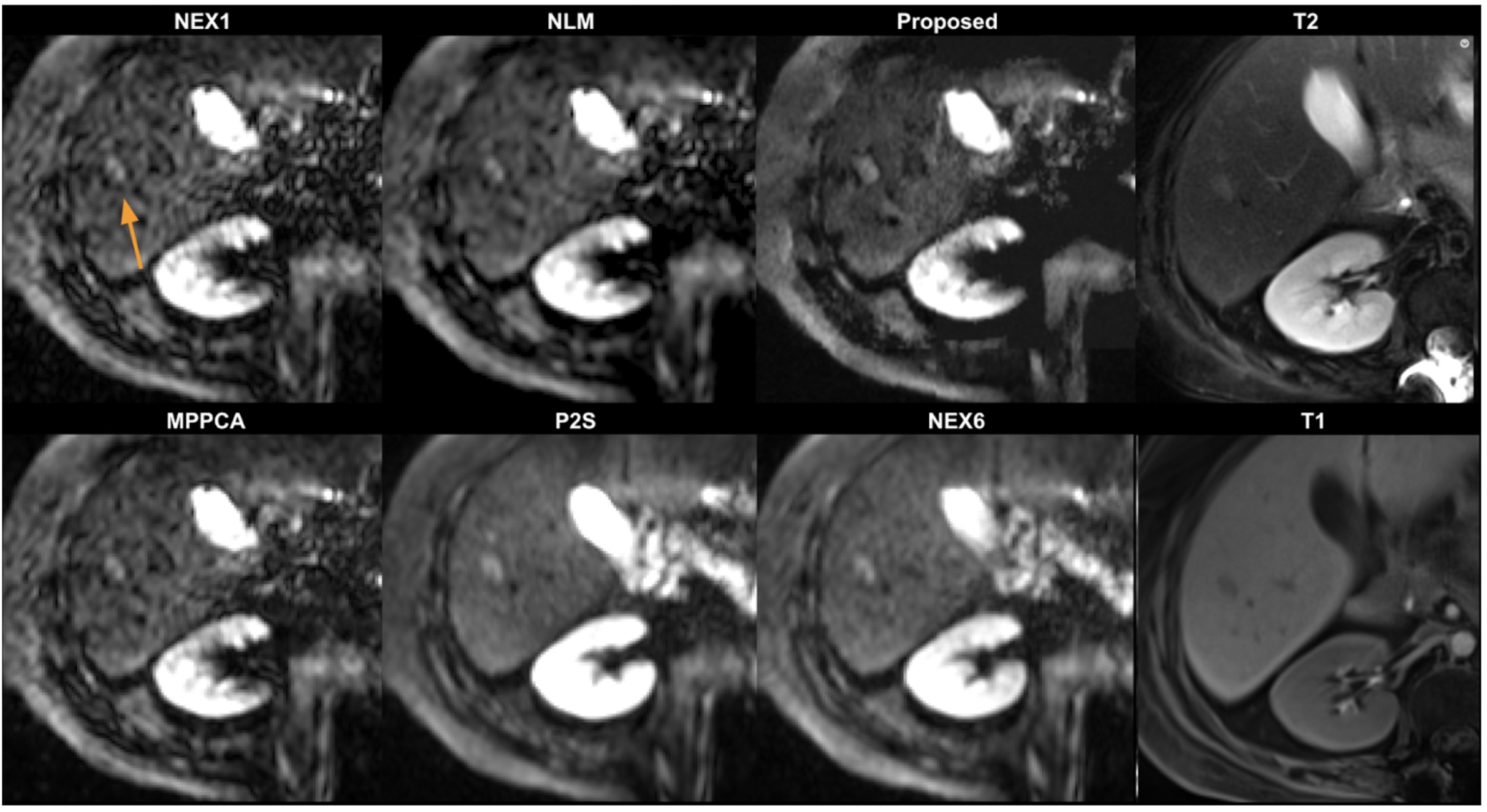

Qualitative comparison of denoising methods applied to b800 image. First column shows input data to each of the denoising methods. Top row displays methods that operate on a single excitation (NEX1) as input, NLM and ssDDPM (Proposed). Bottom row shows methods that require data from multiple repetitions, MPPCA and P2S. T1 and T2 images are added to confirm lesion location. Lesion conspicuity is improved significantly with Proposed method when compared to original input NEX1, as well as MPPCA and NLM outputs. P2S is more similar to NEX6, but note that this requires 6x more data.

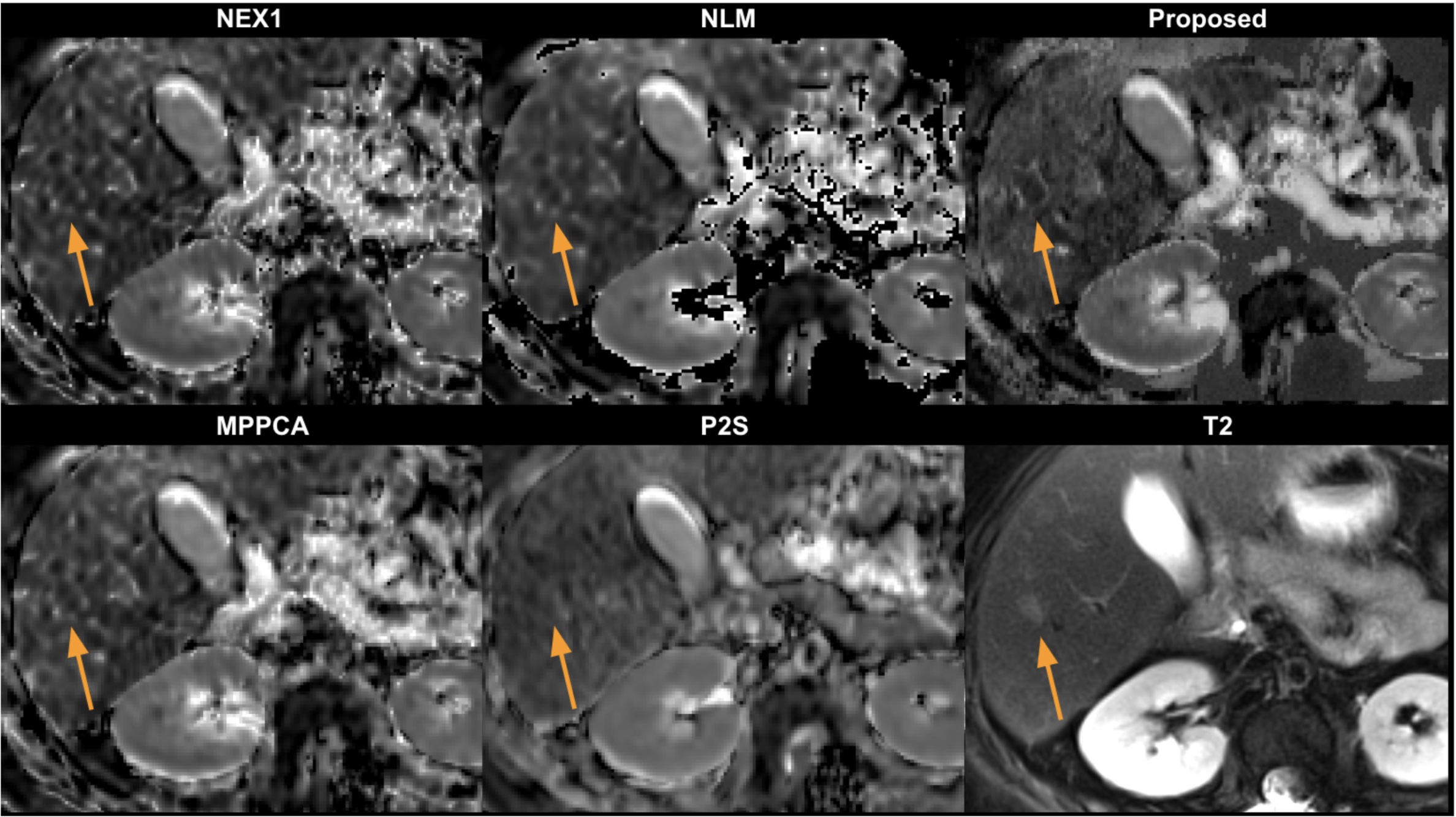

Comparison of ADC maps estimated from denoised data with NLM, MPPCA, P2S and ssDDPM (Proposed) methods. A T2W image with a lesion location and an ADC map generated from NEX1 image are shown for reference. All denoising techniques enhance overall quality of ADC maps when compared to NEX1 derived ADC. ssDDPM outperforms other methods in terms of lesion conspicuity. In the ADC maps, malignant lesions appear darker due to restricted diffusion. The darker region in the ADC map from our proposed method is more prominent compared to the other maps.

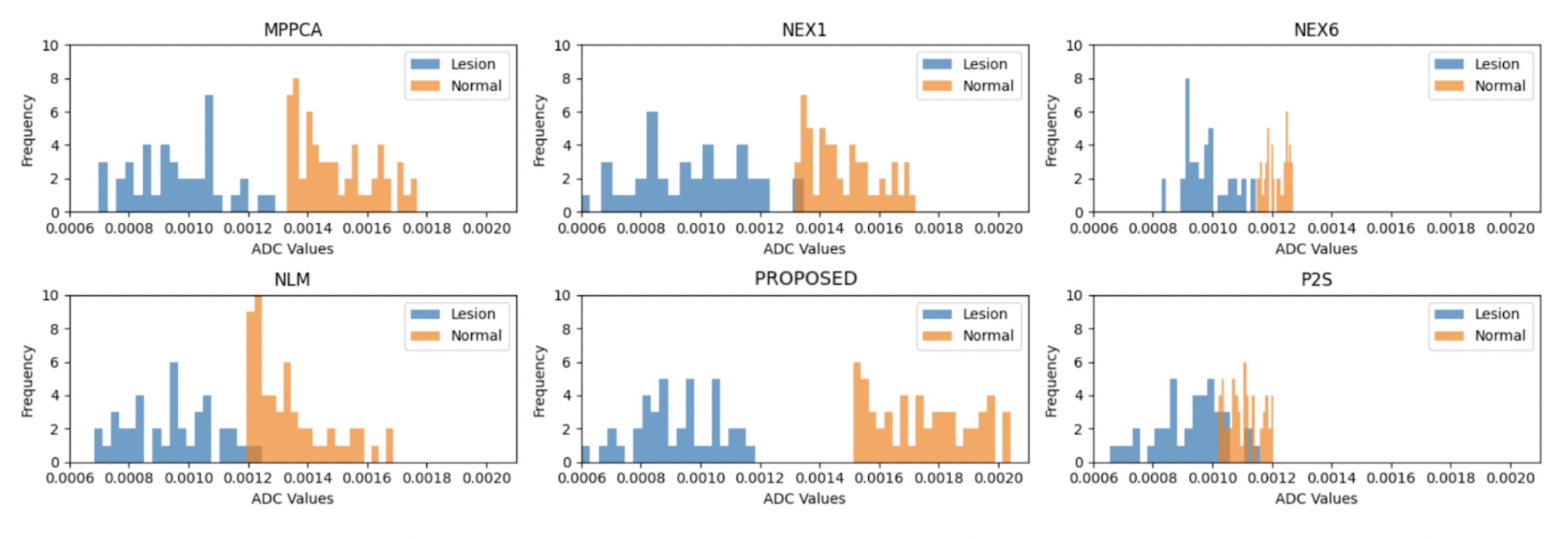

Comparative analysis of ADC distributions post-denoising in lesion vs normal tissue for NLM, MPPCA, P2S and ssDDPM (Proposed) methods. Direct measure of ADC is shown from acquired data for NEX1 and NEX6 images. ssDDPM provides best separation between lesion and normal tissue. This is followed by MPPCA, which shows relatively clear separation. Other methods display more overlap. P2S shows poor performance since its technique requires multiple repetitions of each b-value to be available, which is affected by motion and hence lesion is missed, which is supported by NEX6 result also.

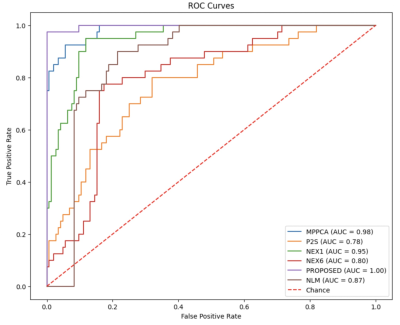

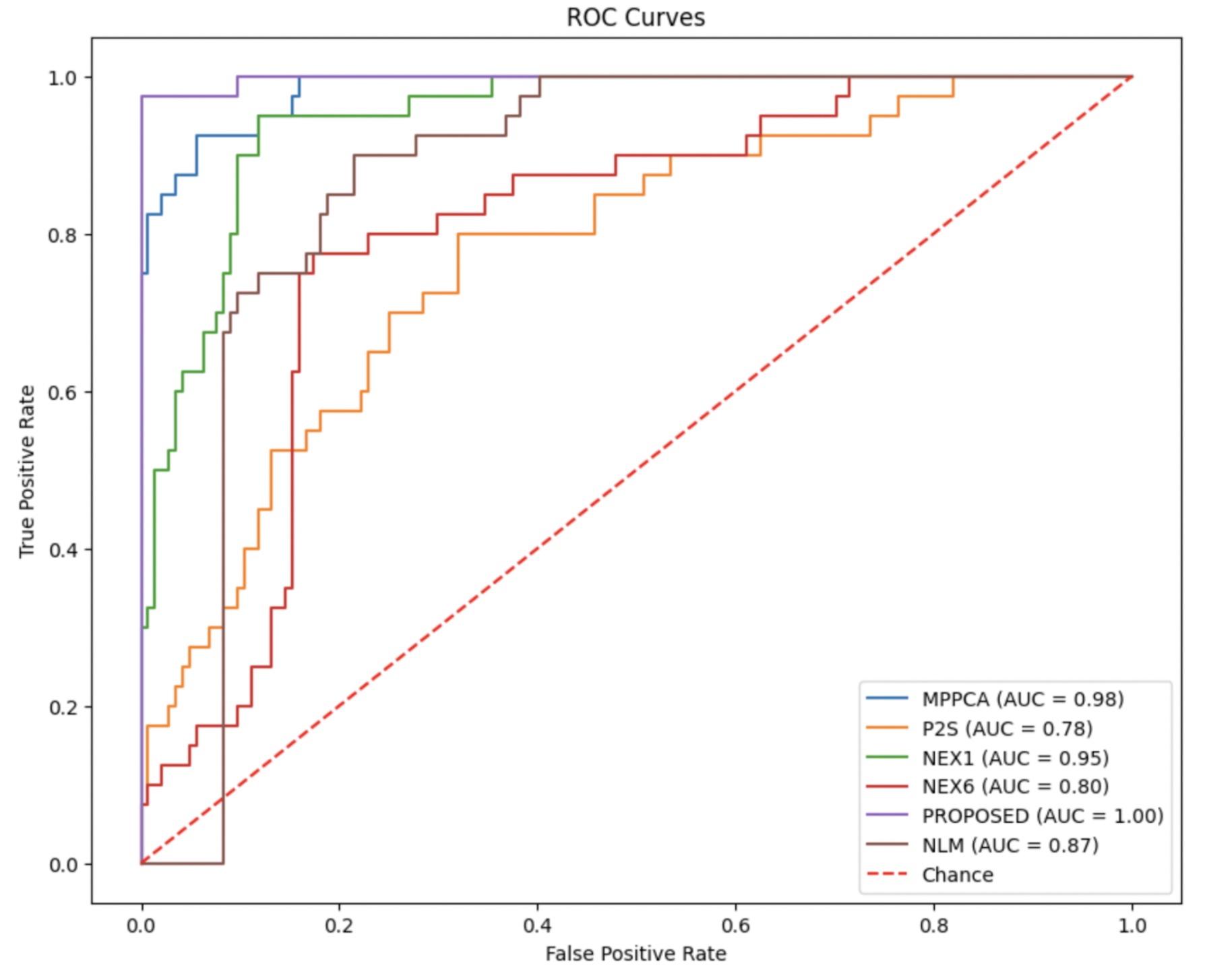

Receiver Operating Characteristic (ROC) for ADC maps derived from DW-MRI after denoising on lesion shown in Figure 2 and 3. Binary logistic regression classification of lesion versus normal regions is used. The ROC curves represent the trade-off between the true positive rate (sensitivity) and the false positive rate (1-specificity) for the NLM, MPPCA, P2S, ssDDPM (Proposed) denoising methods, as well as classifiers derived on original inputs of NEX1 and NEX6 data. Proposed method achieves higher discrimination between lesion and normal tissue than competing methods.
