Introduction

The ability to distinguish arterial blood supply to specific brain regions is crucial in the study of collateral blood flow. Vessel-encoded arterial spin labeling (VEASL) can potentially achieve this non-invasively. However, an appropriate encoding scheme is required to distinguish many arterial territories above the circle of Willis (CoW). An optimal encoding scheme (OES) automated approach has been suggested¹, but the high tortuosity of these arteries makes it challenging to ensure that multiple arterial branches are perpendicular to the labeling plane, resulting in reduced labeling efficiency and errors in vessel-decoding. To enhance the stability of labeling above the CoW, we propose improvements to the original OES method, optimizing its SNR efficiency while minimizing excessively high spatial frequencies to avoid mislabeling due to subject motion. We have also selected a set of PCASL optimal parameters that facilitate thin-slice labeling and ensure high labeling efficiency to overcome issues related to vascular tortuosity. We assessed the efficacy of territorial separation above the CoW by comparing our "optimized" parameters combined with the improved OES ("IOES") approach, to the conventional "default" parameters, in combination with the original "OES".

Materials and methods

Simulation
The IOES method, built upon the originally proposed OES, involved the random permutation of Hadamard matrix columns, which considered real ASL acquisition parameters to simulate the final magnetization at each vessel location. The condition number of the encoding matrix and the shortest spatial wavelength ($$$\lambda $$$) were calculated and plugged into Equation 1, which encourages high condition numbers and long wavelength encodings. The IOES process iterated 100 times to obtain the final encoding design with the minimum cost function.$$\mathrm{cost} = \frac{\left ( 1-\frac{1}{\mathrm{condition} } \right ) ^{2} }{2} +\frac{\left ( \frac{1}{\frac{\mathrm{min\left ( \lambda \right ) } }{\mathrm{motion} } } -1 \right ) ^{2} }{2}\qquad\qquad\qquad(1) $$To achieve thin-slice labeling, a long RF duration is required. We fixed the RF interval at 1560 μs, the maximum value that can be set on the scanner, trying to stick to around a 50% duty cycle. We explored a range of Gmax, Gmean, RF duration and flip angle. Finally, a parameter set was chosen to ensure that the thickness of the labeling plane z, as defined in Equation 2², was less than 6 mm, whilst maintaining high labeling efficiency.$$z = \frac{2}{\frac{\gamma }{2\pi }\cdot \mathrm{G_{max}\cdot \mathrm{RF\_duration} } } \qquad\qquad\qquad(2) $$
Image acquisition
The optimized parameters were listed in Figure 2, and for default parameters, we used settings similar to previous work³. We performed scans on three healthy volunteers at a 3T Siemens Prisma scanner. Each subject underwent two VEASL scans, one with default parameters using OES, and the other with optimal parameters using IOES. Experiment-1: for two of the subjects, we carefully selected optimal labeling planes, maximizing perpendicularity and spacing between vessels. Experiment-2: for the third subject, we intentionally chose suboptimal labeling planes, resulting in some vessel segments running parallel to the labeling plane or located at bifurcation sites. Maximum a posteriori solution to the Bayesian framework was used for VEASL analysis⁴.

Results

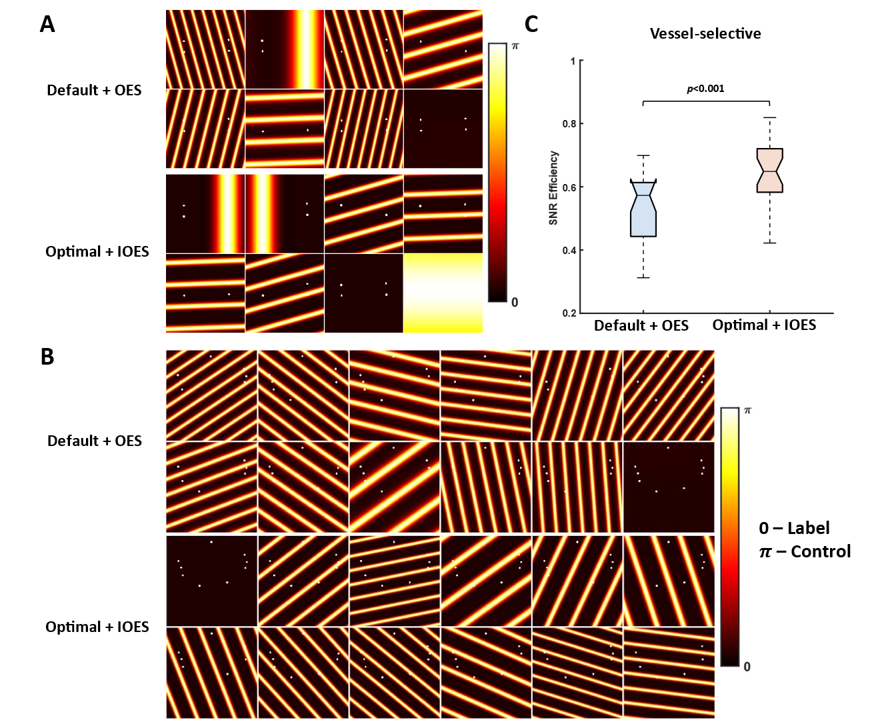

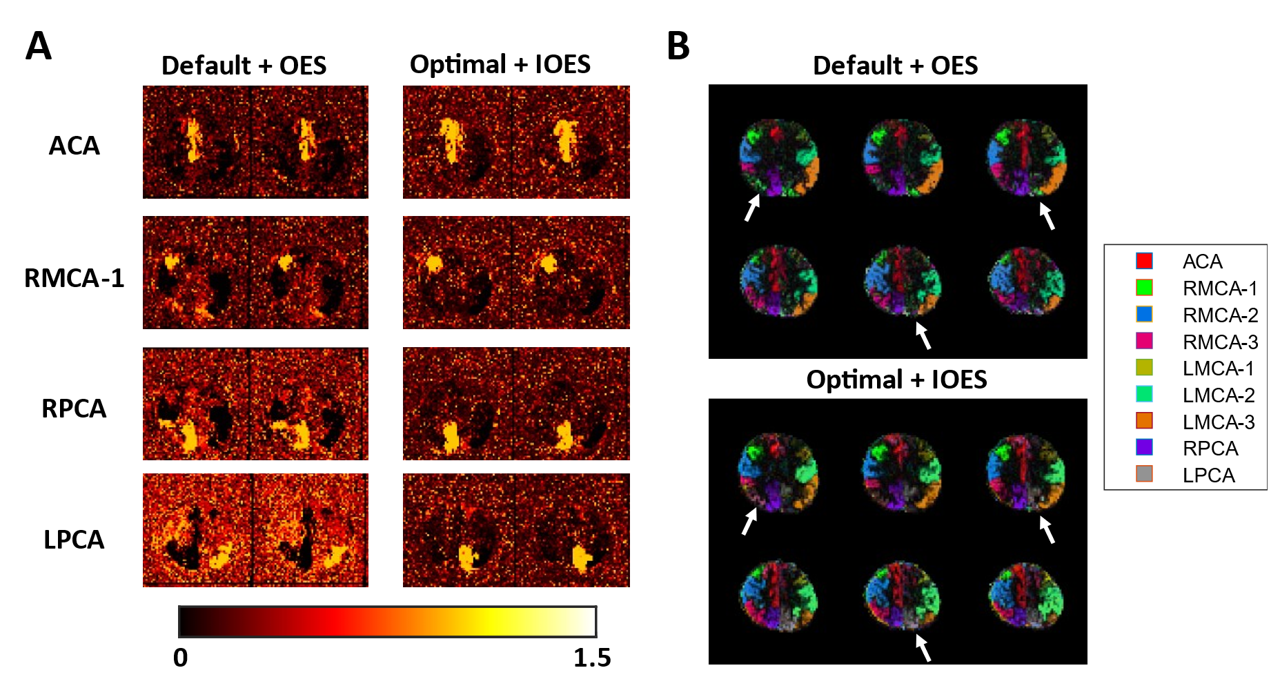

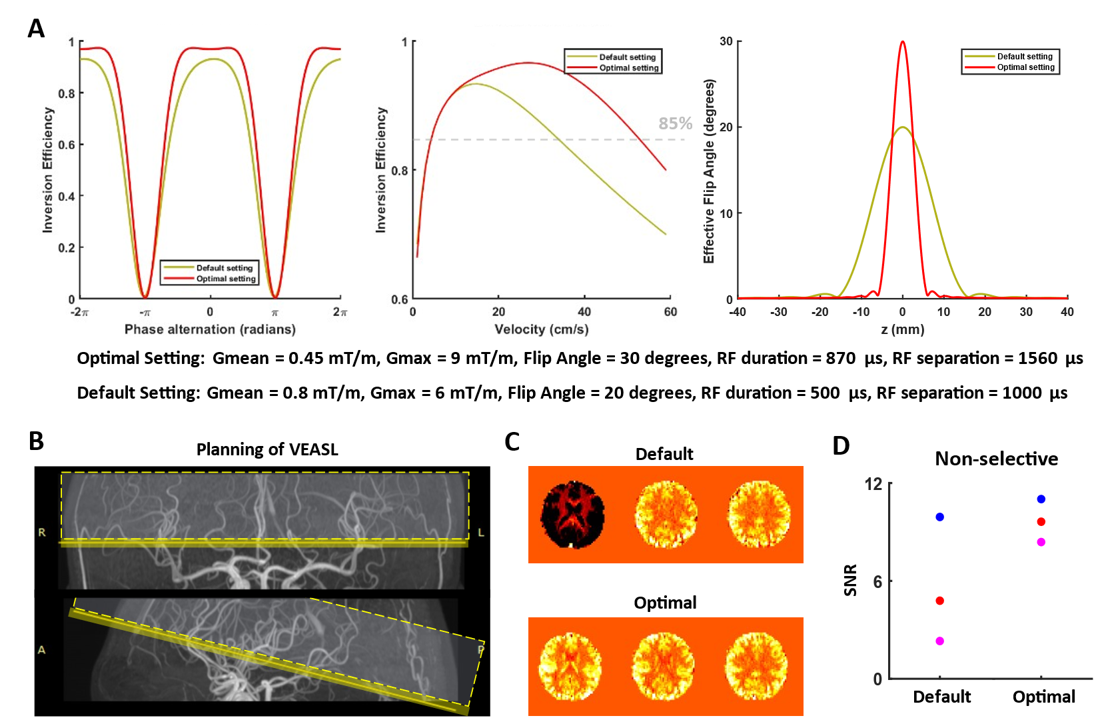

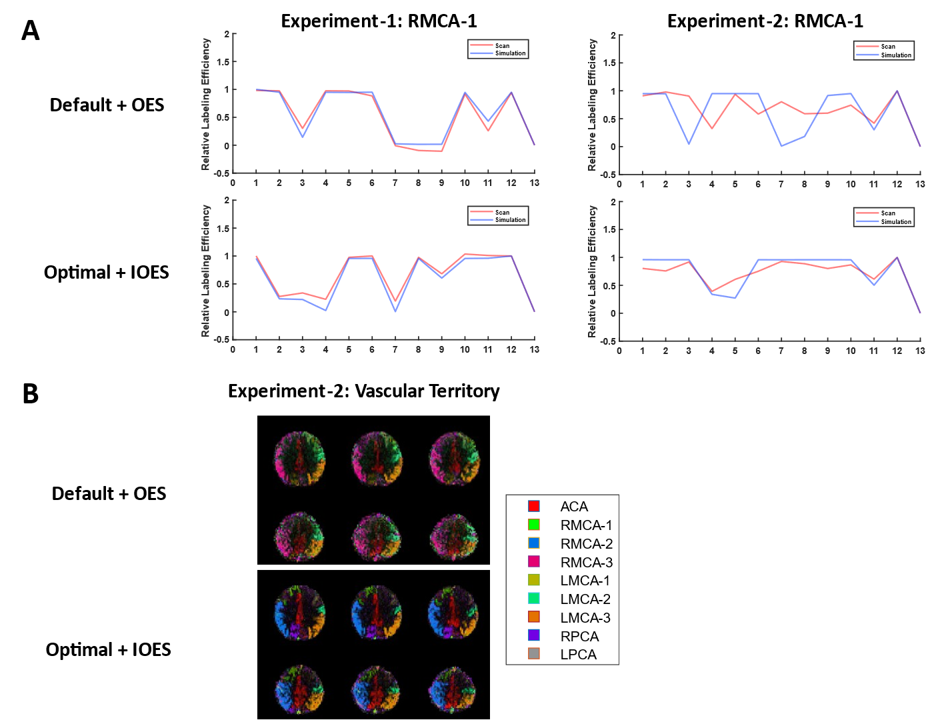

Figure 1 illustrates the comparison between OES and IOES. Clearly, IOES eliminated the high spatial frequency encoding patterns that might occur with OES and significantly enhanced the encoding's SNR efficiency. Figure 2, we observed that the optimal parameters could achieve a thin-slice labeling while maintaining high labeling efficiency across a broad range of blood flow velocities and exhibited a favorable inversion profile. The SNR under optimal parameters showed an improvement in non-selective images, albeit not significantly. Due to the bottom imaging slice being very close to the labeling plane, reduced static tissue saturation effects when using the optimized settings could also be observed. Figure 3A illustrates the posterior probability maps obtained through the Bayesian analysis in one subject, revealing that the combination of optimal parameters with IOES effectively led to more robust vascular territory separation. In Experiment 1, the perfusion signals within the specific territories were in good agreement with the simulated signal (Figure 4). However, in Experiment 2, the combination of default settings and OES clearly did not match the simulated signals as effectively as the optimal settings with IOES for the RMCA-1 territory due to vessel tortuosity within the thicker-labeling region. Consequently, this territory was not well separated in the analysis.

Discussion and conclusions

Using optimized parameters and the IOES allowed thin-slab labeling, improved labeling efficiency and vessel-encoding, enabling more stable vascular territory separation, even for more complex vascular structures above the CoW. However, the selection of the labeling plane remains crucial. If we cannot accurately position it in relation to the vessel’s location, vascular territory imaging remains challenging. AI-assisted methods for automatically finding the optimal labeling plane are worth considering in future work.
