3D-Yarnball Acquisition and Reconstruction Advancement Yields High Resolution T1-Weighted Whole Brain Images in Just Over 1 Minute

Rob Stobbe¹, Corey Baron², and Christian Beaulieu¹
¹University of Alberta, Edmonton, AB, Canada, ²Western University, London, ON, Canada

Synopsis

Keywords: Data Acquisition, Data Acquisition

Motivation: This study is motivated by the creation of high-resolution T1-weighting whole brain images in considerably less time (1 minute) than currently required for standard MP-RAGE (~4 minutes).

Goal(s): The sampling efficient 3D-Yarnball trajectory offers a potential imaging solution, but trajectory/sequence design and reconstruction aspects remain to be explored.

Approach: Variably under-sampled Yarnball trajectories with 2-10 ms duration were compared in healthy brain, along with different methods of steady-state sequence excitation. Iterative, off-resonance correcting, wavelet-regularized reconstruction was applied to Yarnball for the first time.

Results: Yarnball sequence and reconstruction consideration enabled high-quality 0.77 mm isotropic whole brain images in 1 minute

Impact: The image acquisition, sequence, and reconstruction investigation of this work enabled robust, high-quality 0.77 mm isotropic T1-weighted whole brain images in just over 1 minute. The goal of this work is to facilitate considerably shorter MRI protocols.

Introduction

3D-Yarnball k-space acquisition was originally introduced within the context of spoiled steady-state T₁-weighted human brain imaging, and a 10 ms readout duration (T_RO) was arbitrarily selected for initial demonstration of sampling efficiency¹. However, while long spiraling readouts are efficient, they are prone to off-resonance^1,2. Here, the purpose is to compare long T_RO with shorter T_RO, which necessarily require under-sampling to achieve the same scan duration. Image acquisition with and without fat-saturation is compared, and an iterative, off-resonance correcting reconstruction³ is considered for Yarnball, all for the first time.

Methods

Five different Yarnball readouts (T_RO=2,4,6,8,10 ms) were developed for 0.77 mm isotropic voxels and a 240 mm FoV (Figure 1A-E). Each was fully sampled to ~15% of the k-space radius (used for coil profile estimation), and under-sampled beyond that to achieve the requisite number of trajectories (N_TRAJ) for a 60 second standard-excitation Yarnball-Encoded Spoiled Steady-state (SE-YESS) scan (Figure 1F). SE-YESS was also compared with water-excitation (WE-YESS) for fat suppression (Figure 1G). Note that TR=T_RO+ 2.4 ms(SE-YESS) or 3.8 ms(WE-YESS), accounting for excitation, refocus and spoiling. Flip-angle (α^o) was determined for maximum signal difference (and thus CNR) between white matter (WM) and gray matter (GM) using T₁(WM)=1400 ms, and T₁(WM)=875 ms.

Four healthy volunteers (F–24 years/F–45 years/M–27 years/M–47 years) were scanned on a Siemens Prisma 3T with a 20 channel head-neck coil, and for each volunteer, both SE-YESS and WE-YESS images were acquired for all five T_RO. An off-resonance map was also acquired from two (interleaved) SE-YESS images with TE=0.2/0.8 ms in a total time of 15 seconds (voxels=2.5 mm isotropic, T_RO=1.5 ms, N_TRAJ=1891). Basic NUFFT reconstruction was first used to compare SNR and CNR between the different T_RO and YESS sequences (using Rayleigh distributed background noise), and to demonstrate under-sampling and off-resonance artifacts/blurring. Next, a time-segmented off-resonance correcting NUFFT⁴ was considered. Finally, images were created with off-resonance correcting wavelet-regularized (2 levels/dimension, λ=20), BFISTA⁵ based (N_IT = 5) iterative reconstruction (Gitlab/MatMRI³, ~3 minutes using custom NUFFTs on 4 Titan-RTX graphics cards). Given their conspicuity, size and separation, the precallosal segments of the anterior cerebral arteries were used as ‘resolution elements’ to compare both resolution between different T_RO, and image reconstruction effectiveness. Resolution, SNR/CNR and off-resonance artifacts are used to suggest the ‘best’ T_RO and YESS sequence for T₁-weighted brain imaging.

Results

Representative images in Figure 2 demonstrate the absence of coherent aliasing artifact in the 4x under-sampled T_RO=2 ms Yarnball images, as well as progressive SNR and CNR increase with T_RO for both SE-YESS and WE-YESS, measured from the basic NUFFT reconstruction (Figure 2A-B). These consistent increases were observed over all four volunteers (Figure 3A-C). Interestingly, the CNR of WE-YESS is as much as 50% greater than SE-YESS (Figure 3B), and the WM/GM ratio of 1.25 for WE-YESS is considerably greater than the 1.17 for SE-YESS, which decreases with T_RO (Figure 3C). For this reason, further results are presented for WE-YESS only. Off-resonance smearing is effectively demonstrated with the precallosal segments of the anterior cerebral arteries, which are here used as ‘resolution elements’ (Figures 2B/4A). At this location, the tissue is ~100 Hz off resonance (Figure 4A), and the resultant smearing at long T_RO=10 ms is clearly visible. However, this smearing is effectively removed with the off-resonance correcting NUFFT (Figures 2C/4B). Iterative image reconstruction visibly reduces image noise while maintaining resolution, as observed through ‘artery resolution element’ distinction. However, the SNR in WM (estimated within uniform WM regions) remains lower for T_RO<4 ms (Figures 2C/4B). Large tissue boundary off-resonance (~300 Hz) yields a ringing artifact at long T_RO highlighted in the ‘lower frontal brain’ region of Figure 4D. This ringing is not removed with the off-resonance correcting NUFFT (Figure 4E) or iterative reconstruction (Figure 4F). Thus, image noise for short T_RO<4 ms, and ringing at highly off-resonant tissue boundaries for long T_RO>8 ms, promotes the use of T_RO=6 ms for T₁-weighted YESS imaging. T_RO=6 ms images from all 4 volunteers (Figure 5A-D), and slices showing full brain coverage (Figure 5E), demonstrate excellent image quality.

Discussion

Yarnball-encoded steady-state (YESS) readout selection (T_RO=6 ms) that considered both SNR/CNR and tissue boundary off-resonance ringing, combined with water-excitation sequence selection for elevated CNR, and iterative, wavelet regularized, off-resonance correcting reconstruction³, produced high-quality T₁-weighted brain images with 0.77 mm isotropic voxels in 71 seconds at 3T (or 86 seconds total, when combined with the off-resonance scan) (Figure 5). Future work will compare YESS with (~4 minute) MP-RAGE, demonstrate motion robustness, and facilitate considerably shorter MRI protocols.

Acknowledgements

No acknowledgement found.

References

Stobbe RW, Beaulieu C. Three-dimensional Yarnball k-space acquisition for accelerated MRI. Magn Reson Med. 2021;85(4):1840-1854.

Haskell MW, Nielsen JF, Noll DC. Off-resonance artifact correction for MRI: A review. Nmr Biomed. 2023;36(5).

Varela-Mattatall G, Dubovan PI, Santini T, Gilbert KM, Menon RS, Baron CA. Single-shot spiral diffusion-weighted imaging at 7T using expanded encoding with compressed sensing. Magn Reson Med. 2023;90(2):615-623.

Fessler JA, Lee S, Olafsson VT, Shi HR, Noll DC. Toeplitz-based iterative image reconstruction for MRI with correction for magnetic field inhomogeneity. Ieee T Signal Proces. 2005;53(9):3393-3402.

Ting ST, Ahmad R, Jin N, et al. Fast Implementation for Compressive Recovery of Highly Accelerated Cardiac Cine MRI Using the Balanced Sparse Model. Magn Reson Med. 2017;77(4):1505-1515.

Figures

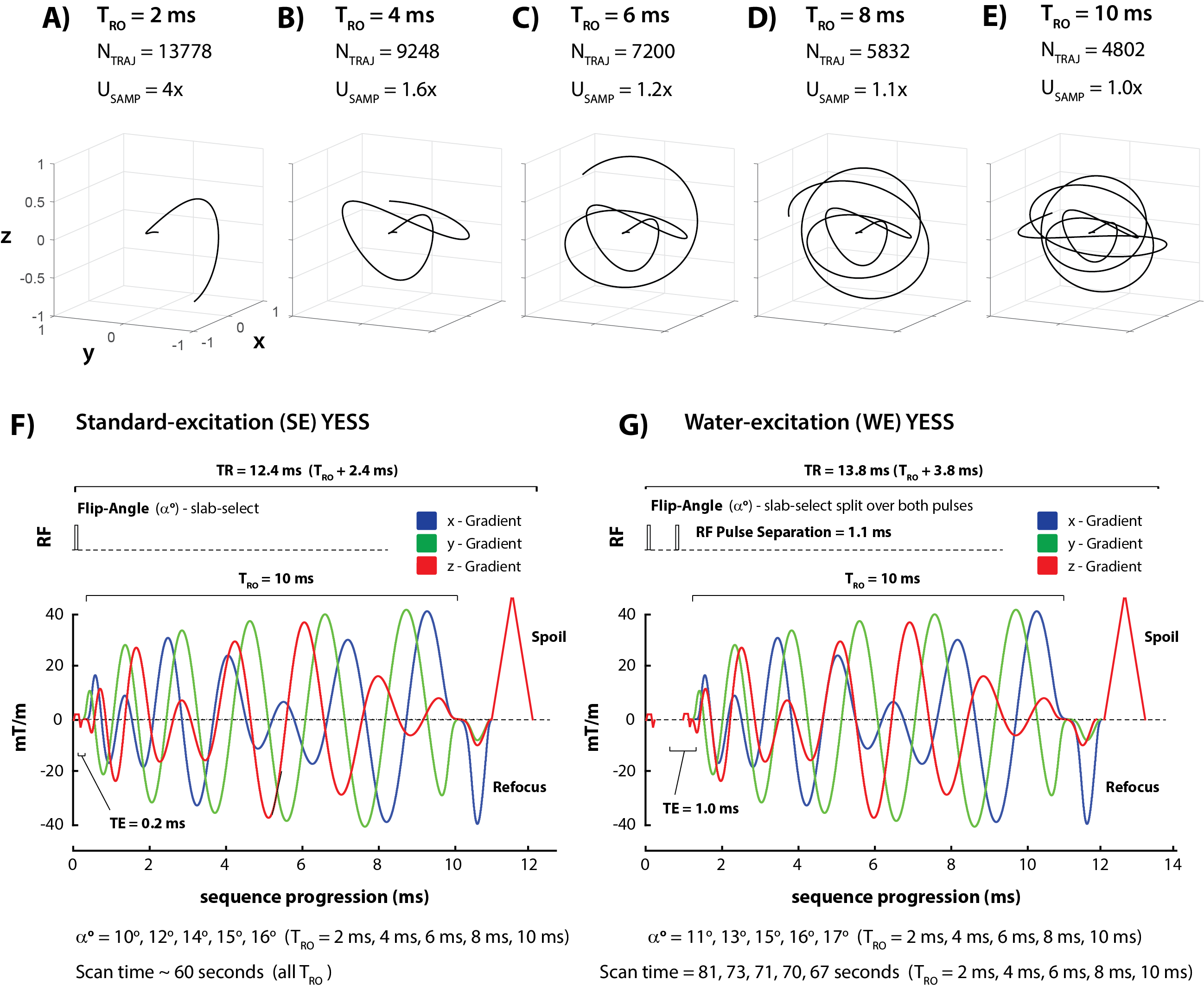

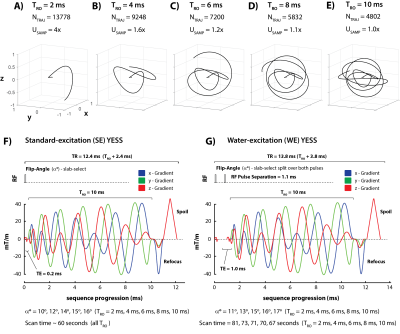

(A-E) Yarnball trajectories developed for 0.77 mm isotropic voxels and 240 mm FoV. (A) To acquire a 60 second YESS scan for T_RO=2 ms, the total number of trajectories must be N_TRAJ=13778, necessitating an under-sampling factor of U_SAMP=4x. (E) Long Yarnball readouts have much greater sampling efficiency and no under-sampling is necessary for T_RO=10 ms. (F-G) Yarnball-encoded steady-state sequences (YESS) are shown for the case of T_RO = 10 ms.

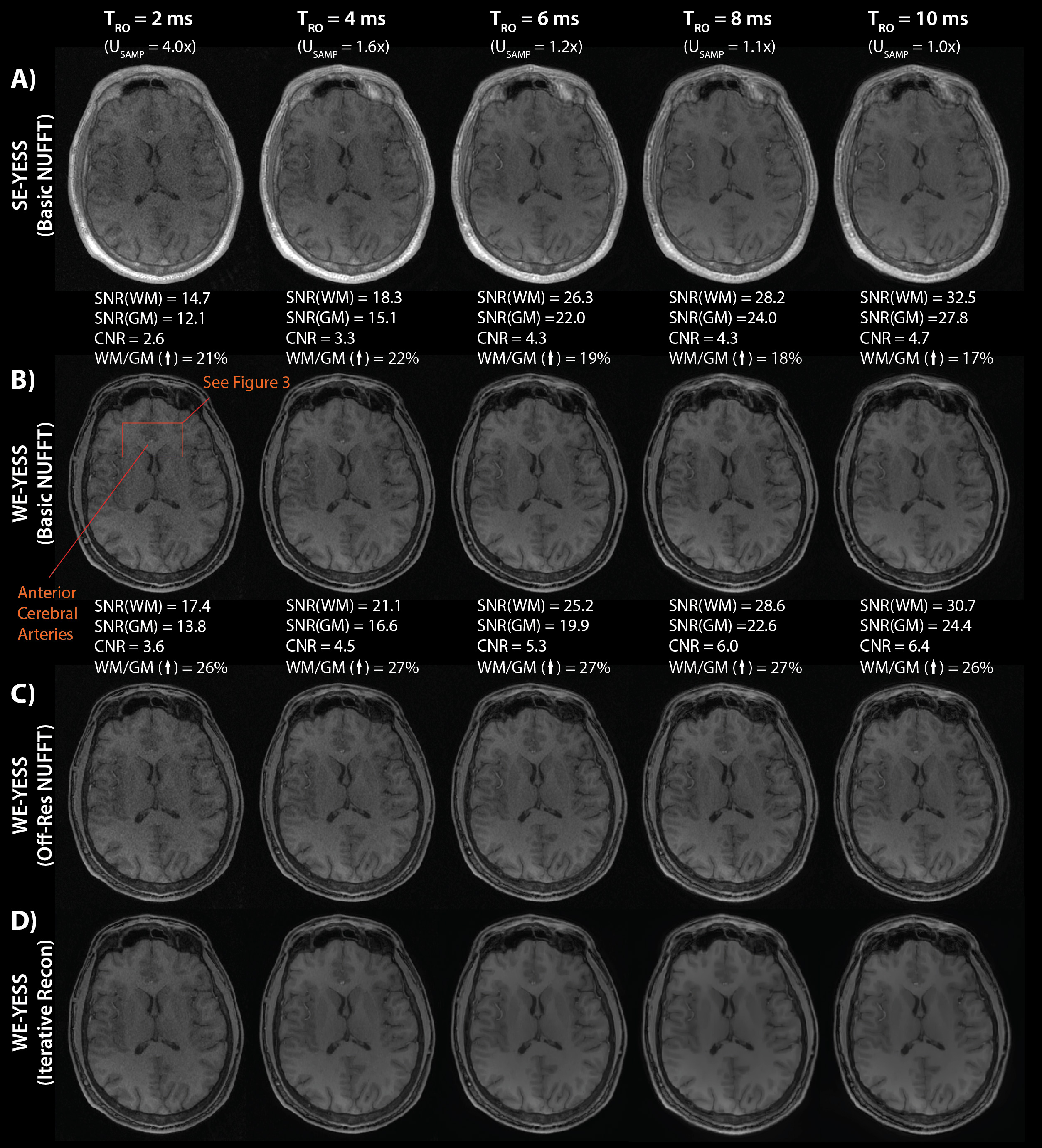

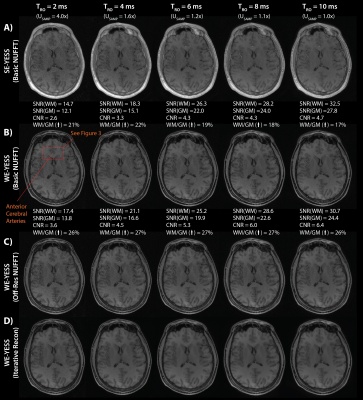

Both SE-YESS (A) and WE-YESS (B) yield greater SNR/CNR with greater T_RO. Interestingly, WE-YESS yields both greater CNR (35% average) and WM/GM ratio than SE-YESS. Thus, subsequent results are presented for just WE-YESS. (B) The anterior cerebral arteries are used to demonstrate off-resonance image smearing with increased T_RO. See Figure 4 for a zoom-in on the red box. (C) Smearing is reduced with the off-resonance correcting NUFFT. (D) Iterative reconstruction yields visible noise reduction, with minimal impact to image resolution.

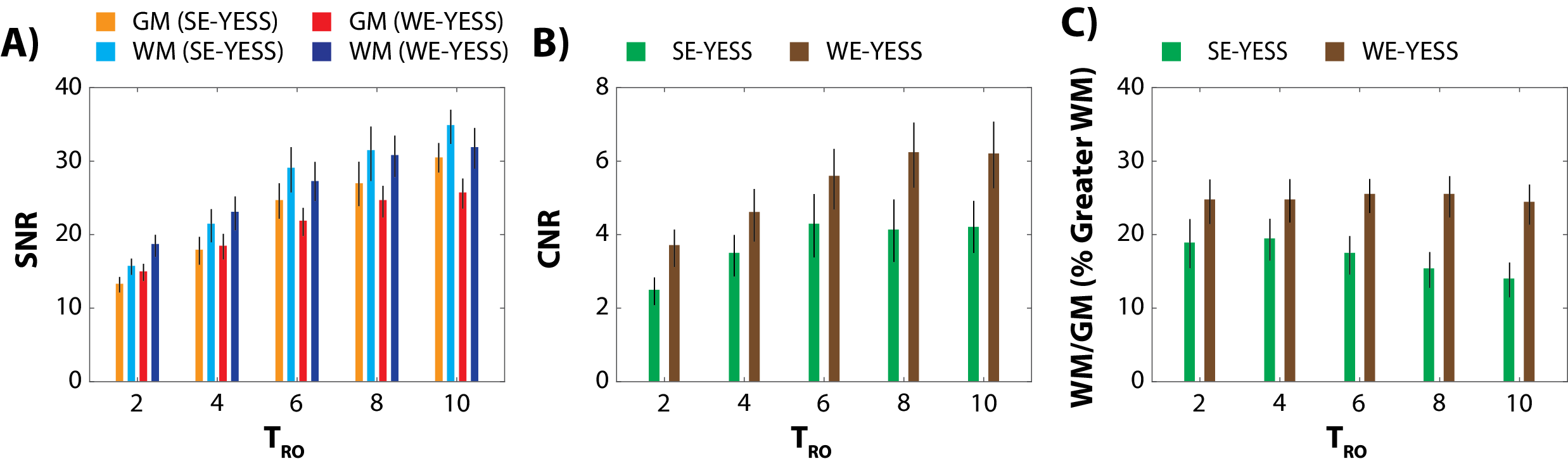

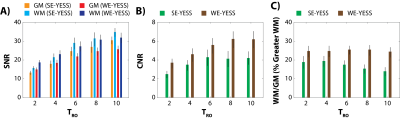

(A) Measured SNR increases with T_RO across the 4 volunteers, and this increase is greatest is WM, yielding (B) associated CNR increase with T_RO. However, the CNR of WE-YESS is substantially greater than that of SE-YESS, as much as ~50% at longer T_RO. (C) Underlying the CNR advantage of WE-YESS is ~25% greater WM signal than GM; SE-YESS yields only ~17% greater WM signal than GM, and a decreasing ratio at longer T_RO.

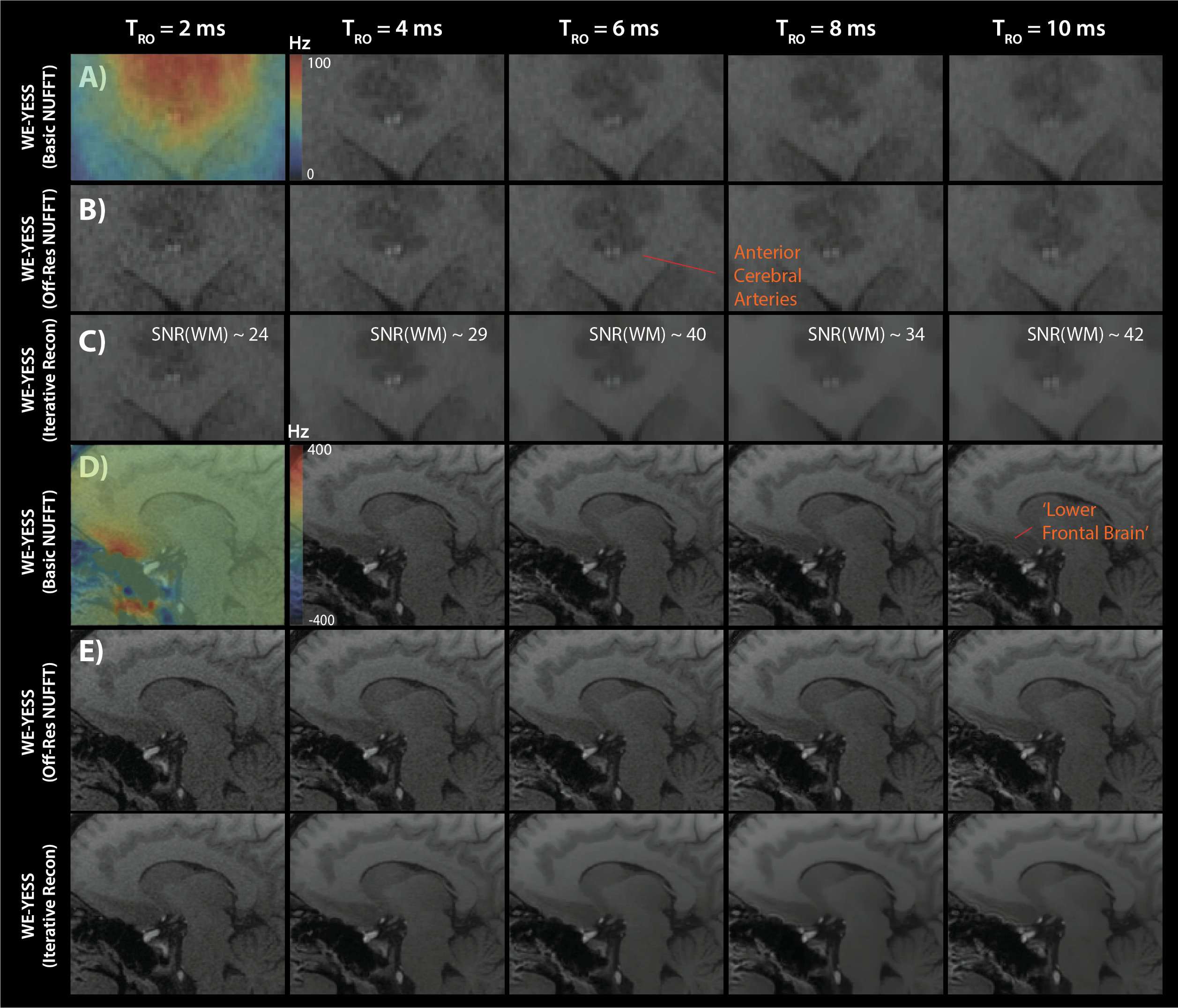

(A) ~100 Hz off-resonance yields signal smearing for long T_RO=10 ms, as demonstrated with the anterior cerebral arteries, (B) but this signal smearing is greatly reduced with the off-resonance correcting NUFFT. (C) Iterative reconstruction yields noise reduction with minimal resolution impact. (D) The ‘lower frontal brain’ region is ~300 Hz off-resonance, and large off-resonance at a tissue boundary yields ringing, particularly for long T_RO=10 ms. This ringing is only slightly reduced by the off-resonance correcting NUFFT (E), and iterative reconstruction (F).

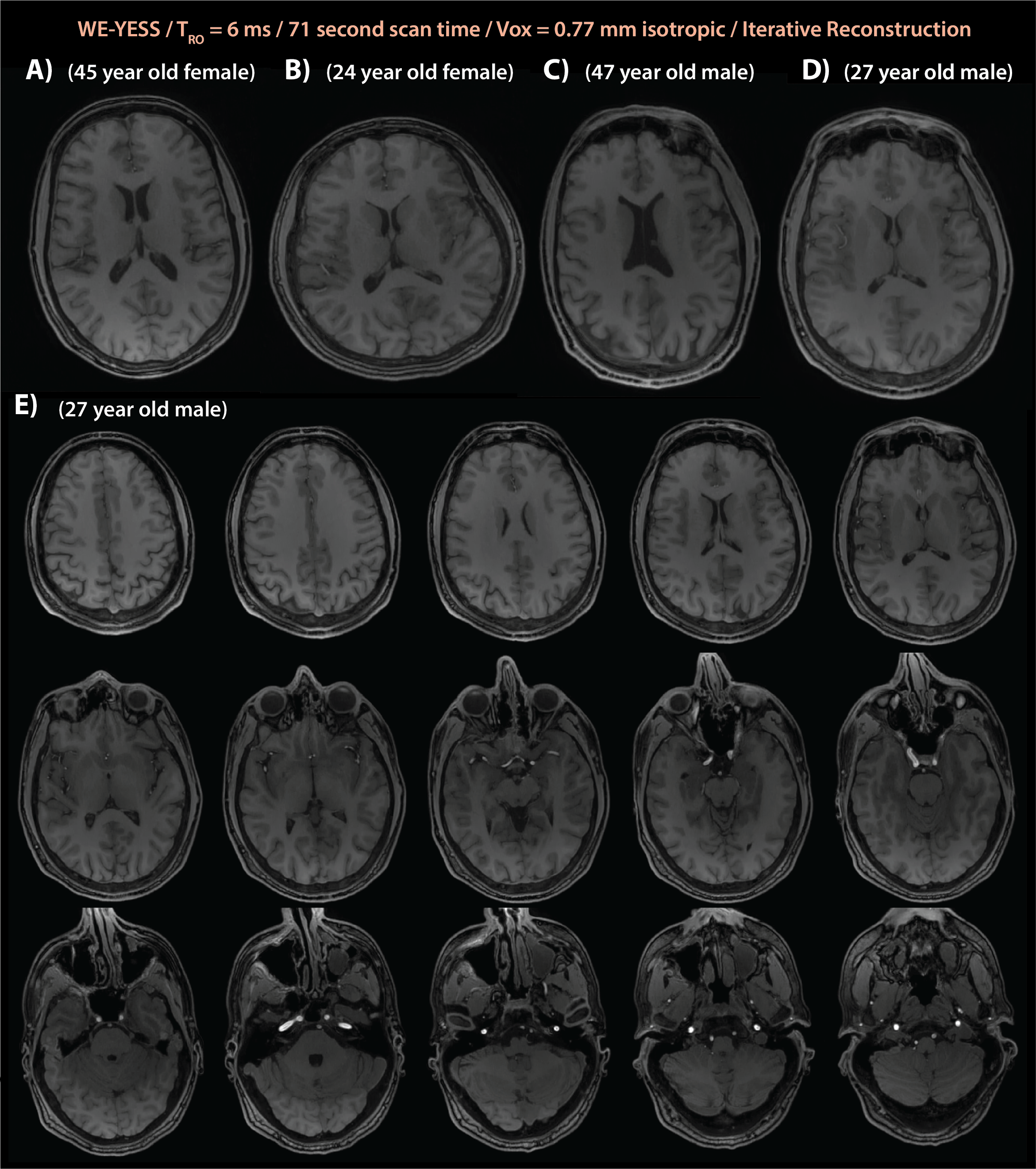

(A-D) Images from the 4 volunteers demonstrate similar image quality from this 71 second T₁-weighted YESS scan (T_RO = 6 ms, Voxels = 0.77 mm isotropic) using iterative reconstruction. (E) Slices from 27 year old male volunteer demonstrate similar image quality from the top to the bottom of the brain.
