Introduction

In recent years, powerful deep-learning models have been proposed for accelerated MRI reconstruction with performance leaps over traditional methods^1-16. Diffusion models have produced particularly promising results by employing a task-agnostic prior that transforms Gaussian noise onto images over multiple steps^17-22. Yet, common diffusion models are trained by neglecting the physical constraints for accelerated MRI (i.e., sampling patterns, coil sensitivities), so reconstruction requires injection of data-consistency (DC) projections in between sampling steps²¹. Furthermore, previous diffusion methods require supervised training on high-quality reference images derived from either a linear reconstruction of fully-sampled acquisitions or a separate nonlinear reconstruction of undersampled acquisitions^22-24. These limitations hamper the performance and practical utility of diffusion-based MRI reconstruction.

To address the above-mentioned limitations, here we propose a novel physics-driven diffusion model, SSDiffRecon, for self-supervised MRI reconstruction. SSDiffRecon leverages an unrolled architecture that interleaves cross-attention transformer blocks for denoising with data-fidelity blocks for integrating physical constraints. For self-supervised learning on undersampled acquisitions, SSDiffRecon is trained to predict randomly held-out subsets of k-space samples within undersampled data from remaining subsets²³. These advances enable SSDiffRecon to outperform previous self-supervised baselines in image quality, while attaining on par performance with its supervised benchmark trained on fully-sampled data.

Methods

SSDiffRecon is a self-supervised diffusion model for MRI reconstruction trained on a set of data acquired at undersampling factor R. Reference images are taken as the zero-filled Fourier reconstruction $$${x}^u=\mathcal{C}^*\mathcal{F}^{-1}\{y\}$$$ where \(\mathcal{C}^*\) denotes adjoint of coil sensitivities \(\mathcal{C}\), \(\mathcal{F}^{-1}\) denotes inverse Fourier transformation, and \(y\) are undersampled multi-coil k-space data.

Diffusion process: In the forward direction, the diffusion process adds noise onto reference images to draw noisy samples according to the forward transition probability: $$\quad q\left({x}^u_t\mid{x}^u_{t-1}\right)=CN\left({x}^u_t;\sqrt{1-\beta_t}{x}^u_{t-1},\beta_t{I}\right)$$where $$$CN(\cdot;\mu,\Sigma)$$$ denotes a complex Gaussian distribution with mean vector \(\mu\) and covariance matrix \(\Sigma\), $$$t\in[0,T]$$$ denotes the time step with $$$T$$$=1000, $$$\beta_t$$$ determines the noise scale, $$$I$$$ is an identity matrix. In the reverse direction, a denoising network $$$D_{\theta}$$$ parametrizes the gradual mapping from random noise samples onto reference images (Fig.1). In SSDiffRecon, this network is used to estimate the `clean’ sample, i.e., $$${\hat{x}}^u_0 =D_{\theta}({x}^u_t,t,\mathcal{M},\mathcal{C},y)$$$, given the sample at step $$$t$$$, along with the physical constraints: sampling pattern $$$\mathcal{M}$$$, coil sensitivities $$$\mathcal{C}$$$, and acquired data $$$y$$$. The denoised sample at $$$t-1$$$ can then be drawn from the reverse transition probability²⁰:$$p(x^u_{t-1}|x^u_{t})=CN \left(x^u_{t-1};\frac{\sqrt{\overline{\alpha}_{t-1}}\beta_{t-1}}{1-\overline{\alpha}_{t}}\hat{x}^u_{0}+\frac{\sqrt{\alpha_{t}}\left(1-\overline{\alpha}_{t-1}\right)}{1-\overline{\alpha}_{t}}x_{t},\frac{1-\overline{\alpha}_{t-1}}{1-\overline{\alpha}_{t}}\beta_{t}\right)$$where $$$\alpha_{t}:=(1-\beta_{t})$$$ and $$$\overline{\alpha}_{t}:=\prod_{\substack{r=[0,..,t]}}\alpha_{\tau}$$$.

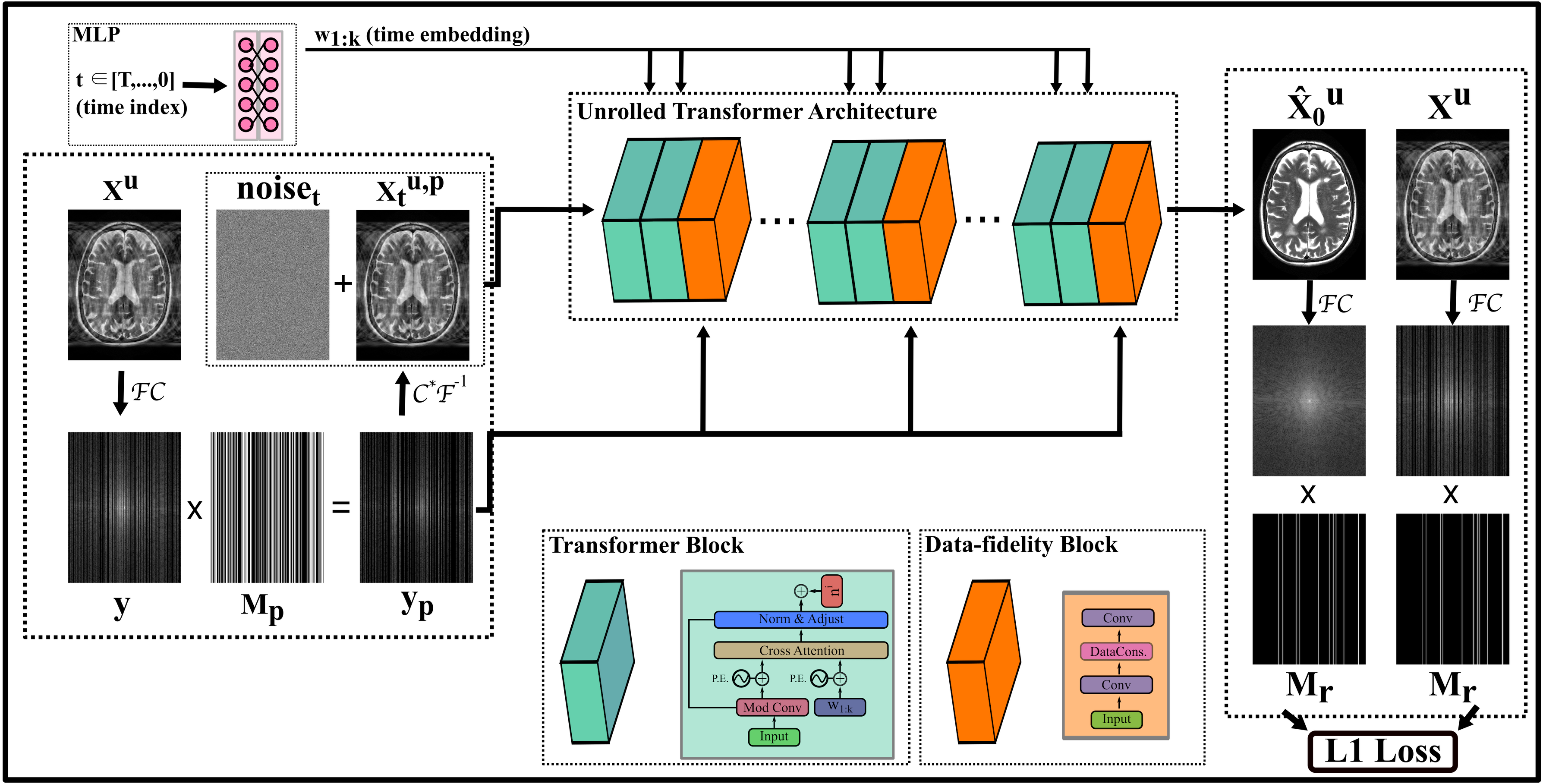

Network architecture: $$$D_{\theta}$$$ uses a novel unrolled architecture cascading cross-attention transformer blocks²⁵ with data-fidelity blocks to enforce physical constraints (Fig.1). An MLP maps $$$t$$$ onto a time embedding²¹, and transformer blocks perform time-dependent filtering of $$${x}^u_t$$$. Data-fidelity blocks enforce strict consistency to $$$y$$$ given $$$\mathcal{M}$$$ and $$$\mathcal{C}$$$ estimated via ESPIRiT²⁶. A 6-cascade architecture is used.

Self-supervised training: Undersampled data $$$y$$$ acquired with $$$\mathcal{M}$$$ are split into two non-overlapping subsets, $$$y_p$$$ with $$$\mathcal{M}_p$$$ used to compute forward passes through the model and $$$y_r$$$ with $$$\mathcal{M}_r$$$ used to evaluate the loss function²³: $$L_{SSDiffRecon}=\mathbb{E}_{t}[||y_r-\mathcal{M}_r\mathcal{F} \{\mathcal{C}\hat{x}^u_0\}||_1],\\{\hat{x}^u}_0=D_{\theta}({x}^{u,p}_t,t,\mathcal{M_p},\mathcal{C},y_p)$$where $$${x}^{u,p}_t=\mathcal{C}^*\mathcal{F}^{-1}\{\mathcal{M}_p\mathcal{F}\{\mathcal{C}x^{u}_t\}\}$$$ (Fig.2).

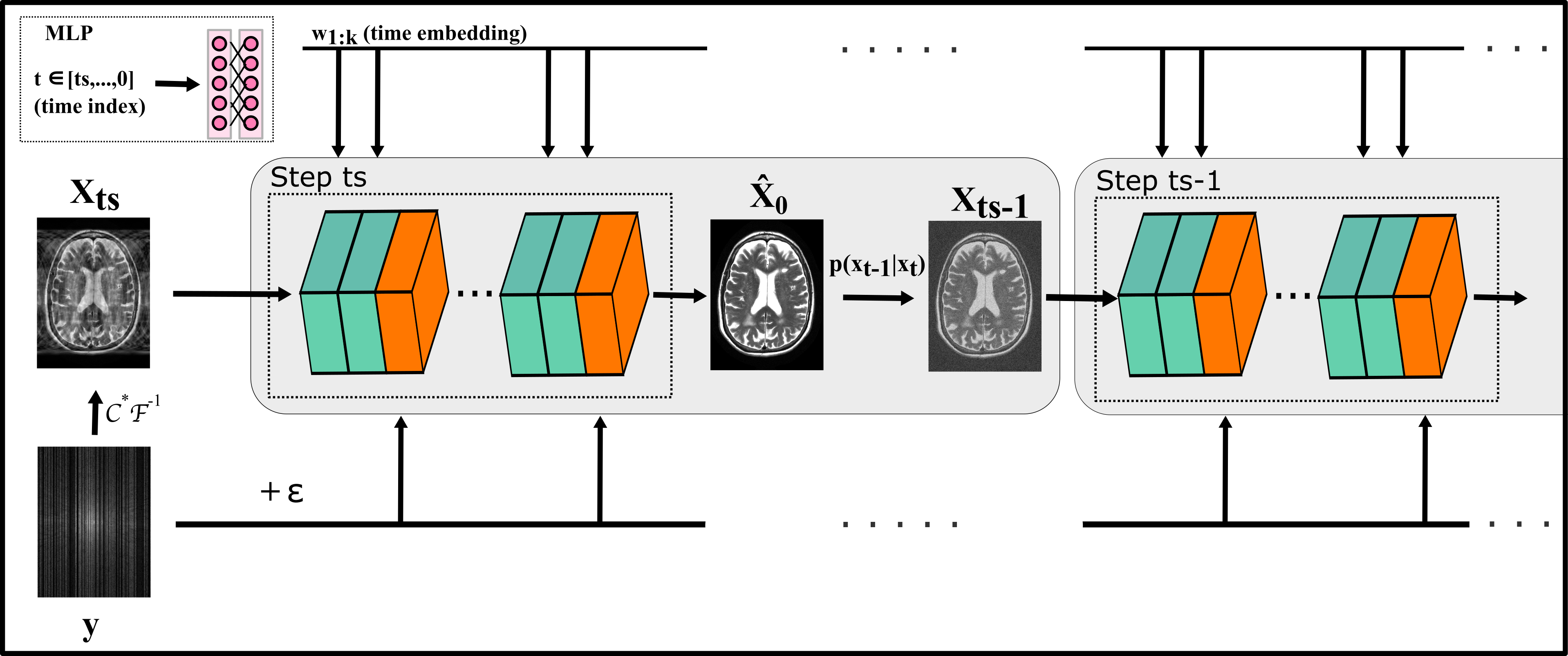

Reconstruction: Due to its unrolled architecture, SSDiffRecon does not need additional injection of data-consistency projections. To further speed up reconstruction, we initiated sampling with a zero-filled reconstruction of the undersampled acquisition, $$$x_{ts}=\mathcal{C}^*\mathcal{F}^{-1}\{y\}$$$. $$$ts$$$=5 reverse steps were observed to approach convergence. In each step, sampling via \(p(x_{t-1}|x_{t})\) was performed after a network forward-pass to estimate $$${\hat{x}}_0=D_{\theta}({x}_{t},t,\mathcal{M},\mathcal{C},\sqrt{\bar{\alpha}_t}y+\sqrt{1-\bar{\alpha}_t}\epsilon)$$$, where random noise \(\epsilon\sim CN(\epsilon,0,0.1I)\) was added at descending schedule for gradual enforcement of data fidelity.

Analyses: Demonstrations were performed on single-coil T₁, T₂, PD data from IXI (https://brain-development.org/ixi-dataset/) and multi-coil T₁, T₂, FLAIR data from fastMRI²⁷. (100,10,20) subjects were reserved for (training,validation,testing). 2D variable-density undersampling¹ was performed at R=4. Data undersampled at R were further split into (90%,10%) subsets with (\(\mathcal{M}_p,\mathcal{M}_r\)) for self-supervision. Training was performed with Adam optimizer, 0.002 learning rate, 100 epochs.

Results

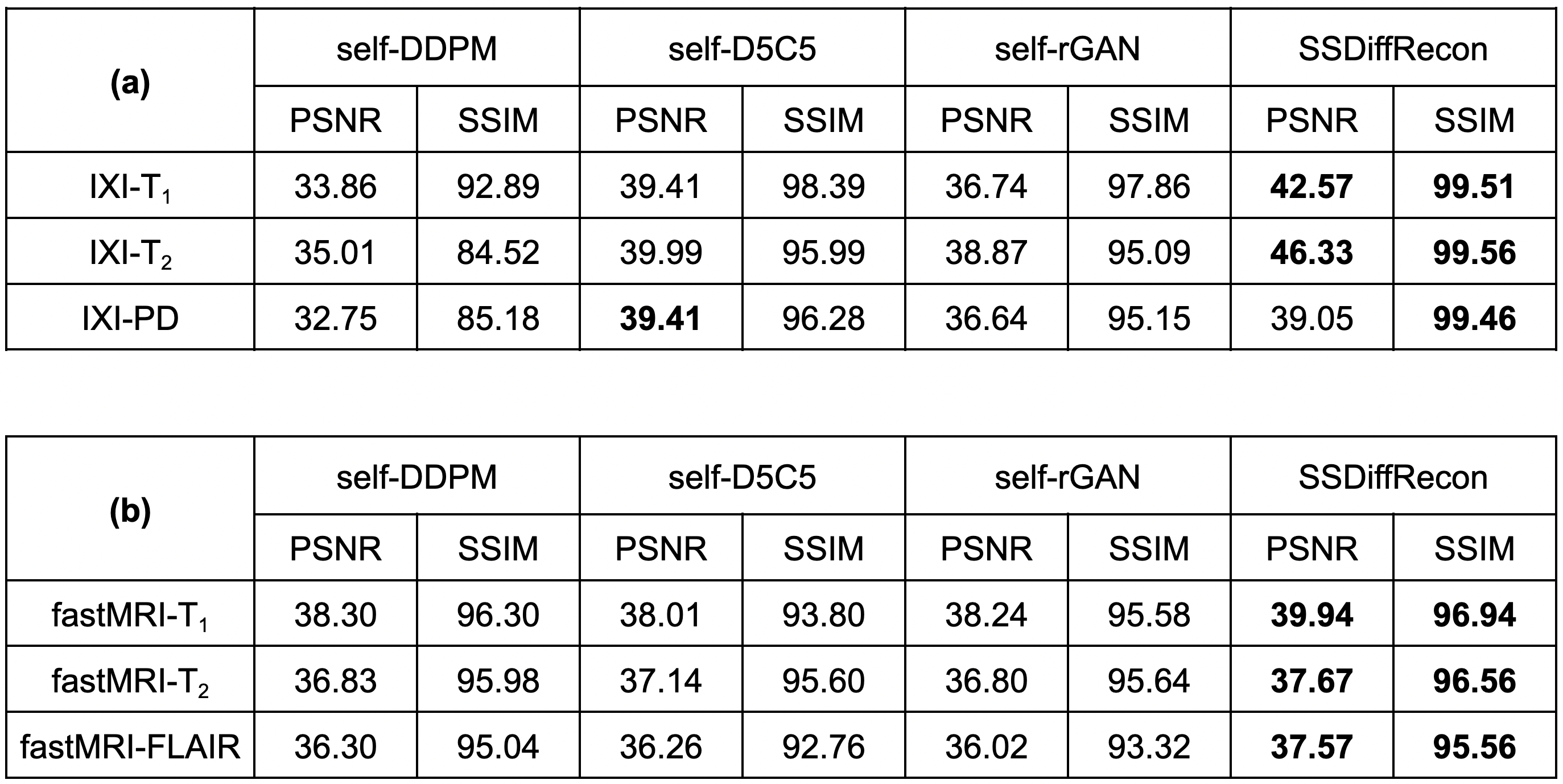

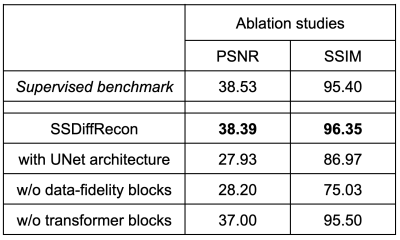

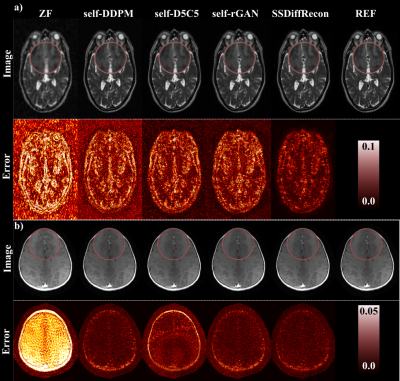

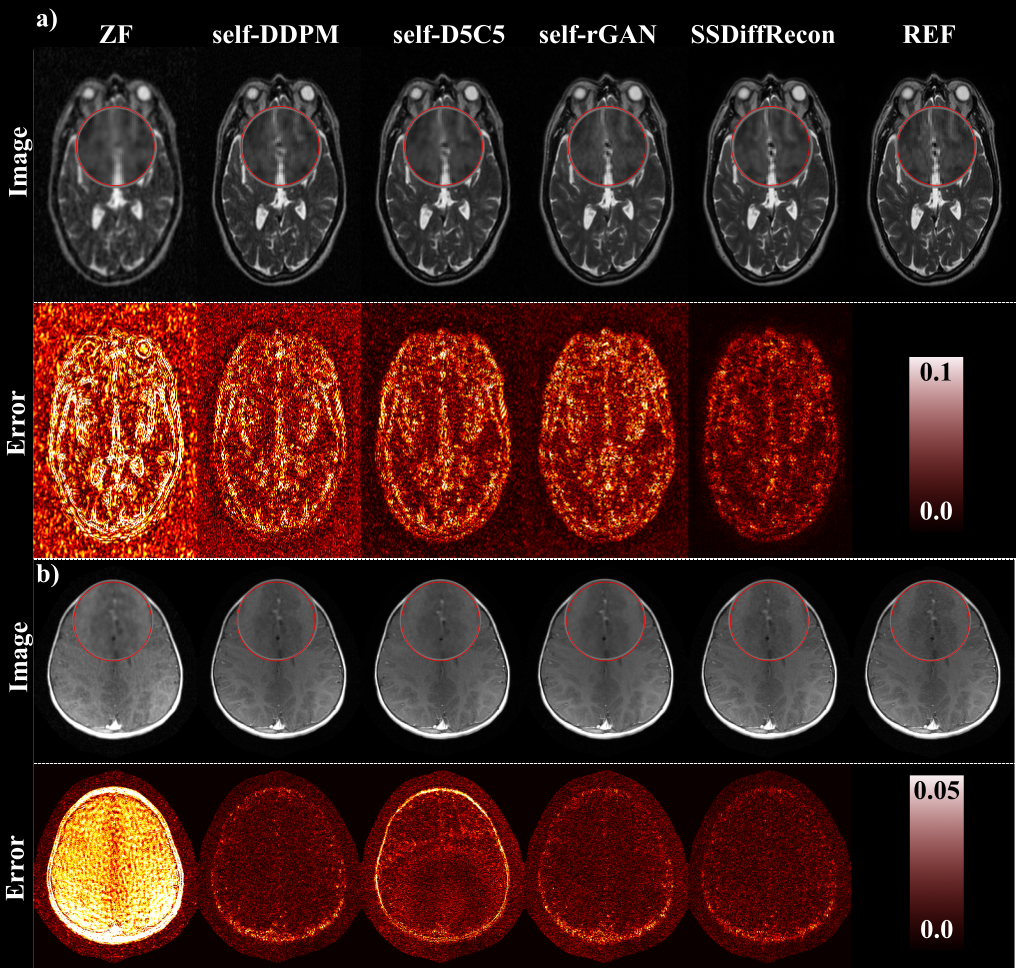

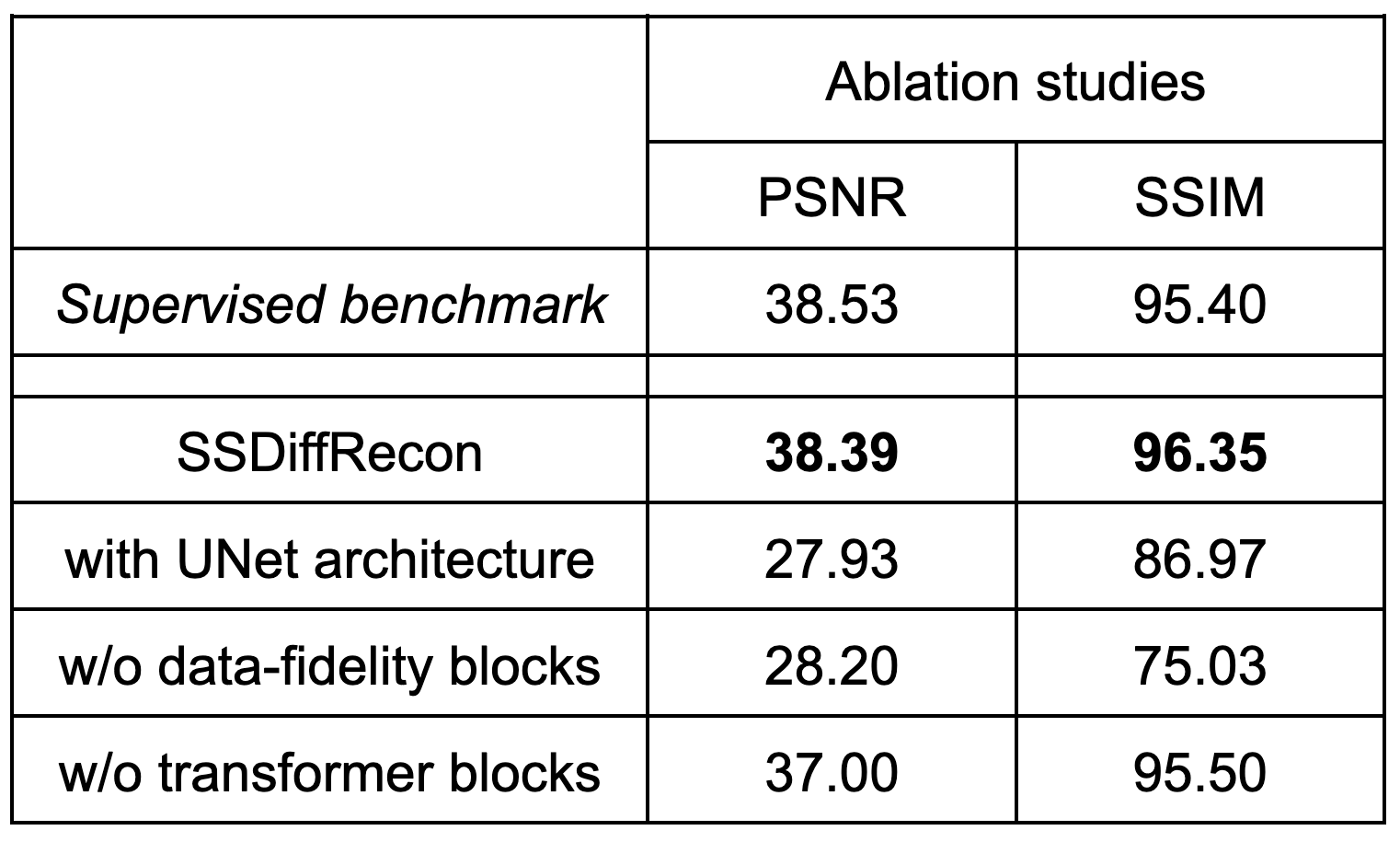

Fig.3 lists performance metrics for SSDiffRecon and several baselines (self-DDPM²¹, self-D5C5³, self-rGAN¹⁵) trained under the same self-supervision approach²³. On average, SSDiffRecon outperforms competing methods by 3.49dB PSNR, 3.75% SSIM across reconstruction tasks. Improvements in spatial acuity, lower artifacts/noise with SSDiffRecon are visually manifested in representative reconstructions in Fig.4. Ablation studies in Fig.5 demonstrate the importance of the unrolled architecture, data-fidelity blocks, transformer blocks, and show that SSDiffRecon performs on par with the supervised benchmark obtained by training the same architecture on fully-sampled acquisitions.

Discussion

Here we introduced a novel self-supervised MRI reconstruction method, SSDiffRecon, based on a diffusion model comprising an unrolled transformer architecture trained to predict masked-out k-space data. The proposed method integrates physical constraints to improve performance and efficiency by avoiding the need for injection of DC projections during inference, while enabling training on undersampled data. Therefore, SSDiffRecon holds great promise for improving the utility of accelerated MRI reconstruction.

Acknowledgements

This work was supported in part by a TUBITAK 1001 Grant No. 121E488, and in part by NIH R01 Grant CA276221.
