Introduction

Osteoarthritis (OA) is a heterogeneous disease characterized by progressive cartilage loss, subchondral bone remodeling, osteophyte formation, and synovial inflammation which can lead to joint pain and disability and affects an estimated 250 million people worldwide [1]. Osteoarthritic degeneration of the joint following an acute injury, such as an articular fracture, chondral injury, or ligament or meniscal tear is termed post-traumatic OA (PTOA) [2]. Despite treatment, between 23-50% of individuals who suffer a knee joint trauma eventually develop PTOA and the factors which may indicate PTOA progression are not well understood [3]. Previous studies have explored shape changes in the tibiofemoral joint following ACL reconstruction (ACLR), which may serve as an indicator of PTOA progression; however, there is relatively little reporting of similar data for the patellofemoral joint [4, 5]. The purpose of this study was to investigate patella bone shape as an early indicator for PTOA using longitudinal changes and associations with injury, sex, KOOS, and cartilage T1rho values.

Methods

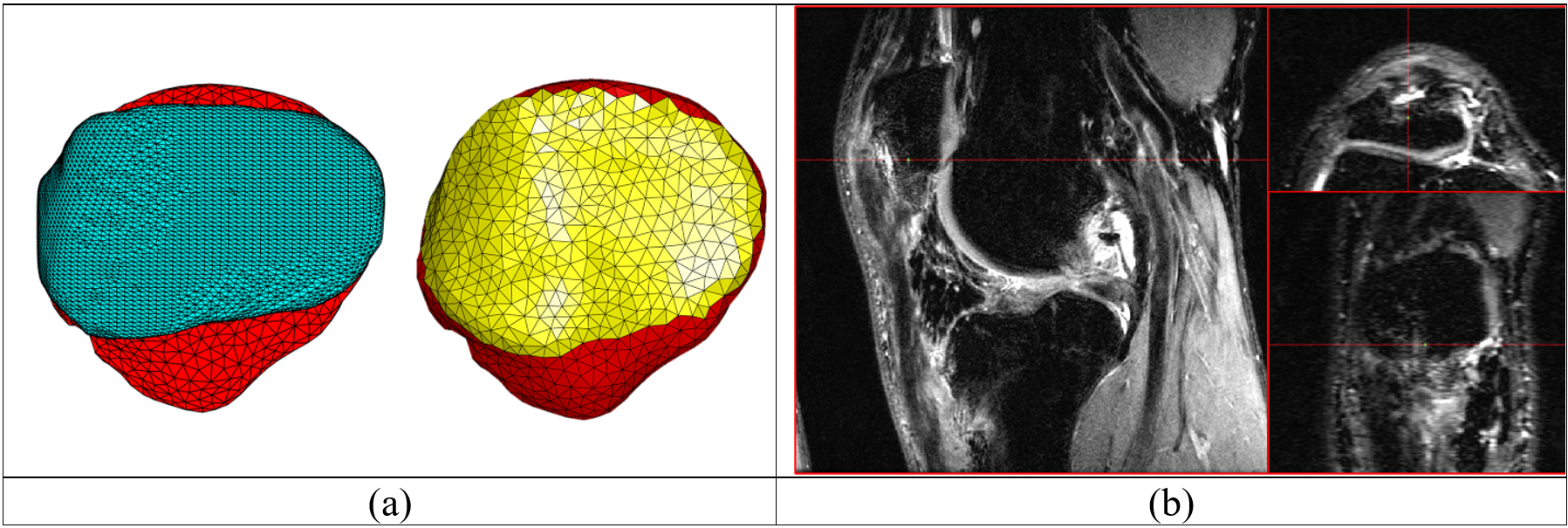

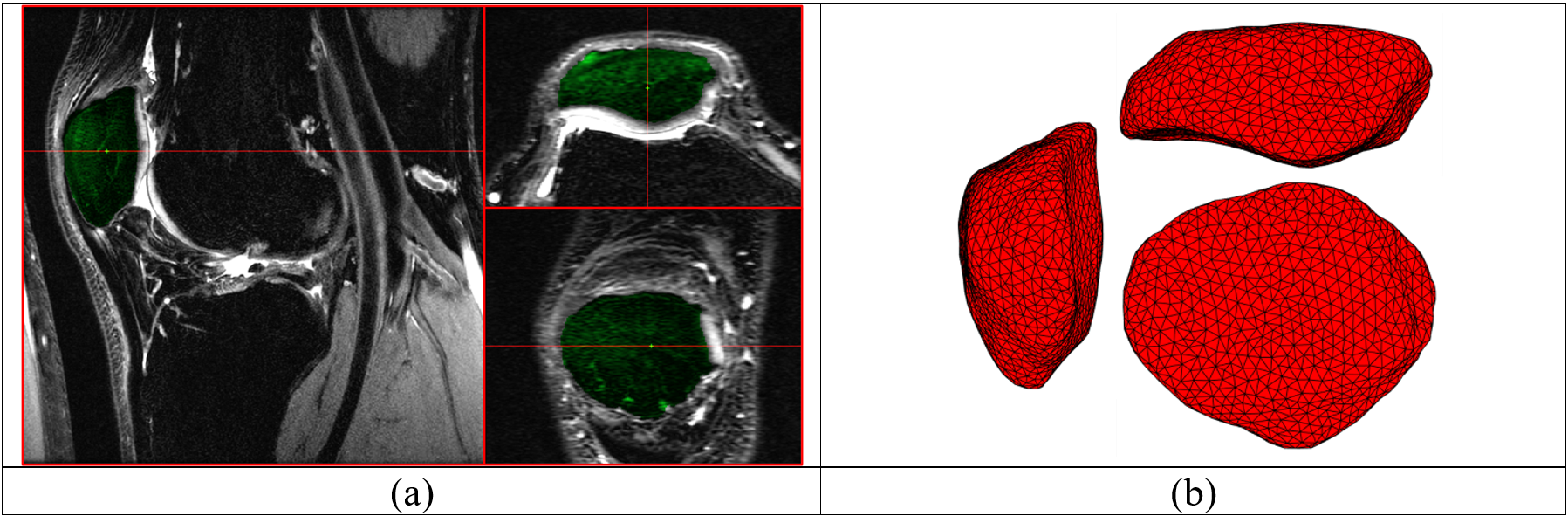

Bilateral knee MRIs from 67 patients (38 males, age: 29.2 ± 8.4 years, BMI: 24.6 ± 2.4 kg/m2, 29 females, age: 25.5 ± 10.3 years, BMI: 23.3 ± 3 kg/m2) who suffered a single complete ACL injury and 11 controls (5 males, age: 31.3 ± 4.5 years, BMI: 24.9 ± 0.9 kg/m2, 6 females, age: 33.4 ± 5.6 years, BMI: 23.9 ± 3.7 kg/m2) were collected as part of an IRB-approved multisite study using 3-T fat saturated CUBE sequences (GE Healthcare, Milwaukee, WI, USA). Patient MRIs were acquired prior to ACLR (baseline) and 6 months and 12 months following ACLR while control MRIs were collected twice, 12 months apart. In addition, KOOS and patella cartilage T1rho relaxation times were obtained for all subjects. A two-stage deep learning process (global and local 2D U-Net models) was used to automatically segment the patellae of each subject at each time point (Figure 1a) [6]. The automated segmentations of all 446 patellae were manually inspected and corrected as needed and then used to generate smoothed 3D surface reconstructions (Figure 1b) [7, 8]. Next, a minimum deformation template was deformably registered to each patella surface and the subchondral region of the bone was isolated by finding the area of overlap between the template and its patella cartilage segmentation (Figure 2a) [9]. The subchondral regions of the patellae were separated to account for substantial morphological alterations to the anterior and inferior surfaces caused by ACLR, particularly for bone-patella tendon-bone grafts (Figure 2b). Finally, a generalized Procrustes analysis produced size invariant point distributions from the registered surfaces and a statistical shape model of the subchondral region was created using a principal components analysis (PCA) [10]. The first 15 shape modes, which explained approximately 95% of the variance in the data, were retained for further analysis and their PC scores were calculated. Mixed effects models were used to investigate differences across ipsilateral, contralateral, and control patella shapes, sex differences, longitudinal shape changes, and associations with changes in KOOS and ipsilateral T1rho values from baseline to 12 months following ACLR [11]. To help control for the increase in false discovery rate due to the testing of multiple hypotheses, a significance cutoff of 0.01 was chosen for this study.

Results

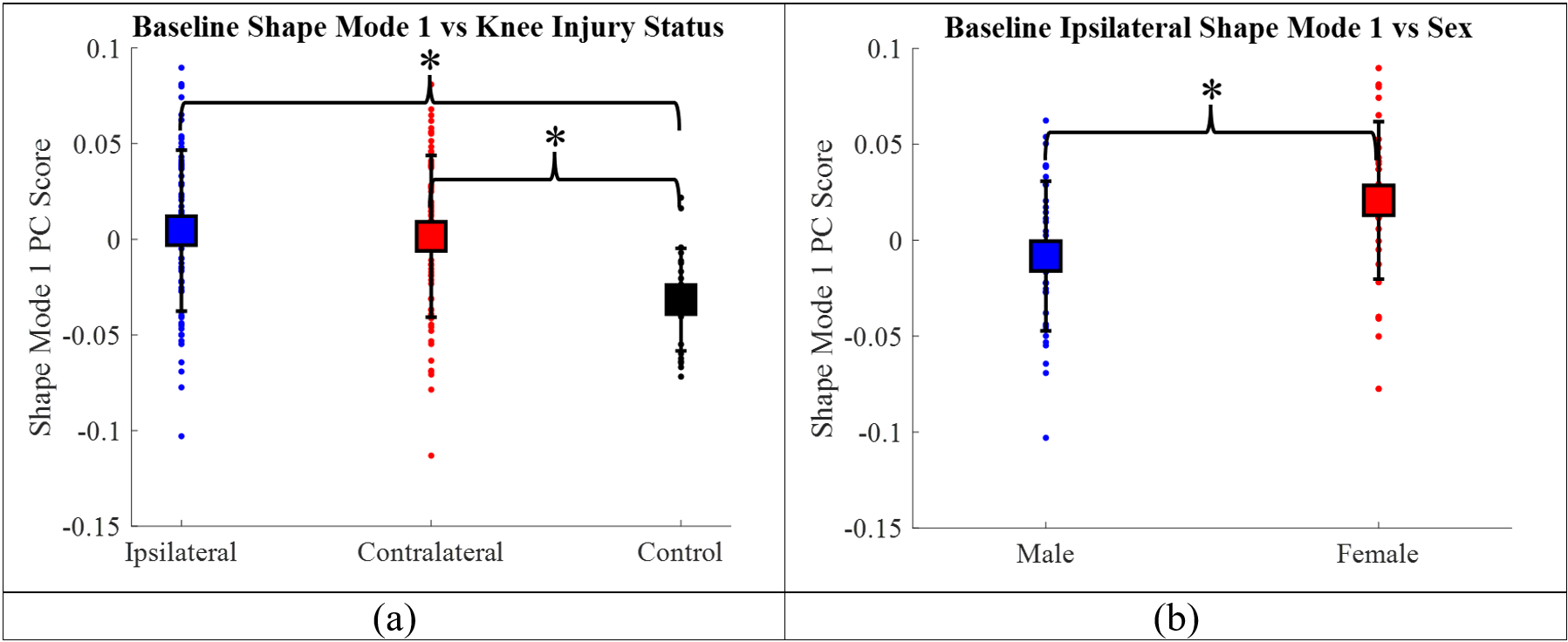

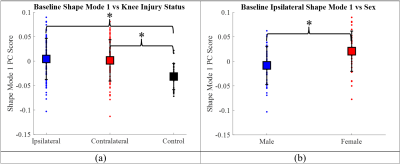

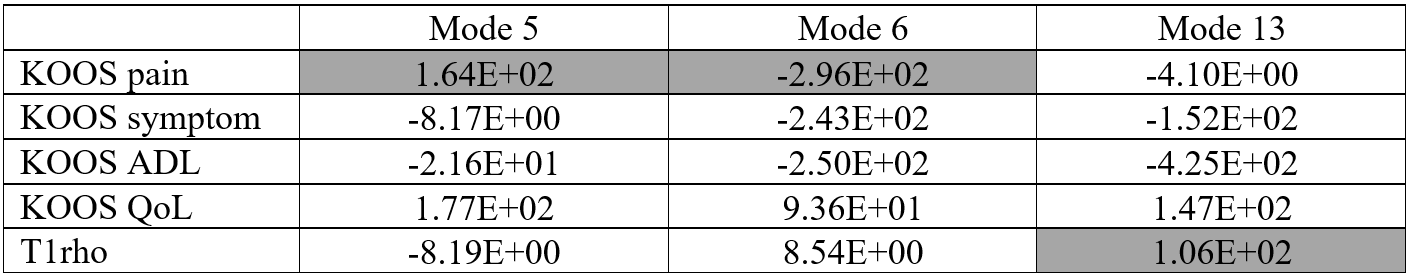

At baseline, significant (p < 0.01) differences between ipsilateral, contralateral and control patella shapes were found for mode 1 (Figure 3a), while significant (p < 0.01) sexual dimorphisms were observed for modes 1 (Figure 3b) and 5. No significant longitudinal changes were found for ipsilateral, contralateral, or control patella shapes. Changes in KOOS pain were found to be significantly (p < 0.01) associated with baseline, ipsilateral shape modes 5 and 6 while changes in ipsilateral T1rho were significantly (p < 0.01) associated with mode 13 (Table 1).

Discussion

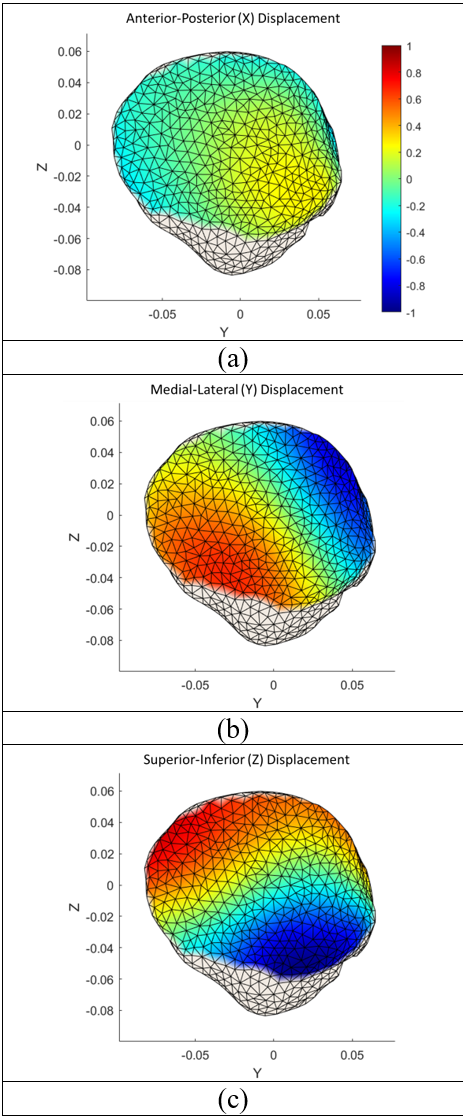

Shape mode 1, which accounted for approximately 24% of the total patella shape variation was found to be predictive of knee injury status (ipsilateral/contralateral vs. control) and sex. Figures 3 and 4 show that taller, narrower patellae with a protruding inferior vertical ridge are correlated with ACL injury and are more indicative of females. Shape modes 5 and 6 were associated with changes in KOOS pain while mode 13 was associated with changes in T1rho relaxation times. This suggests a potential link between patella shape and the degenerative changes accompanying PTOA.

Conclusions

This study suggest that patella shape may contribute to ACL injury and to PTOA development after ACLR. Further studies will be needed to confirm these results and to determine the biomechanical connection between patella shape, ACL injury, and PTOA.

Acknowledgements

This study was supported by the Arthritis Foundation and NIH/NIAMS R01AR075422
