Introduction

Currently, semi-supervised medical image segmentation algorithms primarily utilize a single convolutional neural network (CNN) model for feature extraction.^1-4 Nonetheless, this approach impedes the extraction of global image information. Moreover, current training methods frequently neglect the comprehension of feature relationships between positive and negative samples, leading to challenges in accurately delineating multiple lesion boundaries. To address these issues, this research proposes a dual-confidence-guided feature learning model based on CNN-Transformer model. This approach aims to achieve accurate segmentation of multiple lesions in brain tumor magnetic resonance images.

Methods

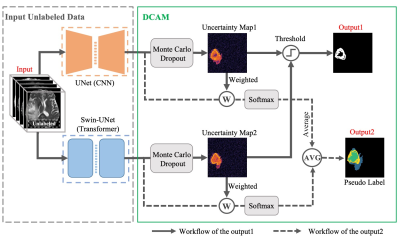

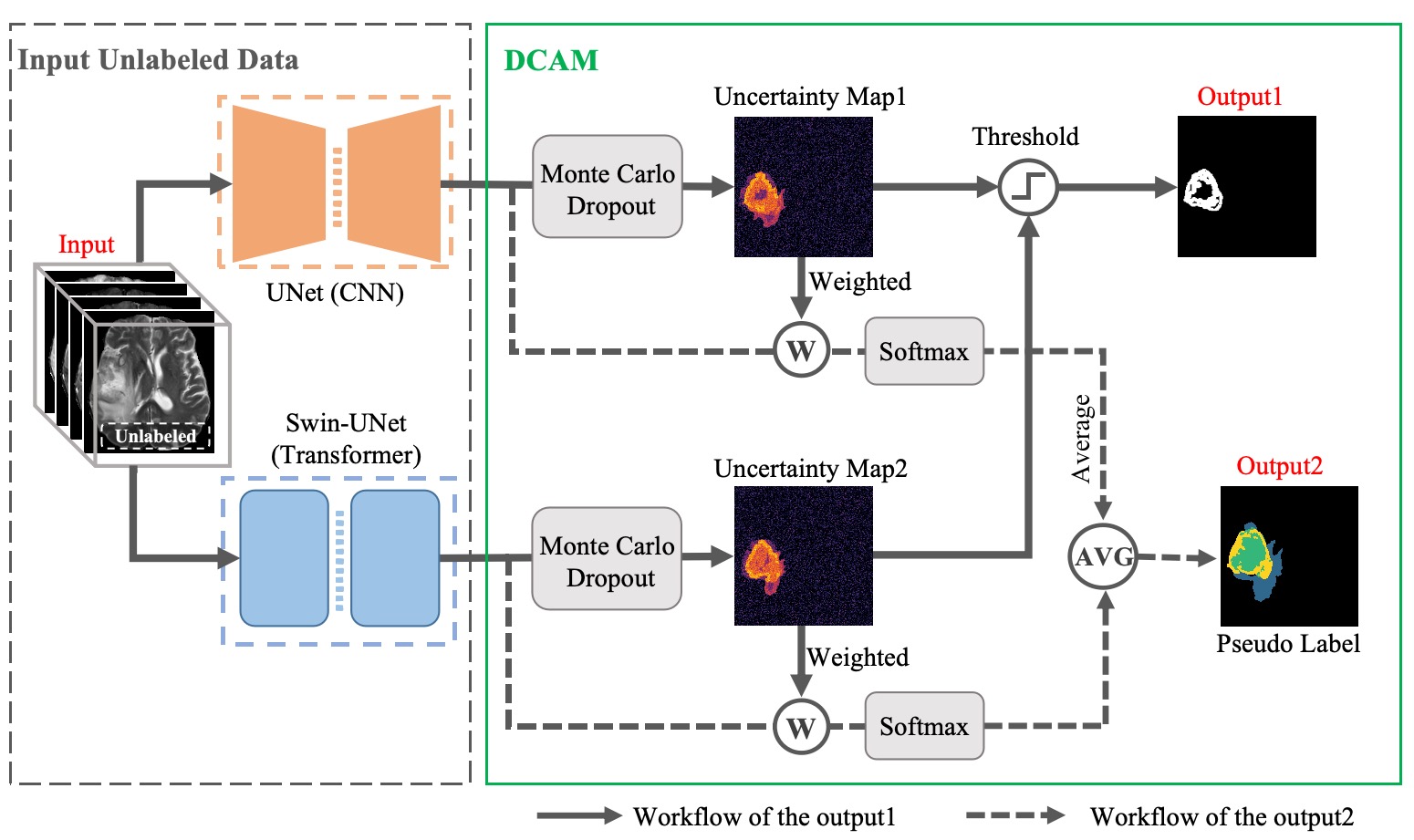

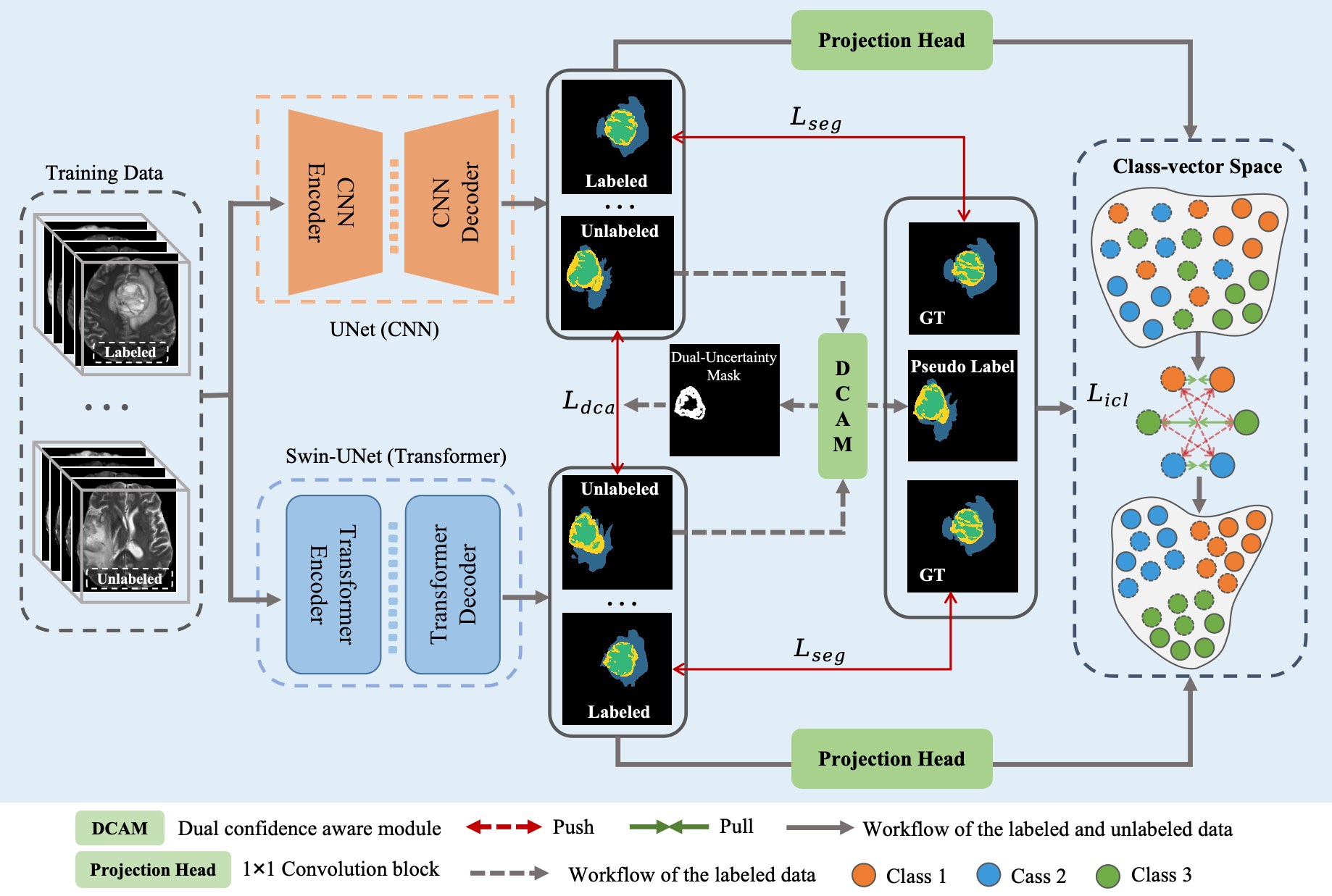

Model: The proposed model is depicted in Figure 1. Our training set contained N labeled data and M unlabeled data (N<<M). For labeled data, a segmentation loss was defined as $$$L_{seg}=L_{ce}^{12}+L_{dice}^{12}$$$ , which comprised both dice loss and cross-entropy loss to facilitate supervised feature learning. For unlabeled data, as shown in Figure 2, a dual confidence aware module (DCAM) was designed. This DCAM estimated uncertainty from the predicted maps produced by the dual-branch network and defined a dual confidence aware loss $$L_{dca}=\frac{\sum_j\xi((U_1<T)\cap(U_2<T))\ \lvert\rvert{p_j^1-p_j^2}\lvert\rvert^2}{\sum_j\xi((U_1<T)\cap(U_2<T)) + 1e^{-16}}\quad,$$ where U₁ is the estimated uncertainty of network 1 at the j-th pixel,⁵ ξ(·) is the indicator function, p is the predicted segmentation map, T is a threshold. $$$L_{dca}$$$ imposed a reliable unsupervised consistency constraint on the predicted maps using mean square error loss. Additionally, to further enhance the network's discriminative capability for multi-class tumor features, we designed a projection head composed of a multi-layer perceptron. This projection head extracted the dual-confidence predicted maps perceived by the DCAM into a high-dimensional class vector space, enabling pixel-level inter-class feature contrastive learning constraint. It was defined as $$L_{icl}=-log\frac{exp(sim(f_i^u,f_i^l)/\tau)}{\sum_{j=0}^Cexp(sim(f_j^u,f_i^l)/\tau)}\quad,$$ where i, j belong to the class C, and i$$$\neq$$$j, $$$\tau$$$ is the temperature constant, sim(·) denote the cosine similarity, $$$f^u$$$ is the feature vector of unlabeled data and $$$f^l$$$ is the feature vector of labeled data. $$$L_{icl}$$$ encouraged the network to improve its discriminative ability among multiple tumor regions by bringing similar feature distances closer and pushing different class feature distances farther apart. The total loss function was denoted as $$$L_{total}=L_{seg}$$$ + λ₁$$$L_{dca}$$$ + λ₂$$$L_{icl}$$$, Where λ₁, λ₂ are hyperparameters that balance each term. In our experiment, we set λ₁=1. λ₂ is a time-dependent Gaussian warming up function⁶ to control the balance between the supervised loss and unsupervised consistency loss.
Dataset: We demonstrated our approach on BraTS 2020 dataset,⁷ it contains brain MR images of four different MRI modalities from 369 patients. We randomly divided the dataset into training (300), validation (39) and testing (30). All the images contained the following three segmentation labels: Gd-enhancing tumor (ET), peritumoral edema (ED), necrotic and non-enhancing tumor (NCR/NET). In the inference stage, we further divided the labels into three evaluation regions: ET, tumor core (TC, ET+NCR/NET), and whole tumor (WT, ET+ED+NCR/NET).
Evaluation metrics: We used Dice similarity coefficient (DSC), Jaccard, the average surface distance (ASD), and 95% Hausdorff distance (95HD) to quantitatively evaluate the performance of our model.

Results

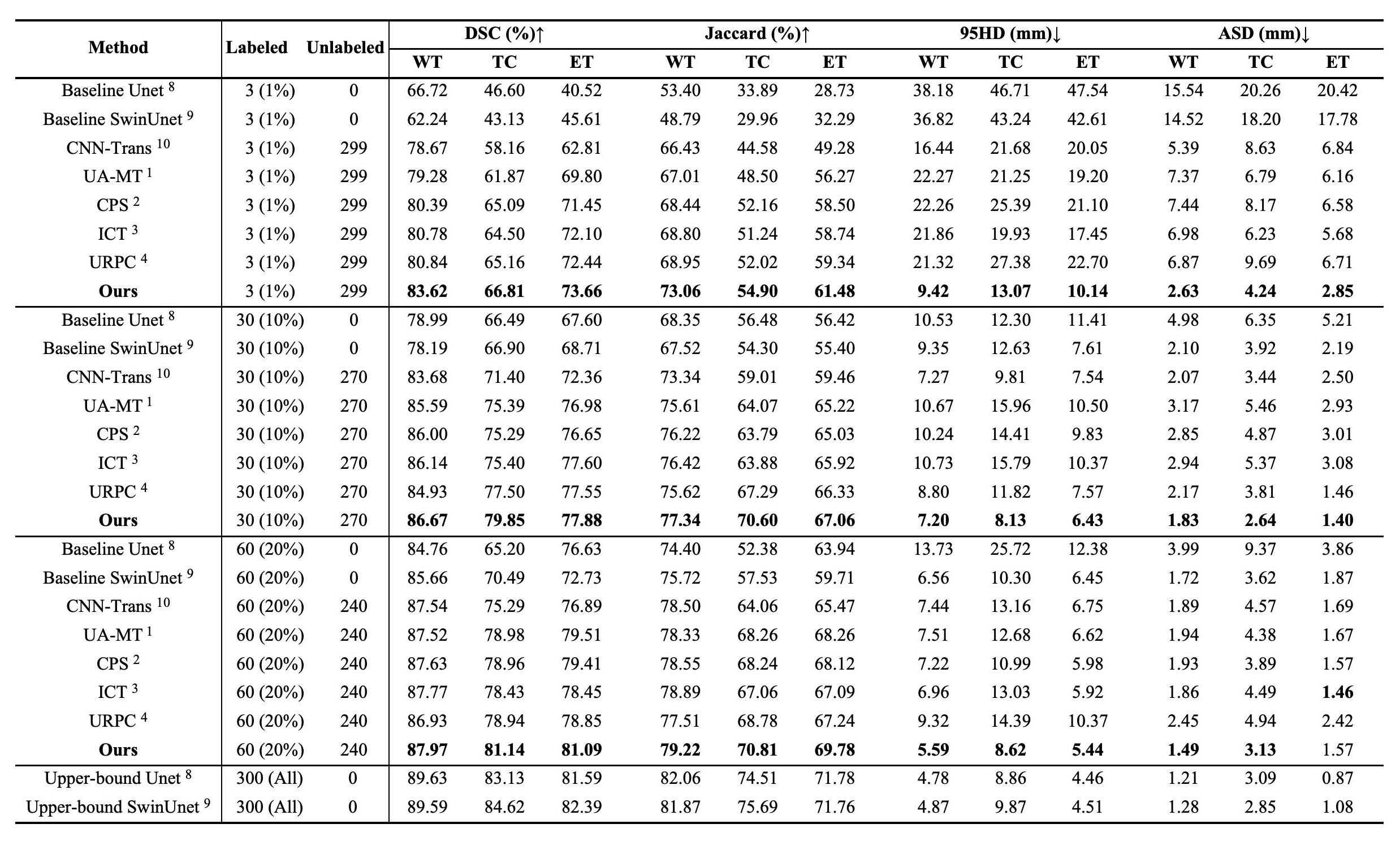

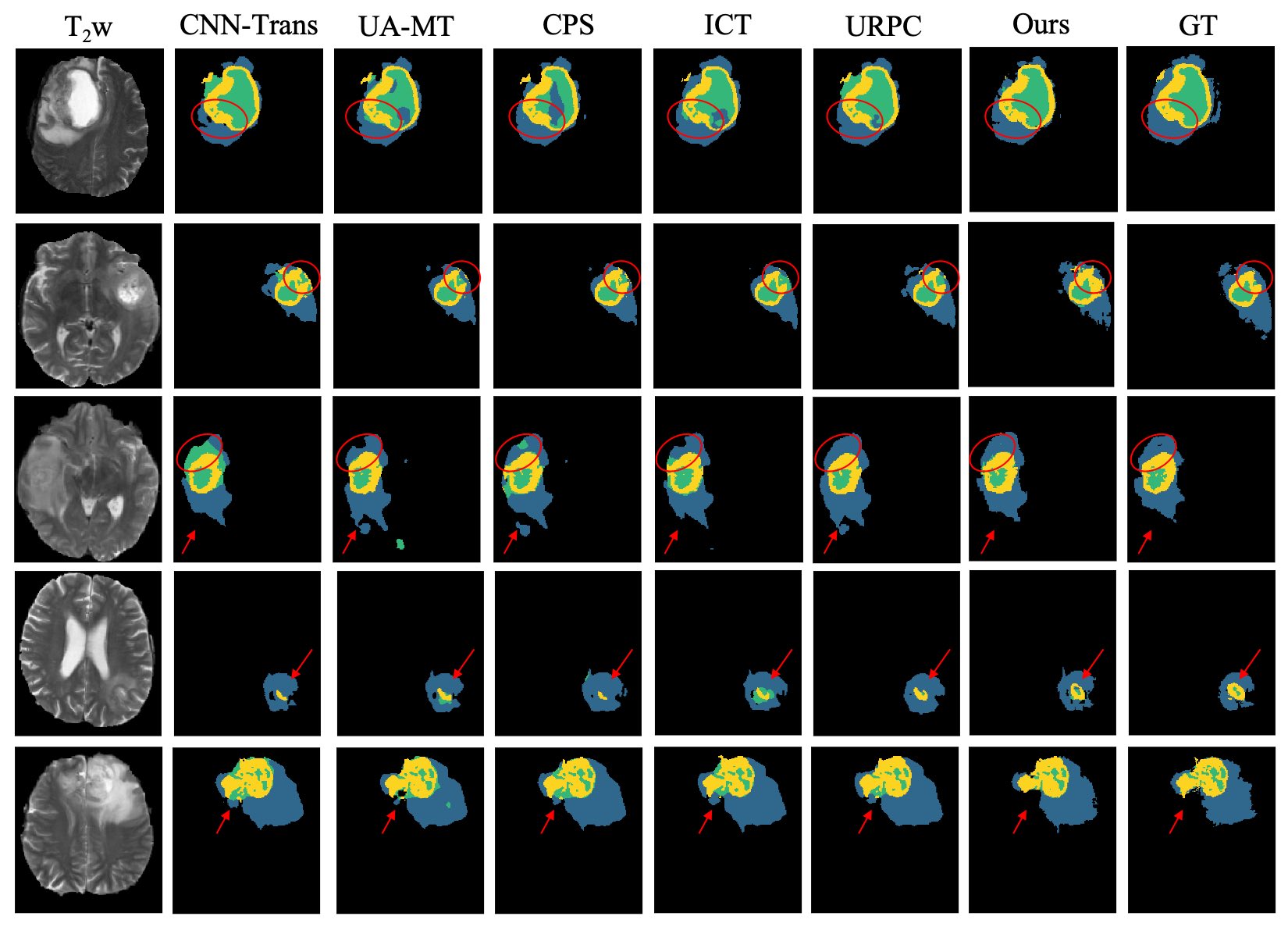

Table 1 displays quantitative comparison results of our method with other state-of-the-art semi-supervised segmentation algorithms. Through a comprehensive evaluation of the segmentation results in the regions of interest (WT, TC, and ET) with 1%, 10%, and 20% labeled training data, the following conclusions can be drawn: Firstly, under the same labeled training data conditions, all semi-supervised algorithms outperform the supervised baseline, highlighting the significant potential of the semi-supervised learning paradigm in fully harnessing the target features from unlabeled data. Secondly, our method achieves state-of-the-art results on almost all metrics, particularly when 20% of the training data is labeled. In this scenario, our method achieves a DSC of 81.14% for the TC and 81.09% for the ET, which is nearly on par with the fully supervised baseline method with 100% labeling. Figure 3 shows visualizations of the tumor segmentation results from the compared algorithms. By comparing them with the ground truth (GT), it becomes evident that our method provides more accurate segmentation of different tumor boundaries.

Discussion and conclusion

We have proposed an advanced semi-supervised medical image segmentation method, where the dual-confidence assessment results from the branch networks are further utilized for pixel-level multi-class feature contrastive learning. This training strategy effectively enhances the accuracy of medical image diagnostics under data class imbalance conditions. This model requires only a small amount of labeled data to obtain accurate lesion segmentation contours, making it highly promising for clinical-assisted diagnosis. Future work will involve further optimization and evaluation of the model on locally collected hospital data.
