Introduction

The combination of bright-blood (BR) and black-blood (BL) late gadolinium enhancement (LGE) techniques has demonstrated its efficacy in outlining myocardial scars in cardiac magnetic resonance imaging studies ¹. Despite its success, accurately discriminating between scar and fat tissue in these images can be challenging, especially in patients with intramyocardial fat near the scar ². On the other hand, the two-point Dixon method has been employed to create precise water- and fat-only images ^3,4.
In this proof-of-concept study, our primary aim is to assess the potential of incorporating a novel joint BR- and BL-LGE sequence with a two-point Dixon method to achieve a more distinct differentiation between myocardial scar tissue and fat.

Methods

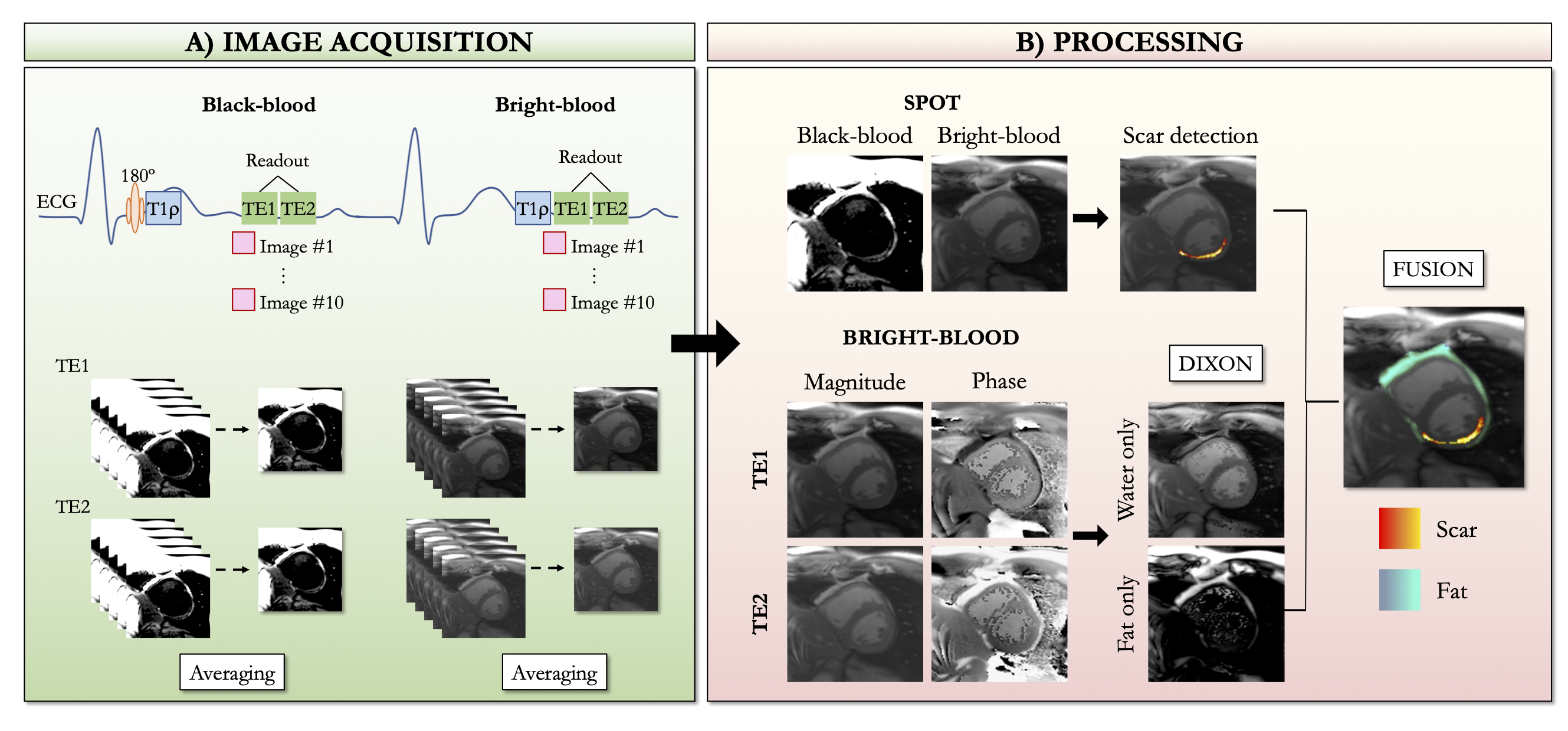

Acquisition: 13 patients (three women; mean age, 59±11.2 [SD] years; age range: 40−74 years) with suspected cardiovascular diseases were recruited for this study. The SPOT sequence was used, which simultaneously acquires both BR images, for anatomy visualization, and BL images, for scar visualization, by integrating inversion recovery with T1-rho pulses (Figure 1) ¹. In order to apply a two-point Dixon method, whole-heart co-registered BR and BL SPOT images were obtained for each patient at two different echo times. Short-axis 2D whole-heart BR PSIR images were also acquired as reference ⁵.
Imaging parameters: All images were collected on a 1.5T Siemens Aera system during a breath-hold. The imaging parameters were: four signal averages, 1.4mm x 1.4mm in-plane resolution, 8mm slice thickness, spin-lock frequency/duration=500Hz/27ms, FA=60°, GRAPPA x2, ~160ms acquisition window, TE1/TE2/TR=1.27/3.25/5.11ms, bandwidth=870Hz/pixel. A prior scout acquisition was used to determine the inversion time needed to null the myocardium signal (PSIR) and both the myocardial and the blood signals (SPOT).
Processing: A two-point Dixon method was implemented using the BR SPOT images in MATLAB (version R2023a, The MathWorks, Natick, Massachusetts, USA) (Figure 1). The B0-NICEbd algorithm was selected for fat-water separation due to its ability to generate reliable B0 and fat-water maps while effectively mitigating phase errors introduced during acquisition ⁶. This algorithm is based on the multi-point Dixon technique that incorporates magnitude information in B0 off-resonance mapping to perform a non-iterative correction of phase errors, known as B0-NICE ⁷. In addition to this, B0-NICEbd accommodates bipolar dual-echo acquisitions, with the goal of enhancing the robustness of fat-suppression in cardiac magnetic resonance imaging. Adjustments were made to the threshold selection for each patient, particularly because water-only pixels can exhibit notably high signal levels following the administration of contrast, causing the fat identification to fail. Once the images were acquired, fat and scar signals were superimposed with color layers onto the BR SPOT image to facilitate the most effective evaluation of fat content and the detection and localization of myocardial scar.
Image analysis: To determine relative contrasts between the myocardium, fat, scar, and the blood pool for each patient, we computed the difference in signal intensity (S1 - S2) between two of these tissues and divided it by S2. In the patient images, circular regions-of-interest with an area of 15.8 mm² were used to analyze all the tissues.

Results

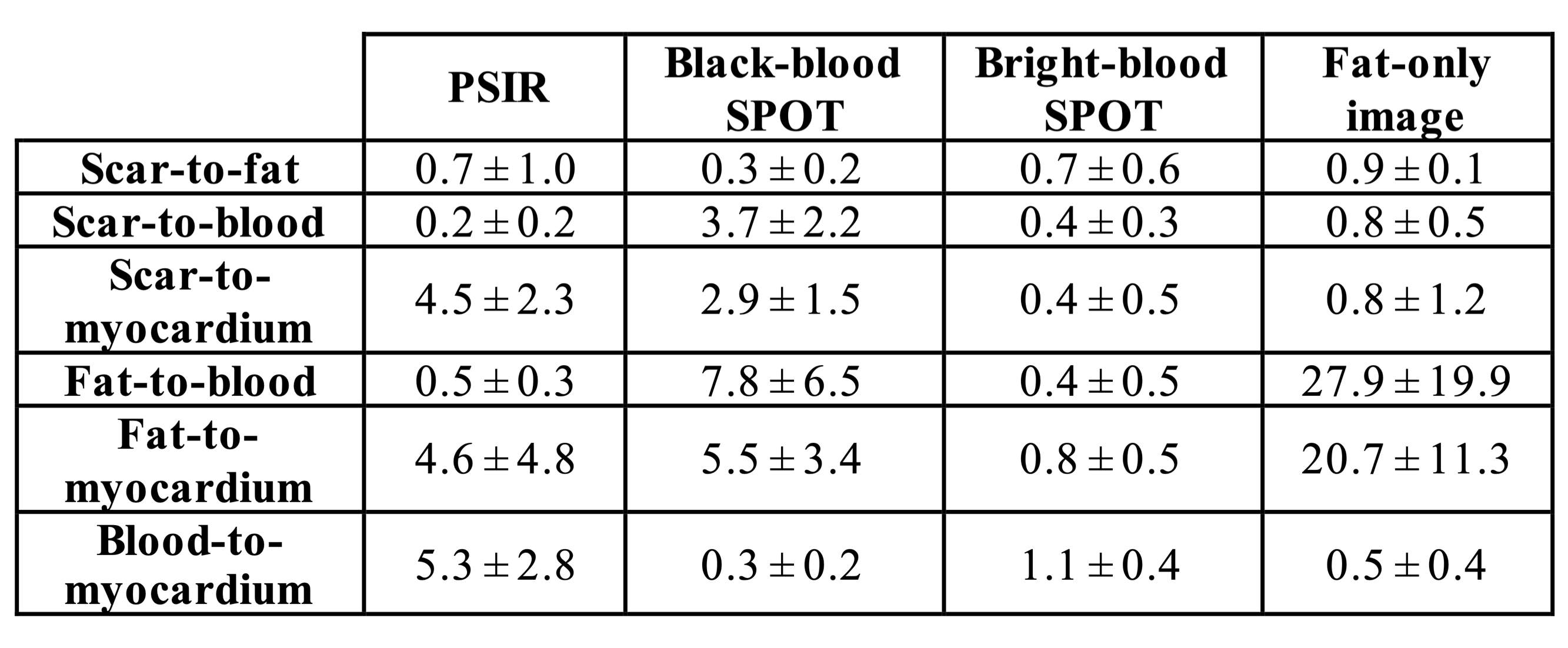

Our results showed that the mean scar-to-myocardium relative contrast was substantially higher in the BL SPOT images in comparison to the fat-only images (2.9±1.5 [SD] vs. 0.8±1.2). This emphasized the enhanced visibility of scars in the former images, while they were largely attenuated or entirely eliminated in the latter (Table 1). However, the BL images also presented considerable high contrasts between both fat tissue and the blood pool, and fat tissue and healthy myocardium, showcasing the potential challenge of distinguishing between them.

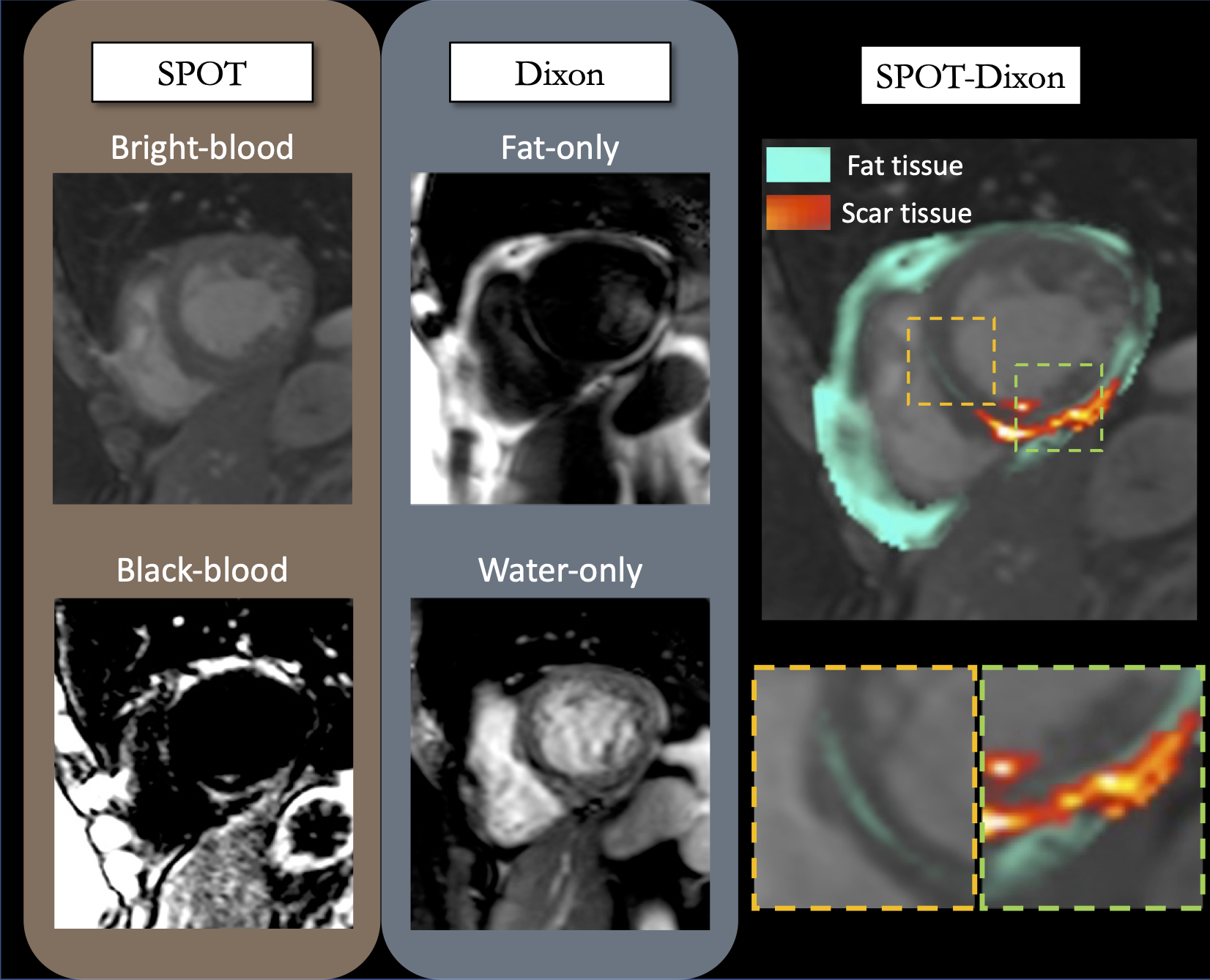

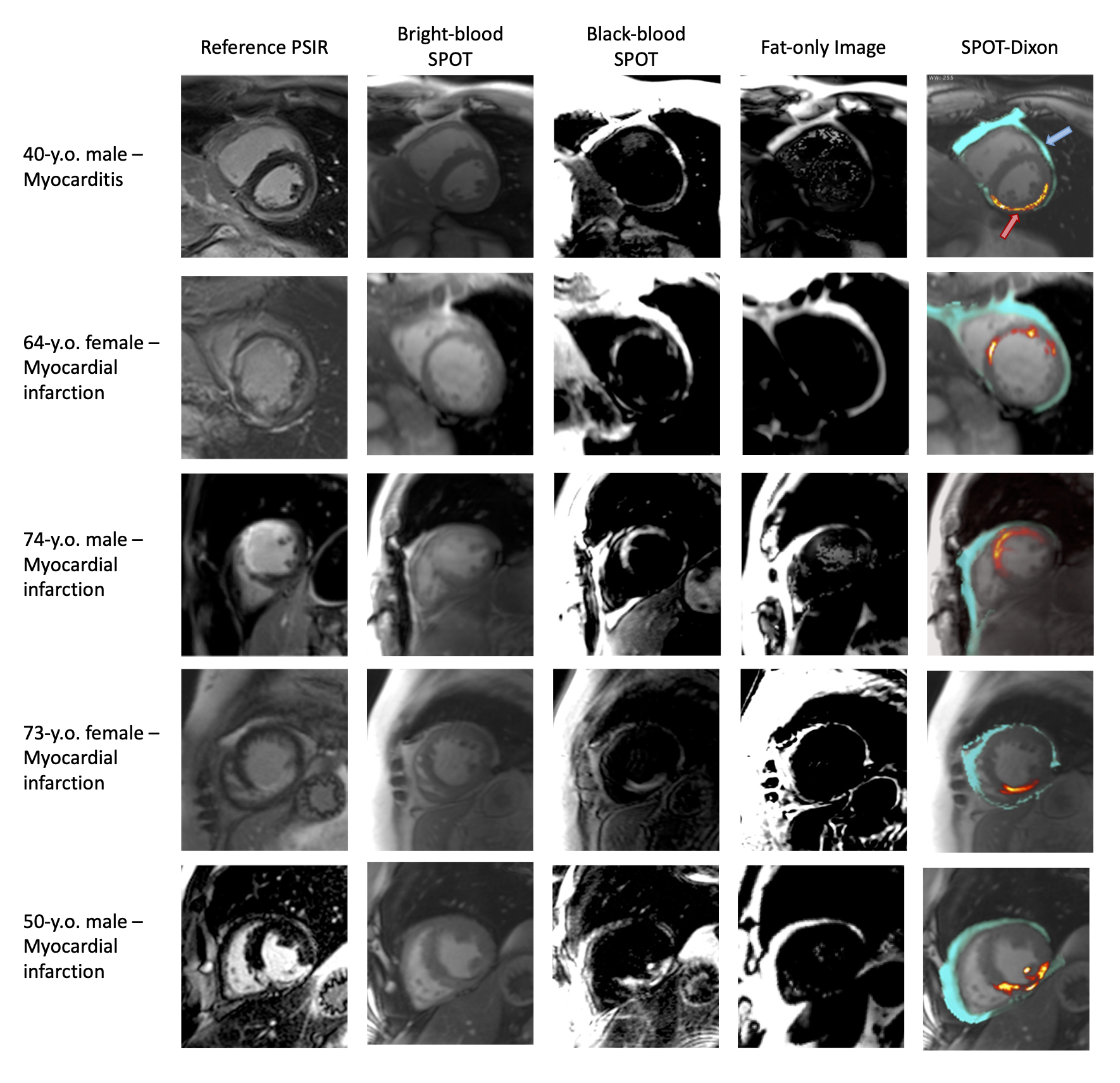

The two-point Dixon method effectively achieved consistent water-fat separation within our patient cohort. This separation persisted across all patients, resulting in the suppression of blood, healthy myocardium, and scar tissue in the fat-only images. In combination with the SPOT sequence, this approach was able to enhance the visualization of myocardial scars by facilitating the differentiation between fat and scar tissue, as exemplified in Figure 2. Significantly, the SPOT-Dixon sequence successfully revealed myocardial fat in the septum of a patient diagnosed with left ventricular arrhythmogenic cardiomyopathy, where fibrofatty replacement was reported (Figure 3).

Conclusion

This proof-of-concept study aimed to demonstrate the capability of the SPOT sequence in conjunction with a two-point Dixon method to consistently outline myocardial scar tissue and distinguish it from adjacent fat tissue - thereby removing ambiguity. The results obtained emphasize the utility of the SPOT-Dixon sequence in highlighting myocardial scars while maintaining clear distinctions between fat, healthy myocardium, and blood, which could potentially provide a valuable diagnostic advantage.
