Tuned Exchange Imaging (TEXI) – A modified Filter-Exchange Imaging pulse sequence for applications with thin slices and restricted diffusion1Department of Diagnostic Radiology, Lund University, Lund, Sweden, 2Danish Research Centre for Magnetic Resonance, Centre for Functional and Diagnostic Imaging and Research, Copenhagen University Hospital - Amager and Hvidovre, Copenhagen, Denmark, 3Department of Medical Radiation Physics, Lund University, Lund, Sweden, 4MR Section, DTU Health Tech, Technical University of Denmark, Lyngby, Denmark, 5Department of Radiology, Brigham and Women's Hospital, Harvard Medical School, Boston, MA, United States, 6Department of Clinical Sciences Lund, Radiology, Lund University, Lund, Sweden
Synopsis
Keywords: Diffusion Acquisition, Diffusion/other diffusion imaging techniques, exchange, restricted diffusion
Motivation: Thin slices in filter-exchange imaging lead to biased exchange rates, as thin slices require strong crushers. No current approach accounts for crushers in the presence of restricted diffusion.
Goal(s): We set to address the bias in FEXI due to the influence of strong crushers and restricted diffusion.
Approach: Tuned exchange imaging (TEXI) relies on gauging exchange and restriction weighting. We modify FEXI to ensure constant restriction weighting also with strong crushers. The accuracy of exchange mapping was evaluated using Monte Carlo simulations.
Results: TEXI yields consistent exchange rates independent of slice thickness and restriction size even if strong crushers are used.
Impact: TEXI could be useful to maximize exchange sensitivity and specificity with thin slices and in the presence of restricted diffusion.
INTRODUCTION
Filter exchange imaging (FEXI) is a double diffusion encoding (DDE) sequence sensitive to exchange between sites with different apparent diffusivities1-2 increasingly used in research3-11. In FEXI, the filter diffusion encoding block is followed by the detection block at varying mixing times to map the apparent exchange rate (AXR). Using long mixing times enhances the sensitivity to exchange4,12-14, but requires a stimulated echo sequence with crusher gradients. The amplitudes of crushers are inversely proportional to the slice thickness, which for thinner slices leads to significant diffusion weighting and biased exchange rate estimates13,10,11.For Gaussian diffusion, the crusher-induced bias can be corrected13,10,11, but this approach likely fails in the presence of time-dependent diffusion15-17, as the diffusion-time of the crusher-related diffusion encoding increases with the mixing time. The confounding effects of restricted diffusion in FEXI have been discussed18,6,19 but they have not yet been resolved. The effects of crushers in the presence of restricted-diffusion need to be considered particularly when long mixing times are used in DDE20-22.
This work addresses the bias in FEXI due to the influence of strong crushers and restricted diffusion. We introduce a modified FEXI protocol, based on two principles: (1) the effects of the crushers are included in the forward exchange model based on Ning’s cumulant expansion approximation12,14 and (2) the timing parameters of diffusion encoding gradients in the filter and encoding blocks are adjusted to retain the same level of restriction encoding independent of the mixing times, resulting in the tuned exchange imaging (TEXI) protocol.
METHODS
Sensitivity to exchange for arbitrary gradient waveforms can be analyzed based on Ning’s cumulant expansion12, where the first and second cumulants are due to mean diffusivity $$$⟨D⟩$$$ and diffusion variance $$$V_D=⟨D^2 ⟩-⟨D⟩^2$$$. Signal attenuation is given by$$\ln(S⁄S_0 )≈-b⟨D⟩+\frac{b^2}{2} h(k) \cdot V_D,$$ where $$$k$$$ is the exchange rate constant and $$$h(k)$$$ is the exchange-weighting function depending on the dephasing waveform $$$q(t)$$$.
Sensitivity to restricted diffusion for arbitrary gradient waveforms can be analyzed in the frequency domain23-25. Using the Gaussian phase approximation and the low-frequency approximation for the diffusion spectrum $$$D(\omega)$$$ yields signal as
$$ \ln(S⁄S_0) ≈ -b⋅V_\omega⋅G_R,$$
where $$$G_R$$$ is the geometry factor related to restriction size26, $$$b$$$ is diffusion weighting and $$$V_\omega$$$ is the spectral variance,
$$V_\omega = \frac{\gamma^2}{b} \int_0^T g^2 (t) dt.$$

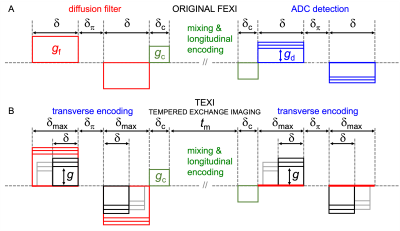

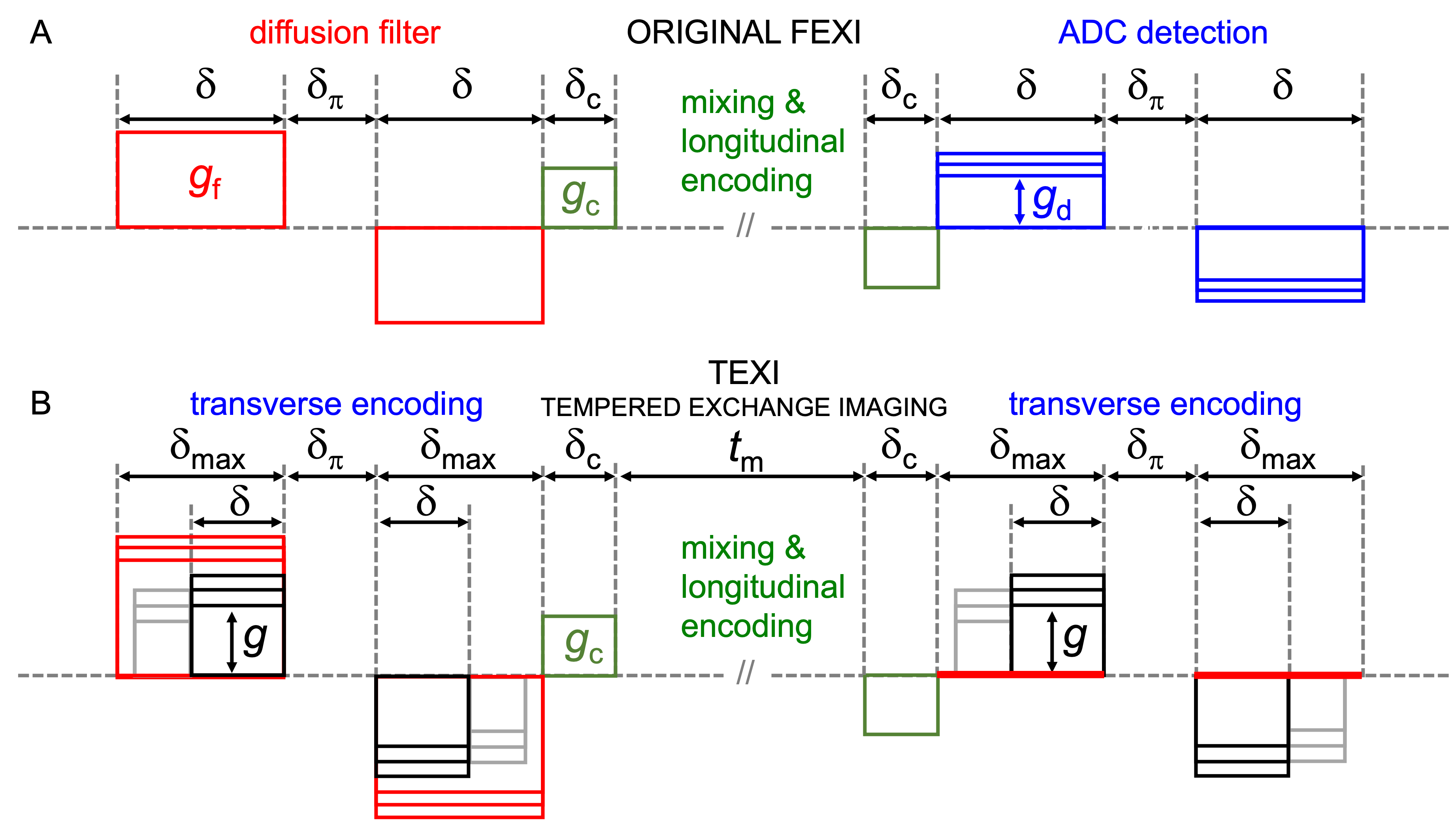

Tuned exchange imaging (TEXI) sequence design considers the triple diffusion encoding (TDE) in Figure 1B. The total b-value and restriction weighting are given by the contributions from the transverse and longitudinal encoding blocks as
$$b=b_T+b_L=\overbrace{q^2\delta'}^\text{tranverse enc.} +\overbrace{q_c^2 t'_m}^\text{longitudinal enc.}$$
and
$$b V_\omega=b_T V_T+b_L V_L=\overbrace{4\frac{q^2}{\delta}}^\text{tranverse enc.} +\overbrace{2\frac{q_c^2}{\delta_c}}^\text{longitudinal enc.}$$
where $$$t'_m=t_m+2\delta_c/3$$$ and $$$\delta'=\delta+(3\delta_\pi)/2.$$$ To maintain a constant restriction weighting, we need to reduce the transverse b-value as the longitudinal b-value increases with $$$t_m$$$, and we need to keep the ratio $$$\frac{q^2}{\delta}$$$constant as we do so.
Monte-Carlo (MC) simulations14 with resolution of 0.2 µs, D0 = 2x10-9 m2/s and 5x106 particles were performed in substrates of equally sized and hexagonally packed spheres and cylinders (50/50 packing, diameters 1-11 µm) with the true exchange rates 0-20 s-1.
RESULTS & DISCUSSION

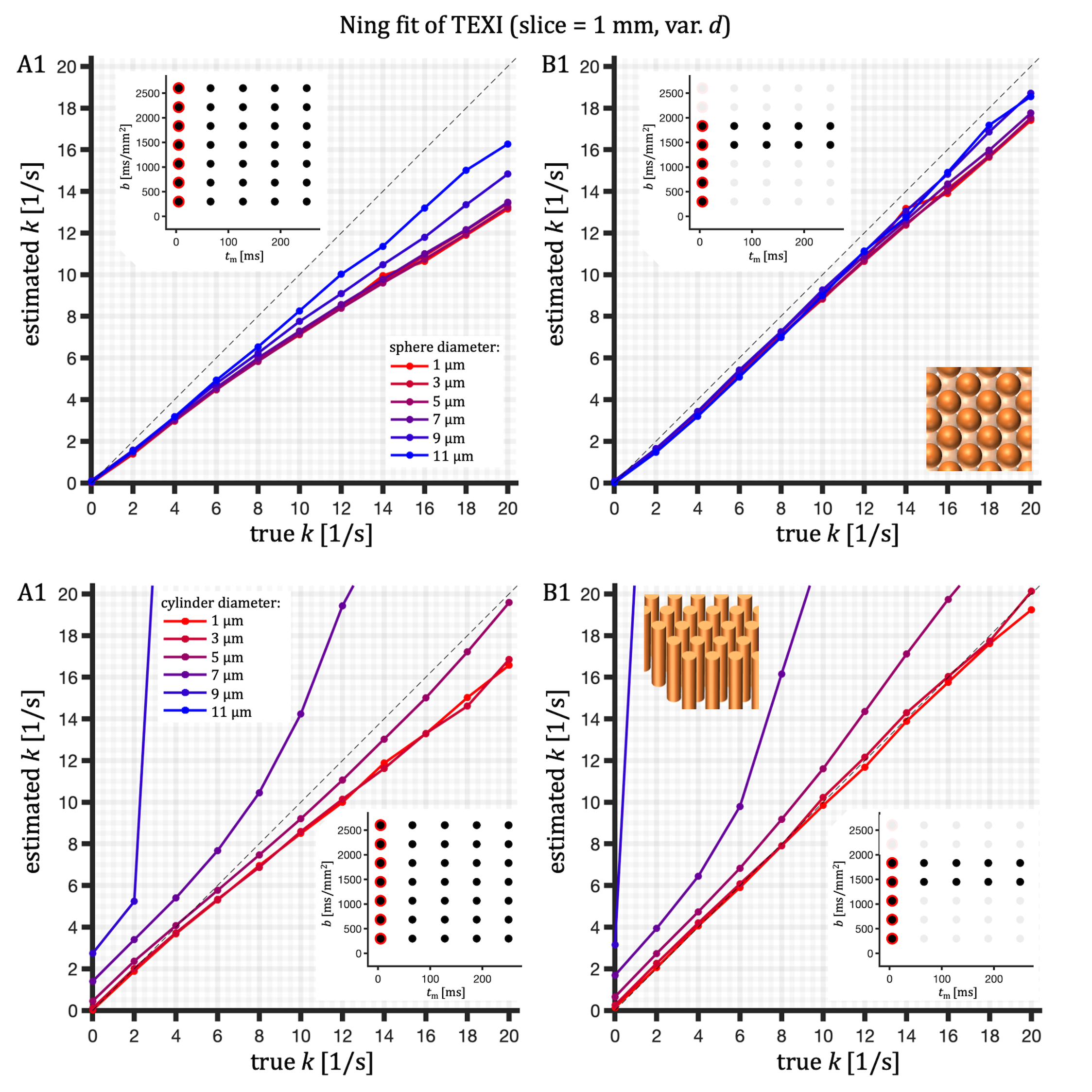

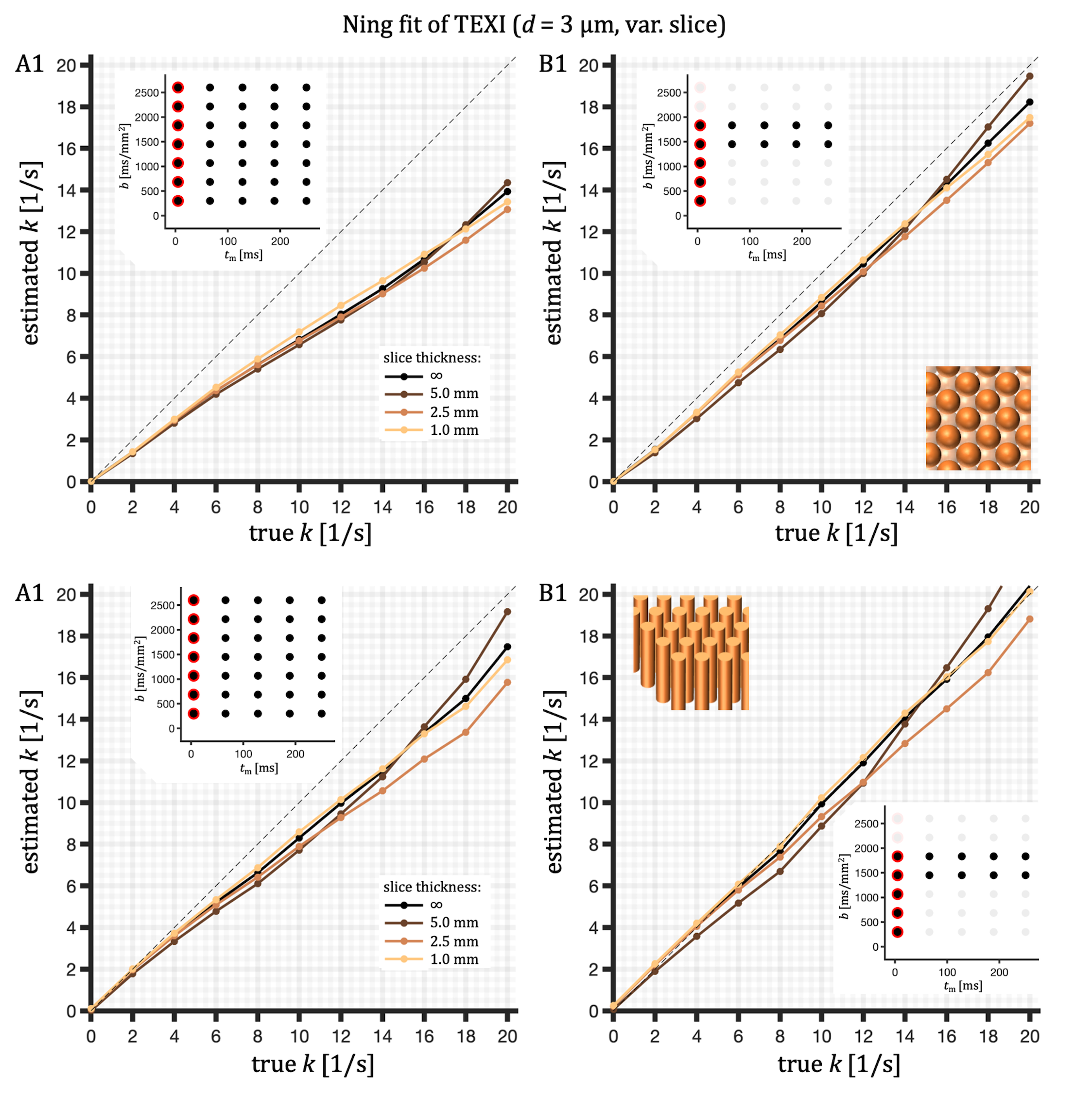

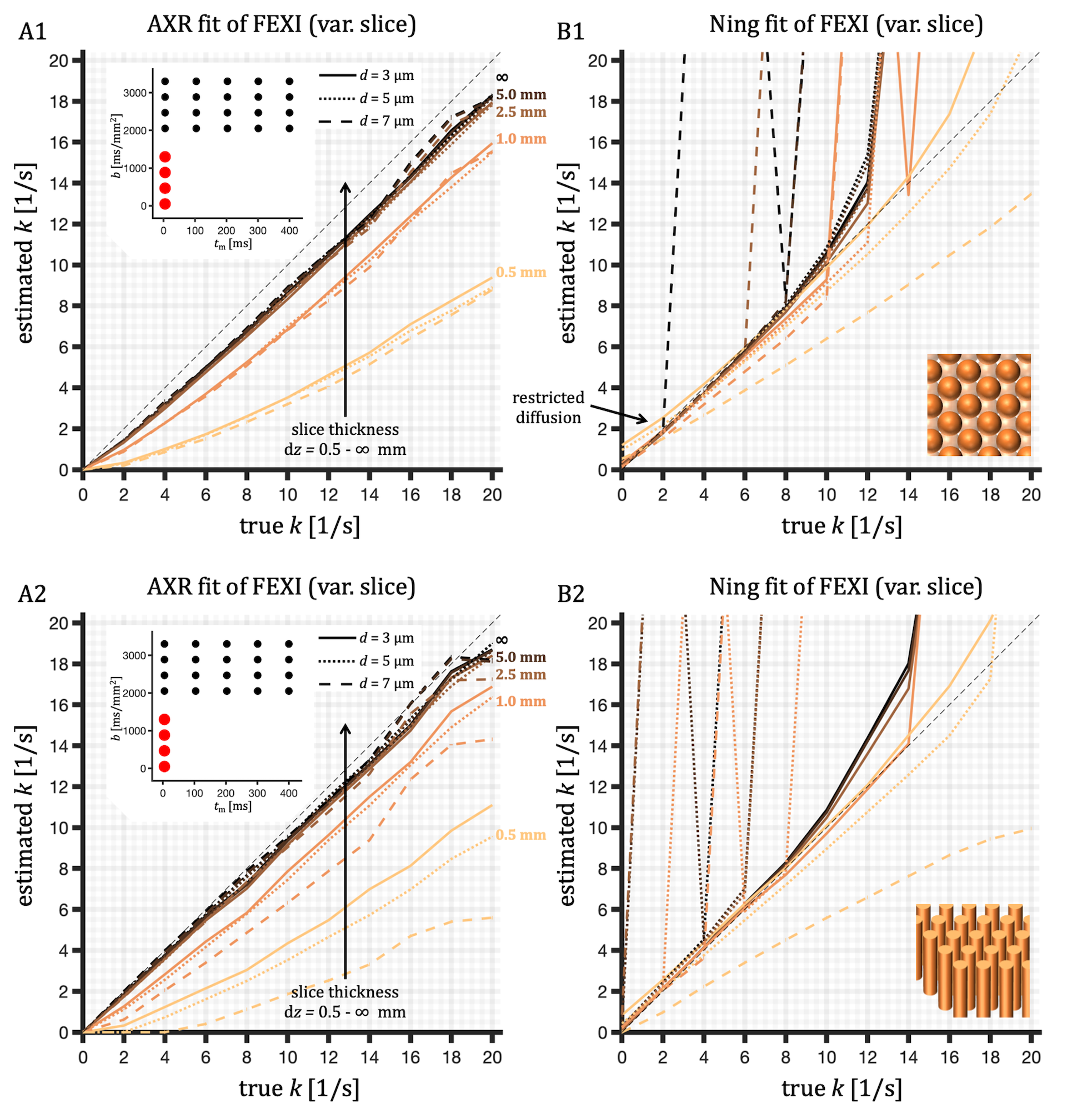

The Ning model could mitigate some of the crusher-induced bias in the original AXR fit of FEXI, but the exchange rate estimation was unreliable for faster exchange rates and larger sizes (Figure 2). Application of the Ning model in combination with the new TEXI protocol addresses both sources of bias. TEXI yields consistent exchange rates independent of slice thickness (Figure 3) and restriction size (Figure 4) even if strong crushers are used. The results for cylinders showed similar trends as for spheres, but with further reduced accuracy for larger diameters. In contrast to spheres, the dependence on diameter is stronger in the case of cylinders, where overestimated exchange rates were observed for larger diameters (Figure 4).TEXI relies on two approximations: the Ning exchange model12,14 and the spectral variance $$$V_\omega$$$26. This work addressed only accuracy and used simple MC simulations. Accuracy may be affected in more realistic substrates with hindered time-dependent diffusion15-17. Precision considerations need to be included in future investigations. As an alternative for mapping exchange with high imaging resolution and thin slices, super-resolution techniques may be considered27,28.
CONCLUSIONS
TEXI can address the bias in FEXI due to strong crushers and restricted diffusion. While the exchange rate is estimated based on the Ning model, the transverse encoding blocks are adjusted to retain constant restriction encoding independent of the mixing time, yielding consistent exchange rates independent of slice thickness and restriction size. TEXI could be useful for mapping exchange in combination with thin imaging slices and in the presence of restricted diffusion.Acknowledgements
This research was funded by: VR (Swedish Research Council) (grant number 2020–04549), NIH (National Institutes of Health) (grant numbers R01NS125781, R01MH074794 and P41EB015902) and
ERC (European
Research Council) under the European Union’s Horizon 2020 research and innovation programme
(grant number 804746).
