Biphasic training for awake imaging using a dual-imaging system reveals neurovascular uncoupling and anesthesia effects in healthy mice

Francesca Mandino¹, Xilin Shen¹, Gabriel Desrosiers-Gregoire², David O'Connor¹, Bandhan Mukherjee¹, Yonghyun Ha¹, An Qu¹, John Onofrey¹, Xenophon Papademetris¹, Mallar Chakravarty², Stephen M Strittmatter¹, and Evelyn Lake¹
¹Radiology and Biomedical Imaging, Yale University, New Haven, CT, United States, ²McGill, Montreal, QC, Canada

Synopsis

Keywords: Small Animals, Brain Connectivity, awake rodent imaging

Motivation: Most of rodent-fMRI is acquired under anesthesia, to minimize motion and stress. However, anesthesia hinders mouse-to-human translatability, since most of human fMRI is conducted whilst awake.

Goal(s): Here we aim to develop a biphasic protocol for conducting awake rodent-fMRI in mice and simultaneously recording mesoscopic calcium imaging data.

Approach: The animals undergo a first training and a refresher a few weeks later. Brain function is analyzed in simultaneous fMRI and mesoscopic calcium imaging measurements.

Results: Having a refresher training improves motion in the scanner. The two measures of brain function show interesting patterns over time, with partial agreement and some clear disagreement.

Impact: Rodent-fMRI is typically done under anesthesia to minimize stress and motion. This limits mouse-human translatability (since humans are usually scanned awake). Here, we develop a biphasic approach to train mice to awake imaging, using simultaneous fMRI and Calcium imaging measures.

Introduction

Awake imaging is gaining prominence in rodent fMRI, as it eliminates the confounding effects of anesthesia and improves the translatability of findings from mice to humans^1-4. While fields like optical imaging routinely study awake mice, rodent fMRI is still mostly conducted on anesthetized mice, to minimize motion and stress. Here, we create a biphasic training approach to acclimate mice to awake imaging and demonstrate its feasibility using our multimodal dual-imaging system ^5-7 (Fig. 1) with simultaneously acquired wide-field Ca²⁺ (WF-Ca²⁺) and fMRI data. We present a longitudinal design with four imaging sessions: the first two conducted under isoflurane anesthesia and the latter two involving training for awake imaging. Functional connectivity (FC) analyses are performed in both modalities and brain states, to explore neurovascular coupling.

Methods

Firstly, N=11 P₀ pups undergo transverse sinus injections to encode a GCaMP6s Ca²⁺ indicator, primarily in excitatory neurons (Fig. 1a,left). At 3 months (M), an optic implant is attached after skull-thinning (Fig. 1a,right). Animals undergo two imaging sessions under isoflurane anesthesia (~0.5%) at 4 and 6M (Fig. 2). Before the 9M timepoint, N=5 mice undergo 14-days of training for awake imaging, where each source of stress (handling, head restrain, LEDs, MRI noise) is gradually introduced. After training, mice are scanned for two consecutive days (Awake1). At 12M, the previously trained mice undergo a refresher training for 2 days where all stressors are provided at max intensity. After the refresher, animals undergo 3 days of imaging (Awake2). Controls are imaged under anesthesia at the same time points. FMRI data are acquired on an 11.7T Bruker scanner, using a gradient-echo, echo-planar-imaging sequence (TR=1.8s, TE=11ms, 0.31mm³ isotropic voxels, 25 slices, 334 volume) with 3 runs/session (indicated with orange dots in Fig. 2). RABIES software is used to preprocess the fMRI data, with frame-to-frame displacement scrubbing threshold at 0.075mm⁸. WF-Ca²⁺ data are acquired simultaneously (0.25x0.25μm²) at 10Hz^6,7. Data from both modalities are co-registered to a common template for the mouse cortex (Fig. 1d).

Results

Evidence for implant longevity with example data from fMRI and WF-Ca²⁺ is shown in Fig. 1b. A 60-ROI atlas is overlayed to extract functional connectomes. Average connectomes from the cortical areas are displayed for all time points/conditions/modalities (Fig. 2, orange/green, fMRI/WF-Ca²⁺). WF-Ca²⁺ shows minimal motion (frame-to-frame displacement, FD, over time/high->low, Fig. 3a left/right) in the left-right, anterior-posterior directions. Motion in fMRI data is displayed for all three axes: the superior-inferior direction accounts for the majority of motion across all timepoints (Fig. 3b). The amount of data discarded in the awake session is reduced from 26% (Awake1, in line with previous literature ^9-13) to 13% (Awake2), confirming the effectiveness of the refresher in minimizing motion (Fig. 3c). FC analyses in anesthetized animals are reported as t-stat maps for all edges in the 60-ROIs atlas, comparing each timepoint with the earliest one (4M) to assess aging effects. Significant t-values (p<0.05, corrected) are shown as half-matrices both without and with global signal regression (GSR) for both modalities (Fig. 4a,d, green/orange WF-Ca²⁺/fMRI). An aging effect is reported for both modalities peaking at 9M (Fig. 4a,d). Fig. 4b shows the main regions included in the atlas used. These patterns are confirmed at 12M for the GSR data (Fig. 4d, both modalities), but not entirely for no-GSR data (Fig. 4a) where WF-Ca²⁺ data show a different trajectory. To explore cross-modality agreement, four areas are selected (example shown for 4, 6, and 9M anesthetized data, no-GSR, Fig. 4c): retrosplenial, visual, auditory, and somatomotor. Some regions show consistent cross-modal agreement, whereas others show disagreement over time (e.g. auditory). Differences in FC in awake vs anesthetized states are shown for both modalities (Fig. 5a,b). Overall, awake fMRI data show a decrease in interhemispheric FC in fMRI, which is recapitulated for no-GSR WF-Ca²⁺ data at 9M (Fig 5a). The differences in FC between awake and anesthesia (in both modalities) are not as drastic at 12M, although they reveal a similar trajectory.

Discussion

We introduce a dual-training program to acclimatize awake mice to fMRI where the second refresher training significantly reduces motion. The combination of fMRI measures with WF-Ca²⁺ demonstrates that most MR-related motion comes from the superior-inferior direction. Both modalities show an aging effect, although they show some diverging trajectories at later time points, suggesting neurovascular uncoupling. The application of GSR seems to eliminate some important features in the signal. Both modalities show lower inter-hemispheric FC in awake mice vs anesthetized, suggesting that inter-hemispheric connectivity may be enhanced with anesthesia. Results confirm the importance of multi-modal approaches to understanding the complex interplay of neuroimaging signals measuring brain function.

Acknowledgements

The staff at Neurotechnology Core (Drs. Joel Greenwood, Paul Shambles and Omer Mano), Dr. Peter Brown from Yale School of Medicine, department of Radiology and biomedical imaging for their technological expertise. Yale Alzheimer’s Disease Research Center Scholar’s Award Funding.

References

1.Slupe AM, Kirsch JR. Effects of anesthesia on cerebral blood flow, metabolism, and neuroprotection. J Cereb Blood Flow Metab. 2018 Dec;38(12):2192-2208.

2.Rungta RL, Osmanski BF, Boido D, Tanter M, Charpak S. Light controls cerebral blood flow in naive animals. Nat Commun. 2017 Jan 31;8:14191.

3.Chen X, Tong C, Han Z, Zhang K, Bo B, Feng Y, Liang Z. Sensory evoked fMRI paradigms in awake mice. Neuroimage. 2020 Jan 1;204:116242.

4.Dinh TNA, Jung WB, Shim HJ, Kim SG. Characteristics of fMRI responses to visual stimulation in anesthetized vs. awake mice. Neuroimage. 2021 Feb 1;226:117542.

5.Lake EMR, Ge X, Shen X, Herman P, Hyder F, Cardin JA, Higley MJ, Scheinost D, Papademetris X, Crair MC, Constable RT. Simultaneous cortex-wide fluorescence Ca2+ imaging and whole-brain fMRI. Nat Methods. 2020 Dec;17(12):1262-1271.

6.O'Connor D, Mandino F, Shen X, Horien C, Ge X, Herman P, Hyder F, Crair M, Papademetris X, Lake EM, Constable RT. Functional network properties derived from wide-field calcium imaging differ with wakefulness and across cell type. NeuroImage. 2022 Dec 1;264:119735.

7.Vafaii, H., Mandino, F., Desrosiers-Gregoire, G., O'Connor, D., Shen, X., Ge, X., Herman, P., Hyder, F., Papademetris, X., Chakravarty, M. and Crair, M., 2023. Multimodal measures of spontaneous brain activity reveal both common and divergent patterns of cortical functional organization. Research square, pp.rs-3.

8.Hamodi AS, Martinez Sabino A, Fitzgerald ND, Moschou D, Crair MC. Transverse sinus injections drive robust whole-brain expression of transgenes. Elife. 2020 May 18;9:e53639.

9.Desrosiers-Gregoire G, Devenyi GA, Grandjean J, Chakravarty MM. Rodent Automated Bold Improvement of EPI Sequences (RABIES): A standardized image processing and data quality platform for rodent fMRI. bioRxiv. 2022:2022-08.

10.Harris AP, Lennen RJ, Marshall I, Jansen MA, Pernet CR, Brydges NM, Duguid IC, Holmes MC. Imaging learned fear circuitry in awake mice using fMRI. Eur J Neurosci. 2015 Sep;42(5):2125-34.

11.Madularu D, Mathieu AP, Kumaragamage C, Reynolds LM, Near J, Flores C, Rajah MN. A non-invasive restraining system for awake mouse imaging. J Neurosci Methods. 2017 Aug 1;287:53-57.

12.Han Z, Chen W, Chen X, Zhang K, Tong C, Zhang X, Li CT, Liang Z. Awake and behaving mouse fMRI during Go/No-Go task. Neuroimage. 2019 Mar;188:733-742.

13.Desjardins M, Kılıç K, Thunemann M, Mateo C, Holland D, Ferri CGL, Cremonesi JA, Li B, Cheng Q, Weldy KL, Saisan PA, Kleinfeld D, Komiyama T, Liu TT, Bussell R, Wong EC, Scadeng M, Dunn AK, Boas DA, Sakadžić S, Mandeville JB, Buxton RB, Dale AM, Devor A. Awake Mouse Imaging: From Two-Photon Microscopy to Blood Oxygen Level-Dependent Functional Magnetic Resonance Imaging. Biol Psychiatry Cogn Neurosci Neuroimaging. 2019 Jun;4(6):533-542.

Figures

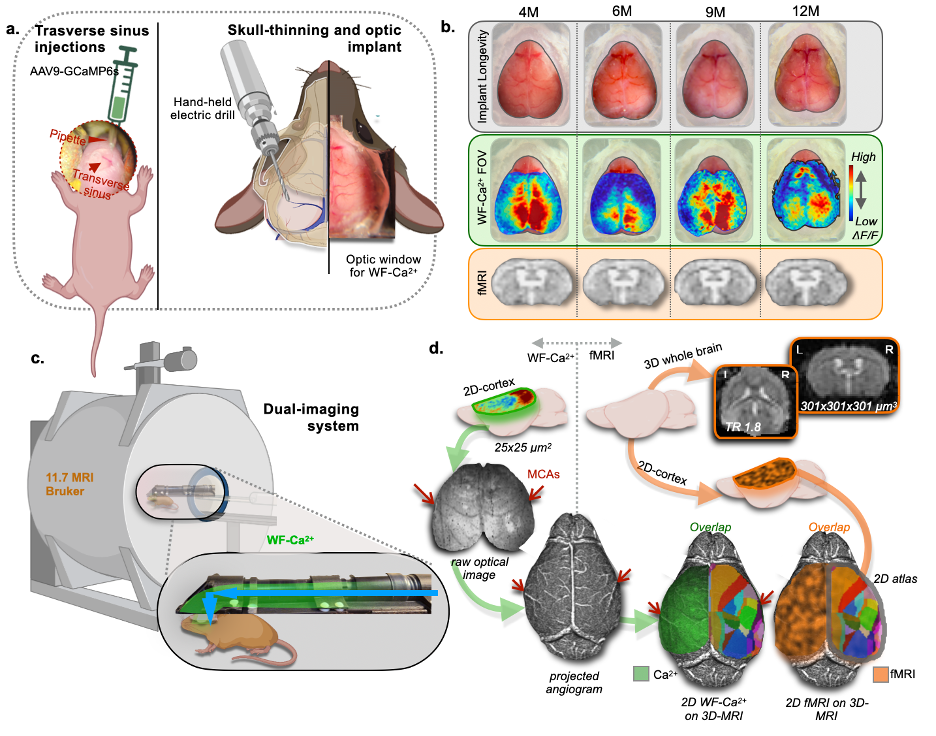

Fig. 1. Experimental design. a. Transverse sinus injections in P₀ pups allow fluorophore expression (left); at 3M, a glass implant is attached following skull-thinning (right). The implant minimizes motion during imaging and provides access to the cortical surface. b. The longevity of the implants is shown, with examples of data from each modality. c. Dual-imaging system, wide-field Ca²⁺ (WF-Ca²⁺) located inside the MRI scanner for simultaneous imaging. d. Combination of linear and non-linear transformations to bring both data types onto the same 2D-cortical template. M=months.

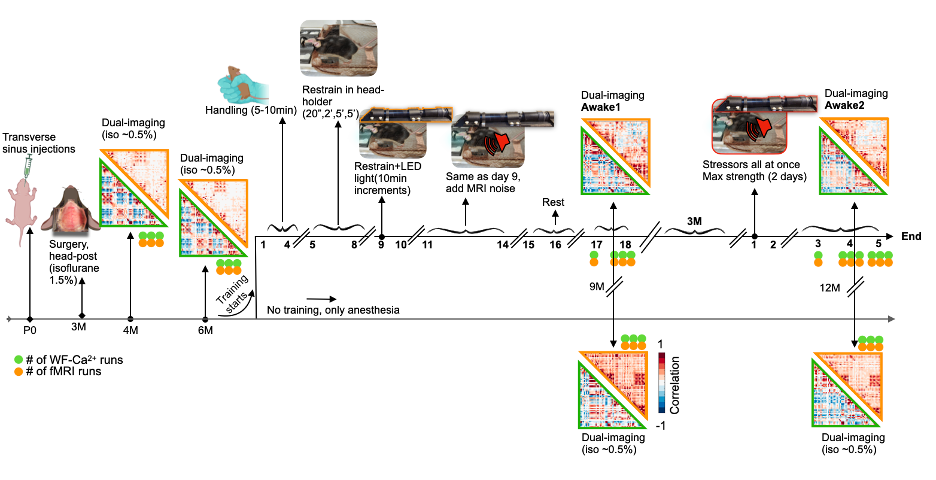

Fig. 2. Timeline. After 2 surgical procedures, all mice undergo 2 imaging sessions (4M and 6M) with isoflurane (~0.5%). At 9M, half the animals undergo the first awake training, which includes the progressive introduction of stressors (handling, restrain, LEDs, MRI noise). After training, mice undergo two imaging days, orange/green dots indicate the number of fMRI/WF-Ca²⁺ scans/day. At 12M mice undergo a refresher training where all stressors are provided at max levels for two days, prior to 3 days of imaging. Functional connectomes are shown, orange for fMRI and green for WF-Ca²⁺.

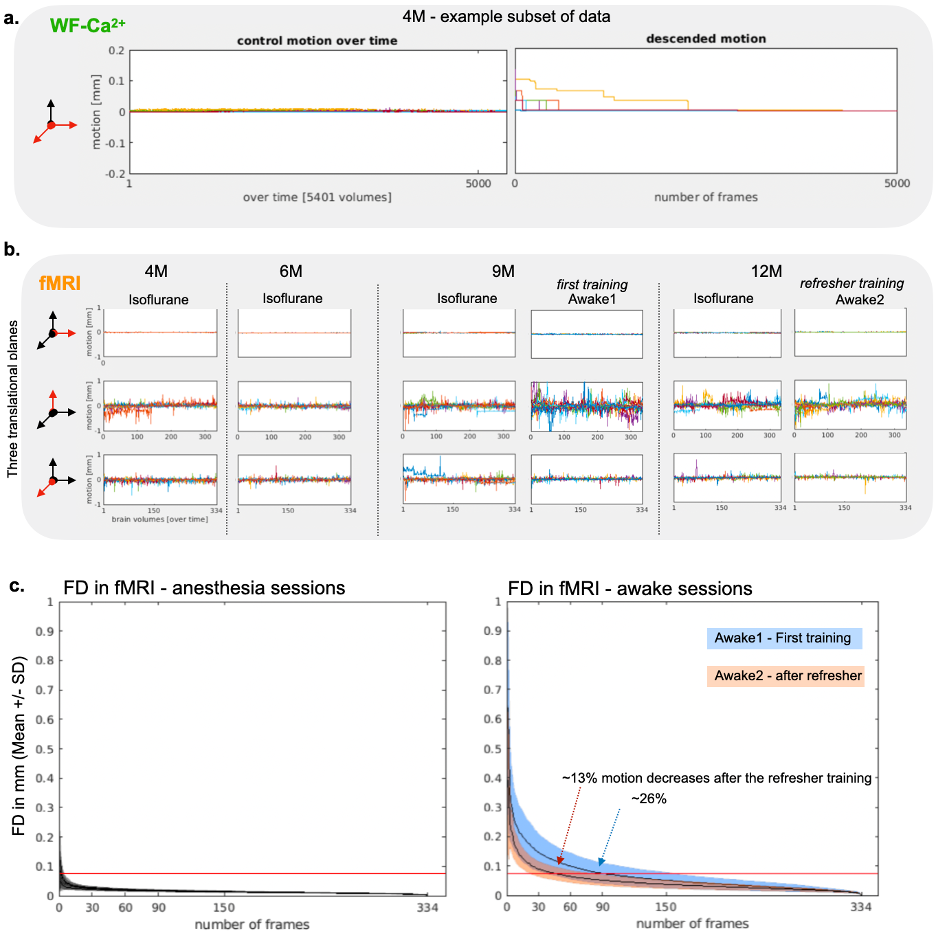

Fig. 3. Motion results. a. WF-Ca²⁺ (left-right and anterior-posterior directions) shows minimal motion. b. Motion (translation) for the three axes in fMRI data, across time points. Marked reduction in motion in Awake2 compared to Awake1. Motion mostly affects the superior-inferior axis (middle row). c. FD sorted high->low shown as mean+/- SD for all anesthesia (left) and all awake (right) sessions. Red line as threshold for censoring (75um). Orange shading for Awake2 session shows improvement in motion (~13% censored data vs 26% from Awake1). FD=frame-to-frame displacement.

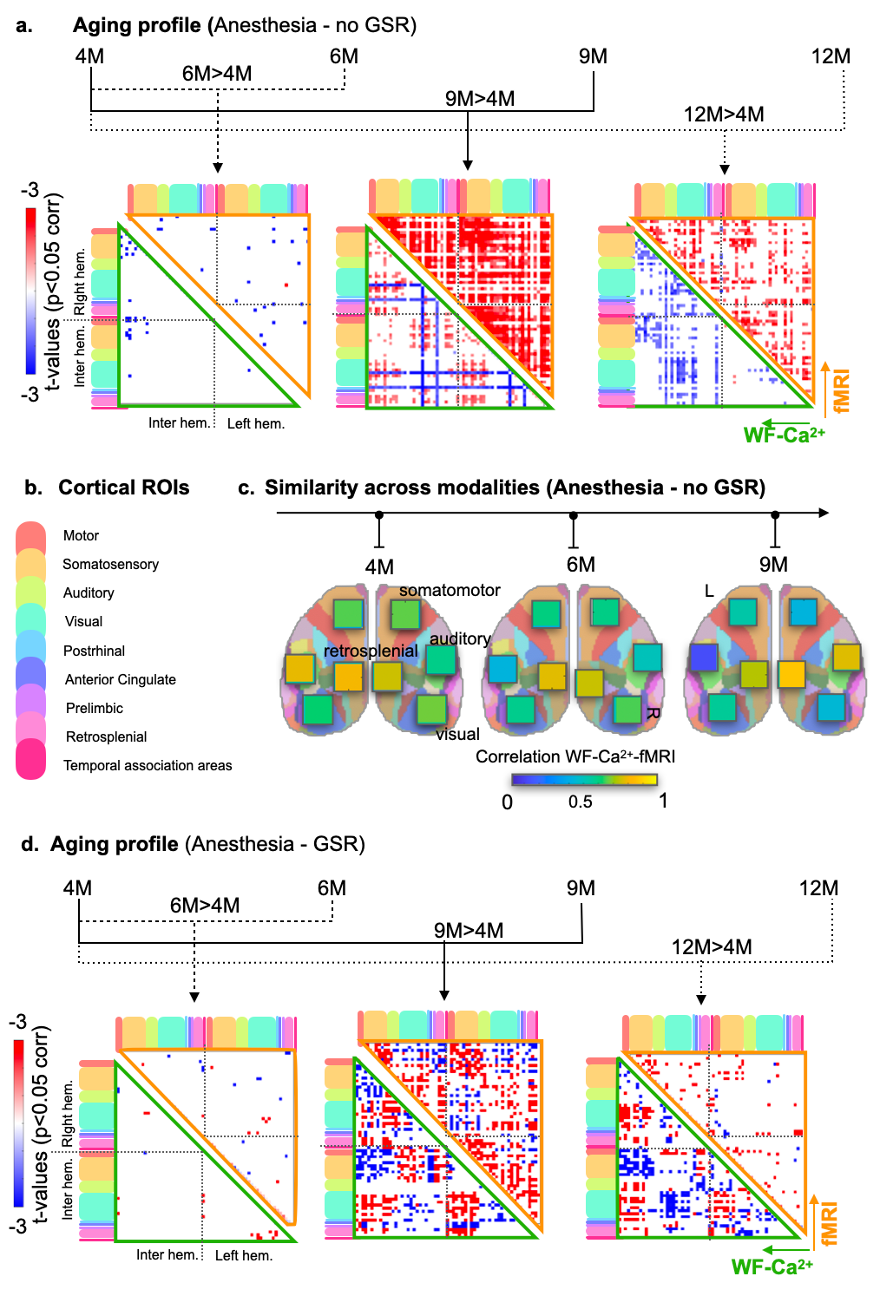

Fig. 4. FC analyses. Aging trajectory in anesthetized mice for each time point compared to the youngest (4M). Results are displayed for significant t-values, corrected (green/orange, WF-Ca²⁺/fMRI), without/with GSR (a,d). Both modes show an aging effect. fMRI data show consistent FC patterns at both 9 and 12M, whereas WF-Ca²⁺ shows a decrease in FC at 12M. b. Representation of the main regions of the atlas. c. Four main regions are selected and the correlation between fMRI and WF-Ca²⁺ is shown. Most of the regions show a high correlation between modalities, especially at 4 and 6M of age.

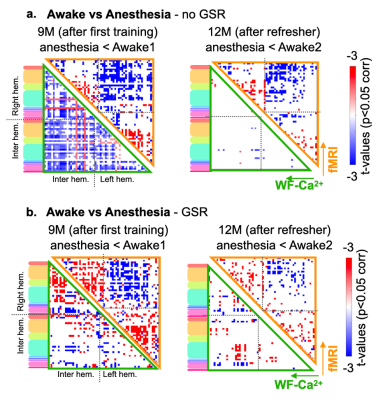

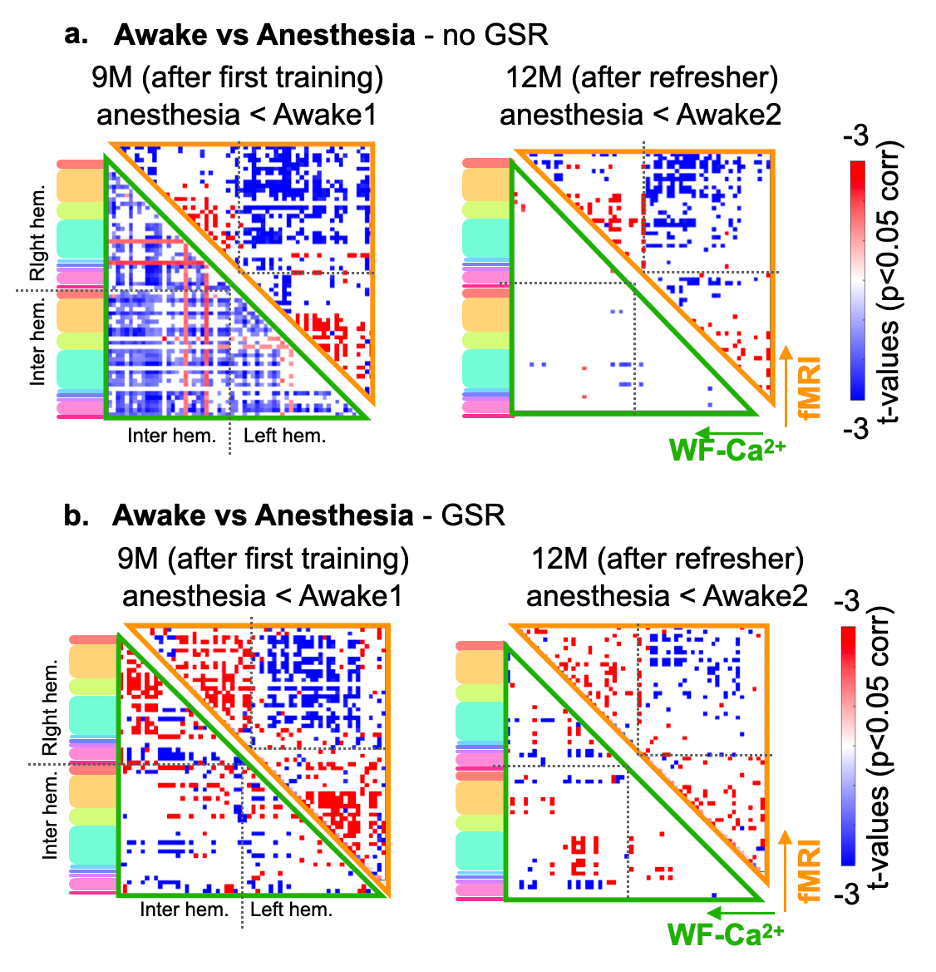

Fig. 5. Awake vs anesthesia. FC changes in awake vs anesthetized mice, for both modalities at 9 (left) and 12M (right), without/with GSR (a,b). T-stat maps shown for awake>anesthesia, at each time point (WF-Ca²⁺/fMRI, green/orange). FMRI data shows lower interhemispheric FC during the awake state, WF-Ca²⁺ shows a global decrease in FC in the awake state with no-GSR, and both increase and decrease with GSR applied.
