Introduction

A standard CMR examination integrates a variety of distinct pulse sequences (1). However, the acquisition of multiple sequences inevitably prolongs the scanning duration, which can be particularly challenging for patients who suffer from claustrophobia. Moreover, certain sequences, especially the Late Gadolinium Enhancement (LGE) sequence, require intravenous contrast agents, limiting their applicability to individuals allergic to these agents (2; 3). Given these challenges, the emerging field of multi-sequence CMR synthesis holds significant promise. However, achieving accurate CMR images synthesis remains an intricate endeavor. This complexity arises primarily from challenges such as suboptimal image quality, various cardiac morphology, indistinct pathological boundaries, difficulties in multisequence information fusion (4). Although a few reports exist on synthesizing CMR images using generative adversarial networks (GAN) models (5; 6), the inherent implicit characterization of GAN-based mdels could result in potential pitfalls, which may adversely affect the quality and diversity of the synthesized images (7). In contrast, diffusion models, anchored in explicit likelihood formulations and a gradual sampling process, are emerging as potent alternatives in the domain of image synthesis (8; 9). However, to the best of our understanding, there has yet to be any research endeavor that employs diffusion models for the synthesis of CMR images. In this context, our proposed model, CMRDiff, pioneers the use of diffusion models for multi-sequence CMR synthesis.

Method

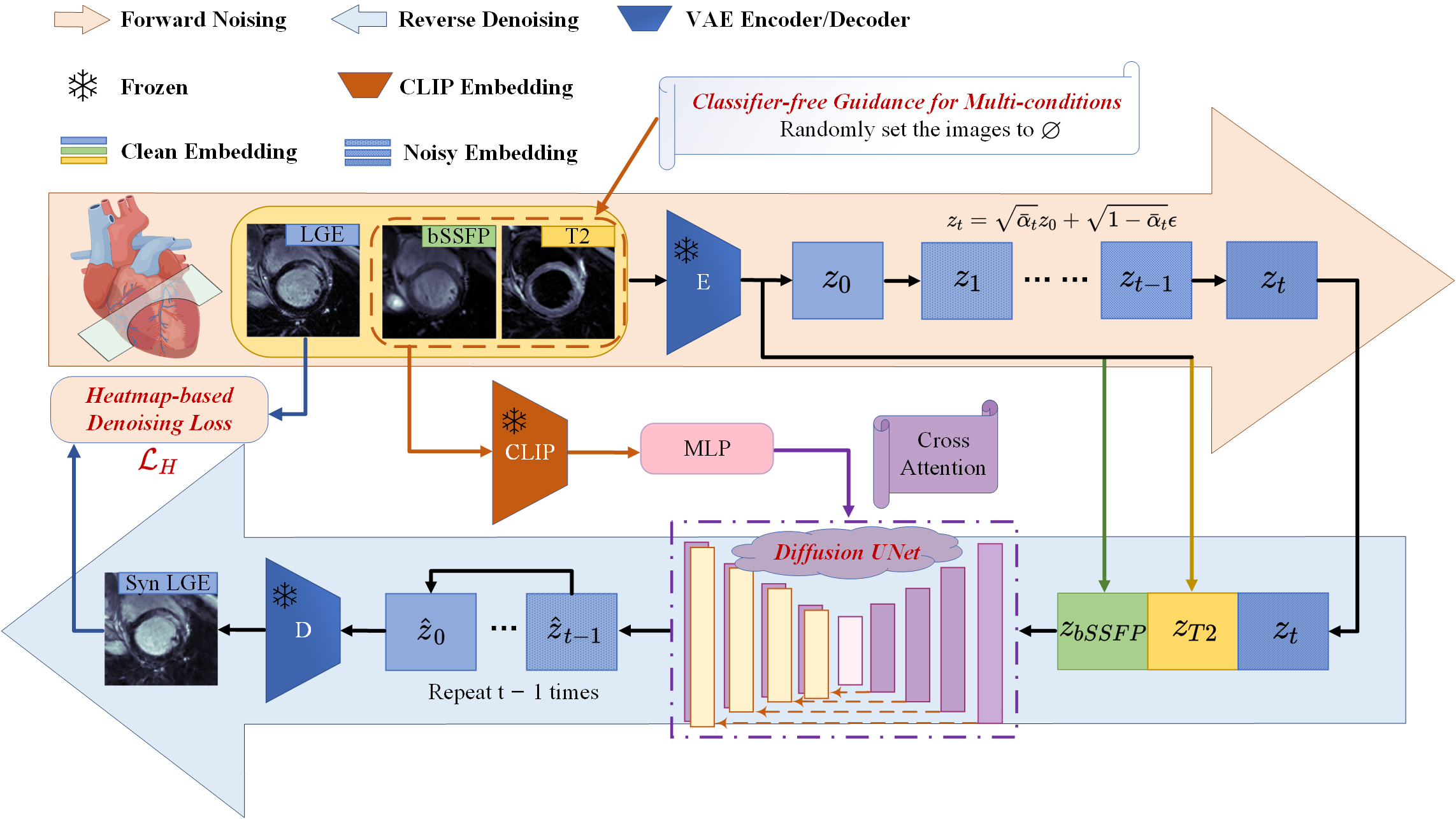

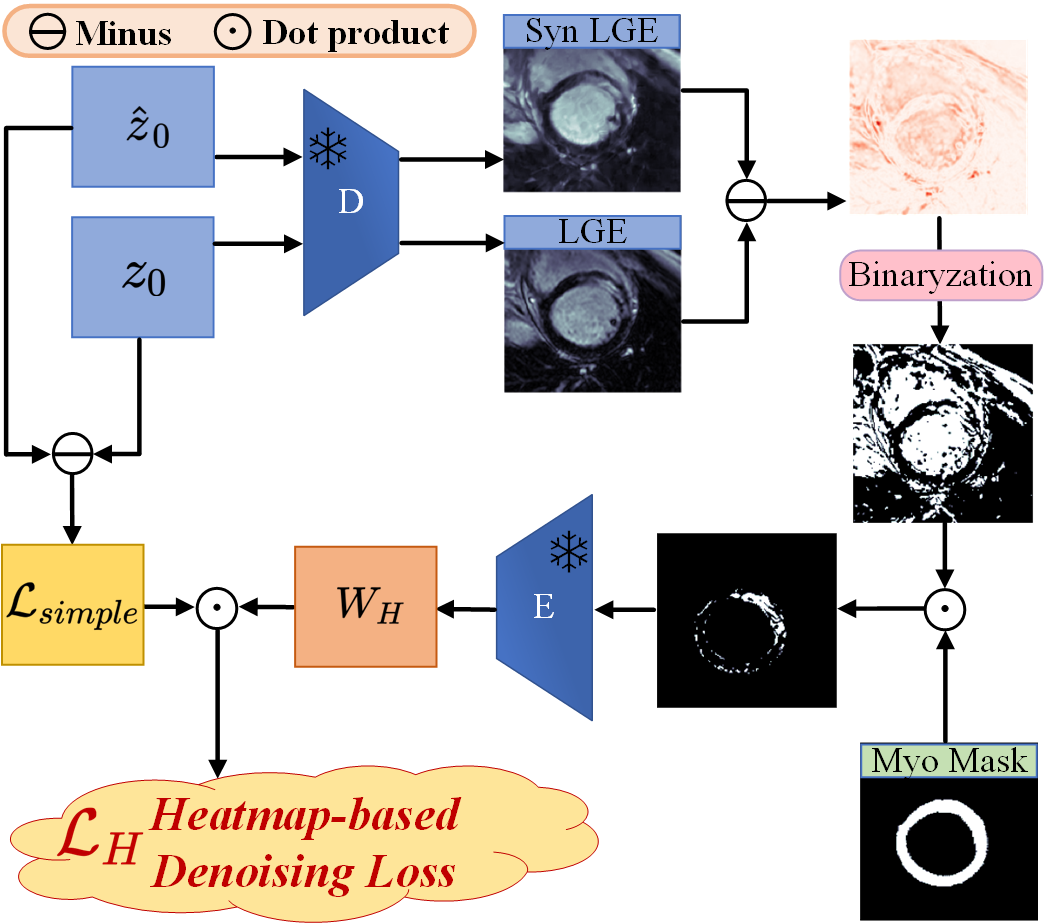

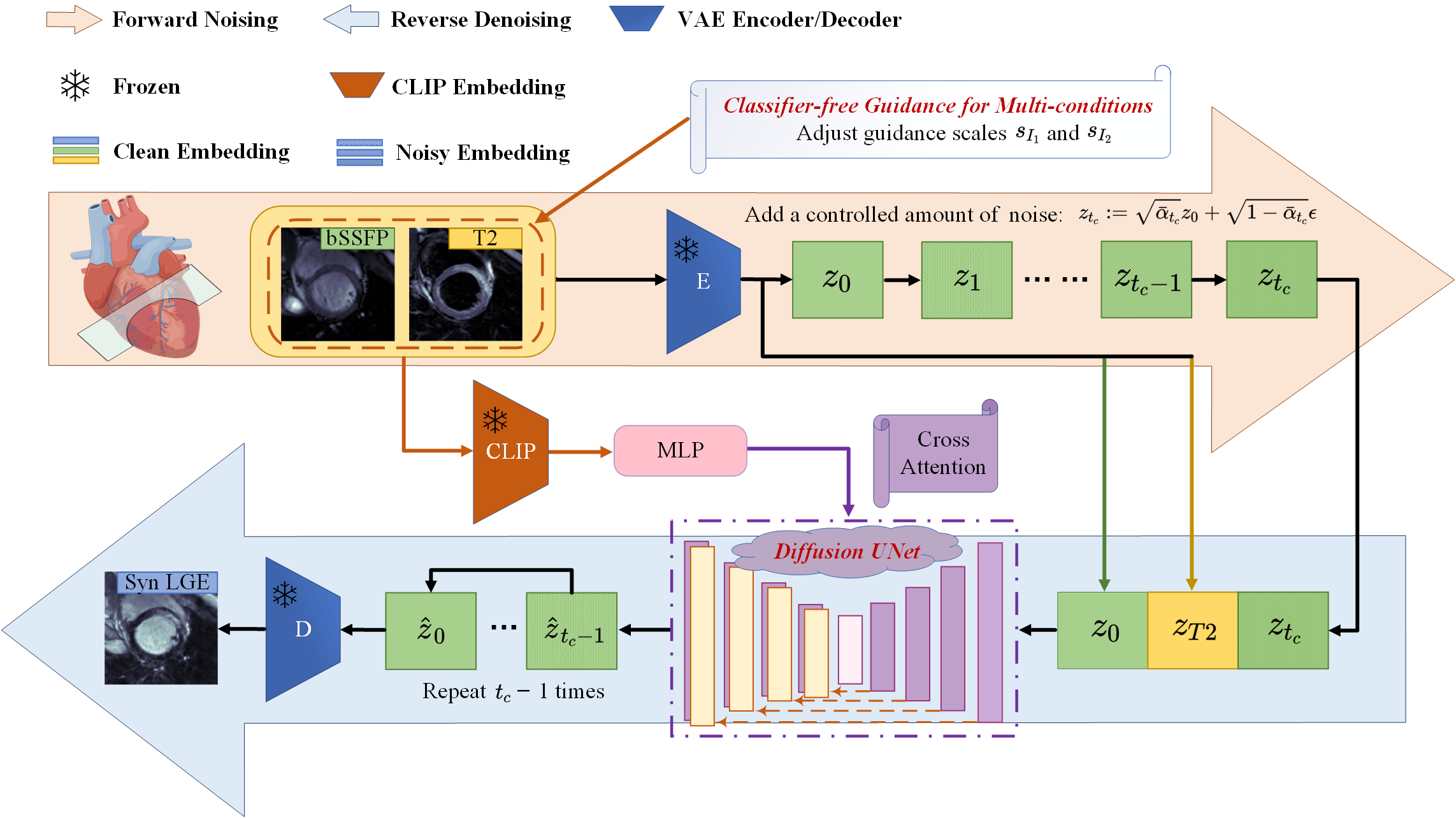

CMRDiff leverages two pre-existing CMR images as conditional inputs to guide the synthesis of a subsequent CMR image. In order to provide a clear illustration of the method, synthetic LGE images is used as an example (Fig. 1). The T2-weighted and bSSFP images are employed as the conditional input for generating the LGE image. Training diffusion models directly in high-resolution pixel space presents significant computational challenges. Drawing inspiration from LDM (10), CMRDiff performs noising process and backward denoising process within the latent embedding space. To ensure the preservation of anatomical structural integrity within the synthesized images, we incorporate a guided image synthesis technique in the model inference phase (Fig. 2). It is crucial to accurately generate the myocardium and lesions in CMR images, as they play a vital role in disease diagnosis and treatment. To enhance the fidelity and quality of these pivotal regions, we propose a heatmap-based denoising loss (Fig. 3). Furthermore, we introduce the multi-condition classifier free guidance specifically designed to modulate the weighting of multiple CMR sequences during the synthesis process. This allows for flexible control over the similarity between the generated images and the condition images.

Result

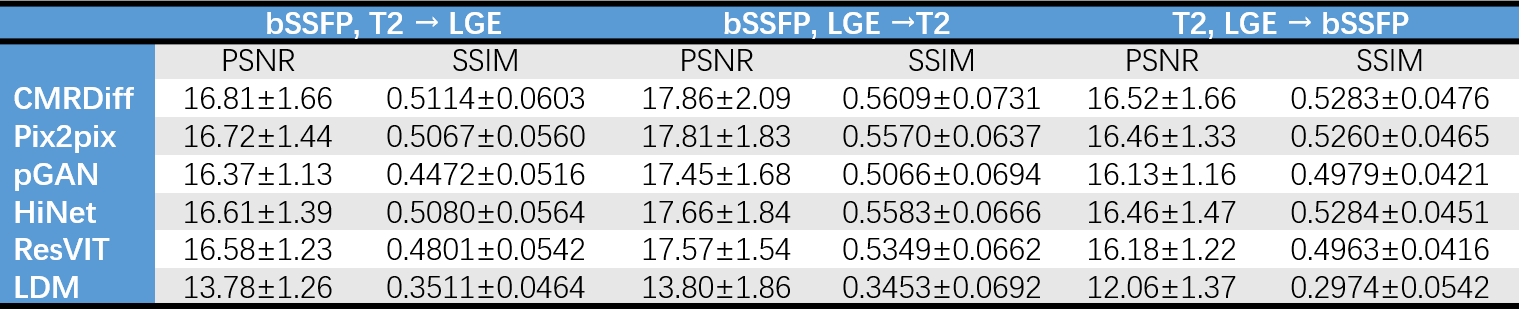

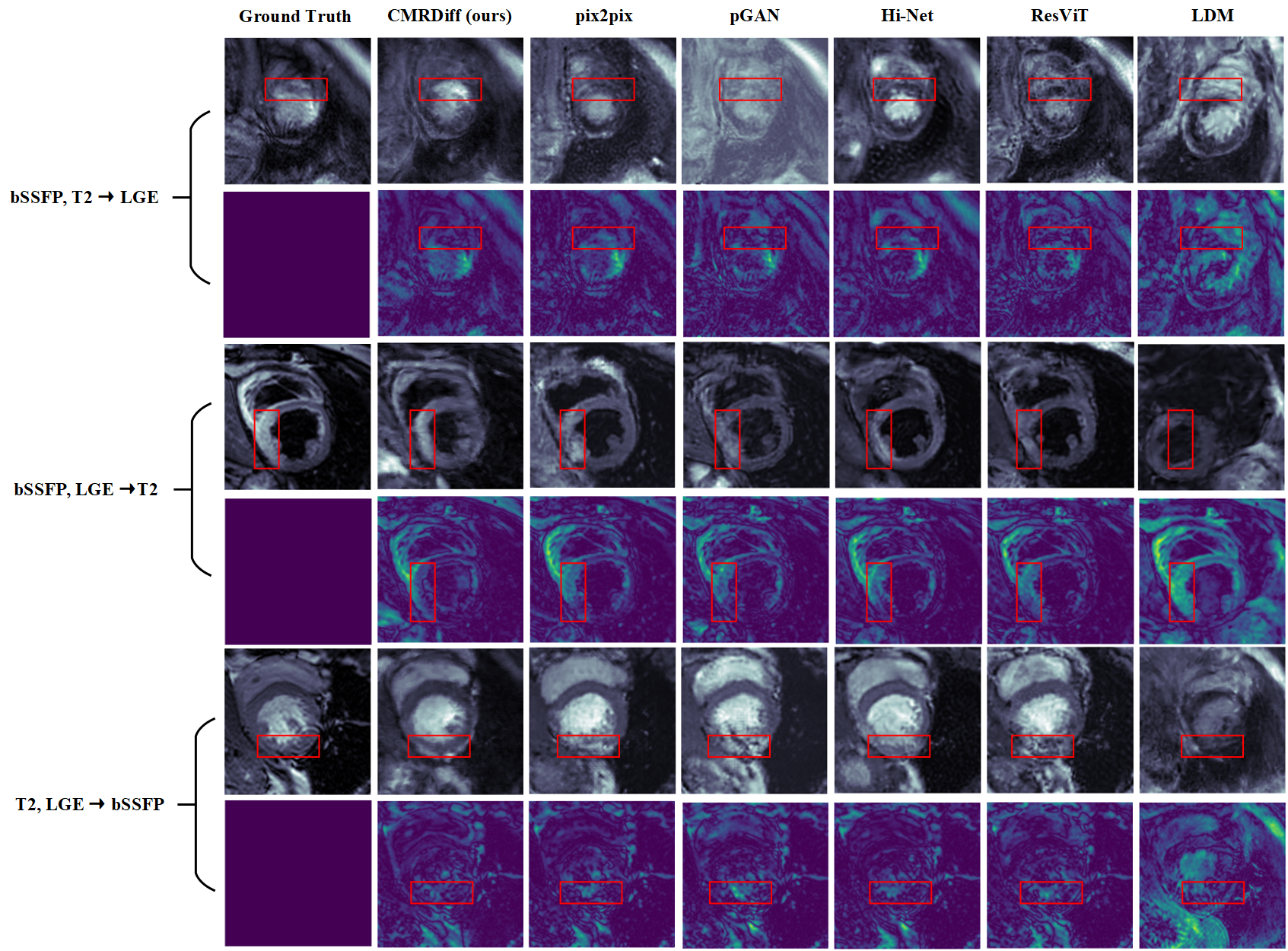

We evaluated our model using the MyoPS 2020 dataset (4). This dataset encompasses three distinct CMR sequences: end-diastolic phase of bSSFP, T2-weighted, and LGE CMR. The MyoPS 2020 dataset comprises 25 labeled (102 slices) CMR images and 20 unlabeled (72 slices) CMR images. The labeled images were used for model training. The unlabeled images were randomly divided into a validation set (5 CMR images) and a test set (15 CMR images). We demonstrated the performance of CMRDiff in multi-sequence CMR image synthesis. Since there are very few studies on CMR synthesis, CMRDiff was compared with state-of-the-art GAN-based MRI synthesis model or diffusion model. Fig. 4 lists the PSNR and SSIM metrics of CMRDiff and other competing methods in multi-sequence CMR image synthesis. CMRDiff achieves the highest performance in both bSSFP, T2 → LGE, bSSFP, LGE →T2, and T2, LGE → bSSFP. Representative images are displayed in Fig. 5. CMRDiff synthesizes target images with lower artifact levels and sharper tissue depiction.

Dicussion and Conclusion

We propose CMRDiff, a novel synthesis approach for multi-sequence CMR image synthesis using a diffusion model. CMRDiff enhances the integrity of anatomical structures and accuracy of the myocardial region in the synthesized image through a heatmap-based denoising loss and guided image synthesis. Our results demonstrate that CMRDiff outperforms state-of-the-art GAN-based approaches and latent diffusion models in multi-sequence synthesis for CMR. However, it should be noted that the MyoPS 2020 datasets used in our study only contain bSSFP, T2-weighted, and LGE images, potentially leading to inaccurate synthesis of certain sequences, such as the generation of lesion regions in LGE images without T1 images. Despite this limitation, CMRDiff provides valuable insights into the synthesis of CMR images using diffusion models and holds promise for reducing scanning durations, decreasing costs, and expanding the patient population that can benefit from this technology.

Acknowledgements

None
