Introduction

Image priors captured through deep learning have enabled substantial improvements over traditional methods in accelerated MRI reconstruction^1-16. An emerging framework uses task-agnostic priors based on generative models for improved generalization and image quality^17-19, and recent diffusion models in this framework have been particularly promising^20-24. However, conventional diffusion priors define a forward process via Gaussian noise addition, so image formation is expressed as a denoising transformation from random noise onto MRI data²⁰. In contrast, the reconstruction task requires a transformation from undersampled to fully-sampled data¹. Since the learned and required transformations are not aligned, conventional diffusion priors can suffer from limited optimization efficiency, and, as a result, yield suboptimal reconstruction performance²¹.

To address this challenge, here we introduce a novel MRI reconstruction method named Fourier-constrained diffusion Schrodinger bridges (FDB). FDB integrates task-relevant information into its prior by building a novel diffusion bridge that directly transforms between undersampled and fully-sampled data. To do this, FDB’s forward process uses a stochastic degradation operator gradually removing spatial-frequency components, and its reverse process progressively dealiases undersampled data. We demonstrate that FDB yields superior performance against previous traditional, adversarial and diffusion methods.

Methods

FDB: Diffusion bridges are a recent approach in generative modeling that relax the Gaussian assumption in conventional diffusion priors to capture task-relevant transformations for inverse problems²⁵. Recent diffusion bridges in computer vision are either unconstrained²⁵ (limiting learning efficiency) or constrained via deterministic degradation operators^26,27 (limiting generalization capabilities). Instead, FDB uniquely leverages a stochastic operator in Fourier domain to build a novel constrained diffusion bridge that transforms between moderately undersampled and fully-sampled MRI data.

Forward Process: A random frequency-removal operator is cast in FDB via a k-space mask $$$\mathcal{K}_t$$$ at time step $$$t$$$ selecting $$$n$$$ unique frequency components for removal. A peripheral-to-central selection order is enforced according to a point process:
$${r_i}\sim U\left[0,r_{\mathrm{max}}\right];\quad{\phi_i}\sim U\left[0,2\pi\right)\\ \mbox{s.t. }k(r_i,\phi_i)\notin\left\{k:\bigcup\limits_{\tau=1}^{t-1}\mathrm{diag}(\mathcal{K}_{\tau})=1\right\}\mbox{ and }r_i>\bar{r}_t$$
where $$$i\in[1\ n]$$$ is the selected-component index in $$$\mathcal{K}_t$$$, $$$r_i,\phi_i$$$ are polar coordinates of Cartesian k-space points, $$$U$$$ is a uniform distribution, $$$\bar{r}_t$$$ is a radial threshold scheduled as:
$$\bar{r}_t=r_{\mathrm{max}}-\frac{t}{T_f}(r_{\mathrm{max}}-r')$$
$$$r'\approx r_{\mathrm{max}}\sqrt{R'}$$$ to ensure that $$$R'$$$-fold undersampling is achieved at $$$t=T_f$$$.

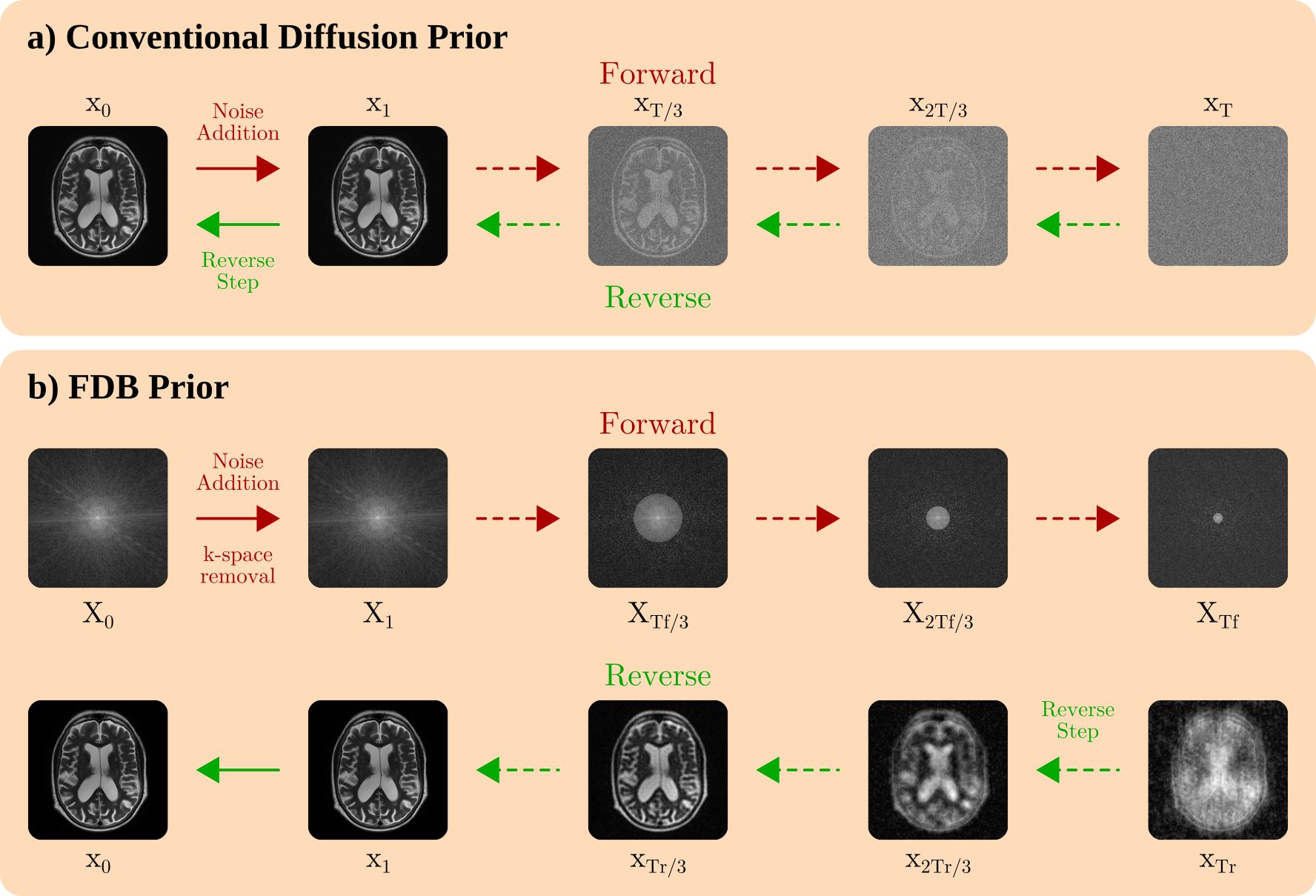

The degraded images $$$x_t$$$ obtained via frequency-removal and noise-addition operators are given as (Fig.1):
$$x_t={\alpha_t}\Big\{\mathcal{F}^{-1}\big(\prod_{\tau=1}^{t}{\left(\mathrm{I}-\mathcal{K}_{\tau}\right)}\big)\circledast x_{0}\Big\}+{\sigma_t}z,\\ x_t={\alpha_t}(\bar{\kappa}_t\circledast x_{0})+{\sigma_t}z,\\ x_t={\alpha_t}C_tx_{0}+{\sigma_t}z$$
where $$$\mathcal{F}^{-1}$$$ denotes inverse Fourier transform, $$$\alpha_t,\sigma_t$$$ are scale parameters, $$$\circledast$$$ denotes convolution, $$$x_0=S^H\mathcal{F}^{-1}\{X_0\}$$$ denote clean images derived from fully-sampled data ($$$S^H:$$$ Hermitian of coil sensitivities), $$$z$$$ is a standard complex variable. The corruption matrix $$$C_t$$$ is the block Toeplitz form of convolution with $$$\bar{\kappa}_t=\kappa_t\circledast…\circledast\kappa_1$$$, $$$\kappa_t=\mathcal{F}^{-1}(\mathrm{I}-\mathcal{K}_t)$$$.

Reverse Process: Reverse steps for FDB’s novel diffusion process can be parameterized via a neural network $$$G_{\theta}$$$ that estimates a clean image²⁸: $$$\tilde{x}_0=G_{\theta}(x_t,t)$$$. The corresponding training objective is:
$$\min_{\theta}\mathbb{E}_{t,x_0,x_t}[\|(G_{\theta}(x_t,t)-x_0)\|^2]$$
where $$$\mathbb{E}$$$ is expectation over $$$t\in U(0,T_f)$$$.

For reconstruction with a trained FDB prior, we present a sampling algorithm initiated at $$$T_r=\lfloor T_f \frac{R}{R'}\rfloor$$$ with $$$x_{T_r}$$$ taken as the zero-filled reconstruction of undersampled data at $$$R$$$ (Fig.2). Reverse diffusion sampling at $$$t$$$ can be derived as:
$$\dot{x}_{t-1}\,=\,\,x_t+\underbrace{(\alpha_{t-1}-\alpha_t)\mathbb{E}[C_{t}]\tilde{x}_0}_\text{frequency imputation}\\+\underbrace{(\sigma_{t}^2-\sigma_{t-1}^2)\frac{\alpha_t\mathbb{E}[C_{t}]\tilde{x}_0-x_t}{\sigma^2_t}}_\text{denoising}+\sqrt{\sigma_{t}^2-\sigma_{t-1}^2}z$$
Reverse sampling is followed by a data-fidelity projection:
$${x}_{t-1}=\dot{x}_{t-1}+A^H(y-A\dot{x}_{t-1})$$
where $$$A=M\mathcal{F}S$$$ ($$$M$$$: sampling mask).

Analyses: Analyses were conducted on single-coil (T₁,T₂,PD) data in IXI (https://brain-development.org/ixi-dataset/) and multi-coil (T₁,T₂,FLAIR) data in fastMRI³⁰. The (training,validation,test) sets contained (240,60,120) non-overlapping subjects. Each set contained mixed data across contrasts. 2D variable-density undersampling¹ was employed at R=4-8. Training was performed with Adam optimizer, 50 epochs, 0.0002 learning rate.

Results

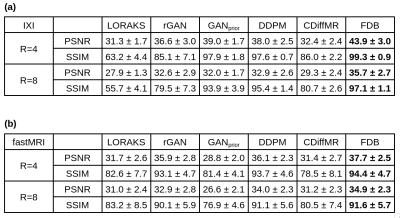

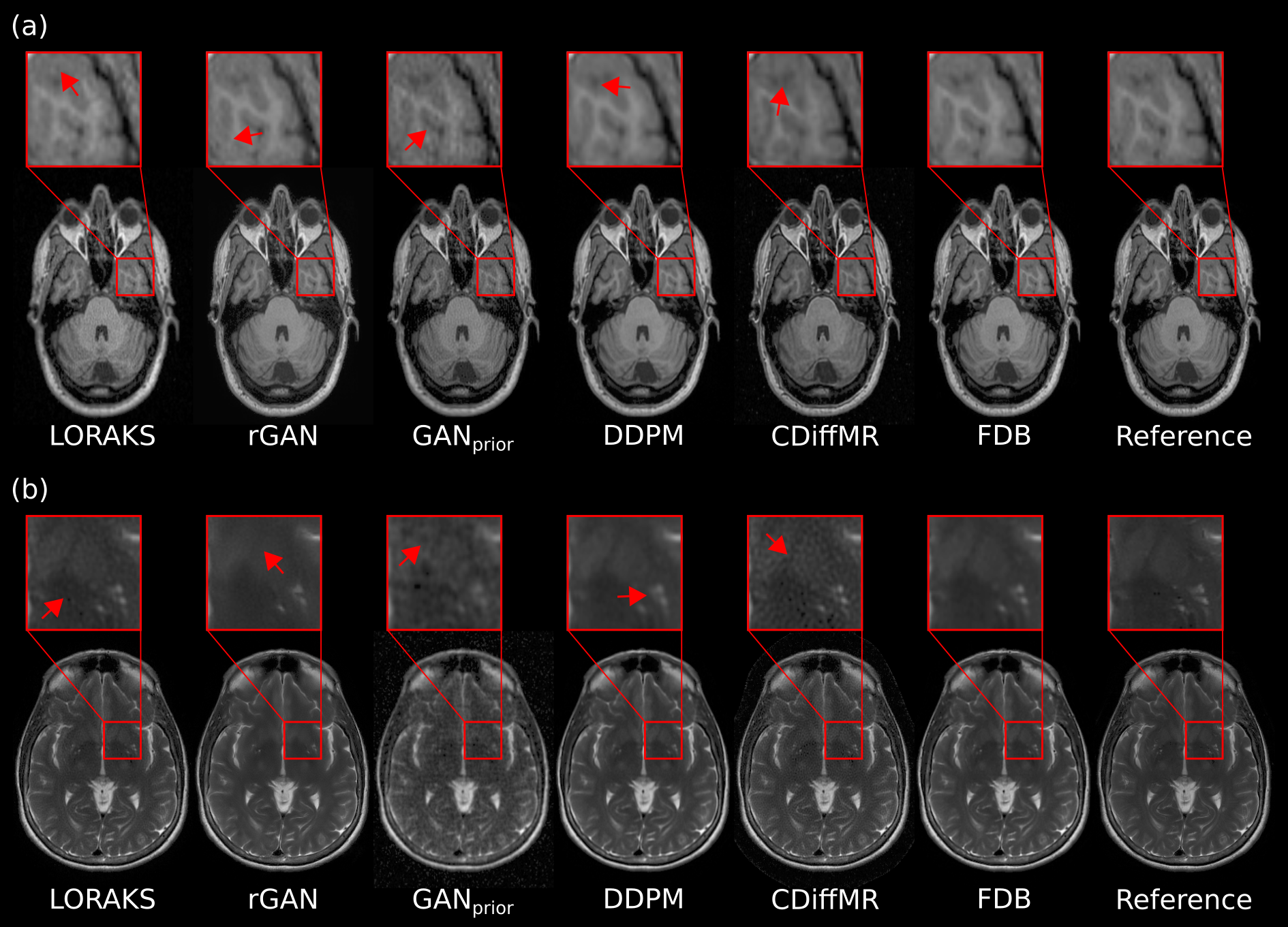

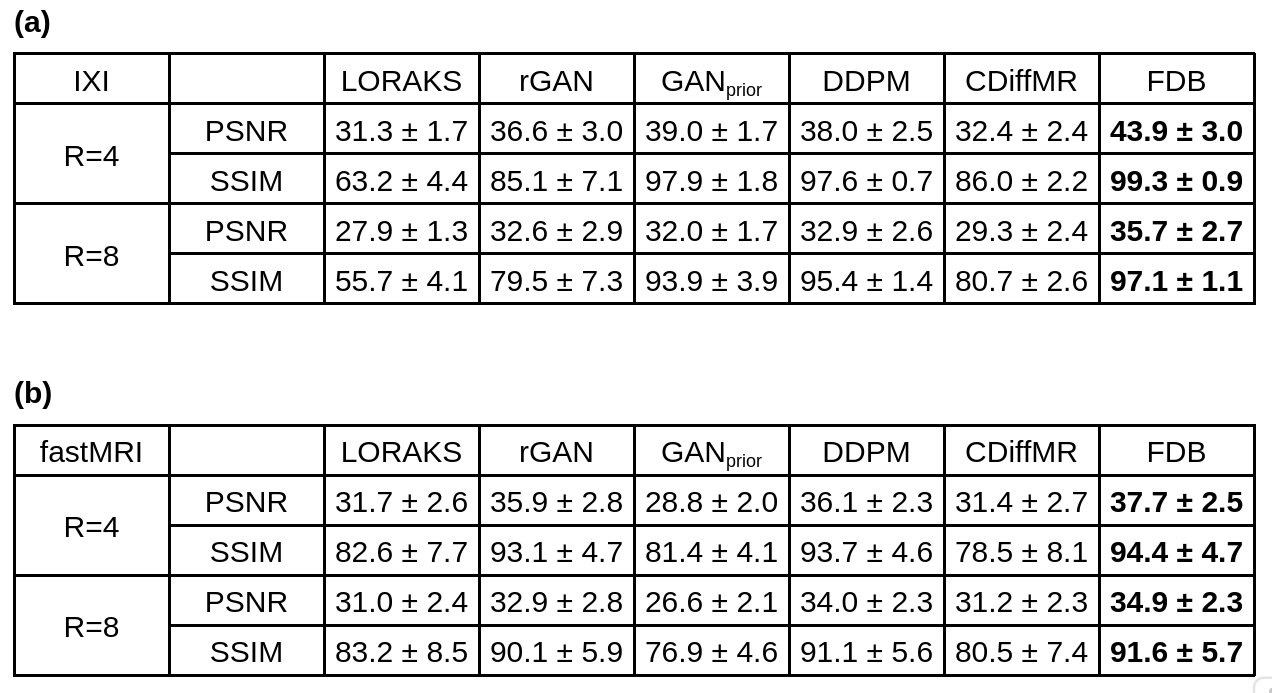

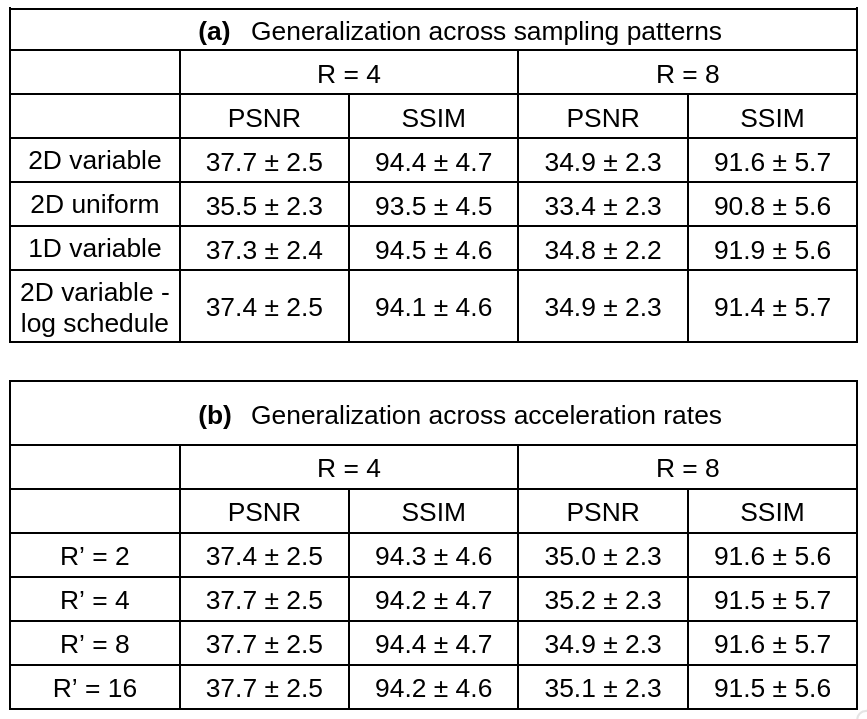

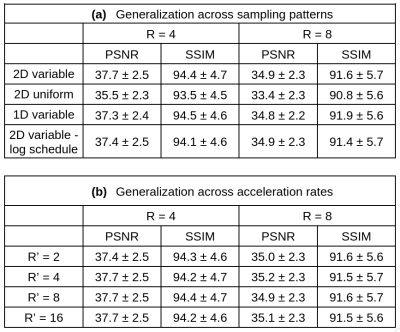

FDB was comparatively demonstrated against a traditional method (LORAKS³¹), task-specific (rGAN¹⁵) and task-agnostic (GAN_prior¹⁷) adversarial methods, task-specific (CDiffMR²⁷) and task-agnostic (DDPM²⁴) diffusion methods. Performance metrics are listed in Fig.3. On average, FDB achieves improvements of 3.7dB PSNR, 1.2% SSIM at R=4, 1.9dB PSNR, 1.1% SSIM at R=8 over the closest competitor. These improvements are visually apparent in representative reconstructions in Fig.4. While competing methods show residual noise/aliasing or suffer from loss of detailed tissue structures, FDB achieves relatively high spatial acuity and low noise/artifact levels. Generalization performance was examined by considering domain shifts between training and test sets. Performance metrics in Fig.5 indicate that FDB is reliable against domain shifts in sampling density and acceleration rate.

Discussion

Here we introduced FDB, the first diffusion bridge for accelerated MRI reconstruction to our knowledge, that transforms between undersampled and fully-sampled acquisitions. Unlike common diffusion methods, FDB is trained to progressively correct task-relevant degradations due to undersampling, so its reverse-diffusion transformation shows better alignment with the required transformation for MRI reconstruction. Therefore, FDB holds great promise for improving the utility of accelerated MRI reconstruction.

Acknowledgements

This work was supported in part by a TUBITAK 1001 Grant No. 121E488, and by TUBA GEBIP 2015 and BAGEP 2017 fellowships.
