Introduction

Diffusion Tensor Cardiovascular Magnetic Resonance^1-3 (DT-CMR) provides non-invasive insights into in-vivo myocardial microstructure, with proven utility in cardiovascular diseases⁴. However, it has a limited spatial resolution due to inherent low Signal to Noise Ratio (SNR), and time-consuming⁵ acquisitions. Spiral sampling is efficient and well-suited to sub-Nyquist acquisitions^6,7. It has been implemented with DT-CMR to enhance resolution⁷, but acceleration is required for future clinical translation.
This work aims to demonstrate effective artefact removal from highly accelerated in-vivo spiral DT-CMR, using a novel Residual U-Net based deep Complex-valued Edge Attention Network (CEAN).

Methods

Proposed Model

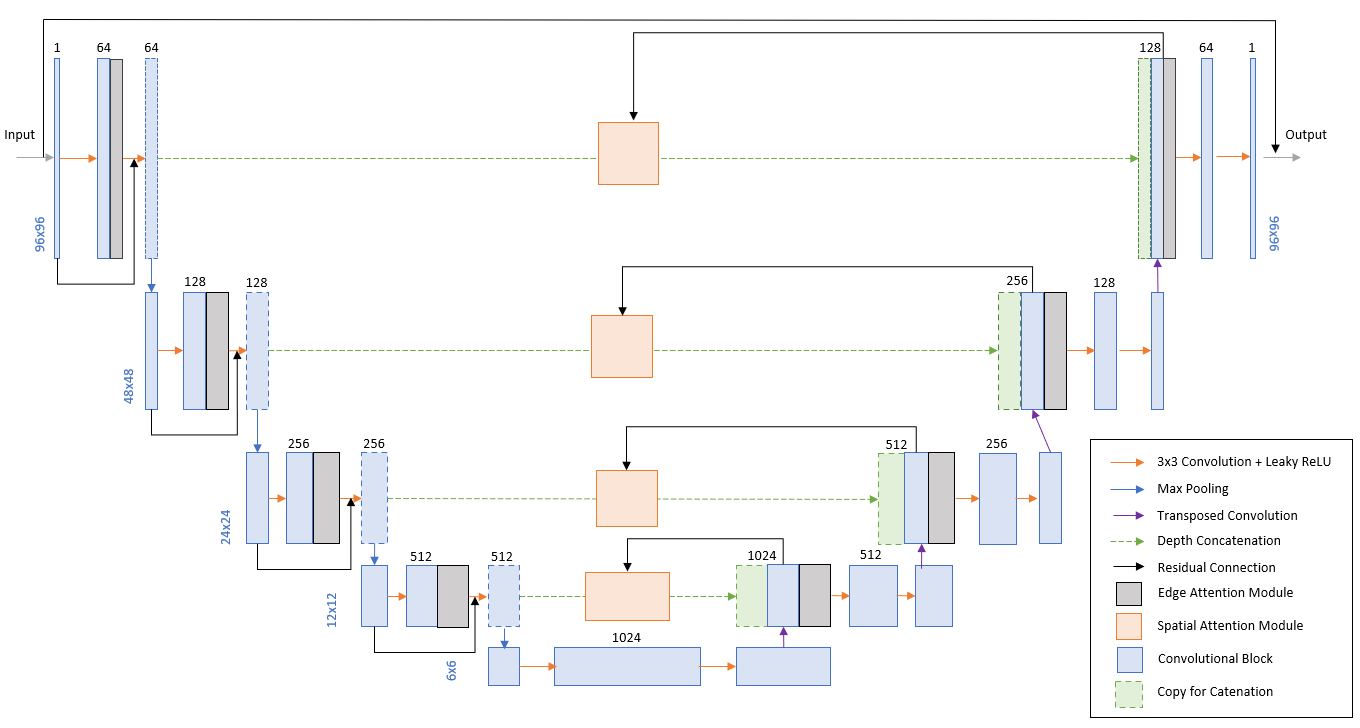

We proposed a complex-valued Edge Attention Module (EAM) within a Residual U-Net structure⁸ to minimise the loss of high-frequency information. The EAM uses Sobel filtering, complex convolution and sigmoid activation function to create edge attention maps. We introduced the complex-valued Spatial Attention Module (SAM) to emphasis the salient regions and further improve the quality of the predicted images. The proposed network architecture is illustrated in Figure 1.
We compared Magnitude Residual U-Net (MRUN) with CEAN. Each network was trained directly on acquired spiral DT-CMR data, and with transfer learning, which is to train on a simulated dataset before fine-tuning on the acquired in-vivo data.
Acquisition
Simulated dataset was calculated from short axis single slice STEAM-EPI DT-CMR³ from 20 controls, in diastole and systole, at 1.5T and 3T (40 datasets). Spatial resolution = 2.8×2.8×8mm³ and Field of View (FOV) = 358×134mm². Six encoding directions at b = 600s/mm² (8 averages) and b = 150s/mm² (2 averages) in addition to “b0”. To simulate spiral acquisitions, we cropped then resampled the STEAM-EPI images along variable density spiral trajectories (central 25% fully-sampled, linearly reducing 30%, outer 45% undersampling x7), equivalent to a uniform four-fold acceleration. Two-fold data augmentation was implemented using random rotations of the spirals.
In-vivo STEAM-spiral DT-CMR was acquired using the same trajectories (Siemens 3T Vida), for 10 subjects in diastole and systole at 3T. Spatial resolution = 2.8×2.8×8mm³, imaging FOV = 134×134mm² (reduced via in-plane zonal RF excitations), TR=2RR-intervals and TE=11ms. Six encoding directions with b=600s/mm² (2 averages) and b=150s/mm² (1 average) were acquired. Data was sampled along 7 interleaves (1 interleave per breath-hold), the ground truth combined all interleaves (after motion-induced phase correction⁷, interleave registration and coil weighted combination), and undersampled images were each generated from 1 interleave.
The training-validation-testing split by subjects was 14(4319 images)-3(973 images)-3(980 images), and 6(252 images)-1(42 images)-3(126 images) respectively for simulated and in-vivo datasets.
Networks were trained using MAE loss and Stochastic Gradient Descent (SGD) on a NVIDIA GeForce RTX 3090 GPU, and separately on the 1^st and 3^rd interleaves. DT-CMR parameter maps were calculated using the fully sampled data (21 breath-holds) and predictions from 1^st and 3^rd interleaves with b=600s/mm² and b=150s/mm².

Results

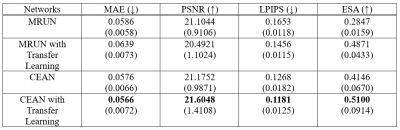

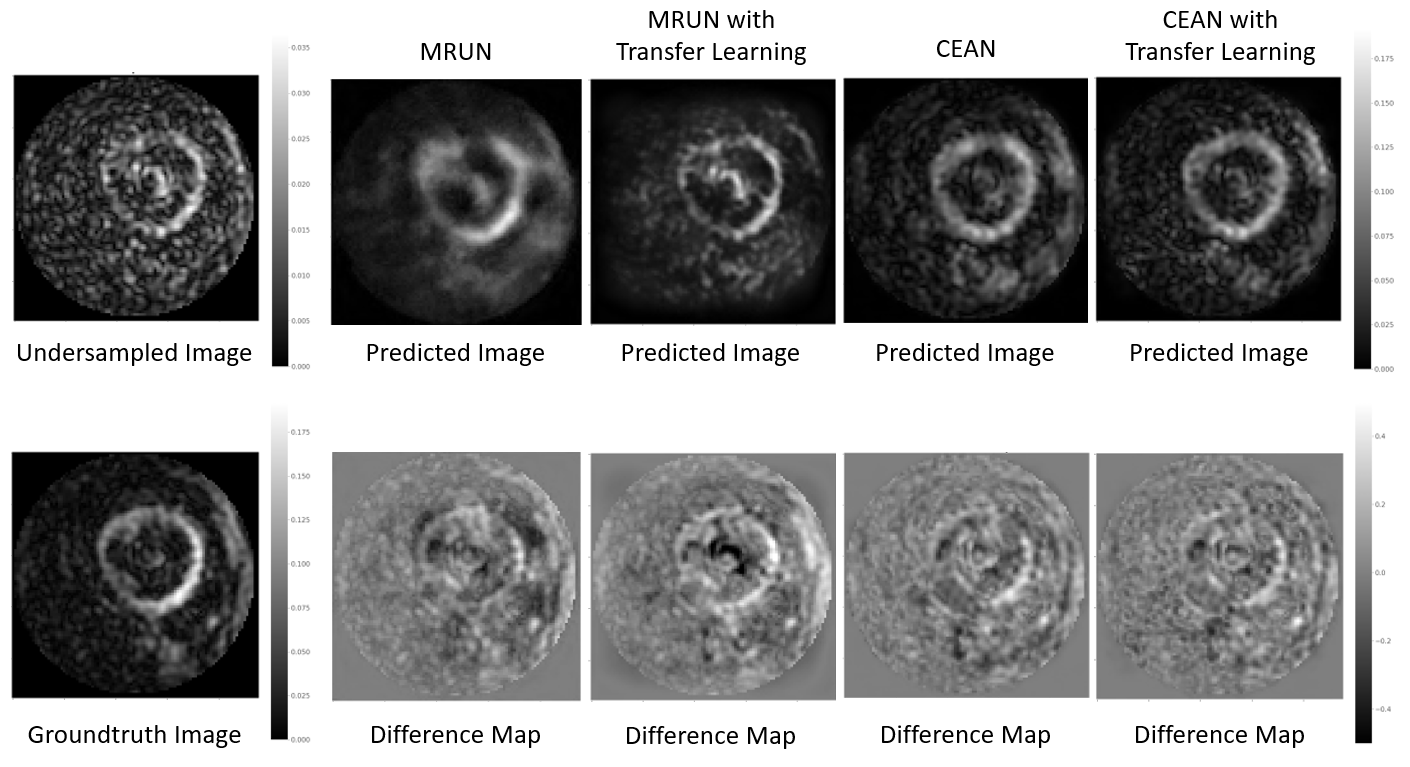

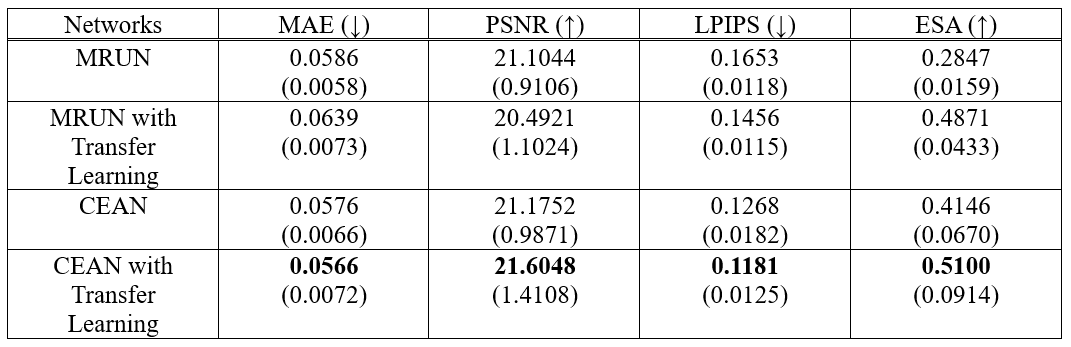

Examples of predicted DT-CMR images are illustrated in Figure 2 and image quality metrics are shown in Table 1. Our proposed method, CEAN, with transfer learning, outperformed other networks across considered measures.

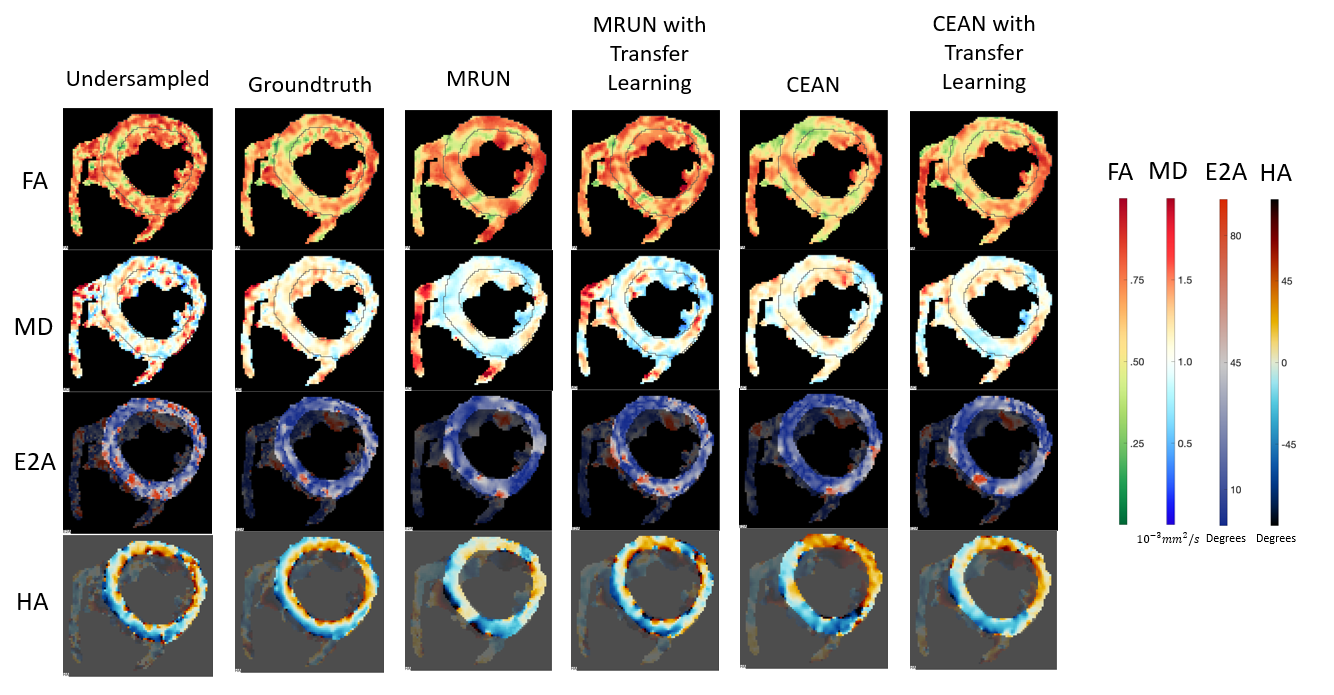

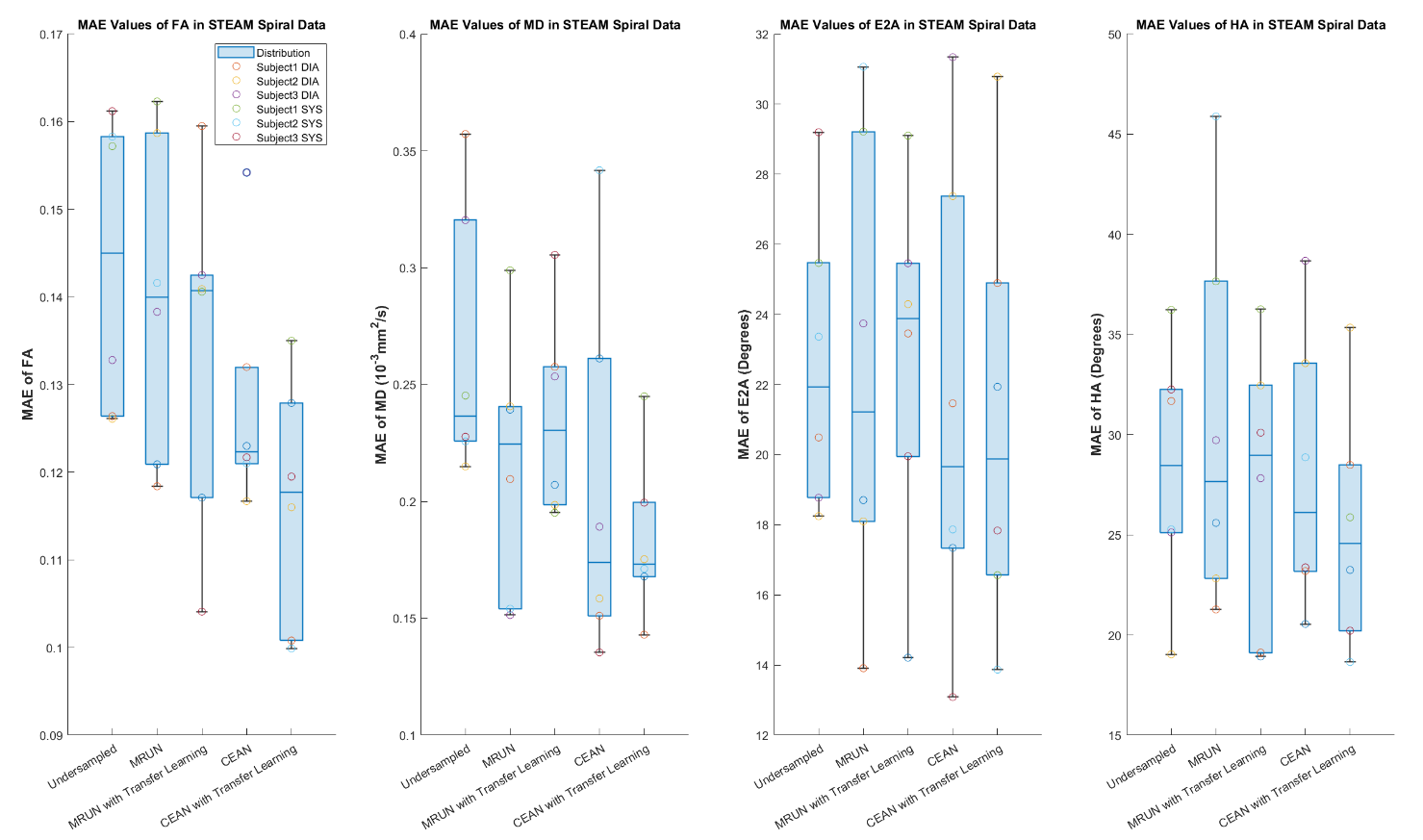

Example DT-CMR maps and pixelwise Mean Absolute Error (MAE) for Fractional Anisotropy (FA), Mean Diffusivity (MD), Sheetlet Angle (E2A) and Helix Angle (HA) for the test dataset are presented in Figures 3 and 4. The median MAE of DT-CMR parameters was lowest for the CEAN compared to MRUN and undersampled data.

Discussion

Predictions from CEAN were most similar to the ground truth, and sharper at the myocardial edge with more high-frequency details. CEAN utilises complex MRI information and the complex EAM aims to limit the over-smoothing often presents in convolutions. When trained directly on a limited acquired spiral dataset, CEAN performed adequately, but pre-training the network using a simulated dataset improved the results.
DT-CMR parameters from the predicted images of CEAN with transfer learning, were comparable to the ground truth and the results showed the smallest errors relative to the equivalent results from the ground truth, suggesting that the diffusion encoding information is preserved by the CEAN.
While STEAM DT-CMR data would typically be acquired with ~8 averages, for the spiral ground truth we acquired 2 averages, with 7 interleaves per average. Further optimisation of the spiral reconstruction and an increase in the training data set is expected to improve the quality of the ground truth and predicted images.

Conclusion

The proposed CEAN effectively reduces artefacts in undersampled spiral DT-CMR data. Performance of CEAN improved when trained with transfer learning, which helps to overcome the challenges of acquiring large specific training datasets. Our approach should lead to future improvements in DT-CMR efficiency and spatial resolution, which are important steps towards clinical deployment in patient cohorts.
