Introduction

Low-field magnetic resonance imaging (MRI) has potential in boosting the accessibility of MRI in low-incomes settings due to its lower cost and portability [1]. The application of low-field MRI without a radiofrequency (RF) shielding room is impeded by cumbersome external electromagnetic interference (EMI), which dramatically degrades MR image quality and thus hinders point-of-care usage. The state-of-the-art methods for EMI elimination formulate transfer functions to build a relationship between EMI detectors and MR receive coils [2-4]. However, they overlook the correlation among RF receive coil elements [5] which can also facilitate EMI elimination. In the present study, we present a method to remove EMI noise by decorrelating the relationship among receive coil elements, aiming to provide a feasible approach for unshielded low-field portable MRI equipped with RF coil arrays.

Methods

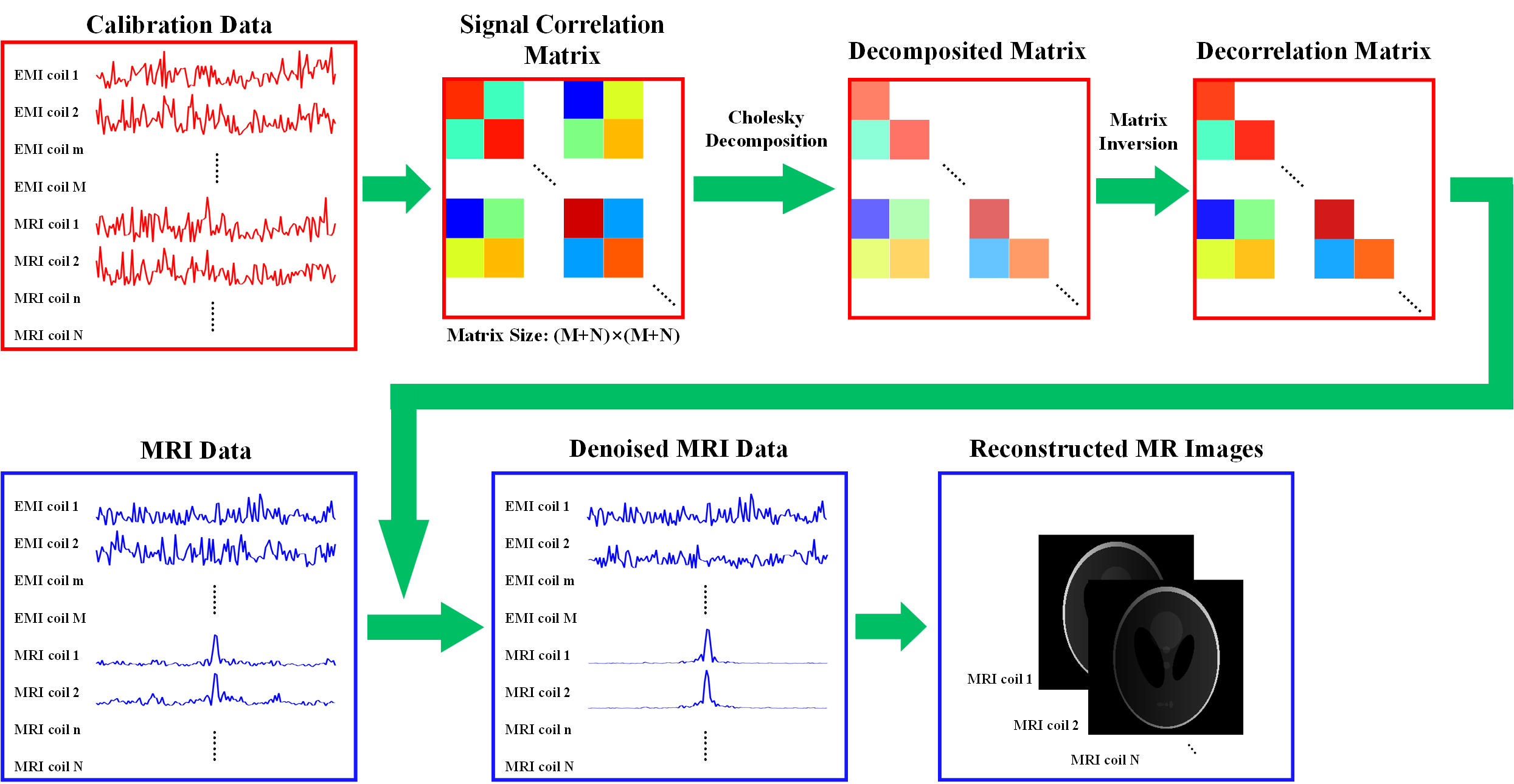

The pipeline of proposed inter-channel correlation-based EMI noise removal method is shown in Figure 1. Pure environmental EMI noise was collected as calibration data from both EMI detectors (EMI coils) and primary RF coils (MRI coils) in the absence of RF excitation before or during MR sampling. These calibration data were then combined as a calibration matrix to calculate signal correlation matrix using matrix inner product:$${\bf{\Psi }} = \left[ {\begin{array}{*{20}{c}}{\left\langle {{{\bf{\eta }}_1},{{\bf{\eta }}_1}} \right\rangle }& \cdots &{\left\langle {{{\bf{\eta }}_1},{{\bf{\eta }}_M}} \right\rangle }&{\left\langle {{{\bf{\eta }}_1},{{\bf{\gamma }}_1}} \right\rangle }& \cdots &{\left\langle {{{\bf{\eta }}_1},{{\bf{\gamma }}_N}} \right\rangle }\\ \vdots & \ddots & \vdots & \vdots & \ddots & \vdots \\{\left\langle {{{\bf{\eta }}_M},{{\bf{\eta }}_1}} \right\rangle }& \cdots &{\left\langle {{{\bf{\eta }}_M},{{\bf{\eta }}_M}} \right\rangle }&{\left\langle {{{\bf{\eta }}_M},{{\bf{\gamma }}_1}} \right\rangle }& \cdots &{\left\langle {{\eta _M},{{\bf{\gamma }}_N}} \right\rangle }\\{\left\langle {{{\bf{\gamma }}_1},{{\bf{\eta }}_1}} \right\rangle }& \cdots &{\left\langle {{{\bf{\gamma }}_1},{{\bf{\eta }}_M}} \right\rangle }&{\left\langle {{{\bf{\gamma }}_1},{{\bf{\gamma }}_1}} \right\rangle }& \cdots &{\left\langle {{{\bf{\gamma }}_1},{{\bf{\gamma }}_N}} \right\rangle }\\ \vdots & \ddots & \vdots & \vdots & \ddots & \vdots \\{\left\langle {{{\bf{\gamma }}_N},{{\bf{\eta }}_1}} \right\rangle }& \cdots &{\left\langle {{{\bf{\gamma }}_N},{{\bf{\eta }}_M}} \right\rangle }&{\left\langle {{{\bf{\gamma }}_N},{{\bf{\gamma }}_1}} \right\rangle }& \cdots &{\left\langle {{{\bf{\gamma }}_N},{{\bf{\gamma }}_N}} \right\rangle }\end{array}} \right]$$Where $$${\bf{\Psi }}$$$ denotes signal correlation matrix, $$${{\bf{\eta }}_i},i = 1,2,...M$$$ is calibration data from EMI coil $$$i$$$ and $$${{\bf{\gamma }}_j},j = 1,2,...,N$$$ is calibration data from MRI coil $$$j$$$, $$$\left\langle { \cdot , \cdot } \right\rangle $$$ is the inner product. Then Cholesky decomposition was conducted on signal correlation matrix followed by matrix inversion to retrieve the decorrelation matrix. The obtained decorrelation matrix was then applied to MRI data contaminated by EMI noise to eliminate accompanied EMI noise in all receive channels. Finally, MR signals were extracted and transformed to reconstruct MR images.

Experiments were conducted on a home-built 0.11T portable MR system equipped with four receive channels (two channels were used as MR receivers, and the other two were used as EMI noise sensors) in a regular room (on the ground floor with an area of 80m2) located in an industrial park. T1-weighted images were acquired using a 3D fast field echo sequence with the following parameters: repetition time = 60ms, echo time = 14.7ms, field of view = 256×256×128mm³, voxel size = 2×2×8mm³, average = 2, and total scan time = 4:07min.

Results

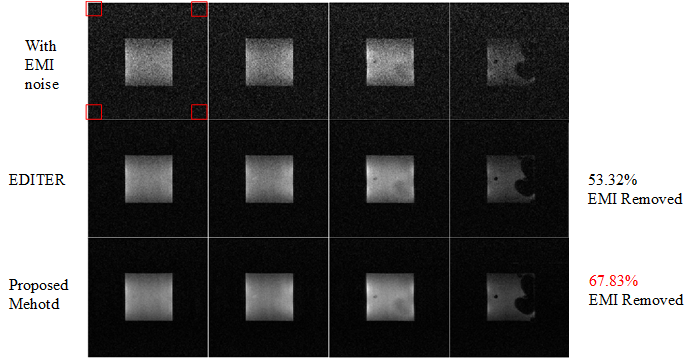

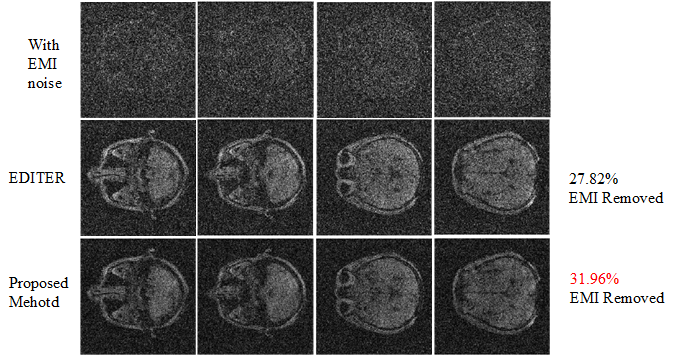

Figure 2 shows a phantom experiment for EMI elimination. Four typical slices with EMI noise, denoised by EDITER [3], and denoised by the proposed method were exhibited the performance of EMI suppression. Figure 3 shows EMI noise removal for four slices of the human brain in vivo, of which the images were contaminated with strong EMI noise and the head structures are nearly invisible. The EDITER and proposed method were able to suppress EMI noise and restore brain structures with improved identification of anatomical structures contours. The proposed inter-channel correlation-base method was able to improve EMI removal efficacy than EDITER.

Discussion and Conclusions

The inter-channel correlation-based EMI noise removal technique proves to be effective in eliminating EMI noise on a shielding-free low-field MR scanner. While the residual noise might correspond to uncorrelated relationship among the channels employed, to further reduce the noise level and enhance image SNR, more receive channels can be considered to integrated in RF coil design and manufacturing.

Future experiments shall be conducted in a hospital setting to showcase the efficacy of the proposed method. Moreover, our method prefers the design of multi-receive coils such as phased arrays, which can also significantly improve the SNR in MR signal acquisition, enhance the performance of noise removal, and merit accelerated data acquisition such as parallel imaging.
