Synopsis

Keywords: Motion Correction, Motion Correction

Magnetic resonance-guided high-intensity focused ultrasound (MRgHIFU) treatments are limited by motion artifacts introduced into MR thermometry calculations by large sporadic motions. A hybrid principal component analysis and projection onto dipole fields (PCA-PDF) motion compensation algorithm was expanded upon to include predicted motion using image augmentation techniques. When tested on MR images from a gelatin phantom being translated in the coronal plane, the improved PCA-PDF algorithm yielded a temperature standard deviation of 0.4 ± 0.1 °C, which is a 3.7 ± 0.1 °C reduction from an unmodified PCA-PDF approach, indicating that thermometry artifacts induced by motion were significantly reduced.

Introduction

High-intensity focused ultrasound (HIFU) is a non-invasive technique used for tissue hyperthermia. In combination with magnetic resonance (MR) thermometry, magnetic resonance-guided HIFU (MRgHIFU) is capable of treatment planning, targeting, and monitoring temperature changes within tissue in real time1. A significant clinical barrier for MRgHIFU is patient motion during treatment, which can impact thermometry measurements by introducing imposing thermometry artifacts². Maintaining accurate thermometry measurements is essential to provide precise and accurate heating to regions of interest and avoid damaging tissue outside of the treatment area¹. Compensation for periodic motion such as breathing and small aperiodic motion such as peristalsis has been previously demonstrated by Tan et al2 using a hybrid principal component analysis (PCA) and projection onto dipole fields (PDF) method, referred to as PCA-PDF. However, preliminary work performed using this implementation found that it compensated poorly for large aperiodic motions. Involuntary sporadic motions such as muscle twitching and sternutation can introduce large motion artifacts that severely impact the accuracy of MR thermometry, even when PCA-PDF is used. The objective of this work is to improve the PCA-PDF method to minimize thermometry artifacts caused by large unpredictable motions.

Methods

The principal component analysis algorithm was expanded upon to incorporate predicted motion into the PCA atlas using image augmentation techniques. Prior to treatment, an atlas of MRI images is acquired to create the PCA reference. Each phase image acquired is augmented to create several new images that are added to the PCA atlas. These images are horizontally and vertically translated by a random number of pixels drawn from a Gaussian distribution centered at 0 with a specified pixel standard distribution. The new images serve to mimic motion that the subject could undergo during the treatment. After the atlas is expanded, the PCA-PDF method is carried out normally.

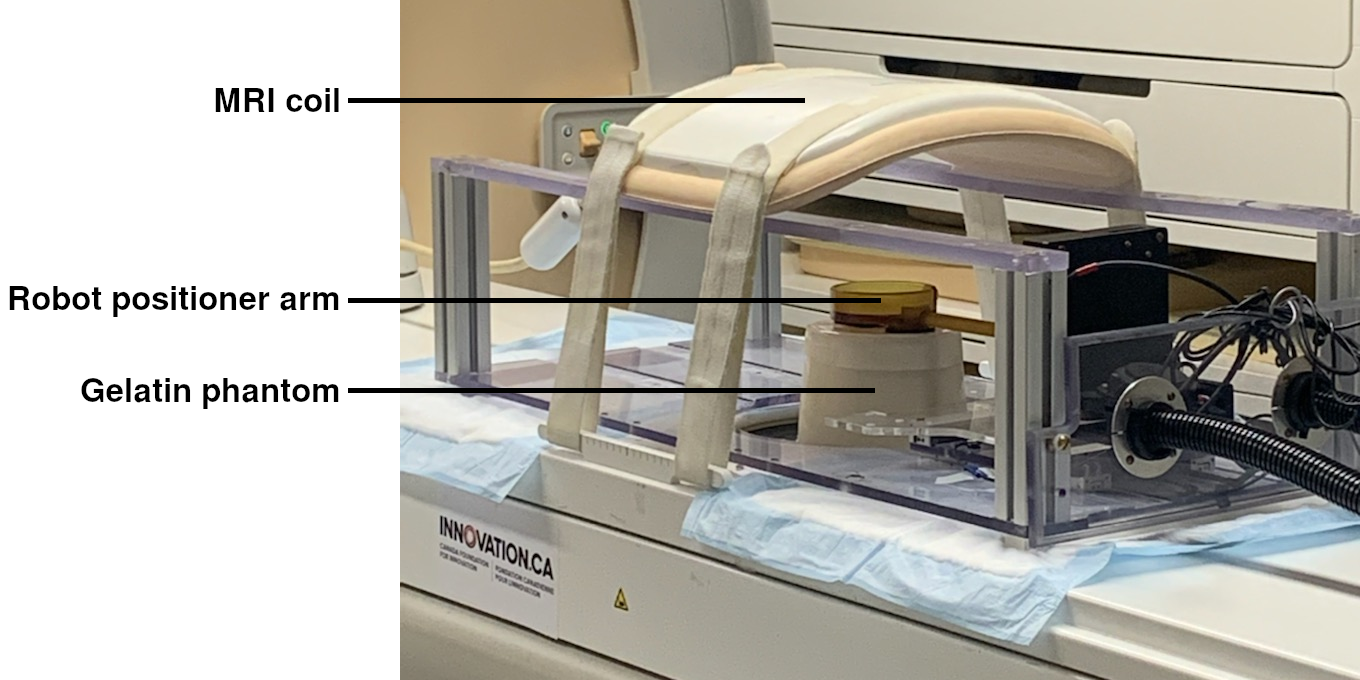

To assess the efficacy of the algorithm, MRI images of a gelatin phantom undergoing lateral displacement were retrospectively processed in Proteus. Proteus is a vendor-agnostic software platform that interfaces with MRI and HIFU hardware, in which custom MR thermometry processing techniques were implemented³. MRI data was collected using an echo-planar fast-field echo imaging (EPI-FFE) sequence implemented on a 3T Achieva Tx MRI System (Philips Healthcare, Best, NL). The gelatin phantom imaged had a volume of 2L and was composed of 8% gelatin, 2% silica, and 0.1% formalin in distilled H2O. The gelatin phantom was translated by a robot positioner shown in figure 1 by approximately 2.25 cm – corresponding to 15 voxels when imaged with a voxel size of 1.5 mm – then moved back to its original position. Across all trials, 16 atlas images were acquired before motion. The number of augmented images created and the standard deviation of created image displacement were varied in each set of retrospective processing. As a measure of severity of artifacts, the standard deviation of temperature was calculated in each thermometry image where the phantom was in the displaced position and averaged to obtain a temperature standard deviation value for each trial.

Results

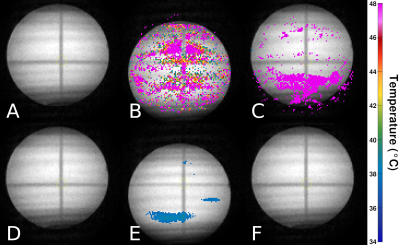

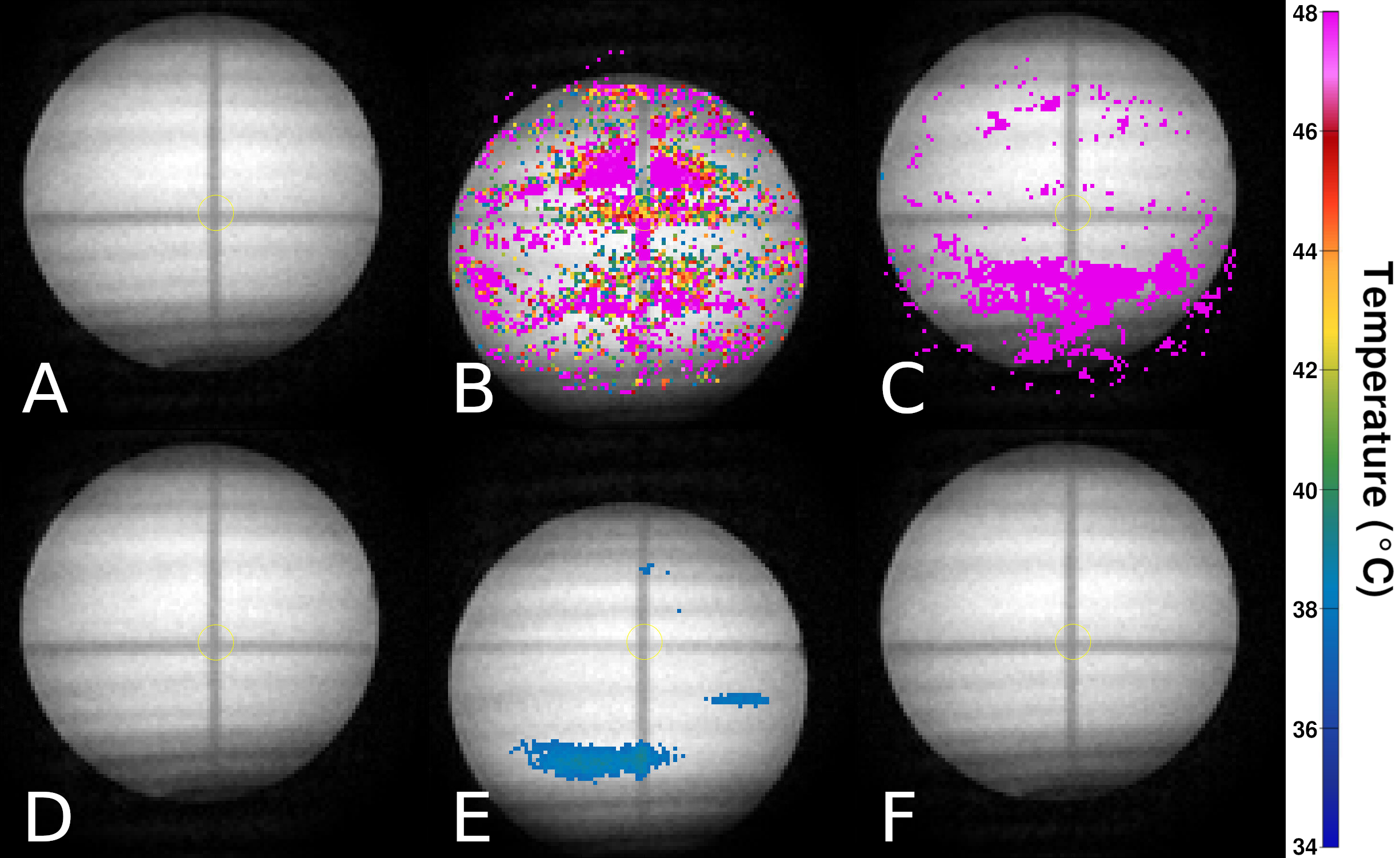

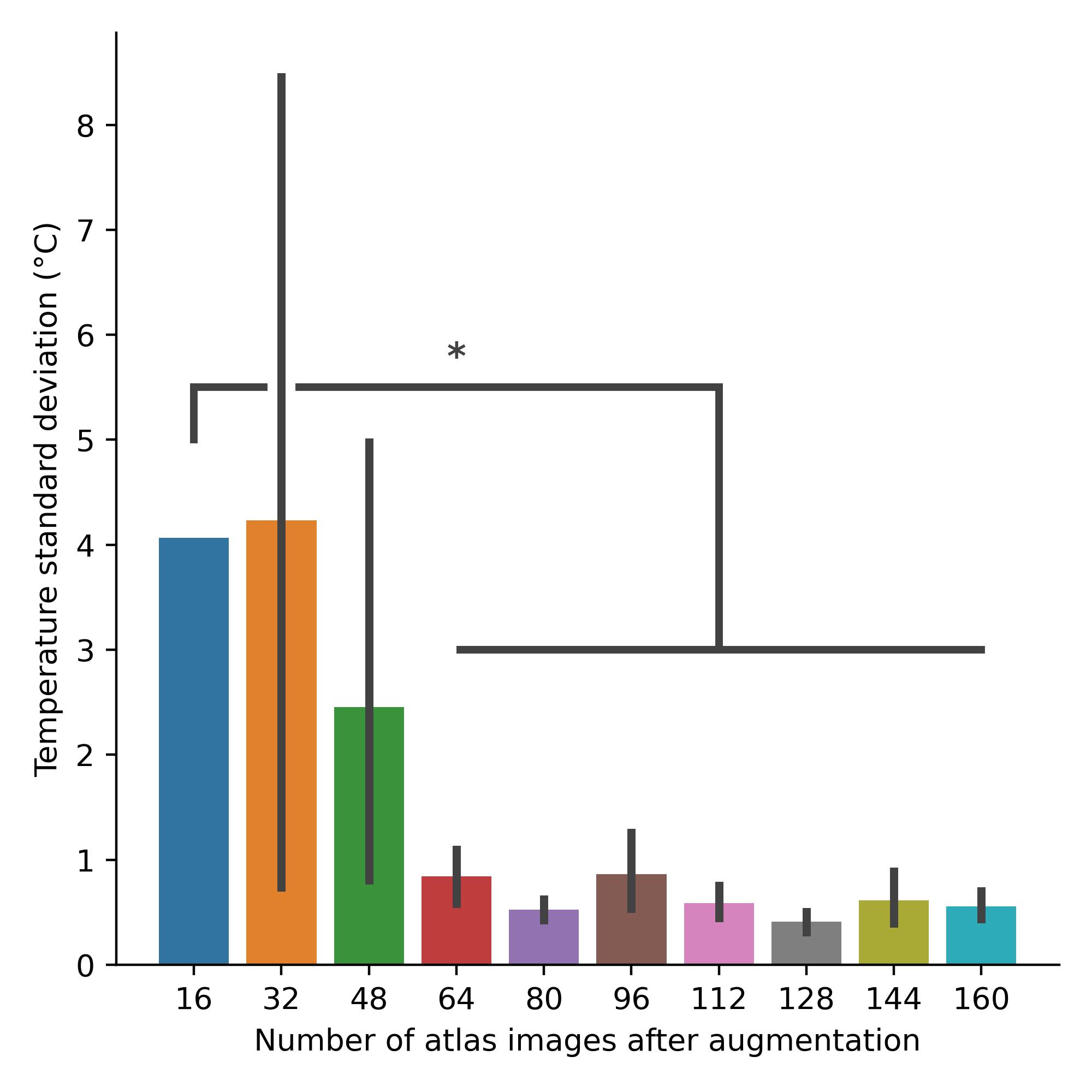

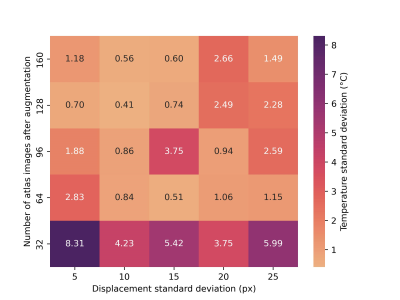

The temperature standard deviation resulting from a different number of atlas images and standard deviation of augmented image displacement is shown in figure 2. Figure 3 shows further trials with a displacement standard deviation of 10 pixels (column 2 of heatmap), which gave the lowest temperature standard deviation on average. The trials using 64-160 atlas images after augmentation showed a statistically significant reduction in temperature standard deviation compared to the atlas with 16 images. The 16-image atlas, produced with no augmentation, yielded a temperature standard deviation of 4.1 °C. The 128-image atlas yielded the lowest temperature standard deviation of 0.4 ± 0.1 °C, which is 3.7 ± 0.1 °C lower than the unmodified PCA-PDF implementation. The thermometry calculations resulting from this set of parameters are shown in figure 4, where an improvement in the severity of motion artifacts is evident.

Discussion

For the gelatin phantom motion data collected, an atlas of 64-160 images resulted in a significantly lower temperature standard deviation (figure 3), indicating that artifacts resulting from aperiodic motion were minimized as a result of atlas augmentation. The qualitative effects of the motion compensation can be seen in the difference in temperature calculations between the two rows. The top row, in which the unmodified PCA-PDF method is used, has random, high temperature artifacts scattered throughout the entirety of the phantom. The augmented PCA-PDF method resulted in reduced temperature artifacts that would be easily distinguishable from induced focused ultrasound heating.

Conclusion

The results obtained indicate that supplementing the PCA-PDF method with an augmented atlas of predicted motion images may be able to reduce artifacts created by sporadic motion in real-time MR thermometry. This would allow hyperthermia treatments using MRgHIFU to continue despite a large patient movement rather than being forced to stop and resume due to thermometry artifacts. This work also permits the development of more robust motion compensation algorithms for MR thermometry that can account for a wider range of bulk motions such as deformation, rotation, and more. Future work will involve optimizing this implementation to minimize computation time and further eliminate artifacts.
